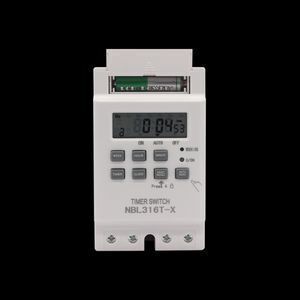

Holso Newest Design NBL316T-X 220V 30A Removable Battery 35mm Din Rail Mounting Timer Switch

Supplier: Sichuan Holso Science And Technology Co., Ltd.
Region: Sichuan, China
Contact: Mr TONY XIANG
Price: $3.50 / >=500 pieces
Min. Order: 500 pieces

Click here to contact

Product details

Max. Voltage:	220V 50/60Hz;	Timer range:	1 minute~168 hours;
Display:	LCD;	Package Preview:	;
Supply Ability:	10000.0 Piece/Pieces per Month;	ON/OFF operation:	16 times;
Battery:	Built-in welding battery;	Brand Name:	HOLSO;
Switching Resistance Load Capability:	30A;	Payment Terms:	L/C,T/T,Paypal;
Color:	White and black;	Port:	Port of Ningbo;
Customizable voltage:	12V 24V 110V;	Installation:	35mm Din rail;
Product name:	Timer Switch;	Model Number:	NBL316T-X;
Working voltage:	220v 50/60Hz;	Place of Origin:	Zhejiang China;
Max. Current:	30A;	Packaging Detail:	Carton packaging 50pcs/Carton;

Holso Newest Design NBL316T-X 220V 30A Removable Battery 35mm Din Rail Mounting Timer Switch

Product Application

Timer Switch can automatically turn on and off the power of various powered devices according to the users setting time.
It can be widely used in automatic chicken coop door, fish feeder, automatic preheating, light box, neon lights, water heater, water dispenser, fans, cell phone chargers, kitchen appliances, radio, television, street lamp, etc.

Product introduction

1. Newest design

2. Built-in Transformer

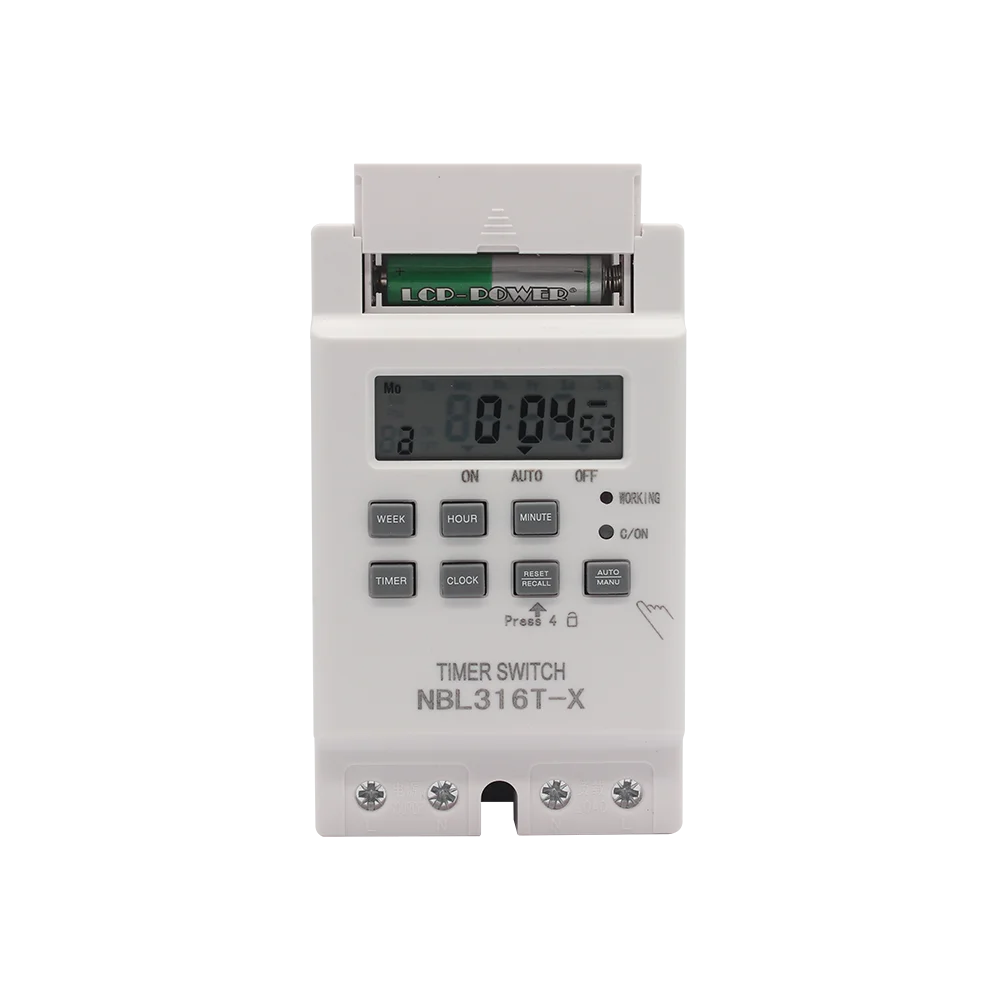

3. Replaceable battery

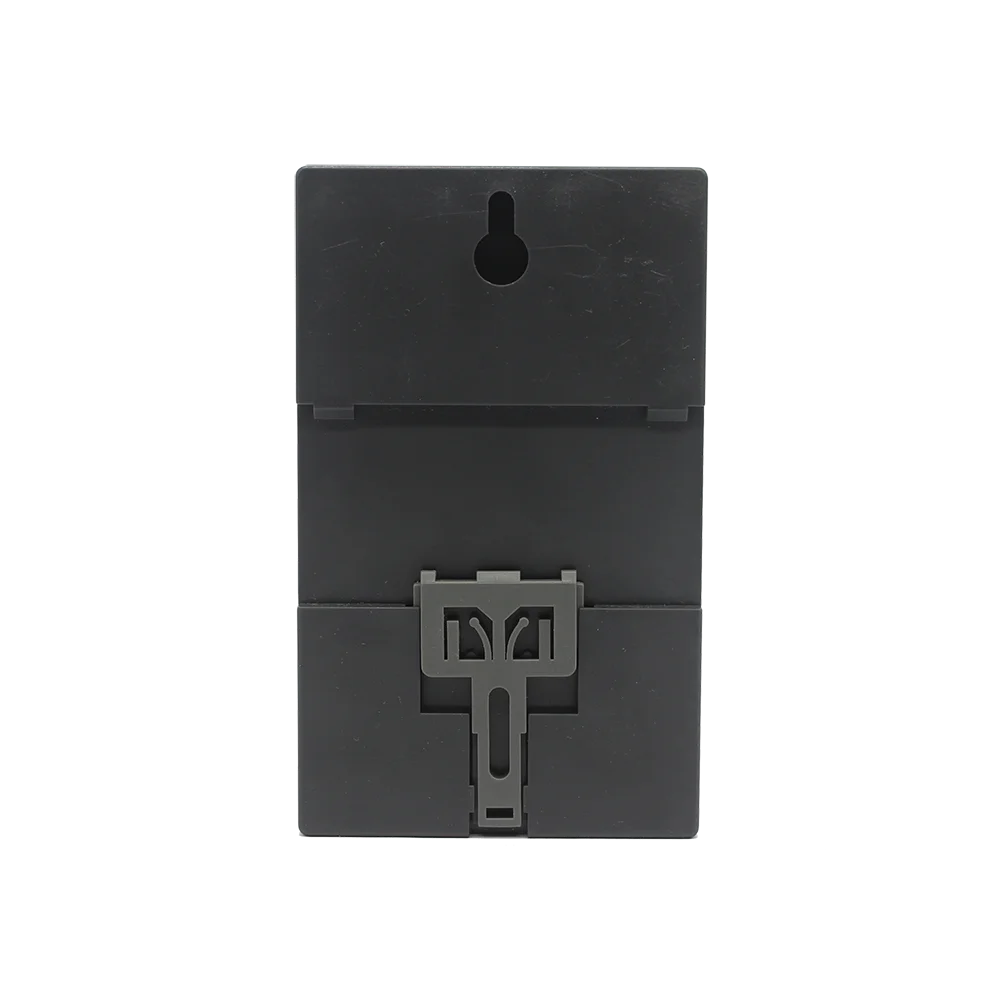

4. 35mm Din rail mounting ( The picture as below )

Specifications

Specifications:

1. Timing Range: 1 Minute ~ 168 Hours
2. Standard Voltage: 220V 50Hz
3. Contact Capacity: 30A
4. Power Consumption: no more than 3w

5. Operate Temperature: -30℃ ~ +80 ℃
6. Programmable: 16 times On / Off (week / day)

7. Time error: < 1s/day(25℃)

Payment method

BOLETO, mastercard, visa, e-Checking, PAYLATER, T/T, Paypal etc.

Shipping method

Shipping method

Sample ,Express delivery is recommended ,about 7~15days

≥5000pcs, Sea transport is recommended , about 30~45days

Package Includes

Single Product Packaging

1 x Carton
1 x Programmable Timer
1 x User Manual

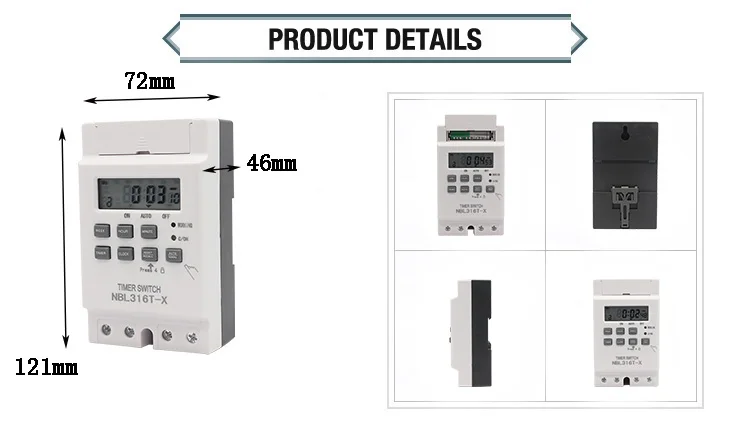

Packaging Information

50pcs/carton , Carton size : 42cm*27cm*35cm

Single packing size (cm)	Single packing weight (g)	Product size(cm)	Product weight (g)
1387	300	1217246	280

Customization

Product customization

Standard products :220v ,30A ,50Hz

1. We can customize the voltage: Wide voltage 90v~240v (MOQ>2000pcs)

2. Maximum current 30A,If you need to control the load of a larger current, We can provide you with AC contactor.

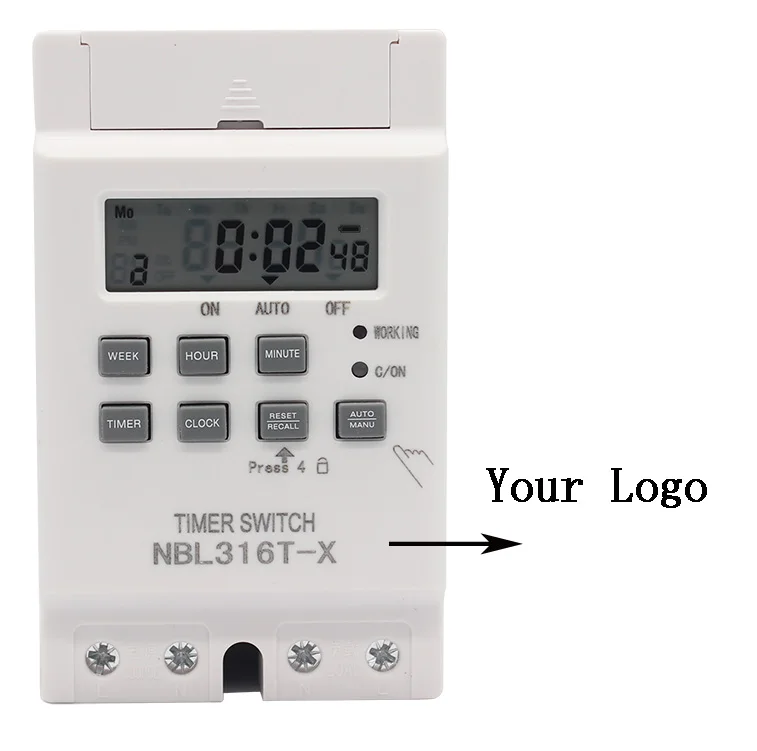

3. We can customize LOGO and packaging. Please contact the us.

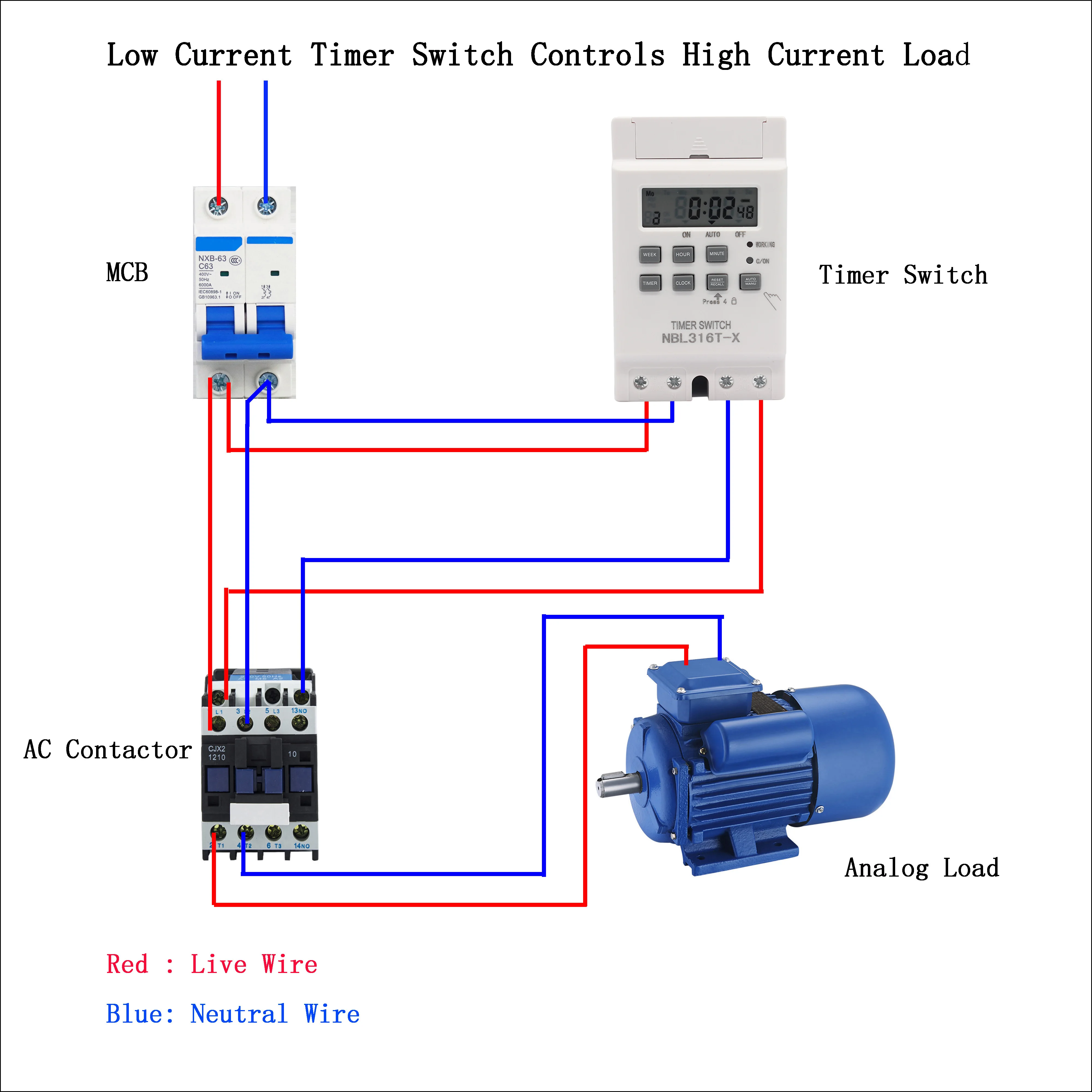

Wiring diagram

How to Use Low Current Timer Switch to Control High Current Load

1. MCB Control AC Contactor and Timer Switch Power Supply
2. Timer Switch Controls AC Contactor On and Off
3. AC Contactor Control Load

Note:

1. Select AC contactor according to load.

2. Select MCB according to AC contactor

After-sale service

After-sale service

We offer one-year product quality assurance. If there is any problem with the product, please do not disassemble it. Please contact the us. We have professional technicians to solve the problem for you.

more timer switches

ATTENTION:

Time setting should according to the time sequence, couldn’t be set crossly

System with quit automatically if there's no operating within 10 seconds. And no data is saved.

It will quit when setting finishes

Function 3, 4, 5, can not be used simultaneously
