SHIJIAN 220V 25A 16 or 28 on off Controller Programmable Electronic Digital Timer Switch

Supplier: Sichuan Holso Science And Technology Co., Ltd.
Region: Sichuan, China
Contact: Mr TONY XIANG
Price: $4.50 /piece
Min. Order: 1 piece

Click here to contact

Product details

Product name:	on off Controller Programmable Electronic Digital Timer Switch;	Battery:	Built-in welding battery;
Switch resistance load capacity:	25A;	Place of Origin:	Zhejiang China;
Brand Name:	HOLSO;	Dimension:	995642mm;
Packaging Detail:	Carton packaging;	Supply Ability:	50000 Piece/Pieces per Month;
Max. Voltage:	220V;	Max. Current:	25A;
Port:	Port of Ningbo;	Display:	LCD;
Weight:	130g;	Timer range:	1 second~168 hours;
Model Number:	KG316S-2;	Color:	White;
Payment Terms:	L/C,T/T;	Customizable voltage:	90~240V(Wide voltage);
Standard voltage:	220V;

SHIJIAN 220V 25A 16 or 28 on off Controller Programmable Electronic Digital Timer Switch

Product Profile

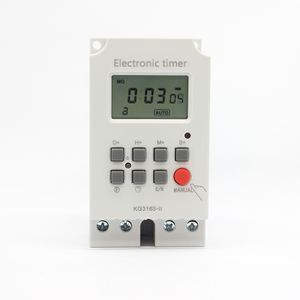

Model:KG316S-2

1. Standard voltage: 220V AC(Voltage can be customized); Contact capacity : 25A
2. Up to 28 on/off programs, Independent time settings for second,minutes, hours, days, and more
3. With the built-in battery, the unit retains the programming setting even in a power outage
4. Save time and energy by automatically turning on and off lamps, Christmas tree lights, fans, heater and other electrical devices
5. Essential for all hydroponic system, great way to keep everything on track and promote the healthy growth of your plants and flowers

Product Description

Practical Energy Saving Timer
Multi Programs
Power Timer can repeat programs with 28 ON/OFF setting and manual override, 1 second to 168 hours timing range, support advanced pre-setting one week before.

DIY Timer

It can be widely used for automatic chicken coop door, fish feeder, automatic preheating, light box, neon lights, water heater, water dispenser, fans, cell phone chargers, kitchen appliances, radio, television, street lamp, etc.

Save Energy

Interval circulation super flexibility in the scheduling, as an event can be set to operate everyday, by using this digital timer to power-cycle your household appliances, it's easy to take control for the best energy efficiency.

LCD Display

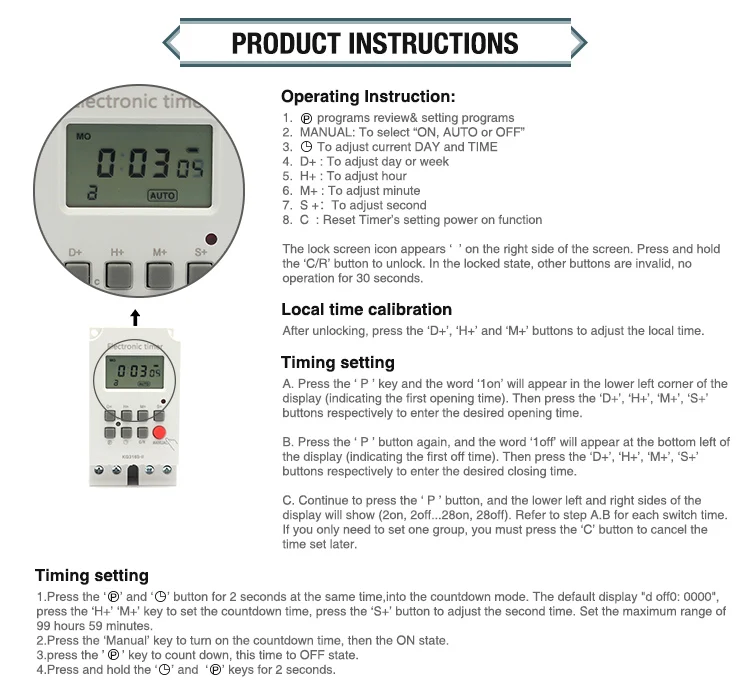

Easy to read LCD screen, panel mounted. Press D+ H+ M+ S+ Adjust the current time

Specifications:

1. Full Tme Range: 1Min-168Hours
2. Standard Voltage: 220V
3. Contact Capacity: 25A
4. Power Consumption: no more than 2w
5. InternalBbattery: 3V CR2450
6. Dimensions: 10cm*5.5cm*4.5cm
7. Power Failure Memory: 2 year
8. Operate Temperature: -20 to +55 C
9. Programmable: 28 times/week or day
10. Minimum Interval: 1 Second
11. Key Button: clock, timer, day, h+(setting the hours), m+(setting the minutes),s+(setting the second) manual override, reset

Package Includes

1 x Programmable Timer
1 x User Manual

Customized	LOGO and voltage

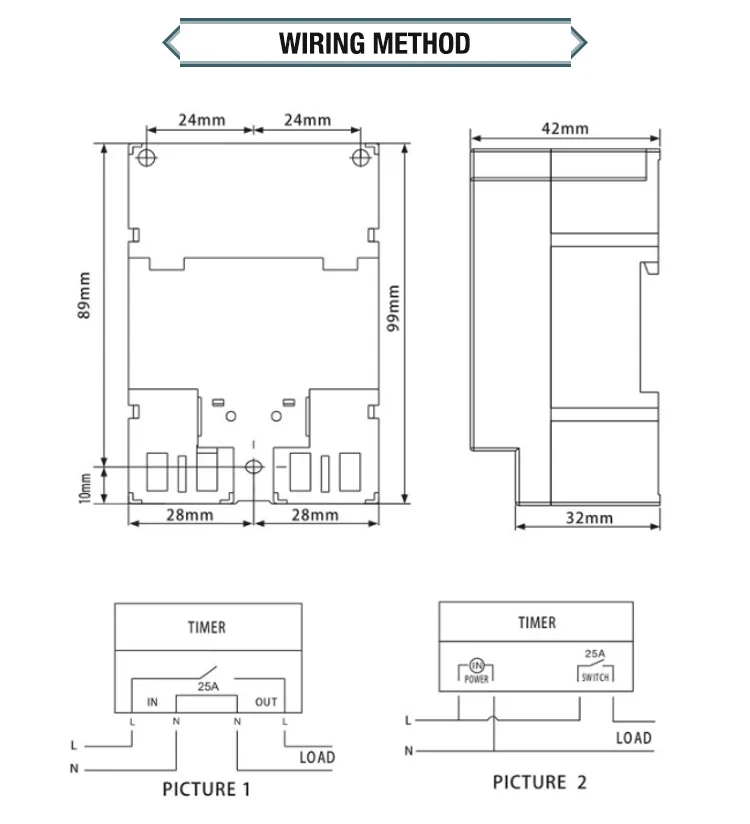

Install	35mm Din rail or Screw

Click on me to see more models

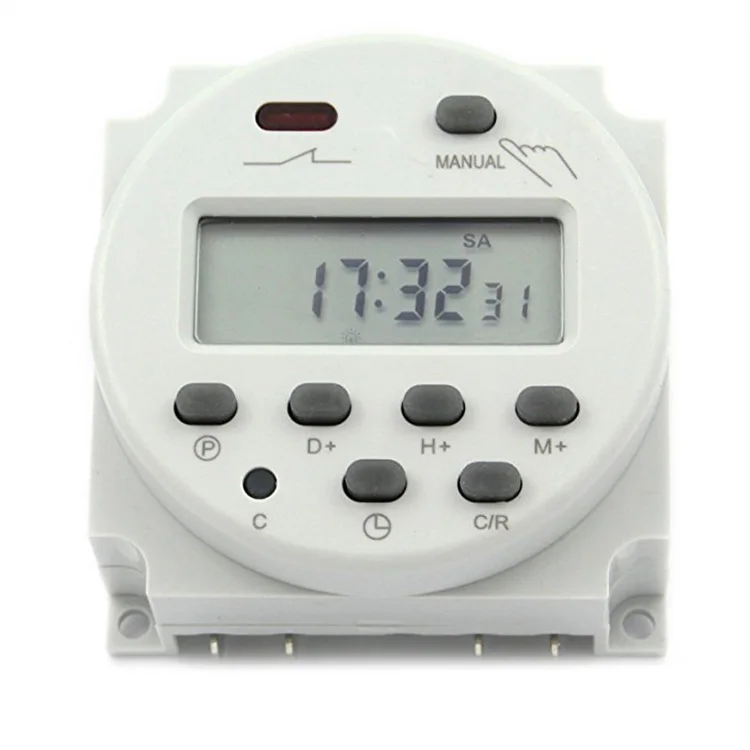

Model:NBL101A

Mini programmable timer switch

ATTENTION:

1.For those devices (medical equipment and large equipment) due to time error may occur human life or will have a significant impact on the community, please do not use this time switch.

2.The product is in a dormant state when you get, before use please press the reset button.

3.After the power is turned on, do not touch the terminal part .

4.The timer can't be used in moisture, corrosion and high metal content gas environment.

5.For those devices because of timer error may lead to significant property damage (large heater and refrigerator, etc.), when using the timer switch, be sure that the value A and performance characteristics have sufficient margin, and take double circuit security countermeasure.

6.Do not repair by yourself. Repair, inspection, please entrust to the dealer or responsible for the construction of the unit Before installing,please press the yellow spring. When you confirmed the product be put in a suitable place, press back the yellow spring,products can be fixed.
