magnetic lifter name: | lifting magnet 1 ton 2 ton 3 ton 4 ton permanent magnetic lifter; | Port: | shanghai port ,xin'gang port; |
magnetic lifter delivery time: | on time; | magnetic lifter colour: | as ordered; |
magnetic property: | Industrial permanent Magnet; | Payment Terms: | L/C,T/T,Western Union; |
Condition: | New; | Dimension(L*W*H): | 58*30*30; |
magnetic lifter test load: | 300-25000KG; | Packaging Detail: | lifting magnet industrial magnets 1ton 2 ton 3 ton 4 ton permanent magnetic lifter packing: carton with wooden case; |
shipping port: | shanghai port ,xin'gang port; | Supply Ability: | 50000 Set/Sets per Month industrial magnets lifting magnet permanent magnetic lifter; |
After-sales Service Provided: | Online support; | after-service: | available; |
Certification: | TUV CE ISO SGS; | magnetic lifter net weight: | 3-400KG; |
Warranty: | 2 years; | trade assurance: | yes; |
Brand Name: | HUGO permanent magnetic lifter; | Place of Origin: | Shanghai China (Mainland); |
capacity: | 100KG-10000KG; |

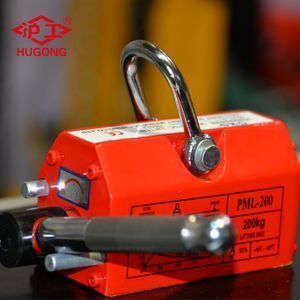

The permanent magnetic lifters are mainly used for lifting the steel plate and round steel, because of the light weight, ease of operation and powerful suction, magnetic lifters are widely applied in ship engineering, warehouse, transportation and machinery manufacturing.
Model | Rated capacity(Ton) | Max tension(kg) | Size(mm) | Net weight(kg) | |||
---|---|---|---|---|---|---|---|
L | B | H | R | ||||
YS-100 | 100 | 300 | 90 | 63 | 68 | 145 | 3 |
YS-400 | 400 | 1200 | 160 | 95 | 180 | 160 | 11 |
YS-600 | 600 | 1800 | 220 | 115 | 125 | 230 | 20 |
YS-1000 | 1000 | 3000 | 260 | 145 | 145 | 280 | 40 |
YS-1500 | 1500 | 3750 | 310 | 145 | 145 | 280 | 48 |
YS-2000 | 2000 | 5000 | 340 | 160 | 165 | 410 | 60 |
YS-3000 | 3000 | 7500 | 420 | 185 | 185 | 510 | 90 |
YS-4000 | 4000 | 10500 | 480 | 200 | 200 | 510 | 120 |
YS-5000 | 5000 | 15000 | 580 | 300 | 300 | 650 | 400 |
1. Permanent magnetic lifter is widely used as lifting tools in factory terminals and warehouse.
2. Safe and reliable, easy to operate, can be used single or combined with other machines to move long and big magnetic iron steels.
3. Using high-performance permanent magnet, ensure the power and high safety.
4. With a "V" style design at the bottom of lifter, can lift both round steel and steel plate.
5. Maintain constant and reliable magnetism without electricity, residual magnetism approach naught.
6. The maximum pull-off force as 3.5 times as rated lifting force which contribute to improve the working conditions of loading operation and labor productivity.
7. The lifting have high resistance to demagnetization, the lifting value will keep constant and stable.
