High Speed Vertical Glass Washing Machine

GPL-HX2500/2200/2000/1800 Vertical Glass Wash Machine

Product Catalog

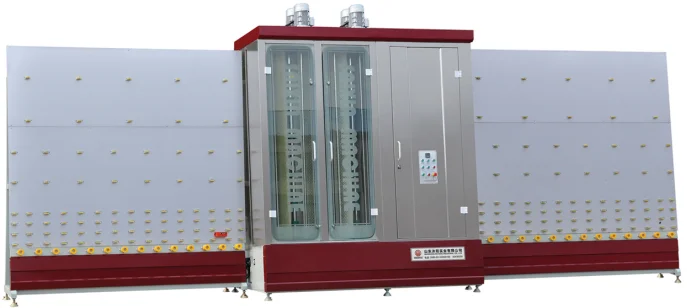

GPL-X1600 Vertical Glass Wash Machine

GPL-X2500/2200/2000/1800 Vertical Glass Wash Machine

GPL-HX2500/2200/2000/1800 Vertical Glass Wash Machine

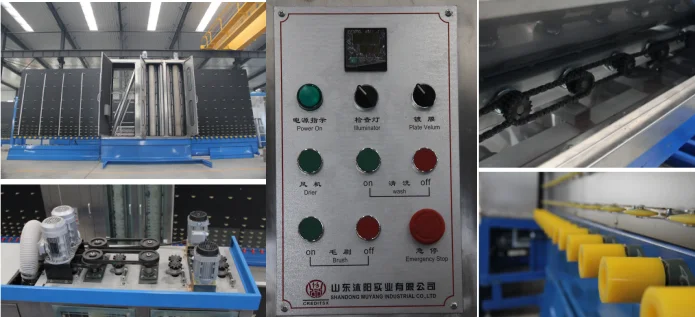

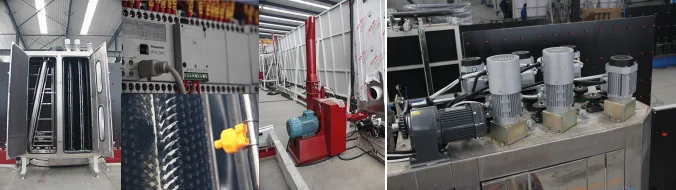

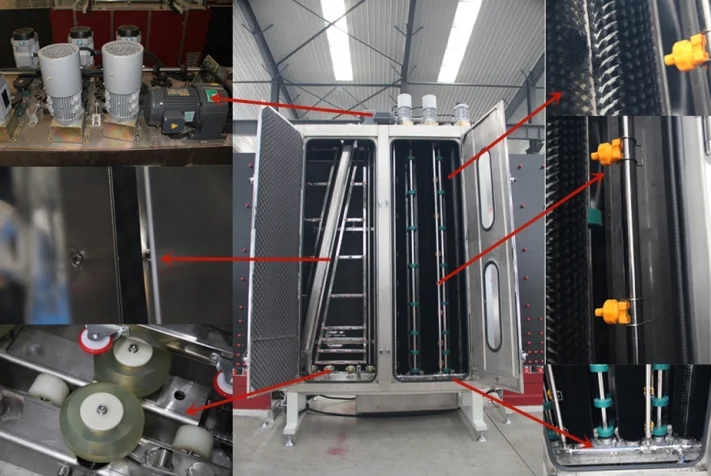

Vertical Style Glass Wash Machine Mechanical Structure Characteristics

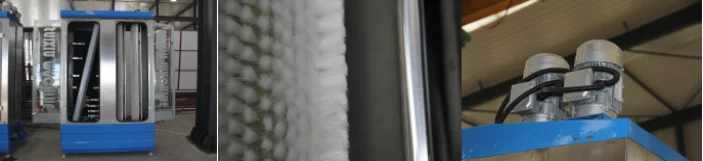

The vertical washing machine with its robust structure in stainless steel, is equipped with 6 sets Germany brushes which has a anti-static and waterproof function.Independent motors for each brush to ensure washing reliability , in particular is the absence of vibrations.Independent stainless steel tanks are provided for washing & rinse section in order to avoid the mixing of dirt,it also accelerate water filtering and recycling. Both drying air and conveyor belt  in an automatic control which are synchronize work or stop. The Low-E glass would detected at entry, the front hard brushes are then automatically Lift up and washed with other sets Low-E brushes. There three washing zones including Pre-washing area, main washing areas and spay washing zone, which are all equipped with three pairs of brushes. The special blade structure nozzles of the drying area ensure the residue-free drying of the glass passing through. The roller brushes and transport devices automatically adjust to the thickness of the glass sheet.

 GPL-X1600 Vertical Glass Wash Machine

Features

The washing part was welding by stainless stell ,it is high strength and shape will not change ;the top parts made from 3mm thick stainless steel ; the bottom is made from 5mm thick stainless steel ,the lateral is made from 2mm thick stainless steel.

Two steps washing + three spay lines + separate room for clean water ,wash glass quick and clean.

Circle glass dry system and low noise, temperature can reach 40℃ with no heating .

Technical Data

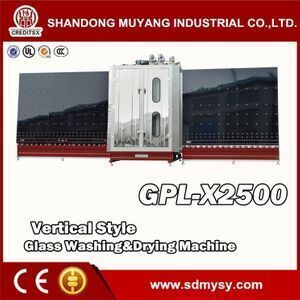

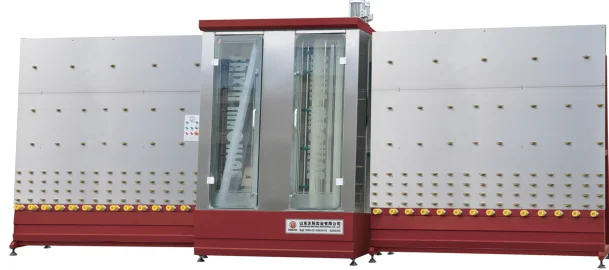

GPL-X2500/2200/2000/1800 Vertical Glass Wash Machine

Features

Air knife can be adjusted automatic according to the width of the thickness of the glass.

European style fans with air inlet heating in winter to make sure drying effect.

Cleaning tank, air-dried container, air knives made of stainless steel, elegant appearance, never rust.

Six Germany Imported brushes .

Air-dried container and fans circulating air system, the blade structure air blower keep temperature about 40℃ without the heating up.

Technical Data

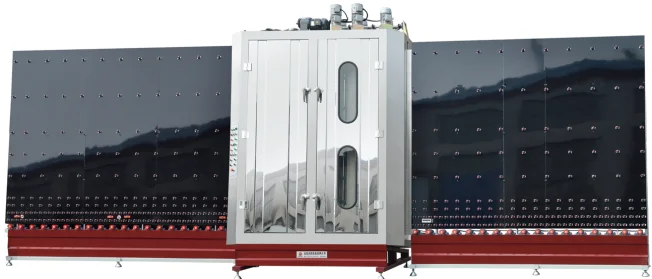

GPL-HX2500/2200/2000/1800 Vertical Glass Wash Machine

Features

 The washing part was welding by stainless steel ,it is high strength and shape will not change ;the top parts made from 12mm thick stainless steel ; the bottom is made from 5mm thick stainless steel ,the lateral is made from 2mm thick stainless steel.

 OMRON system for low – E glass, it can know if it is the coating side of  the low-E glass.if it is Low_E glass  the hard brushes will apart avoid damaging the coating of glass.

 six anti-temperature brushes, diameter is 180 mm. four sprayer, high speed, glass washing clean, speed is about 10-12m per minute. The spring is stainless steel and can adjust 3-15 mm for different thickness of glass.

 All part contact water include the axle in the washing machine is stainless steel,copper or waterproof aluminum,nylon and so on, it will not rust for long time running ,and easy to maintain.Dear driving system take chain reaction so it will not leave the original position after long time running.

 Dry part frame is stainless steel will not dirty the glass second time,the circle wind also down the noise.

 The circle hot wind down the notice come from the machine( in winter the hot wind temperature can reach 40℃ even no heating).

Technical Data

Company Introduction

MUYANG INDUSTRIAL™

The Insulating Glass Equipment Manufacturer You Can Count On.

MUYANG INDUSTRIAL™ Equipment is the top of the line in insulating glass production in terms of seal longevity and structural integrity. MUYANG’s dual-seal construction is characterized by an induction-welded, anodized, uninterrupted, aluminum airspace with four “bent” corners, the hallmark benefit of our insulating glass equipment which is widely held to be among the world’s best.

The primary seal normally use is polyisobutylene (PIB) or Butyl on production, the most effective barrier to moisture vapor and water. The secondary seal consists of polysulfide for conventionally glazed applications, or silicone for structural-glazed applications. All design and machine building of our equipment according the popular material for insulating glass production.

MUYANG are warrantied against seal failure for 10 years in vertically glazed applications, and for 5 years in sloped-glazed openings which product by our machine. This limited warranty is available upon request.

For the last 22 years, we have been working hard to enable you to sustain-ably boost the efficiency, the system availability and the quality output of your flat glass production process.
