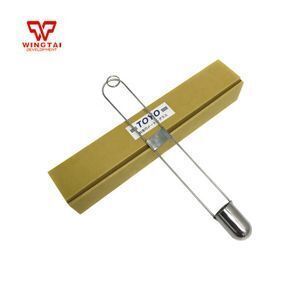

44ml Japan ink viscosity cup/zhan Viscosity Flow Cup For Aperture 1~7mm

Product details
Material:Stainless steel;Model Number:1#~7#;
Suitable industry:Printing industry, ink glue and paint coating industry, etc;Usage:Used for measuring the viscosity of liquid.;
Packaging Detail:carton box;Packing:Environmentally friendly paper packaging;
Aperture:1~7mm;Selling Units:Single item;
Measuring Range:20~3000 Centistokes;Net Weight:0.2kg (0.4 pounds);
Size:390 * 48 * 37mm;Place of Origin:Japan;
Single package size:42X9X9 cm;Brand Name:WT;
Single gross weight:1.1 KG;Cup Volume:44ml;

44ml Japan TOYO ink viscosity cup/zhan Viscosity Flow Cup For Aperture 1~7mm





Technical Data



Technique Parameters:
Origin: Japan
Brand: TOYO

Cup Volume: 44ml
Cup Material: Stainless steel
Net Weight: 0.2kg (0.4 pounds)
Size: 390 * 48 * 37mm

Model: Zahn 1#~7#
Packaging: environentally friendly paper packaging



Products information



Japanese cup aperture parameters :

Before using it you should choose a suitable cup, let the flowing speed at 10~90 seconds and also need a stopwatch with relatively high precision.



Model

Aperture

Measurement range

(Centistokes)

Measuring

Temperature

Application

No 1

1mm

~20

Indoor

Temperature

For very dilute liquid

No 2

2mm

~70

For very dilute liquid

No 3

3mm

20~250

Suitable for: thin oil, mixed paint, varnish

No 4

4mm

80~700

It is suitable for medium viscosity ,

thick fluid and mixture

No 5

5mm

200~1000

Suitable for thick fluid and the mixture

No 6

6mm

400~2000

For special viscous fluid and mixture.

No 7

7mm

900~3000

For special viscous fluid and mixture.





Note:  A precision stopwatch is needed when testing.





British Zahn cups of technical parameters :



+

Model

Aperture (mm)

Measurement range (cSt)

Application

k

c

1

2 (0.08in)

Maximum 60

For very dilute liquid

1.1

29

2

2.74 (0.11in)

20~250

Thin oil, mixed paint, varnish

3.5

14

3

3.76 (0.15in)

100~800

Medium viscosity , thick fluid and mixture

11.7

7.5

4

4.26 (0.17in)

200~1200

Thick fluid and the mixture

14.8

5

5

5.28 (0.21in)

400~1800

For special viscous fluid and mixture.

23

0





Product Description



Operation theory:



Mainly used for accurate measurement of ink viscosity, accurate color. Japanese technology seiko production, apply to the workshop, the factory or laboratory, for a quick check and adjust a variety of different viscosity of the fluid.



Each dip cup has a ring of 12 inches long handle, with the hand held the handle can be soaking cup into the container.

In the center of the handle has a ring shape circle, facilitate cup stays in the process of using vertical position.


For a specific cup leaching results at a specified temperature for "Zahn Cup".



Effect : Accurate measurement of ink viscosity, precise color matching.



Feature : Stainless steel cup, precision drilling flow mouth, exquisite workmanship, measurement precision, durable (With a stopwatch to use)



Application: It is used at any place like workshop, factory or laboratory, rapidly test and adjust the viscosity of different fluid.This viscosity cup is to test the viscosity of Newtonian or similar Newtonian  fluid.



Wingtai as Japan TOYO viscosity measuring cup China area general agent, focusing on the gravure equipment development and supply, our service will make you a value!
