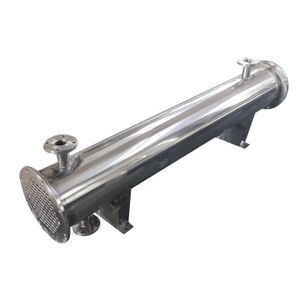

Food grade stainless steel sanitary shell and tube heat exchanger

Supplier: Wenzhou Leno Machinery Co., Ltd.
Region: Zhejiang, China
Contact: Mr Jason Chen
Price: $889.00 /set
Min. Order: 1 set

Click here to contact

Product details

working temperature:	20-147celsuis degree;	Local Service Location:	United States;
Condition:	New;	Structure:	Tube Heat Exchanger;
Key Selling Points:	high quality;	Material:	SS304,SS316;
Liquid Flow Rate:	1.9;	heat exchanger square:	0.1-20Square;
Showroom Location:	United States;	Place of Origin:	Zhejiang China;
Warranty:	1 YEAR;	Maximum Working Pressure:	2.5Mpa;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,alibaba insurance;	Product Name:	stainless steel tube piper heat exchanger;
Supply Ability:	100 Set/Sets per Month;	Weight:	customized;
After Warranty Service:	Video technical support,Online support,Spare parts;	Brand Name:	LENO;
Max fin number:	300;	Applicable Industries:	Hotels,Machinery Repair Shops,Manufacturing Plant,Food & Beverage Factory,Farms,Food Shop,Food & Beverage Shops;
sealing:	EPDM,PTFE;	Dimension(LWH):	customized;
Feature:	heating and cooling;	After-sales Service Provided:	Video technical support,Online support;
Heat exchanger type:	Tube heater exchanger;	Certification:	CE;
Packaging Detail:	Plywood case;	flow:	0-30T;
connection size:	6mm-25mm;	Port:	Ningbo and shanghai port;
Voltage:	110V-480V;

Food grade stainless steel sanitary shell and tube heat exchanger
Profile type	Tuber exchanger
Material	SS304 or SS316L
Capacity	0.1T/H-100T/H (Customized)
Working pressure	0.8Mpa(Customized)
Heating Area/Cooling Area	0.1~20M2
The Diameter of Pipe	Φ6/Φ9/Φ12/Φ16/Φ19/Φ25mm
Inlet Outlet	Φ19~ Φ219mm

1.Tuber exchanger is the equipment that can transfer certain heat from the thermal fluid to the cold fluid. It is the essential equipment to achieve the heat exchange and transfer during the production process.

2.Tuber exchanger is mainly used for heating and cooling treatment of material during production in pharmaceutical industry. Chemical industry, food industry, light industry etc. The lined pipe heat exchanger can be made of SS304/316 etc.
3.Heat exchanging pipes can be naked pipes or spiral pipes, and the minimum size ca be Φ12x1. Connection between pipes and plates can be welding, expanding connecting, or expanding and welding. It also can be designed and produced according customer various requirements.

Techanical Parameter

Model	Product capacity (T/H)	Working temperature (°C)	Heat exchanger area(m2)	The Diameter of Pipe(mm)
LEX-1	1	20-147°C (According to customer requirements)	0.1~20M2	Φ6/Φ9/Φ12/Φ16/Φ19/Φ25mm
LEX-2	2
LEX-3	3
LEX-5	5
LEX-8	8
LEX-10	10
LEX-15	15
LEX-20	20
LEX-30	30
we can design drawing according to your requirements.

More Details Picture

Certifications

Buyer Feedback

Packaging & Shipping

FAQ

Q1	Are you trade or manufacturer?
A	We are a factory with an international sales company specialized in support for global distributors.
Q2	Can you provide instant technical consulting services?
A	We are able to discuss technical details and offer suggestions over the phone in English. You can get the answers in minutes, instead of days.
Q3	What's the difference between Ready-To-Ship and Customized products?
A	Some of RTS standard products are in stock and ready to ship in 2-3 days. We can also quick design and make the drawings for customer requirements, then begin the production.
Q4	What is the payment terms?
A	We accept Alibaba Trade Assurance Order, also can T/T and L/C.
Q5	How to choose the shipment way?
A	It is according to the order quantity, delivery time, costs and customs policy etc. (Or decide by customers)
Q6	How about the after-sales service?
A	Fast after-sales support. Our products have a one-year warranty and free permanent consulting services.
