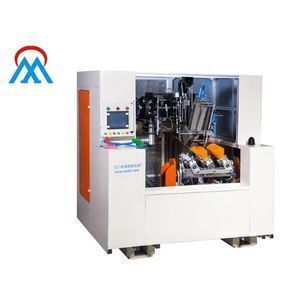

5 axis 2 drilling and 1 tufting brush/broom making machine

Product details
Certification:Patent Certificate;After-sales Service Provided:Engineers available to service machinery overseas;
Power:1000W;Voltage:220-380V;
Packaging Detail:Wooden box packing (packing way: the first layer packed with thin film,the second covered with wooden box) Delivery Time: within 45 days after receipt the deposit.;Brand Name:Meixin;
Automatic Grade:Automatic;Condition:New;
Port:Jiangmen;Production Capacity:2500Pieces/10 Hours;
Dimension(L*W*H):2.5*1.4*1.98M;Place of Origin:Guangdong China;
Application:to make brooms;Payment Terms:T/T;
Warranty:One Year;Weight:1000kgs;
Supply Ability:300 Set/Sets per Year;
  ▍    Product Description




1.Product Description: Low noise making brush tufting machine,it use to make the ceiling broom ,it’s hot sales in India,Pakistan and so on

2.Specifications





SPECIFICATIONS FOR 5 AXIS  TOILET BRUSH 2 DRILLING AND 1 TUFTING MACHINE



TRAVEL OF AXIS

X AXIS

MM

250

Y AXIS

MM

200

Z AXIS

DEGREE

100°

B AIXS

DEGREE

360°



A AXIS

MM

200



Main performance parameters

DIA OF HOLES

MM

4-7

LENGTH OF FILAMENT

MM

30-120

DIA OF FILAMENT

MM

0.25-1

FIBER BOX

2 FIBER BOX



MATERIAL OF FILAMENT

PP,PET,NYLON,SO ON

TUFTING METHED

ROUND WIRE/STYPE WIRE

FLAT WIRE/ANCHOR WIRE

PRODUCTIVITY

2000PCS/10HOURS

SPEED

HOLES/SEC

5-8



Controller system

PLC

INCH

6.5

VOLTAGE

V

220 OR 380

POWER

W

1000





Technical characteristics



a.installed with one tufting motor head,high speeding processing,high volume,cost effective

b.this machine can produce many different kinds of brushes or brooms which have different filling angles, by changing specific platform

c. filament by:round nails or flat nails

d. PLC and Touch Panel Control System of Man-Machine, Chinese and English display, simple to understand.

e.allow to save as 2000 procedure and easy for the creation of new models

f. Wearing parts and spare parts are standardized designs to reduce hair mechanic technology dependence

g.our machine can produce either one color two colors or three colors brush



Main Feature



 a. FMX fixture allows fast change over for a new brush tufted production. This low noise 3 axis cnc FAN BROOM machine for making brush with 2 grippers

 b.Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

 c.Independent 3 aix motion ,suitable for any wooden or plastic brush handles tufting.

 d. Running in a high automatization and intellectualization,no pollution

 e.This 3 axis cnc machine for making brush is stable and low noise.

 f.long life ,brush machine be sure confirm 100 % before shipment.

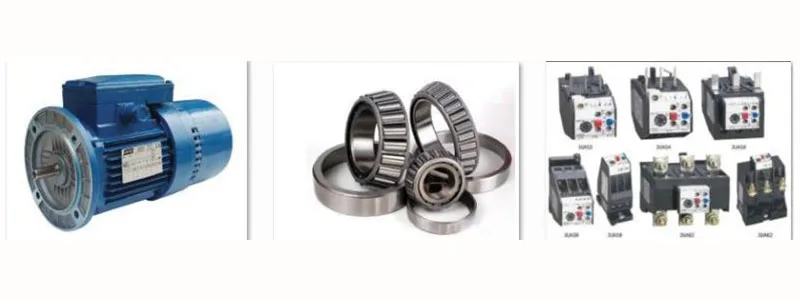

 Wearing Parts and Spare parts are Standardized designs





Detailed Images



Machine Parts

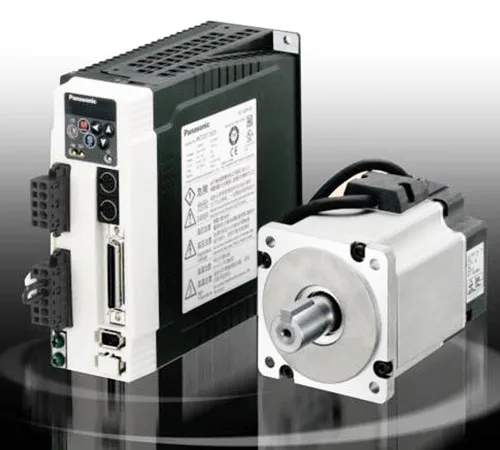

Brand:Panasonic

Original:Japan

Servo motor control operation of the mechanical

Components in the engine servo system,the transmission

Is a motor indireName:servo motor & driver

ct subsidy.

Servo motor,can control the speed ,location accuracy is very

Accurate.The voltage signal is converted to torque and speed

to drive the control object.





Machine Parts

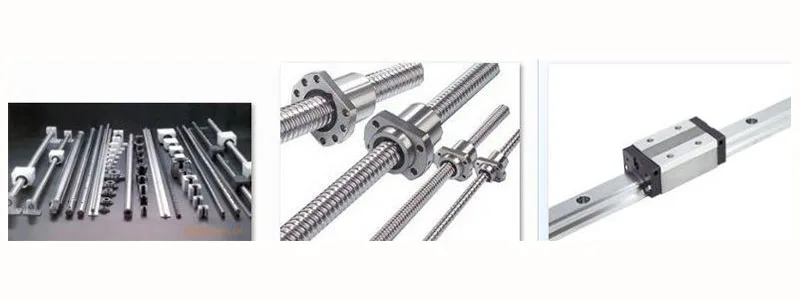

Name:Guide way

Brand:HIWIN

Original:TAIWAN

1.Best sophisticated design,ease of installation,the Quartet Jie high rigidity and load capacity overweight,background noise,smooth motion.

2.Slider,side and two kinds of material with stainless steel alloy.The stainless steel linear rails,including the slider,rails and other metal parts such as ball

3.The gothic type four-point contact design,can withstand loads in all directions,with strong rigidity,high precision characteristics.

4.Volume lighter quantity,especially for small devices.


Machine Parts

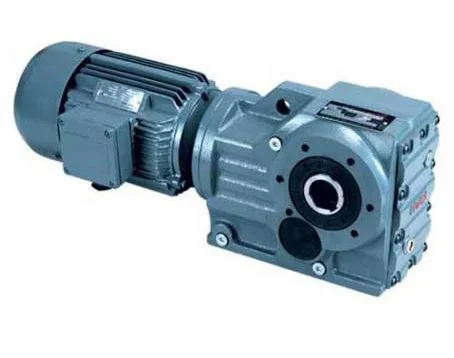

Name:Reducer

Brand:DELTA

Original:TAIWAN

1.The bevel gear structure,suitable for installation where space is limited or steering output occasions.

2.Applicable to all brands of servo motors and stepper motors.

3.Sealed,do not have oil change,easy to install.

4.The internal component using heat-treated high-strength alloy steel,parliament and cope with the server poor working conditions.





Machine Parts

Name:Reducer

Brand:DELTA

Original:TAIWAN

Reducer is independent of the prime mover and closed gearing between the working machine for reducing speed and increasing torque to meet the work requirements, in some cases also to the growth rate, the growth rate is called.





Company Information



Our factory is specialized in producing 2 to 5 axis single(double) color brush machine,CNC tufting machine,CNC tufting and drilling machine,CNC drilling and tufting combination machine,filament trimming machine,filament cutting machine.Our products mainly are widely used in all kinds of brushes,for example:broom(plastic and wood)cleaning brush,electric toothbrush,travel toothbrush,cosmetic brush,nail polish brush,industry roller brush,strip brush,round disc brush,dish washing brush,comb,wooden brush and so on.





Certificates





We can make Many kinds of brushes series making machine





Our Services



In the warranty period(one year),we will send you one set of wear parts

If machine is broken,engineers is available to service overseas(but buyer has to our engineer round trip ticket fee,living and eating fee and pay our engineer daily salary

After warranty year,if the wear parts are broken,we can send new for you,but you paid the wearing parts fee and shipping fee.



This machine was load to Pakistan . Loading on 4th,Jan,2017



Packing and Delivery Time

 Wooden box packing (packing way: the first layer packed with thin film,the second covered with wooden box)

 Delivery Time: within 45 days after receipt the deposit.
