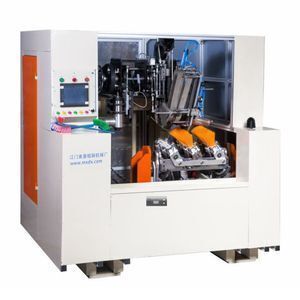

Automatic CNC high production 5 axis 2 tufting brush making machine household broom making machine for floor cleaning broom

Product details
Weight:1000 KG;Port:FOB Shenzhen/ Guuuangzhou/ Jiangmen;
Production Capacity:4~6 holes/ second;Automatic Grade:Automatic;
Voltage:220/380 V;Dimension(L*W*H):2200*1300*1800mm;
Package Preview:;Supply Ability:300 Set/Sets per Year;
Power:2 KW;Warranty:1 Year;
After-sales Service Provided:Engineers available to service machinery overseas;Condition:New;
Brand Name:Meixin;Certification:CE;
Application:make brush/ broom;Place of Origin:Guangdong China;
Payment Terms:L/C,T/T;Packaging Detail:wooden box packaging;

Automatic CNC high production 5 axis 2 tufting brush making machine

household broom making machine for floor cleaning broom

Description:
ModelMX-5AT001
NO. of axis5 axis
Qty of heads1 tufting
ApplicationVariety shape brush and brooms
brush typesBrush base with holes
Brush base materialsPlastic, wood
Filament materialsPP,PET, Nylon,animal hair plant fiber etc.
The mold fixture size300*50mm
Diameter of hole 4~6mm
The length of filament(outside the hole)50~110mm/ 150~200mm
Colors of Brush Filaments2 colors
Parameter:
tufting Speed4~6 holes/sec.
Power voltage, frequence220/380v , 50/60HZ  (customer choose)
Main motor power2 kw
Air Source Input0.4~0.5Mpa
Equipment size2200*1300*1800mm
Weight1000kg
