Port: | Shanghai or Ningbo port; | Body Material: | Steel; |
Packaging Detail: | 6 pieces or 12pieces a pallet,usually a standard container 5.89m*2.35m*2.35m can contain 144 pieces of KRM-143; | Application: | truck cranes,trucks,loaders etc; |
Local Service Location: | None; | Condition: | New; |
Working Pressure: | 6.4MPa; | Payment Terms: | T/T; |
Power: | Hydraulic; | Warranty: | 1 YEAR; |
Standard or Nonstandard: | Standard; | Showroom Location: | None; |
After Warranty Service: | Spare parts; | color: | black; |
Applicable Industries: | TRUCK PARTS; | Brand Name: | FangRui; |
Weight: | 170kg; | Structure: | Piston Cylinder; |
Shaft material: | steel; | Supply Ability: | 500 Piece/Pieces per Month; |
Place of Origin: | Jiangsu China; |
color | black |
Weight | 170kg |
Working Pressure | 6.4MPa |
Shaft material | steel |
Application | truck cranes,trucks,loaders etc |

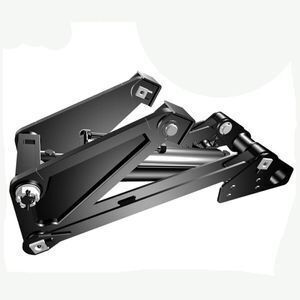

Product Keywords | 10 ton KRM143 hydraulic hoist |
used in loaders,excavators,truck cranes,Dump trucks and other vehicles
the body is black and the triangle plates have steel bars to make the integration more firm.
the air viscosity is small, the resistance to less than the hydraulic oil
Cylinder specification(approx.)
Model | Piston Rod diameter(mm) | Cylinder Inner diameter(mm) | Stroke(mm) | Weight(kg) | Working Pressure(Mpa) | Min.Close Distance(mm) |
KRM-143 | 60 | 140 | 504 | 65 | 6.4 | 727 |
Hoist Mechanism,Dimensions and Weight (approx.)
Length(mm) | Width(mm) | Height(mm) | Min.Closed Length(mm) | Weight(kg) |
1193 | 410 | 341 | 794 | 170 |
Gear pump specification(approx.)
Model | Rotating speed(rpm) | Discharge Volume(ml/rev.) | Max.Testing Pressure(Mpa) | Weight(kg) |
KP-55A | 800 | 55 | 20.6 | 13 |
Hoist Mounting and Maximum Lifting capacity
Recomended Truck G.W(kg) | Body Length(mm) | Rear Overhang Length(mm) | Distance between Load Center and Hinge(mm) | Distance between Trunnion and Hinge(mm) | Rated Lifting Capacity(kg) | Designed Max.Lifting Capacity including load weight(kg) |
6000-9000 | 3400 | 400 | 1300 | 1100 | 5000-10000 | 18000/60° |
1.customer can come to test the quality directly
2.the structure will not deform
Standard export pallet packing.
3-25 days after confirming order,detail delivery date should be decided according to
order quantity.
