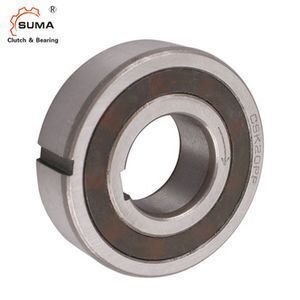

One Way Sprag Clutch Bearing CSK20PP 20x47x14mm with bearing supported and two keyways

Supplier: Changzhou Suma Precision Machinery Co., Ltd.
Region: Jiangsu, China
Contact: Ms Ellen zhang
Price: $2.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Single package size:	5.5X5.5X2 cm;	Selling Units:	Single item;
Single gross weight:	0.2 KG;	Place of Origin:	Jiangsu China;
Applicable Industries:	Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Printing Shops,Construction works ,Energy & Mining;	Precision Rating:	P0;
Guarantee:	One Year;	Material:	GCr15;
Model Number:	CSK20 PP;	Package:	single box or as your requirments;
Port:	Shanghai;	Type:	Sprag;
Seals Type:	sealed;	Product name:	One Way Sprag Clutch Bearing CSK20PP 20x47x14mm;
Brand Name:	SUMA or OEM;	Stock:	rich;
Packaging Detail:	Industrial Packages or as your requirments;	OEM:	ACCEPT;
Application:	Industrial machines;	Package Preview:	;

Product Description

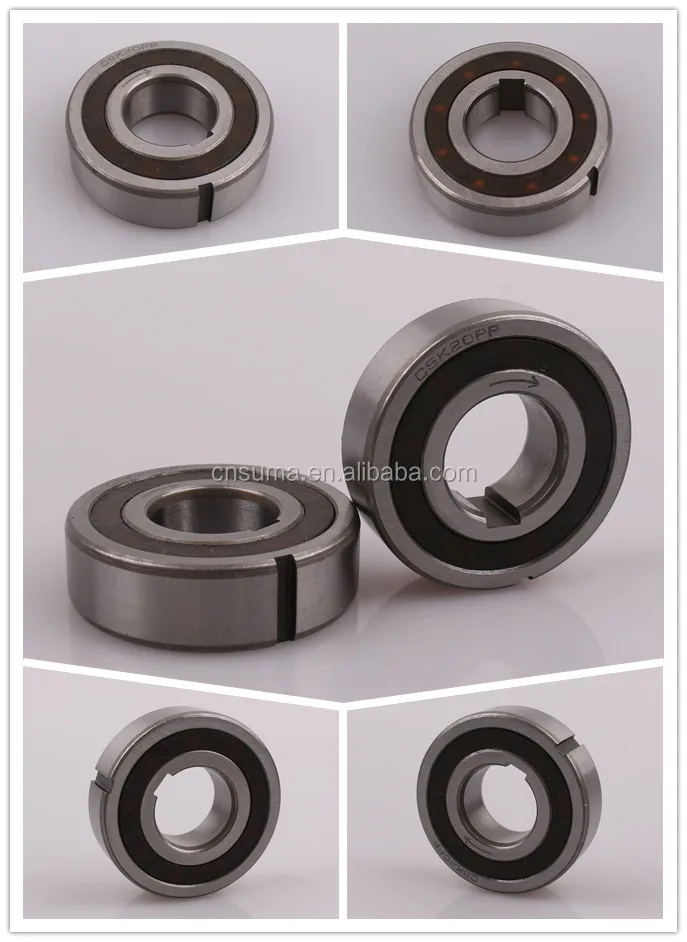

Description of One Way Sprag Clutch Bearing CSK20PP 20x47x14mm with bearing supported and two keyways

Model	CSK20PP
Bore size (mm)	20
Outer size (mm)	47
Thickness (mm)	14
Torque (Nm)	50
Speed (rpm)	6000

Introduction of CSK series one way clutch

CSK series one way freewheels are sprag freewheels with bearing support and ball bearing proper-ties. The freewheels are supplied grease-filled for normal operating conditions.
The freewheels CSK series are used as:
Backstops
Overrunning Clutches
Indexing Freewheels

Nominal torques up to 325 Nm. The torque is transmitted on the inner ring and/or on the outer ring by press fit or keyway connection.

The following series are available:

Series	Torque transmission on				2RS-seals
	Outer ring by		Inner ring by
	Keyway	Press fit	Keyway	Press fit
CSK		YES		YES
CSK...2RS		YES		YES	YES
CSK...P		YES	YES
CSK...P 2RS		YES	YES		YES
CSK...PP	YES		YES
CSK...PP 2RS	YES		YES		YES

Parameter sheet of CSK...P, CSK...PP and CSK...P 2RS series One Way Bearing

Type	Size	Bearing series							Bearing loads		Weight	Drag torque
	Size								dynamic	static		Drag torque
	d		TKN1)	nmax	D	L	b	t	C	C⁰		TR
	[mm]		[Nm]	[min-1]	[mm]	[mm]	[mm]	[mm]	[kN]	[kN]	[kg]	[Ncm]
CSK..P	12	6201	9.3	10000	32	10			6.1	2.77	0.04	0.7
	15	6202	17	8400	35	11			7.4	3.42	0.06	0.9
	17	6203	30	7350	40	12			7.9	3.8	0.07	1.1
	20	6204	50	6000	47	14			9.4	4.46	0.11	1.3
	25	6205	85	5200	52	15			10.7	5.46	0.14	2
	30	6206	138	4200	62	16			11.7	6.45	0.21	4.4
	35	6207	175	3600	72	17			12.6	7.28	0.3	5.8
	40	–	325	3000	80	22			15.54	12.25	0.5	7
CSK..PP	15	6202	17	8400	35	11	2	0.6	7.4	3.42	0.06	0.9
	17	6203	30	7350	40	12	2	1	7.9	3.8	0.07	1.1
	20	6204	50	6000	47	14	3	1.5	9.4	4.46	0.11	1.3
	25	6205	85	5200	52	15	6	2	10.7	5.46	0.14	2
	30	6206	138	4200	62	16	6	2	11.7	6.45	0.21	4.4
	35	6207	175	3600	72	17	8	2.5	12.6	7.28	0.3	5.8
	40	–	325	3000	80	22	10	3	15.54	12.25	0.5	7
CSK..P-2RS	12	–	9.3	10000	32	14			6.1	2.77	0.05	3
	15	–	17	8400	35	16			7.4	3.42	0.07	4
	17	–	30	7350	40	17			7.9	3.8	0.09	5.6
	20	–	50	6000	47	19			9.4	4.46	0.145	6
	25	–	85	5200	52	20			10.7	5.46	0.175	6
	30	–	138	4200	62	21			11.7	6.45	0.27	7.5
	35	–	175	3600	72	22			12.6	7.28	0.4	8.2
	40	–	325	3000	80	27			15.54	12.25	0.6	10
