Model Number: | With HONDA Engine Generator CSC Series; | Speed: | 3000RPM/3600RPM; |
Payment Terms: | L/C,D/A,D/P,T/T,Western Union; | Rated Voltage: | 380/400/415V; |
Certificate: | CE Certificate; | OEM: | Accepted; |
Brand Name: | CSCPOWER; | Frequency: | 50/60HZ; |
Port: | FUZHOU; | Starting method: | Recoil start or electric start; |
Rated Current: | As per voltage; | Color: | Red , Blue, Green ,Black ,Yellow ,White ,Grey; |
Keyword: | With HONDA Engine Generator; | Packaging Detail: | Strong carton packing for Generator; |
Place of Origin: | Fujian China; | Cooling method: | Air Cooled Method; |
Product Name: | With HONDA Engine Generator CSC Series; | Warranty: | 1 Year; |
Engine: | Original Honda; | Supply Ability: | 2000 Set/Sets per Month; |

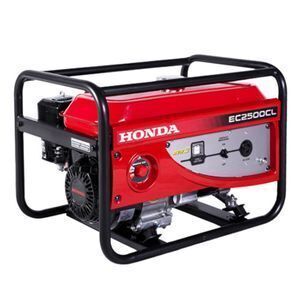

HONDA Power Generator 2KW 3KW 5KW 6KW 8KW 10KW
• With GX series, Honda, Yamaha original strong commercial engine.
• Generator set with AVR, Voltage adjust.
• Low Oil sensor protection.
• Cradle, Overall protection, easy move and storage.
• Widely option for control panel, EU, US and AU receptacle for choice.
• Self-start and remoter start as an optional.
• Frequency, 50/60 Hz. Voltage, including, 110/150/120/220/230/240V to be optional.
• Wheels and handle optional
• Start, Recoil or E-start.
• Single Phase or Three Phase, (380/400/415V)optional.
Technical Data
HONDA Gasoline Generator Set
Model | CSC2500 | CSC4500 | CSC6500 | CSC13000E | CSC15000E |
AC Frequency(Hz) | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 |
AC Output volatge(V) | 110;120;110/220;120/240,220;230;115/230 (OPTIONAL) | ||||
Cont.AC Output(VA) | 2000 | 3500 | 5000 | 8000 | 10000 |
Max.AC Output(VA) | 2200 | 4000 | 5500 | 8500 | 11000 |
DC Output(V/A) | 12/8.3 | 12/8.3 | 12/8.3 | 12/8.3 | 12/8.3 |
Engine Model | HONDA GX160 | HONDA GX270 | HONDA GX390 | HONDA GX630 | HONDA GX690 |
Type | Air-Cooled, 4-Stroke, HONDA Single Cylinder | V-2* Cylinder Air-cooled 4-stroke OHV | |||
Starting System | Recoil | Recoil | Recoil | Electric | Electric |
Fuel | Unleaded gasoline | ||||
Fuel Tank Capacity(L) | 15 | 25 | 25 | 25 | 25 |
Packing Dimensions(mm) | 590X445X435 | 695 x 530 x 570 | 695 x 530 x 570 | 913 x 541 x 570 | 913 x 541 x 570 |
Net Weight(kgs/lbs) | 42 | 71 | 73 | 155 | 161 |
Per 20'GP CNT | 235 | 136 | 136 | 72 | 72 |

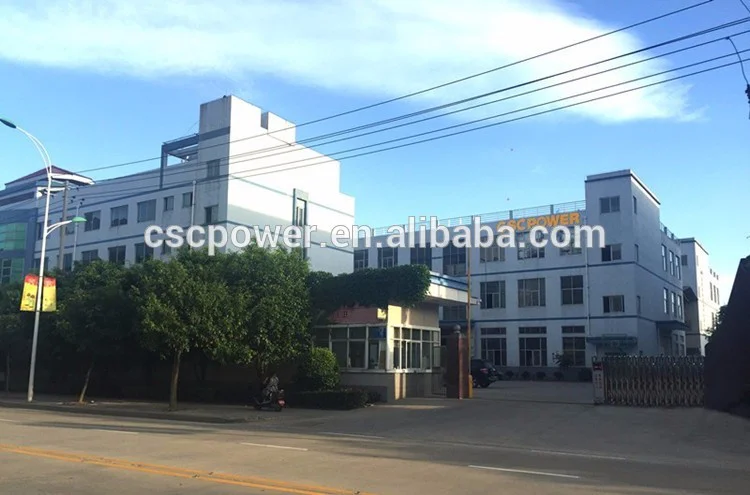

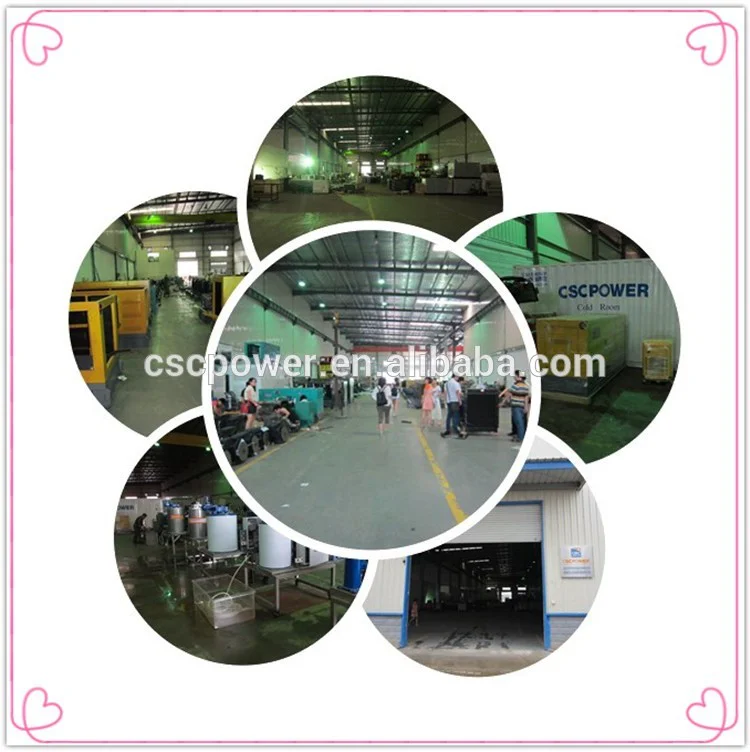

CSC Power is a one of the most professional manufacturer of all kinds of diesel generator set. The power ranges from 1kw to 2000kw. Our factory address is Tielin Industrial Zone, Fuzhou, Fujian province.
Dedicated to strict quality control and thoughtful customer service, our generator sets have been exported to Europe, South America, Africa, etc. We'd like to join hands with friends from all over the world in different domains on the basis of equality and mutual benefits. With principle of "credit today is future tomorrow", we are looking for agents and talents to join with us and create a great future.
Quality Guidelines: Living on quality, Creating brand by quality, Developing by quality.
Service Guidelines: Service the customer heart and soul at anytime, anywhere.
Business Philosophy: Customer first, put the customer's interest and demand in the first.
You are most welcome to visit us at any time.
Welcome to inquiry at anytime!
