Input Voltage: | AC 100V~240V; | Ripple Noise: | 180 Mvp-p; |
Efficiency: | >85%; | Selling Units: | Single item; |
Product Name: | 15v 2.58a laptop charger adapter 39W power charger for Microsoft; | Warranty: | 1 Year; |
Certification: | FCC,ce,RoHS; | Package Preview: | ; |
DC Connector Size: | FOR microsoft 5 pin; | Output Power: | 39W; |
Output Voltage: | 15V; | Single package size: | 19X13X4.7 cm; |
Input Frequency: | 50/60Hz; | Packaging Detail: | The packing of our laptop adapter is:1PCS per bronw box, 50 pcs per carton.; |
Output Current: | 2.58A; | Single gross weight: | 0.28 KG; |
Type: | laptop ac charger; |

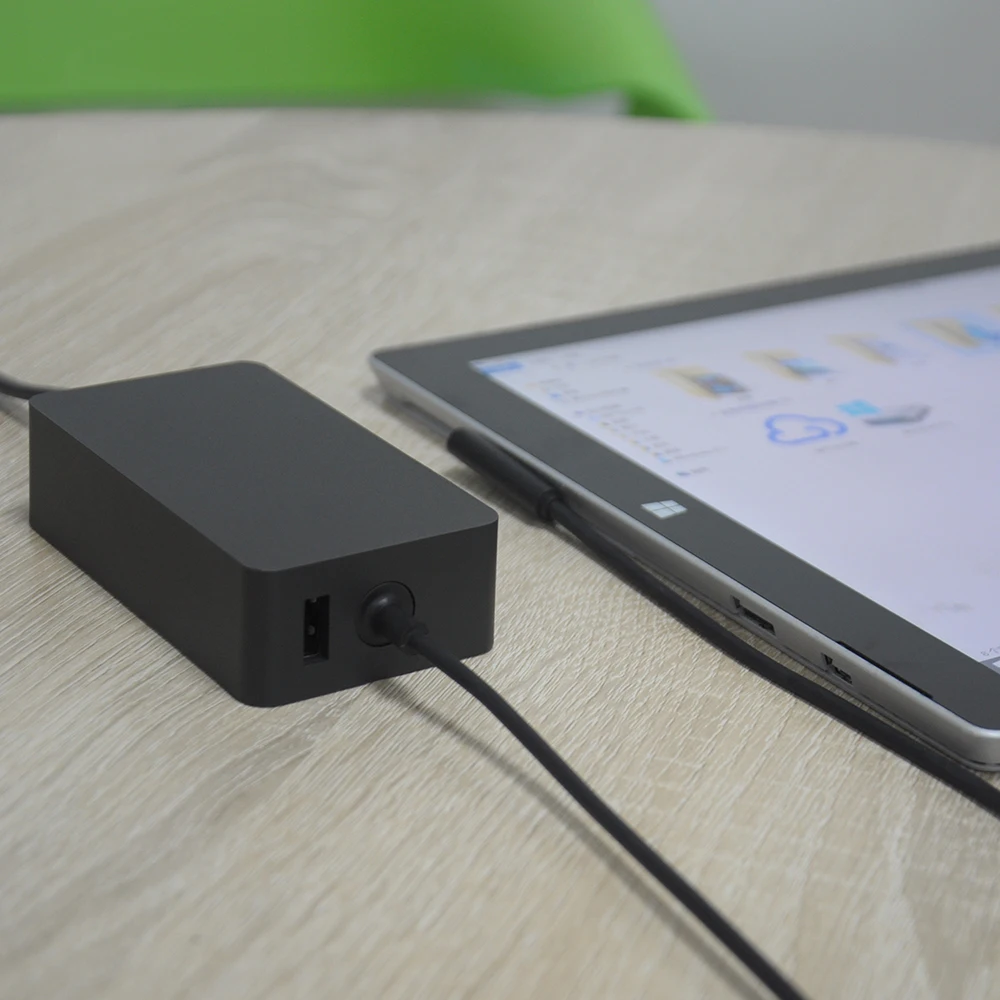

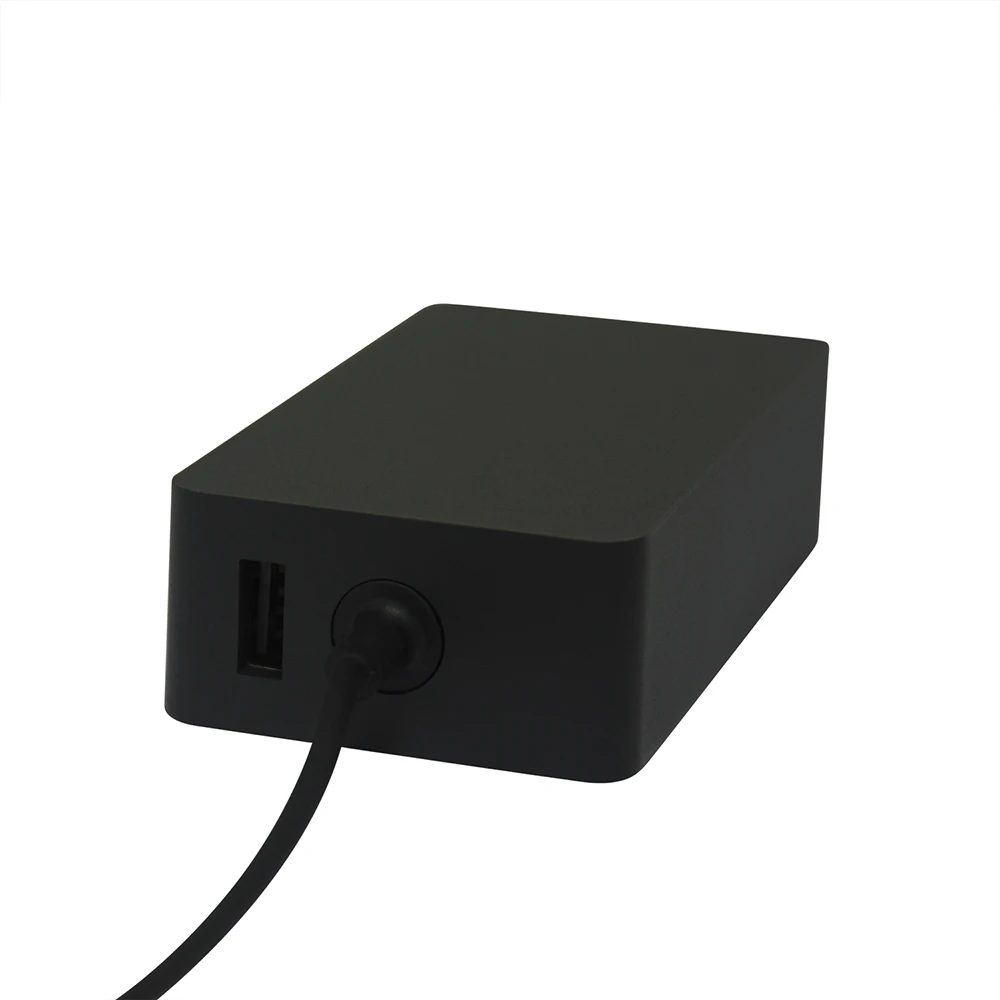

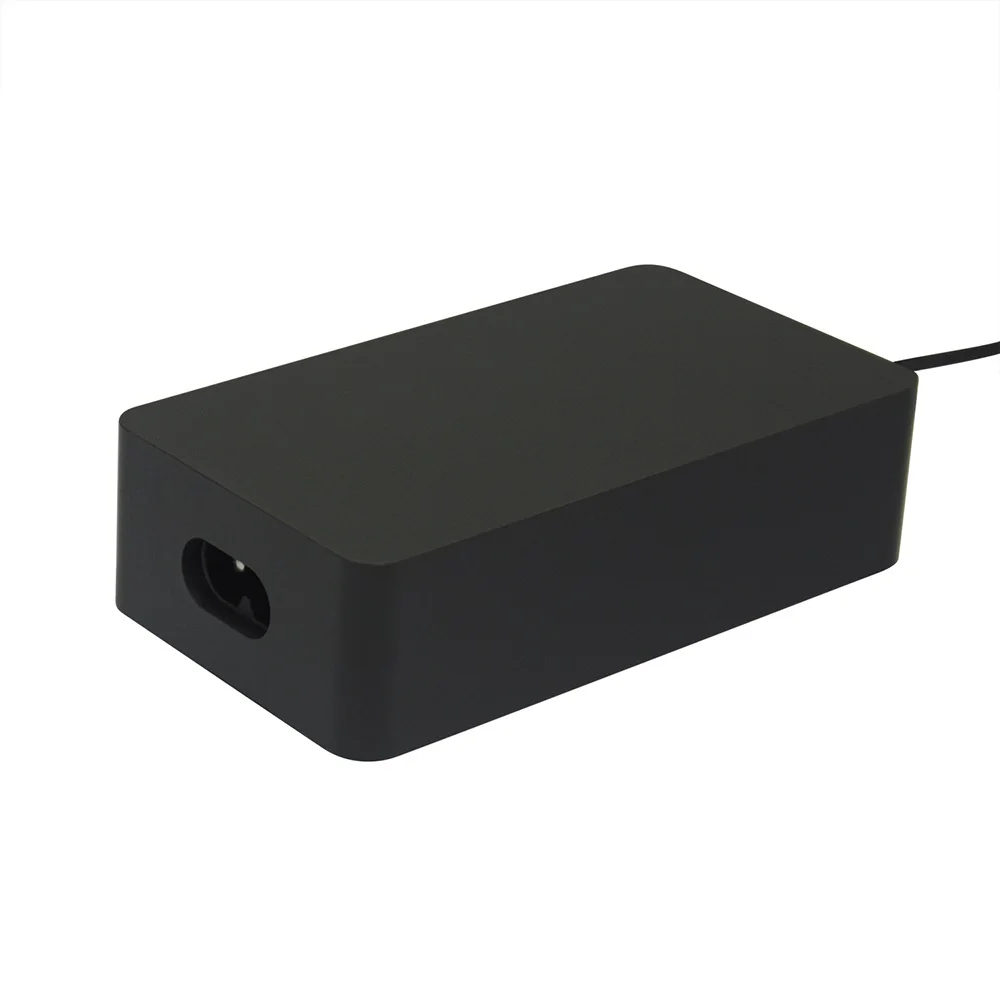

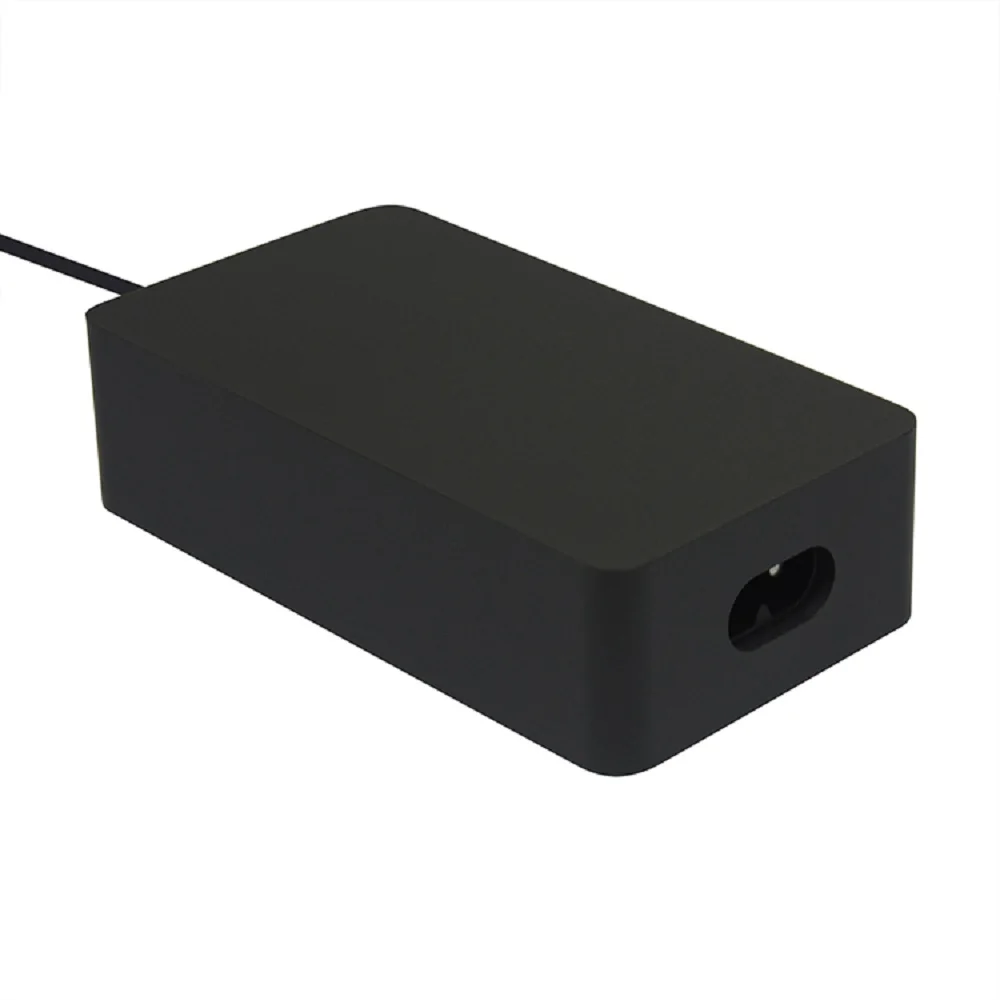

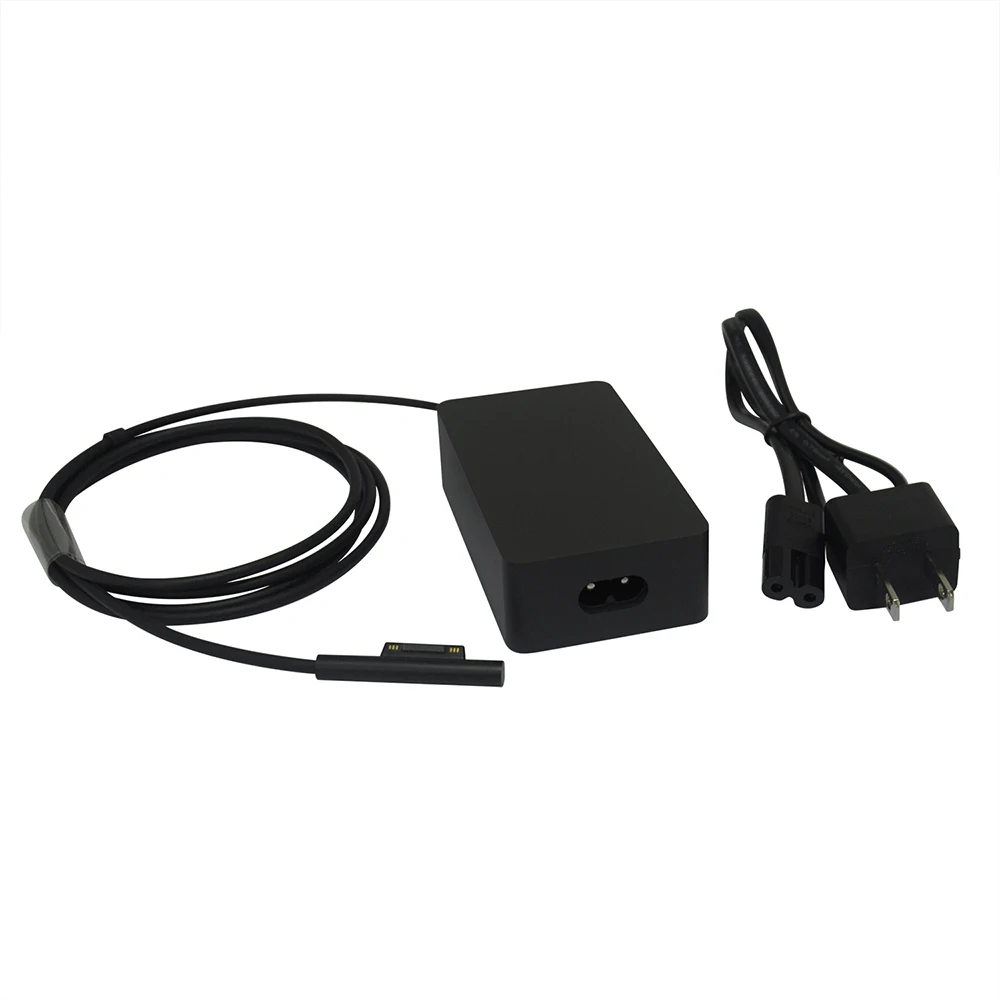

Electronics 15v 2.58a laptop charger adapter 39W power charger for Microsoft Surface Laptop Pro 3 Pro 4
Specifications |
|||||||||
Model No. |
YMOG301 |
YMOG302 |
YMOG303 |
YMOG304 |
YMOG305 |
||||
Nominal Input Voltage |
AC 100V~240V |
||||||||
Input Voltage Range |
AC 95V~265V |
||||||||
Input Frequency |
50/60Hz |
||||||||
Output Voltage |
12V |
12V |
15V |
15V |
15V |
||||
Output Current |
3.6A |
2.58A |
2.58A |
4A |
6.33 |
||||
Output Power |
43W |
31W |
39W |
60W |
95W |
||||
USB Port |
5V 1A |
5V 1A |
5V 1A |
5V 1A |
5V 1A |
||||
DC Connector Size |
For Microsoft Surface Pro2 |
for Microsoft Surface Pro3/PRO4 |
for Microsoft Surface Pro3/PRO4 |
for Microsoft Surface Pro3/PRO4 |
for Microsoft Surface Pro3/PRO4 |
||||
Line Regulation |
2% |
||||||||
Load Regulation |
5% |
||||||||
Ripple Noise |
50 Mvp-p |
||||||||
Efficiency |
>85% |
||||||||
Output Cable Standard |
0.5mm2 Pure Copper |
||||||||
Output Cable Length |
1.5m normally or customized requirement |
||||||||
Environment |
|||||||||
Operating Temperature |
0°C ~40°C |
||||||||
Operating Humidity |
5%~95%RH |
||||||||
Storage Temperature |
-20°C ~85°C |
||||||||
Storage Humidity |
5%~95%RH |
||||||||
Protection |
|||||||||
Over Load Protection |
Short Circuit Protection |
||||||||
Over Current Protection |
Over Temperature Protection |
||||||||
Certificates |
|||||||||
CE, ROHS, REACH, FCC, ERP, CB, GS, TUV, UL, CUL, CCC,PSE |
|||||||||
Dimensions |
|||||||||
Adapter Size |
9.5*5*2.8CM |
||||||||
Adapter Weight |
200G |
||||||||
Inner Box Size |
19*13*4.7CM |
||||||||
Inner Box Weight |
40G |
||||||||
PCS/CTN |
50PCS |
||||||||
Outer Carton Size |
48.5*32*40CM |
||||||||
Outer Carton Weight |
860G |
||||||||
GW/CTN |
12860G |
||||||||
Package |
|||||||||
Inner Box |
Normally neutral brown box or customized requirement |
||||||||
Outer Carton |
Normally neutral standard carton or customized requirement |
||||||||
Warranty |
|||||||||
Guarantee |
30 days |
||||||||
Warranty |
1 year |
||||||||
Terms and Conditions |
|||||||||
MOQ |
100PCS for mixed order |
||||||||
Payment Terms |
T/T, L/C, PayPal, western union |
||||||||
Delivery Time |
3-5 days |
||||||||
Manufacturing Process |
|||||||||
1. Set-Up→2. Hand Insertion→3. Wave Soldering→4. Touch-Up→5. V/I→6. ICT→7. INT→8. Apply Glue→9. Q/A→10. Entering Stock→11. Assembly→12. Power On Test→13. Hi-Pot Test→14. Burn-In→15. Hi-Pot Test→16. All Fun Test→17. Packing→18. OQC→19. Shipping |
|||||||||
Test Procedures |
|||||||||
1.No-load output voltage test→2.input power load test→3.No-load output ripple test→4.Full load open test→5.Full load output voltage test→6.Full load output ripple test→7.Full load input power test→8.Half load output voltage test→9.Half load output ripple test→10.Over load test→11.Over current protection test →12.Short circuit protection test (above test is under both 110V and 230V.)→13.High voltage test→14. burn-in test→15.Turn on delay time test→16.Rise time test→17.Hold time test→18.Overshoot test
|
Company introduction
Our factory
Are you looking for golden supplier? Here we are!
Safe packing, brown box or color box packing can be customized
Efficient logistic
Q1: Are you factory?
Yes, we are a leading AC DC power adapter manufacturer for 12 years.
Q2: What is your warranty for adapters?
We usually offer 1 year warranty.
Q3: What is your MOQ and sample term?
Our MOQ is 100pcs, we can offer you free samples, but you pls pay shipping costs.
Q4: Can can accept OEM&ODM?
Yes,we can. We can customized the products,labels,package as your demands.
Q5: What is your payment terms?
We accept T/T,paypal, western union, L/C,cash...
