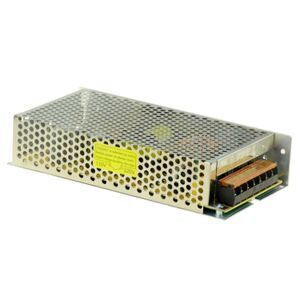

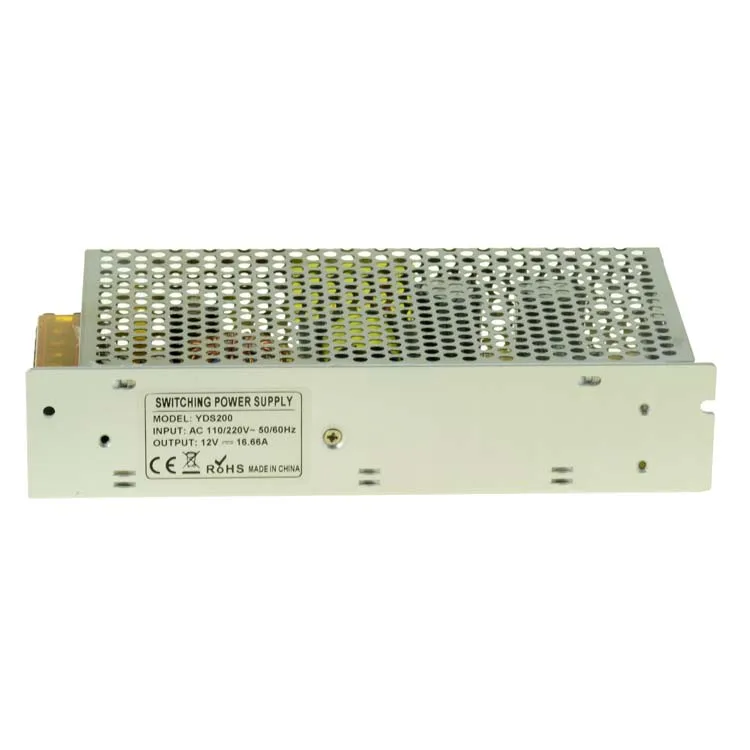

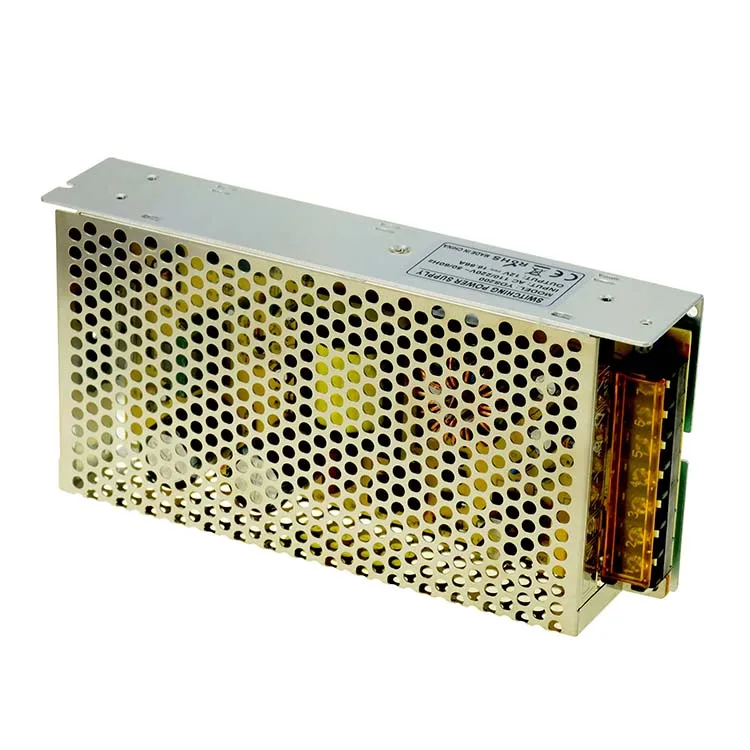

110V/220V ac dc switch power supply 12v 16.67a Output cctv adapter power supply 200w
-
Supplier: Shenzhen Yidashun Technology Co., Ltd. -
Region: Guangdong, China -
Contact: Ms Sandy Li -
Price: $3.38 / >=100 pieces -
Min. Order: 100 pieces
| Max. Ripple & Noise: | 250mV; | Output Voltage: | DC 12V,DC 12V; |
| Input Frequency: | 50-60Hz; | Package Preview: | ; |
| Input Voltage: | AC 110V or 220V(with switch),AC 110V or 220V(with switch); | Packaging Detail: | Package: each one in a white paper box; OEM package with extra costs.; |
| Payment Terms: | T/T,Western Union,Alibaba Paypal; | Model Number: | YDS200; |
| Supply Ability: | 200000.0 Piece/Pieces per Week; | Protections: | Over Load/Short Circuit; |
| Brand Name: | OEM; | Output Power: | 200W,200W; |
| Certification: | CE ROHS FCC; | Warranty: | 1 Year; |
| Output Current: | 16.66A,16.66A; | Port: | Yantian Shenzhen; |
| Product name: | switch power supply 12v 16.67a Output cctv adapter power supply 200w; | Output Frequency: | 50-60Hz; |
| Place of Origin: | Guangdong China; |
110V/220V ac dc switch power supply 12v 16.67a Output cctv adapter power supply 200w
|
12V 16.66A Technical Specification |
||
|
Model No. |
YDS200 |
|
|
Input |
Voltage |
AC 110V or 220V by switch |
|
|
Vibration Input Voltage Range |
AC 95-265V |
|
|
Frequency |
50-60Hz |
|
Output |
Voltage |
DC 12V |
|
|
Current |
16.66A |
|
|
Power |
200W |
|
|
Typical Efficiency |
73% |
|
|
Adjustable Range of Voltage |
DC 12V-12.5V |
|
|
Max. Ripple & Noise |
250mV |
|
Protection |
Over Load |
105-115% of Rated Output Power |
|
|
Short Circuit |
Protection Type: Auto Recovery |
|
Electric Strength |
High-pot test |
3KV AC |
|
Environment |
Working temperature and humidity |
-10°C~+60°C,20~90%RH |
|
|
Store temperature and humidity |
20°C~+85°C,10~95%RH |
|
|
MTBF |
>200K hrs.@25°C(MIL-HDBK-217F) |
|
Warranty |
1 year |
|
|
Feature |
Dimension(L*W*H) |
199*98*41mm |
|
|
Weight |
415.5g |
|
|
Inner box size |
210*101*47mm |
|
|
Inner box weight |
31.5G |
|
|
PCS/CTN |
50 PCS/CTN |
|
|
CTN size |
53*25*43cm |
|
|
GW/CTN |
23.5kg |
|
Safety & EMC |
Safety Standards |
EN55015/EN61000-3-2/EN61000-3-3 |
Safe packing, brown box or color box packing can be customize
Efficient logistic
High-quality service
Advanced equipment
Are you looking for golden supplier? Here we are!
Q1: Are you factory?
Yes, we are a leading AC DC power adapter manufacturer for 12 years.
Q2: What is your warranty for adapters?
We usually offer 1 year warranty.
Q3: What is your MOQ and sample term?
Our MOQ is 100pcs, we can offer you free samples, but you pls pay shipping costs.
Q4: Can can accept OEM&ODM?
Yes,we can. We can customized the products,labels,package as your demands.
Q5: What is your payment terms?
We accept T/T,paypal, western union, L/C,cash...
-
