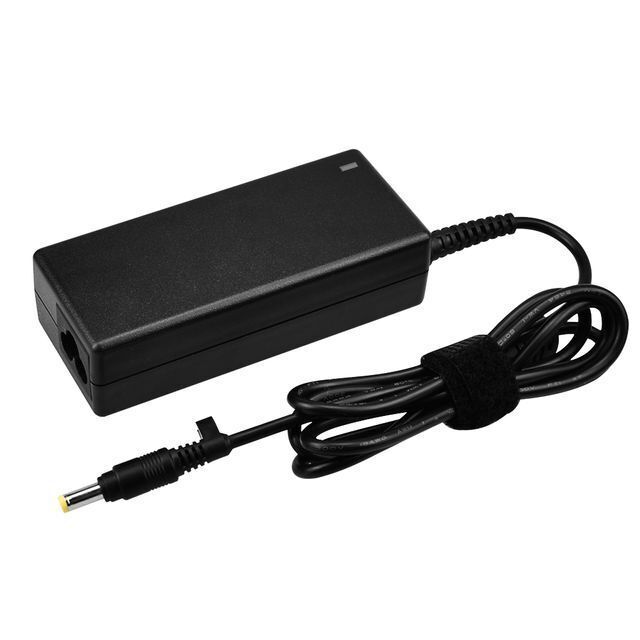

Factory Price power supply 18.5V 3.5A ac adapter laptop charger 65W laptop charger for hp/compaq

Supplier: Shenzhen Yidashun Technology Co., Ltd.
Region: Guangdong, China
Contact: Ms Sandy Li
Price: $2.94 / 50 - 999 pieces
$2.50 / 1000 - 4999 pieces
$2.21 / >=5000 pieces
Min. Order: 50 pieces

Click here to contact

Product details

Payment Terms:	Western Union,T/T,Paypal;	Output Voltage:	18.5V;
Input Voltage:	AC 100V~240V;	Port:	Yantian;
Supply Ability:	20000 Pieces per Month;	DC Connector Size:	4.8*1.7mm;
Packaging Detail:	The packing of our laptop adapter is:1PCS per bronw box, 50 pcs per carton.;	Ripple Noise:	180 Mvp-p;
Output Current:	3.5A;	Warranty:	1 Year;
Efficiency:	>85%;	Product Name:	18.5V 3.5A laptop adapter 18.5v power supply 65W for hp/compaq;
Package Preview:	;	Input Frequency:	50/60Hz;
Type:	laptop ac charger;	Output Power:	65W;

Factory Price power supply 18.5V 3.5A ac adapter laptop charger 65W laptop charger for hp/compaq

Product Description

Specifications
Model No.	YHH304
AC Input
Nominal Input Voltage	AC 100V~240V
Input Voltage Range	AC 95V~265V
Input Frequency	50/60Hz
DC Output
Output Voltage	18.5V
Output Current	3.5A
Output Power	65W
DC Connector Size	4.8*1.7 mm
Line Regulation	2%
Load Regulation	5%
Ripple Noise	180 Mvp-p
Efficiency	>85%
Output Cable Standard	0.5mm2 Pure Copper
Output Cable Length	1.5m normally or customized requirement
Environment
Operating Temperature	0°C ~40°C
Operating Humidity	5%~95%RH
Storage Temperature	-20°C ~85°C
Storage Humidity	5%~95%RH
Protection
Over Load Protection	Short Circuit Protection
Over Current Protection	Over Temperature Protection
Certificates
CE, ROHS, REACH, FCC
Dimensions
Adapter Size	10.64.32.9CM
Adapter Weight	220G
Inner Box Size	19134.7CM
Inner Box Weight	40G
PCS/CTN	50PCS
Outer Carton Size	48.53240CM
Outer Carton Weight	860G
GW/CTN	13860G
Package
Inner Box	Normally neutral brown box or customized requirement
Outer Carton	Normally neutral standard carton or customized requirement
Warranty
Guarantee	30 days
Warranty	2 years
Terms and Conditions
MOQ	100PCS for mixed order
Payment Terms	T/T, L/C, PayPal, western union
Delivery Time	3-5 days

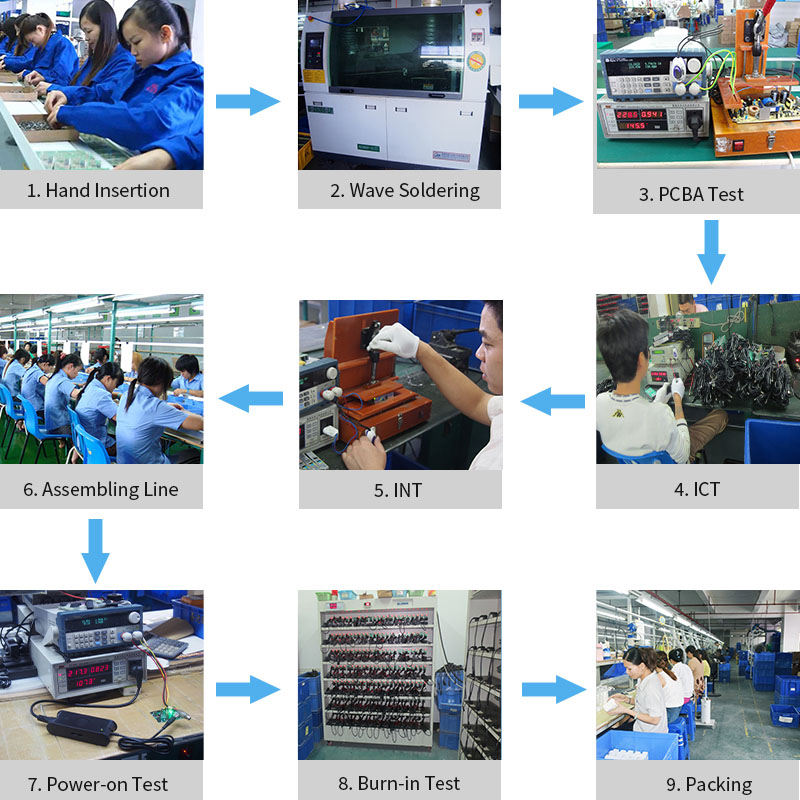

Manufacturing Process
1. Set-Up→2. Hand Insertion→3. Wave Soldering→4. Touch-Up→5. V/I→6. ICT→7. INT→8. Apply Glue→9. Q/A→10. Entering Stock→11. Assembly→12. Power On Test→13. Hi-Pot Test→14. Burn-In→15. Hi-Pot Test→16. All Fun Test→17. Packing→18. OQC→19. Shipping
Test Procedures
1.No-load output voltage test→2.input power load test→3.No-load output ripple test→4.Full load open test→5.Full load output voltage test→6.Full load output ripple test→7.Full load input power test→8.Half load output voltage test→9.Half load output ripple test→10.Over load test→11.Over current protection test →12.Short circuit protection test (above test is under both 110V and 230V.)→13.High voltage test→14. burn-in test→15.Turn on delay time test→16.Rise time test→17.Hold time test→18.Overshoot test
