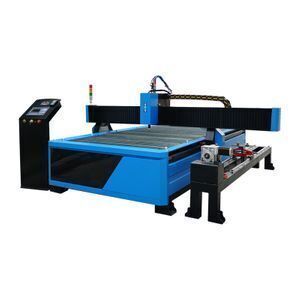

CNC Plasma Cutting Machine / Plasma Cutter / Plasma Cut CNC

Supplier: Jinan Lxshow Laser Manufacture Co., Ltd.
Region: Shandong, China
Contact: Ms Belle Liu
Price: $4000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Brand Name:	JNLINK;	Video outgoing-inspection:	Provided;
Machinery Test Report:	Provided;	Package Preview:	;
Supply Ability:	150.0 Set/Sets per Week;	Rated Power:	8.5KW;
Certification:	CE ISO;	Place of Origin:	Shandong China;
Showroom Location:	None;	Applicable Industries:	Hotels,Garment Shops,Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company;
Warranty of core components:	2 years;	Payment Terms:	L/C,T/T,Western Union,Alibaba Trade Assurance;
Marketing Type:	Hot Product;	Dimension(LWH):	420022801600mm;
Model Number:	LXP1530;	Local Service Location:	None;
Drive motor:	China Stepper Motor;	Key Selling Points:	Automatic;
Optional:	Rotary;	Warranty:	2 Years;
Condition:	New;	Packaging Detail:	Plywood case;
Name:	plasma cutting machine;	Year:	2019;
Voltage:	220V/380V,220/380V;	Core Components:	Power Source;
Port:	Qingdao port;	Power Supply:	63A/100A/160A/200A;
Software:	Fastcam;	Working area:	1300mm*2500mm;
Application:	Metal, stainless steel, steel sheet cutting;	Motor Type:	Stepper Motor;
Weight (KG):	1100;	Control system:	Starfire and THC;
Cutting thickness:	0-40mm;	After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;

CNC Plasma Cutting Machine / Plasma Cutter / Plasma Cut CNC

If you have any questions about plasma cutting machine, you can contact us anytime, no matter before sale or after sale, JNLINK is always here.

Our Nigeria customer acceptance his machine in factory, check the video, know more about us.

About the desktop style, if you need the rotary axis, we also support it, just tell us the diameter and the length that you need, we will recommend the suitable rotary axis to you.

APPLICATIONS

Plasma Cutting Machine Application:

Advertising industry:

Advertising signs, logo making, decorative products, production of advertising and avariety of metal materials.

Metal industry:
For steel, Carbon Steel, Stainless steel, alloy steel, spring steel, copper plate, aluminium plate,gold, silver, Titanium and other metal plate and tube.

Features

Characture:

1).The beam uses light structural design,with good rigidity structure, light deadweight and small movement inertia.

2). The gantry structure, Y axis used dual-motor dual-driven system, X, Y, Z axis all use dual-straight rail that make the machine driving smoothly with high-precision.

3). Aiming at cutting three dimension LED character, trough metal panels and floor cutting,the accuracy can reach good indicators. Equipped with other advertise equipment (blister machine, engraving machine), forming the advertising word processing pipeline. Completely solve the traditional manual processing methods. Improve the efficiency of several times.

4). The Plasma Cutting mouth is small, tidy,and avoid a second dressing processing.

5). It can apply to iron shee the aluminium sheet, the galvanized sheet, hundred steel plates, metal plates and so on.

6). High cutting speed, high precision, and low cost.

7). The numerical control system disposes high, the automatic striking arc, the performance is stable.

8). Support Wentai, Astronautics Haire, ARTCAM softwares, Type3 produce standard G code way document, also can change software to read AUTOCAD softwares produce DXF form documents.

PARAMETER

No.	Description	LXP1530 (Optional:LXP1015/LXP1212/LXP1325/LXP1540/LXP1550/LXP1560/LXP2030 /LXP2040/LXP2050/LXP2060,other size can be customized)
1	Working Size	15003000mm (Optional:10001500/12001200/13002500/15004000/15005000/15006000 /20003000/20004000/15005000/15006000/20005000/2000*6000mm,other size can be customized)
2	Z Axis Clearance	150mm(200 And Higher Is Optional)
3	Table Type	Knife table (Teeth table And Water table can be optional)
4	Transmission System	Rack Pinion And Hiwin Linear Rails For X/Y
5	Driving System	Stepper Motor And Drivers(Servp motor is optional)
6	Max. Cutting Speed	12000mm/Min(different configuration and different material and thickness speed is different)
7	Max. Travelling Speed	30000mm/Min(different configuration speed is different)
8	Working Voltage	380V/3ph(220V/3ph is optional)
9	Plasma Generator	Huayuan China and USA power as your requirements
10	Arc Mode	Non-Contact Arc, Arc Pressure Adjuster
11	Output Current	63/100/120A/160A/200A China(45/65/85/105/125/200A USA)
12	Max. Cutting Thickness	6/15/18/20/30mm
13	Operating System	Starfire Controller/Start Controller/JiaoDa fangling controller
14	Working Material	Steel, Aluminum, Galvanized Sheet, Titanium Plate, Platinum Plate and almost all of the metal

COMPANY PROFILE

Jinan JNLINK

is established in July 2004 ,owns more than 500 square meters of researching and office space, more than 32000 square meters factory.All machines ,passed the European Union CE authentication,American FDA certificate and are certified to ISO 9001. Products are sold to USA, Canada, Australia, Europe, South east Asia, Africa etc, more than 120 countries and areas, and supply OEM service for more than 30 manufactures.

Our Products includes All kind of

1.CNC Plasma cutting machine

2.Laser marking machine(Fiber/CO2/UV/Green light)

3. Laser machine(laser cutting and welding and engraving)

4. CNC knife cutting machine

5. CNC router and so on.

We can also customized non-standard assist equipment as your detailed work requirements.
