1530 Portable CNC Plasma Cutting Machine Metal Gas Cutting Machine

Supplier: Shandong Jiaxin Machinery Equipment Co., Ltd.
Region: Shandong, China
Contact: Ms Linda Zhu
Price: $1799.00 / 1 - 3 sets
$1699.00 / >=4 sets
Min. Order: 1 set

Click here to contact

Product details

Health status:	new	Packaging Preview:
Dimensions (LWH):	3000MM200MM800MM	Applicable industries:	Building materials store, mechanical repair shop, construction works
Voltage:	220V/110V 50HZ	place of origin; place of origin:	Shandong China
Core Components Warranty:	1 year	Main selling point:	long lasting
Motor Type:	stepper motor	payment terms:	L/C,Western Union,T/T
Mechanical test report:	if	year:	2021
Movement Accuracy:	±0.2mm/m	type:	CNC cutting
Marketing Type:	New Products 2021	Material:	Iron, carbon steel, stainless steel, aluminum, copper, etc.
Control System:	START Control System/Shanghai Fangling	Core components:	motor, other
brand:	Charles Schwab	rated power:	350W
Warranty:	1 year	Video external inspection:	if
Cutting thickness:	0.3-30mm (plasma) 5-150mm (flame)	model:	JX-1530
product name:	Portable CNC Plasma Oxygen Cutting Machine with Arc Height Controller	weight:	125KG
After-sales service provided:	Engineers can repair machinery overseas	Showroom location:	Turkey, Germany, Indonesia
Packaging Details:	Portable CNC plasma flame cutting machine with arc height controller, packaged in a wooden case	ensure:	free
strength:	350w	aspect:	1500*3000
Weight (kg):	125kg

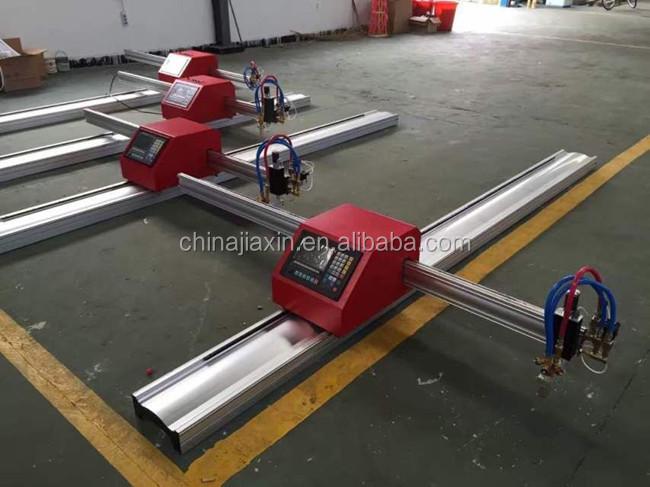

Portable CNC Plasma Oxygen Cutting Machine with Arc Height Controller

Product Description

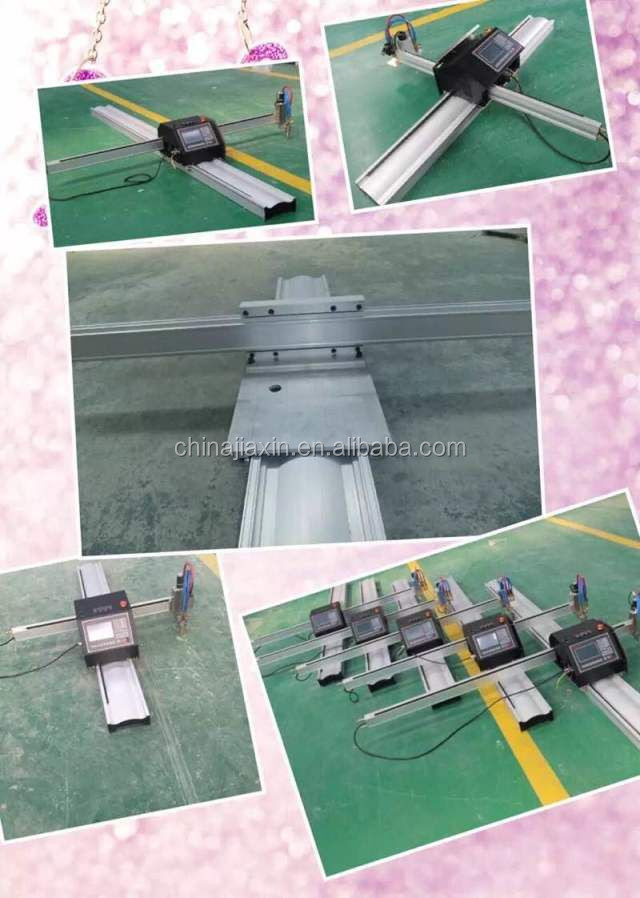

JX-1525/1530 is a high-end CNC plasma and flame cutting machine.

Machine introduction:

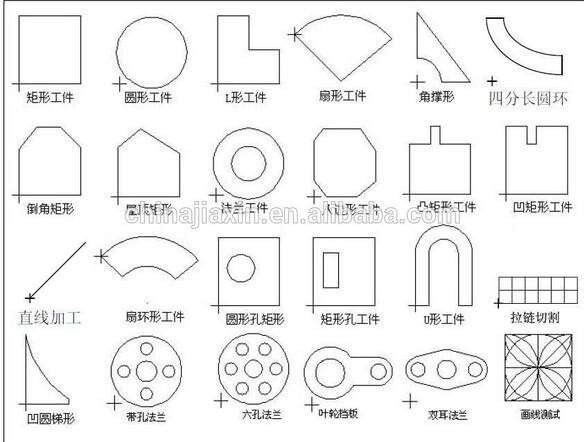

1. Programmable cutting of linear and arc parts of any shape.

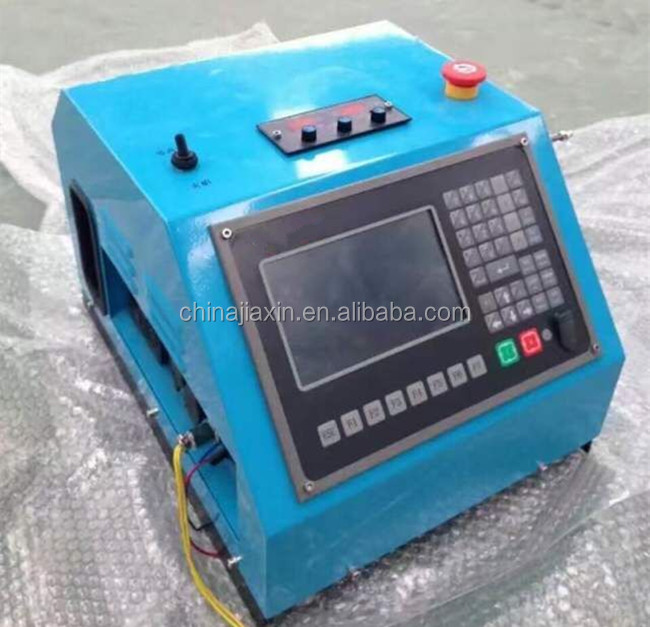

2. Dynamic and static graphic display, easy to learn. The CAD file can be converted in the computer and transferred to the machine through the U disk to realize cutting various'Graphics, can also be programmed and manipulated directly on the machine.

3. The track and motion mechanism adopts a unique design to ensure the working accuracy of the machine.

4.Flame cutting (gas cutting) and plasma cutting can be used.

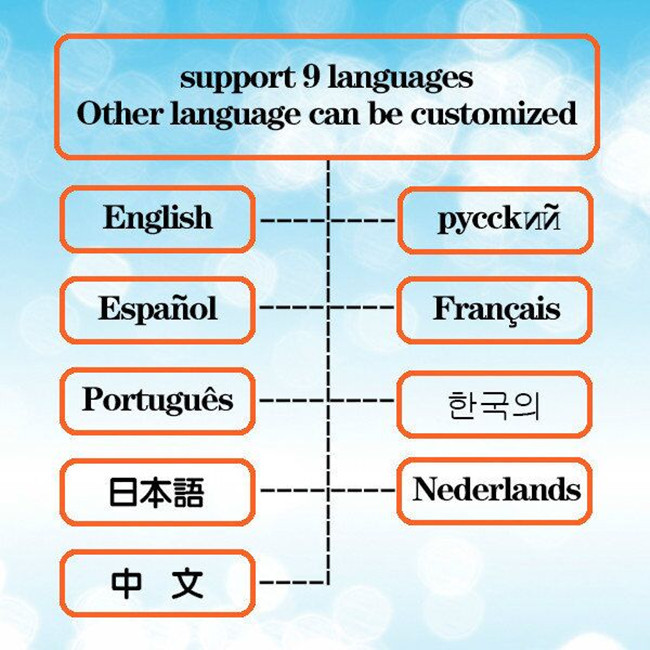

5. Chinese and English interface can be freely converted.

6. Economical, portable and easy to operate.

7. Good working stability, effectively shielding high-frequency interference of plasma.

Technical data

Do not.	Technical Specifications
1	Model	JX-1525	JX-1530
2	Input voltage	AC 220/110V±10%VAC 50/60Hz, single phase
3	cutting method	Plasma/Flame Cutting
4	Effective cutting range (mm)	1500*2500	1500*3000
5	plasma cutting gas	N2, O2, compressed air
6	flame cutting gas	Oxygen + Propane or Acetylene
7	Beam width * guide rail length (mm)	2300*3500mm
8	Cutting speed mm/min	up to 4000 mm/min
9	Flame cutting thickness (mm)	5-150 (oxygen + acetylene or propane)
10	Plasma cutting thickness (mm)	0.3-30mm
11	Mobile accuracy	±0.2mm/m
12	torch	Flame, height adjustment (±60mm) Plasma, arc voltage height (THC)
13	cutting system	Start Control System/Shanghai Fangling
14	Host weight (kg)	19
15	Total weight (kg)	110kg	120kg
16	Gas pressure (Mpa)	0.1 max
17	Oxygen pressure (Mpa)	0.7 max
18	gas type	C3H8 C2H2
19	emergency stop	Yes
20	Operating temperature	-5~45℃
twenty one	strength	8.5kW
twenty two	Plasma power	Need to choose according to metal thickness (63A-160A)
twenty three	arc	untouched arc
twenty four	Processing material	Iron, steel and aluminum sheet, galvanized sheet, titanium sheet
