Certification: | CE | control: | Automation control panel |
application: | Welding, other | Video outbound inspection: | if |
Robot type: | 6-axis articulated robot | Applicable industries: | Building materials stores, manufacturing plants, machine repair shops, construction engineering, energy and mining, others |
Health status: | new | strength: | other |
Core components: | PLC, bearings, gears | technology: | Robot Controller Technology |
Place of origin: | Shandong Province, China | Function: | Painting, conveying, welding and cutting |
Payload: | 6kg | Key words: | Industrial robotic arm |
Core component warranty: | 3 years | Packaging details: | wooden box |
Mechanical test report: | if | Post-warranty service: | Video technical support, online support, spare parts, on-site maintenance |
Supply capacity: | 20 sets per month | payment terms: | Letter of credit, Western Union, wire transfer, trade assurance |
Package preview: | Showroom location: | Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Vietnam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile , United Arab Emirates, Colombia, Algeria, Sri Lanka | |
port: | Qingdao | After-sales service provided: | Video technical support |
Marketing type: | normal product | Warranty: | 3 years |
Number of axes: | 6 axis | Weight (kg): | 150kg |
Dimensions (length*width*height): | 95X50X95 cm |

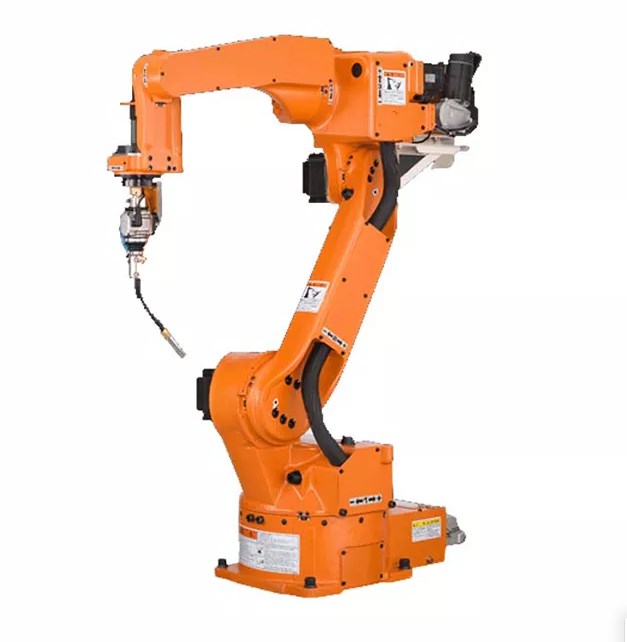

Model | RA-100 | ||
Payload | 6kg | ||
Maximum working radius | 1405mm | ||
Arm length | 2391mm | ||
Number of axes | 6 | ||
Maximum speed | axis 1 | 158°/sec | |
Axis 2 | 145°/sec | ||
axis 3 | 140°/sec | ||
axis 4 | 217°/sec | ||
axis 5 | 172°/sec | ||
Axis 6 | 500°/second | ||
Maximum working area | axis 1 | ±170° | |
Axis 2 | +80°~150° | ||
axis 3 | +95° ~ -72° | ||
axis 4 | ±170° | ||
axis 5 | ±122° | ||
Axis 6 | ±220° | ||
weight | 300kg | ||
Position repeatability | 0.05 mm | ||
Operating temperature | 0-45℃ |
