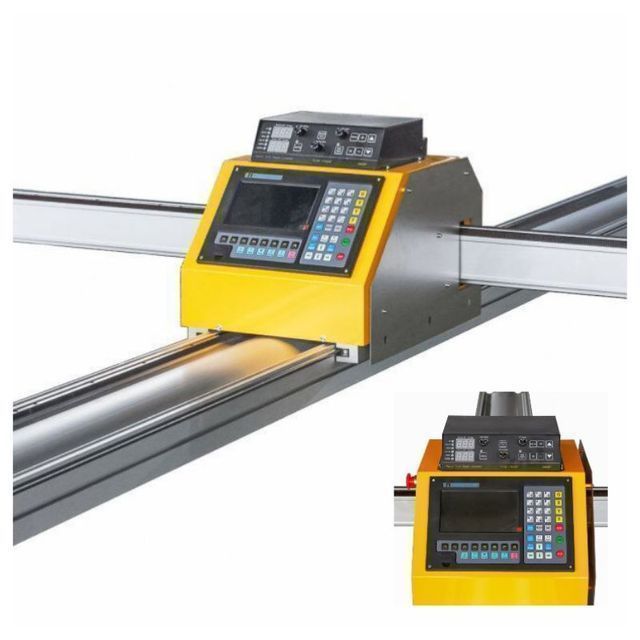

Cheap portable cnc plasma flame sheet metal cutting machine prices

Supplier: Shandong Jiaxin Machinery Equipment Co., Ltd.
Region: Shandong, China
Contact: Ms Linda Zhu
Price: $220.00 / 1 - 4 sets
$200.00 / 5 - 9 sets
$190.00 / >=10 sets
Min. Order: 1 set

Click here to contact

Product details

Package preview:		Showroom location:	not any
Supply capacity:	10 plasma cutting controllers F2100B per week	color:	Black
payment terms:	L/C, Western Union, T/T, Trade Assurance Order	port:	Qingdao
place of origin; place of origin:	Shandong China	After-sales service provided:	Video Technical Support
Warranty:	1 year	Health status:	new
Marketing Type:	New Products 2020	usage:	hand plasma torch
Video shipment inspection:	if	Applicable industries:	Mechanical repair shop, manufacturing plant, retail, construction, advertising agency
application:	CNC plasma cutting machine	Packaging Details:	Plasma Cutting Controller F2100B Carton or Plywood Box
product name:	Plasma cutting controller F2100B	Package:	carton
Mechanical test report:	if	Core components:	PLC, pressure vessel
brand:	Shanghai Fangling	feature:	durable
weight:	4

Product Description

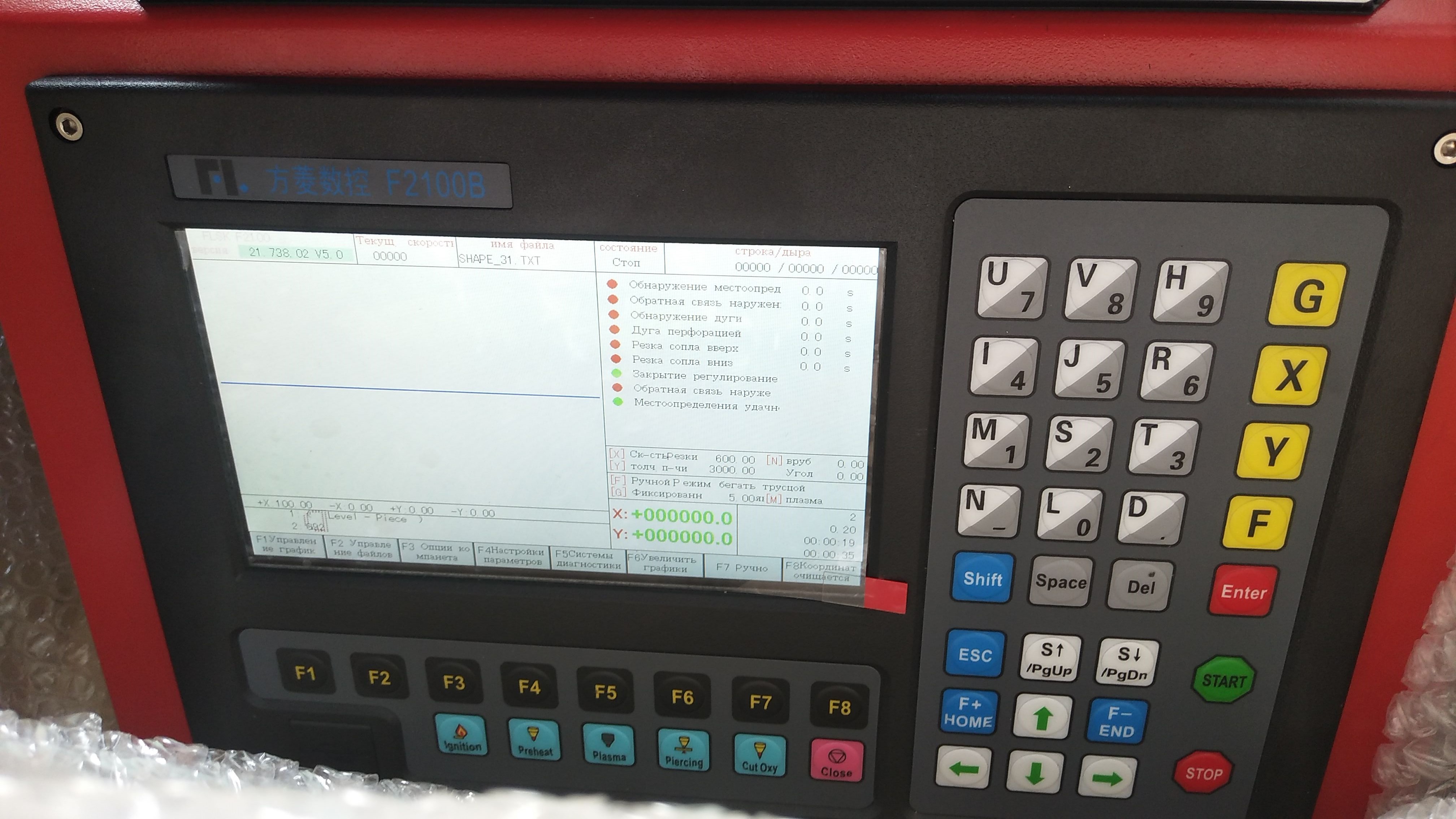

Shanghai Fangling brand F2100B control system

detailed image

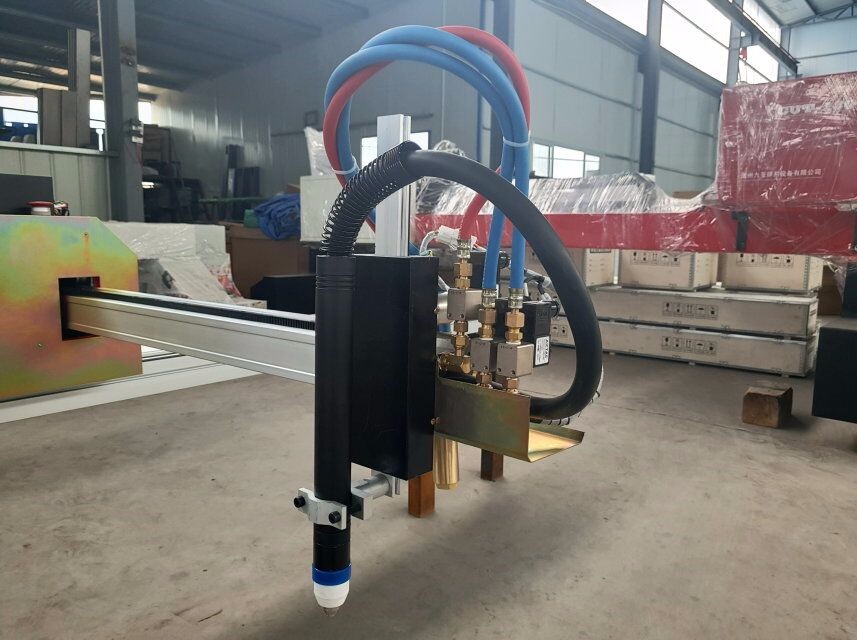

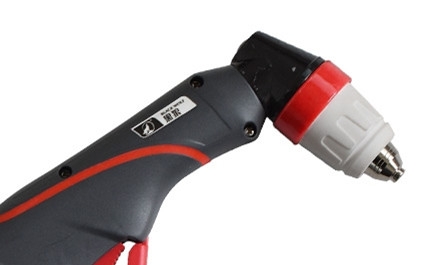

P80 black wolf plasma cutting torch head

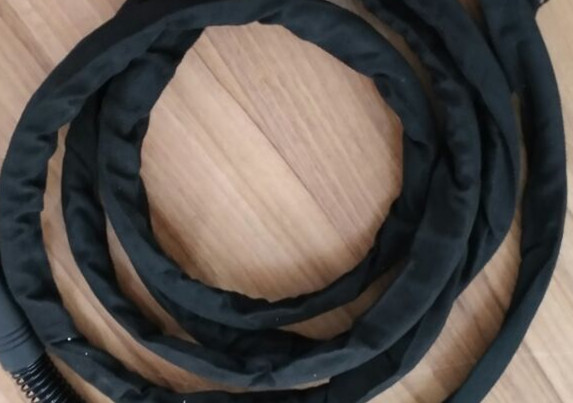

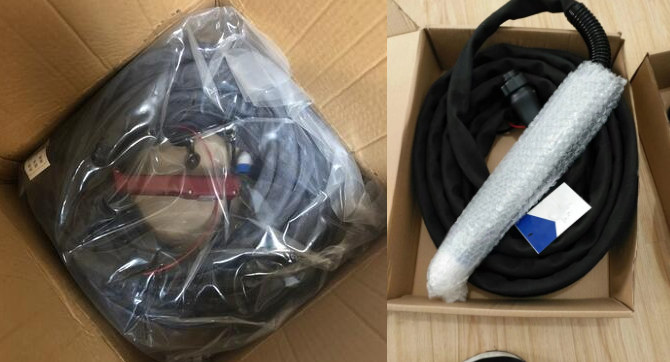

Torch copper wire

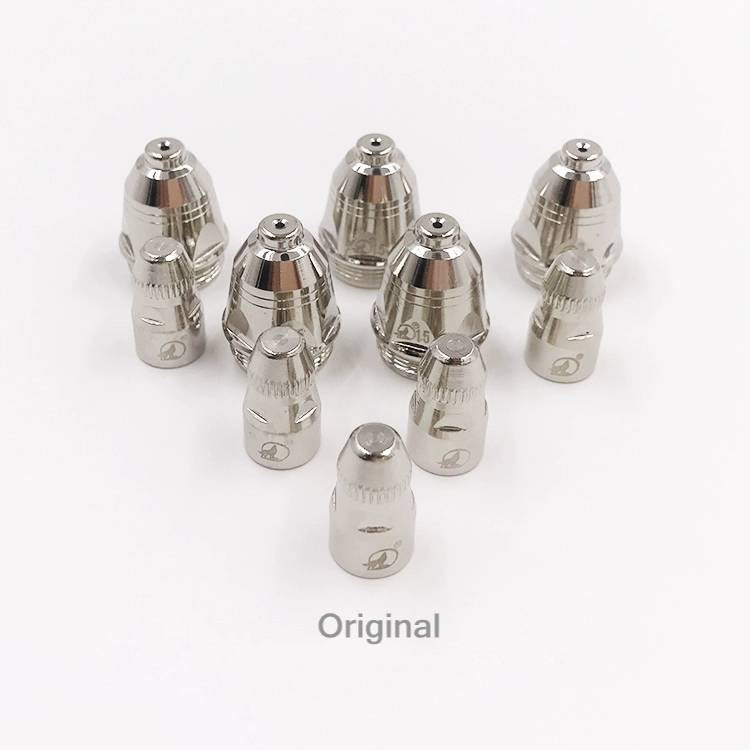

Nozzle and electrode

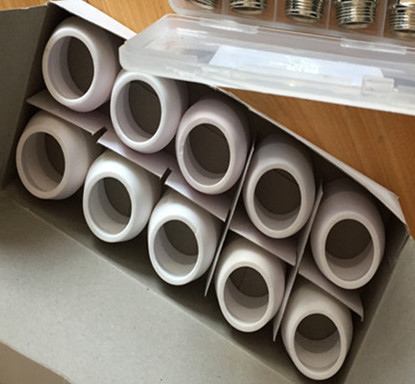

porcelain cap

Size Information

Standard configuration of air plasma power supply.

Technical indicators ● Number of control axes: 2-axis linkage (three or four axes can be customized) ● Control accuracy: ±0.001mm ● Coordinate range: ±99999.99mm ● Maximum pulse frequency: 200KHz; Maximum operating speed: 15m/min ● Maximum program Number of lines: 80000 ● Maximum single program: 4M ● Time resolution: 10ms ● System power supply: DC+24V DC power input, power greater than 80W. ● System working environment: temperature -10°C to +60°C; relative humidity 0-95% non-condensing ● Maximum power of driving arc voltage booster motor: 45W (Note: only applicable to T system). If you need more power, you can choose up to 200W. System interface ● DB15-pin male two-axis motor drive interface ● DB25-pin female 16-way photoelectrically isolated output, the maximum reverse current is 300mA ● DB25-pin male 16-way photoelectrically isolated input, the maximum input current is 300mA ● Built-in USB interface on the front panel, It is convenient for users to transmit cutting code ● Standard DB9 core male serial port RS232 interface hardware configuration is optional ● Display: F2100B, 7-inch 800*480 high-resolution 16 million color high-brightness LCD screen F2300A 10.4-inch 800*600 high-resolution 16 million Color highlight LCD screen F2300B 10.4 inch 800*600 high resolution 16 million color highlight LCD screen F2400B 10.4 inch 800*600 highlight resolution 16 million color color highlight LCD screen F2500A, 15 inch industrial VGA highlight LCD screen F2500B , 17-inch industrial VGA highlight LCD screen F2500TF-B, 17-inch 800*600 high-resolution industrial LCD screen, 260,000-color LCD display F2600, no display, but supports standard VGA interface display Memory: 64M SDRAM User program space : 256M Main frequency: 400MHZ system main frequency USB: front USB1.1 interface, at least 16GB U disk is supported. Keyboard: PCB membrane keyboard Chassis: all steel structure, fully shielded Interference, anti-static.

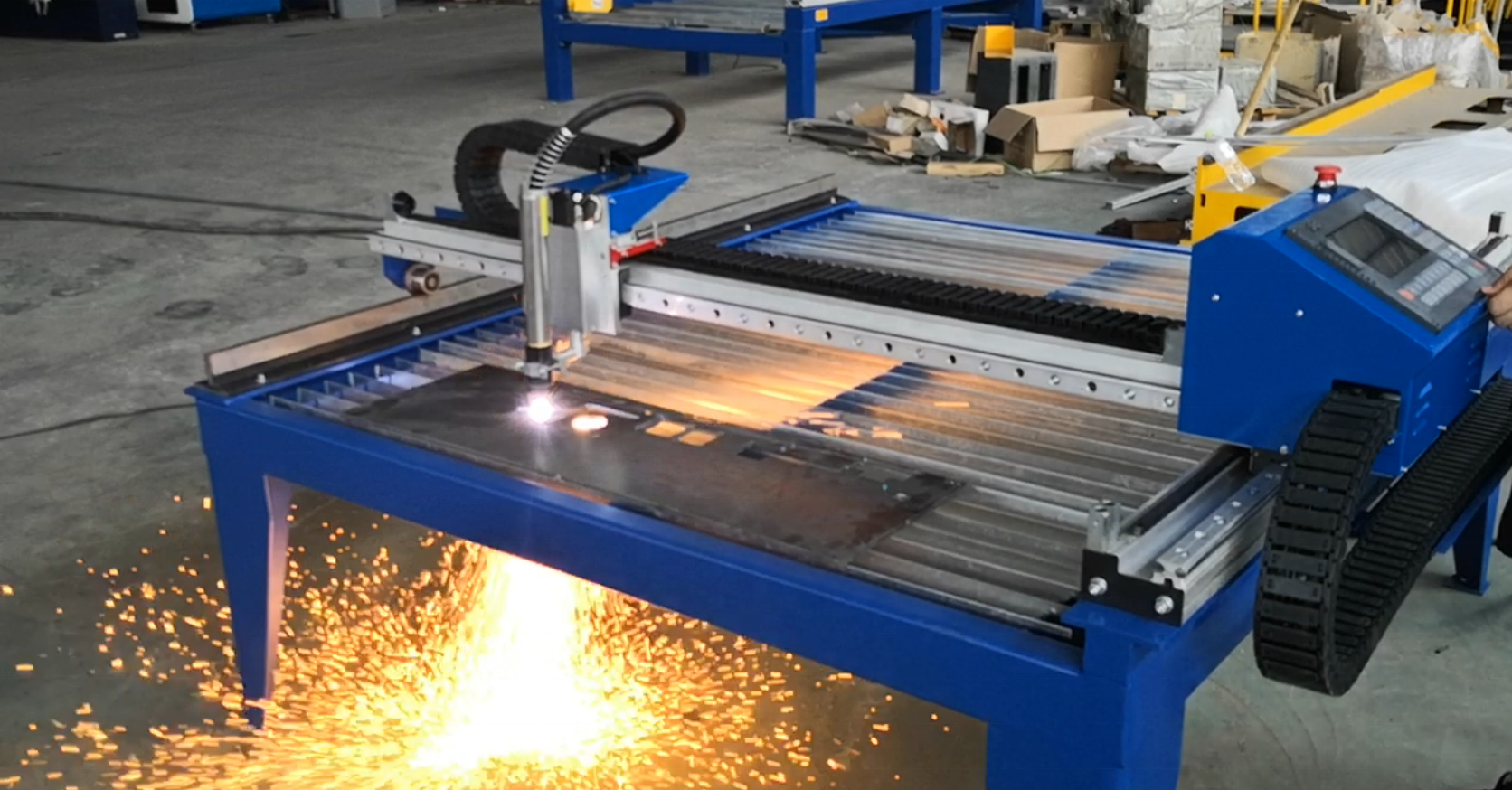

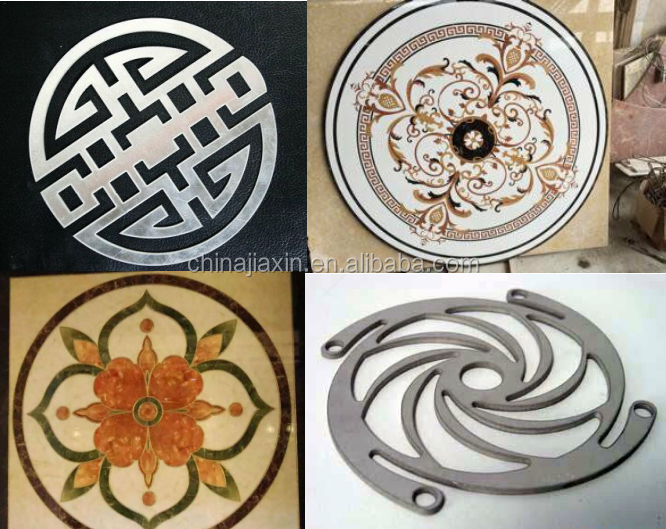

working pictures

Application of P80 Handheld Plasma Cutting Torch:
This handheld torch can be used with handheld plasma cutters and plasma power supplies.

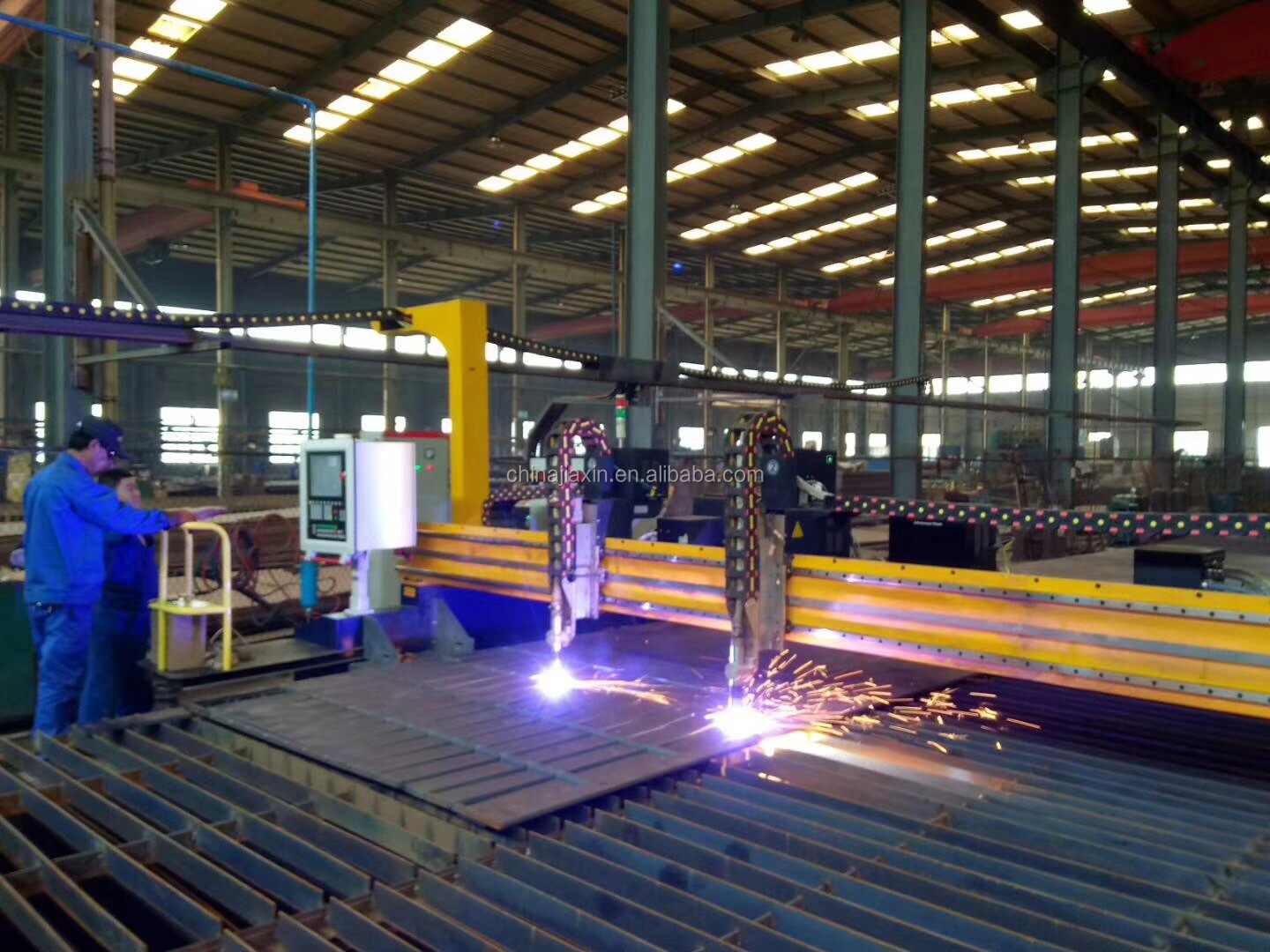

Gantry CNC cutting machine is a cutting and blanking equipment that is widely used. Professional mechatronic equipment combined with computer and software can cut plate or pipe workpieces of any shape, improve cutting quality and efficiency, and increase material utilization. The stability of cutting speed and cutting quality reduces the labor intensity of workers.

CNC plasma cutting: It is a processing method that uses the heat of the high-temperature plasma arc to melt or evaporate the metal part at the incision of the workpiece, and uses the momentum of the high-speed plasma to remove the molten metal, thereby achieving the purpose of cutting. Make an incision.

Plasma cutting torches are mainly used for cutting carbon steel, stainless steel, aluminum and other metal materials. Widely used in shipbuilding, steel structure construction, engineering machinery, locomotive manufacturing, boilers, water conservancy and hydropower, petrochemical, mechanical processing and other industries.
