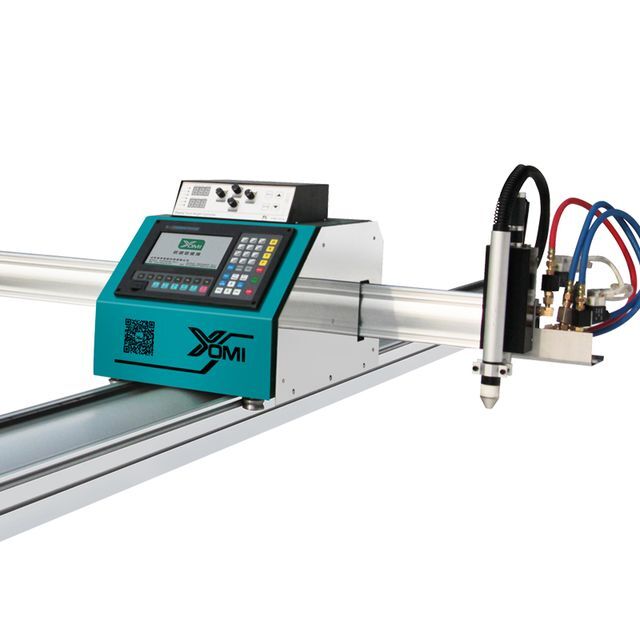

CNC Portable Plasma Cutting Machine 1560 Plasma Cutting Machine
-
Supplier: Shandong Yomi Intelligent Science And Technology Co., Ltd. -
Region: Shandong, China -
Contact: Mr Yomi CNC -
Price: $1050.00 / 1 - 4 pieces
$950.00 / 5 - 9 pieces
$890.00 / >=10 pieces -
Min. Order: 1 piece
Product details
| voltage: | 220V/380V | product name: | CNC Portable Plasma Cutting Machine 1560 Plasma Cutting Machine |
| Health status: | new | port: | Qingdao |
| power supply: | Huayuan LGK | Supply capacity: | 1000 sets per month |
| Showroom location: | South Africa | Packaging Preview: | |
| model: | 1530 | Marketing Type: | Hot Products of 2019 |
| Running speed: | 3000mm/min | Video external inspection: | if |
| Cutting method: | Plasma cutting + flame cutting | aspect: | 1500m x3000mm |
| Mechanical test report: | if | Packaging Details: | Wooden Box CNC Portable Plasma Cutting Machine 1560 Plasma Cutting Machine |
| Applicable industries: | Mechanical repair shops, manufacturing plants, construction works | motor: | Stepper Motor (Optional Servo Motor) |
| Nest Software: | Starcam or ProNest8 (standard) | Torch Height Controller: | Fang Ling 1620 THC |
| Main selling point: | flexible manufacturing | Weight (kg): | 126 kg |
| brand: | read beauty | Warranty: | 1 year |
| Control System: | Shanghai Fangling | Core Components Warranty: | 1 year |
| Core components: | CNC controller | Voltage: | 220V/380V |
| payment terms: | Western Union, T/T, MoneyGram | Cutting material: | Metal Stainless Steel Carbon Steel Aluminum |
| Motor Type: | servo motor | place of origin; place of origin: | Shandong China |
Product Description
Product parameters
Do not. | project | parameter |
1 | machine voltage | Single-phase 220V, 50HZ |
Plasma supply voltage | Three-phase 380V, 50HZ | |
2 | cutting method | Plasma + Flame |
3 | Effective cutting range (mm) | 1500mm×3000mm or customized |
4 | Cutting speed (mm/min) | 50-3500mm/min |
5 | Plasma Power | Huayuan LGK-120A/200A/300A or Hyperthem 80A/105A/125A optional |
6 | Plasma cutting thickness | According to the power supply model |
7 | Mobile accuracy | ±0.2mm/m |
8 | cutting system | Fangling F2100B |
9 | THC | Fangling F1620 |
10 | software | ProNest8 (standard) or Starcam |
11 | Total weight (kg) | 126KGS |
12 | emergency stop | Yes |
13 | Operating temperature | -5~45℃ |
14 | Relative humidity | <95% non-condensing |
Product Details
