Welding Rotator 2T-200T Self-aligning tank rotator

Click here to contact
Product details
Roller frame over 5 tons:Bolt adjustmenttype:welding roller
Roller material:PU or steel wheelAdjustment method:self-regulation or adjustment
Warranty:1 yearpayment terms:L/C, D/P, T/T
Local service location:South AfricaLoading capacity:2T-200T
Core component warranty:1 yearapplication:Wind power, pressure vessels, petrochemicals, pipelines, steel structures
Various deformation modes:Row walking, screw adjustment, lifting, tiltingusage:welding roller
Package preview:Main selling points:low maintenance cost
product name:Welding Rotator 2T-200T Self Aligning Tank Turning RollerApplicable industries:Building material stores, machinery repair shops, manufacturing plants, farms, construction projects, energy and mining, oil tank marine steel structures projects
After warranty service:Video technical support, online support, spare parts, on-site maintenance and repair servicesAfter-sales service provided:Online support, free spare parts, on-site installation, commissioning and training, on-site maintenance and repair services, video technical support
Supply capacity:1000 units per yearPackaging Details:1. Outer packing: standard export wooden box 2. Inner packing: stretch film about 14 working days for payment. Welding Rotator 2T-200T Self Aligning Tank Turning Roller
aspect:customer requestWeight (kg):3000 kg
Video shipment inspection:ifMechanical test report:if
Core components:PLC, engine, bearing, gearbox, motor, gear, water pumpHealth status:new
weight:1000-5000kgOrigin:Shandong China
brand:reading beautyMarketing Type:New Products 2020
Showroom location:South Africaport:Qingdao
Roller frame under 2 tons:screw adjustment
Product Description

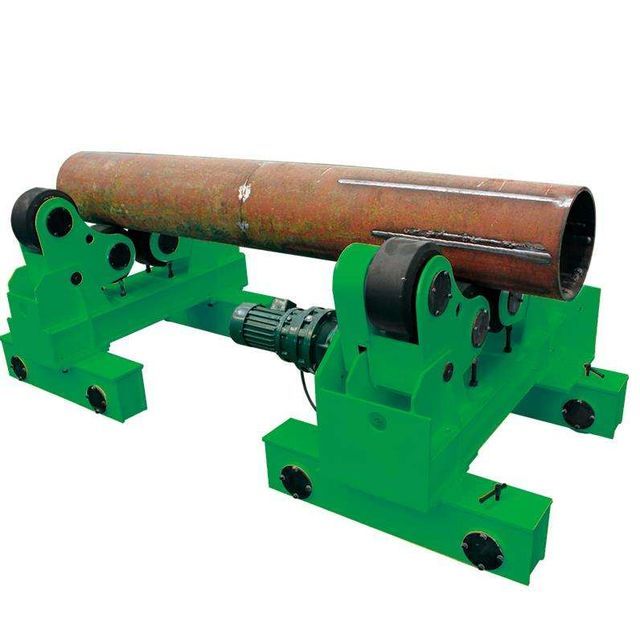

Welding Rotator 2T-200T Self Aligning Tank Turning Roller

1. The structural parts of the welding roller should be annealed after welding, and then processed
To ensure long-term performance and service life. Reasonable structure, good rigidity, full mechanical transmission
It is wear-resistant and has a corresponding dust-proof device.

2. The four-wheel roller frame is a driving wheel, a double drive system, and the drive motor adopts an AC motor drive system, which has an over-current protection function.
Overload protection and other functions.

3. The transmission mechanism includes: motor-multi-stage speed regulation roller, speed regulation and frequency conversion speed regulation.

4. The base of the wheel frame has sufficient strength and rigidity. Under the rated load, the flexible deformation of the lower roller body does not
It affects the normal use of the equipment, and the roller frame has a certain overload capacity.

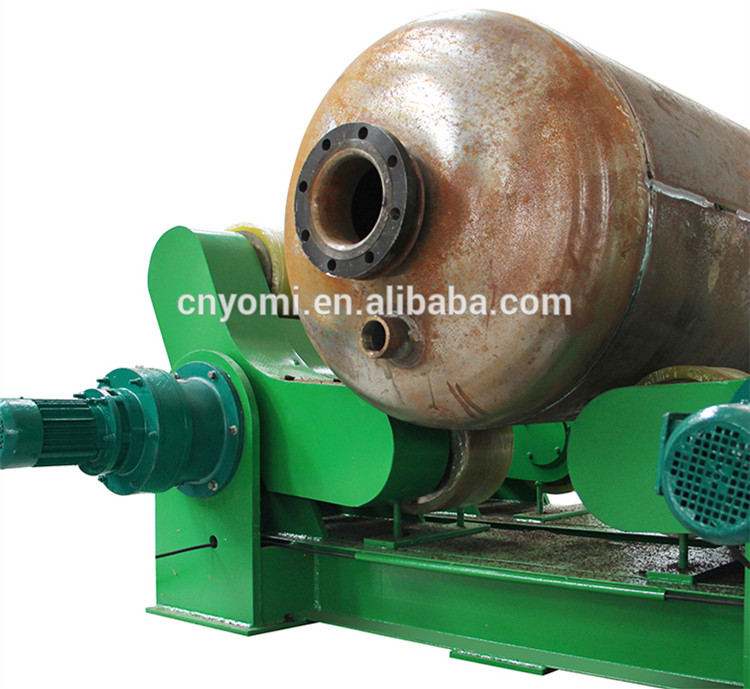

Welding Rotator 2T-200T Self Aligning Tank Turning Roller

The seam welding machine is mainly used for welding, polishing, lining and assembly of cylindrical cylinders, and can also be used
Matching with other tools, it is used for the assembly and welding of cones and rotary bodies with unequal diameters.
1. It adopts double reduction box and double motor drive, which has a large driving force. Using high-quality frequency conversion speed regulator, the performance is reliable.
2. Adjustment of the center distance of the adjustable roller frame: under normal circumstances, it can be adjusted with a screw rod if it is less than 2 tons, and it can be adjusted with a bolt if it is more than 5 tons.
3. The design speed of the roller frame is stepless speed regulation by frequency conversion.
4. According to the needs of users, various deformation methods such as rowing, screw adjustment, lifting, and tilting can be designed.

We can also design and customize various roller frames according to user needs.
Product parameters
Model
Carrying capacity (T)
Drum diameter(mm)
Drum width(mm)
Workpiece diameter (mm)
KT-2
2
250
120
200-2000
KT-5
5
300
120
200-2500
KT-10
10
300
170
300-3000
KT-20
20
300
200
300-3500
KT-30
30
300
200
300-4000
KT-40
40
425
220
300-4500
KT-60
60
425
240
600-5000
KT-80
80
425
260
800-5500
KT-100
100
500
280
1000-6000
After-sales service
1. The whole machine is guaranteed for one year
2. We have an experienced after-sales service team, we can send installation videos or files to customers and guide the installation of easy-to-operate machines, and we can also arrange our engineers to go to customer sites to install and train complex machines.
3. Complete stock of spare parts and commbundles with competitive price.
