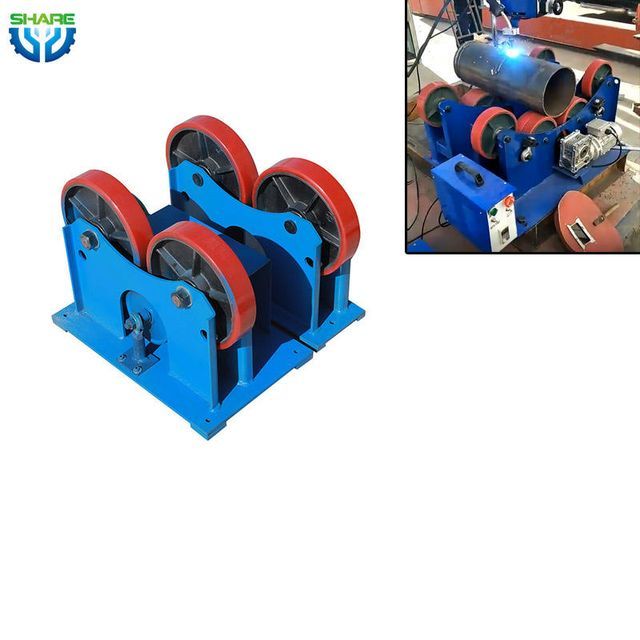

Welding positioner rotator small pipe flip roller rotary welding table

Product details
Main selling points:automaticShowroom location:not any
product name:Welding roller small pipe flip roller rotary welding tableMarketing Type:Hot Products of 2022
Supply capacity:800 sets per month Welding Positioner Rotator Small Pipe Flip Roller Rotate Welding SeamWeight (kg):100 kg
Applicable industries:welding roller factorypayment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGram, Trade Assurance
type:welding rollerKey words:Welding roller frame positioner used
power:Large welding roller frameVideo outbound inspection:if
aspect:customer requestCarrying capacity:1000 kg
Core component warranty:1 yearport:Shanghai/Guangzhou/Qingdao or seaport as your request. Welding positioner rotator small pipe turning roller rotating welding tower
Diameter range:20~700mmCore components:Gearbox, motor
Mechanical test report:ifDrive size (including control box):580(L)*360(W)*350(H) mm
Package preview:brand:share
Speed ​​range:80~1600 mm/minHealth status:new
Warranty:1 yearKey words:Roller frame price
Key words:10t welding roller frameusage:Welding Roller Stand
Name:Welding roller small pipe flip roller rotary welding tablePackaging Details:Welding Roller Tube Turning Roller Rotary Welding Table will be packed in standard export wooden case.
Origin:Henan, China
Product Description
On the basis of absorbing the advantages at home and abroad, according to the requirements of the pressure vessel factory, the DZG and DKG welding rollers are designed and manufactured. This product is suitable for the handling and automatic welding of metal round vessels, and is the necessary equipment for the manufacture of pressure vessels. Pressure vessels and piping.
detailed picture
Model
SR-GLJ01
SR-GLJ02
Voltage
AC 220V, 50/60Hz
maximum load
1,000 kg
3,000 kg
Rotating speed
80~1100 mm/min
100~1900 mm/min
Workpiece diameter
Ф20~Ф800mm
Ф30~Ф1200mm
Motor Power
220V, 120W
220V, 370W
wheel size
50mm(width)×Ф250mm
50mm(width)×Ф200mm
Drive roller size
500*300*400mm
850*330*450mm
idler size
500*200*400mm
850*330*450mm
The self-adjusting roller can automatically adjust the roller angle according to the diameter of the workpiece.
The four driving rollers adopt full gear transmission, which can realize four-wheel drive to meet the needs of different diameters
Combination of rubber wheels and steel wheels, large load capacity and strong driving capacity
The speed regulation method adopts frequency conversion speed regulation, with low noise and soft rotation.
Product Application Scenario
Machines with standard wooden packaging
