Land preparation rice tillage machine leveling machine new grader

Supplier: Zhengzhou Share Machinery Co., Ltd.
Region: Henan, China
Contact: Ms Icey Zhang
Price:
Min. Order: 1 piece

Click here to contact

Product details

Product Description

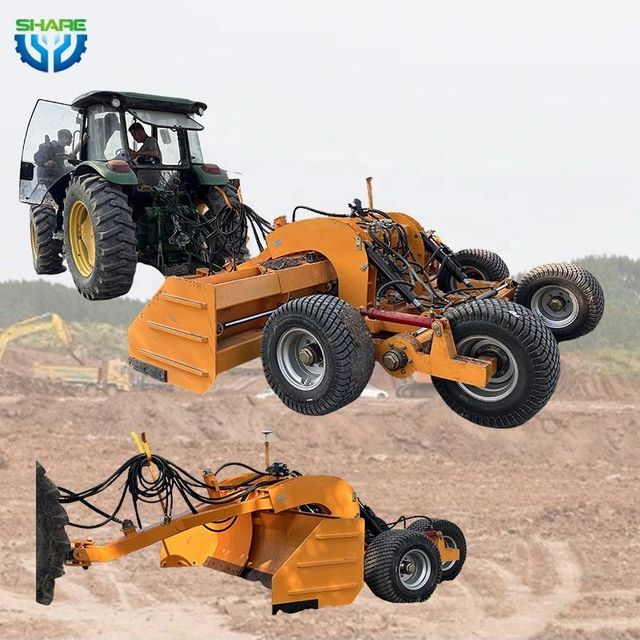

Land preparation rice tillage machine leveling machine new grader

Motor graders are also known as road graders or automatic graders. A grader is an earthmoving machine that uses a scraper to level the ground. The scraper is installed between the front and rear axles of the machine and can be raised, lowered, tilted, rotated and extended. Its movements are flexible and accurate, easy to operate, and the site leveling accuracy is high. Suitable for building roadbeds and pavements, building slopes, digging ditches, etc. It can also mix pavement mix, clear snow, push bulk materials and maintain dirt and gravel roads.

Features: This machine is equipped with a satellite system and has higher leveling accuracy.

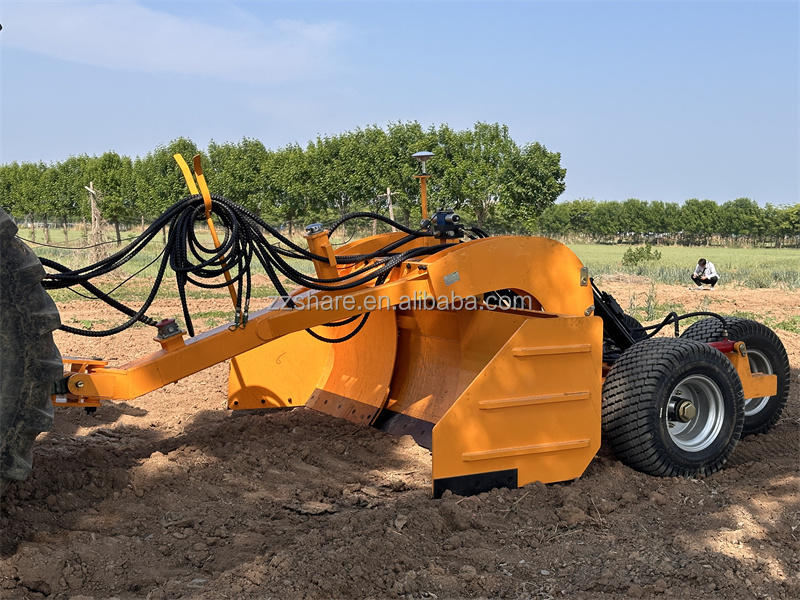

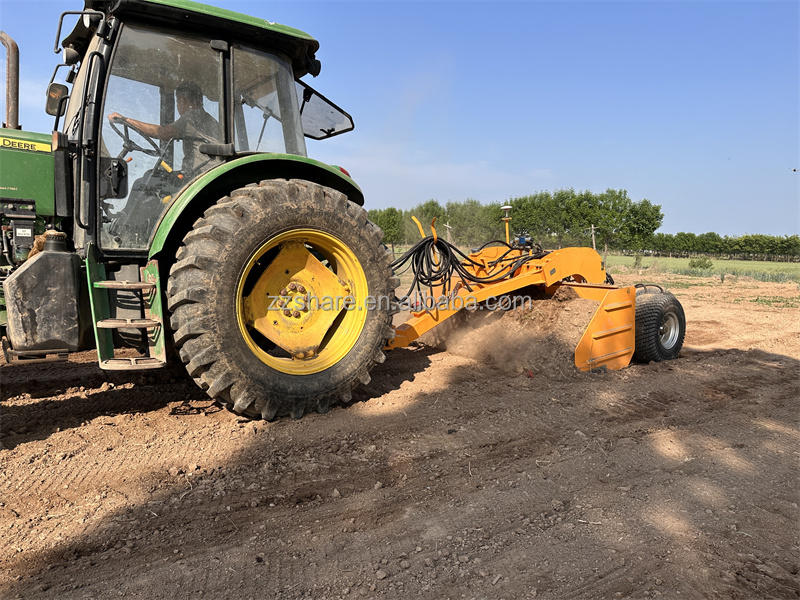

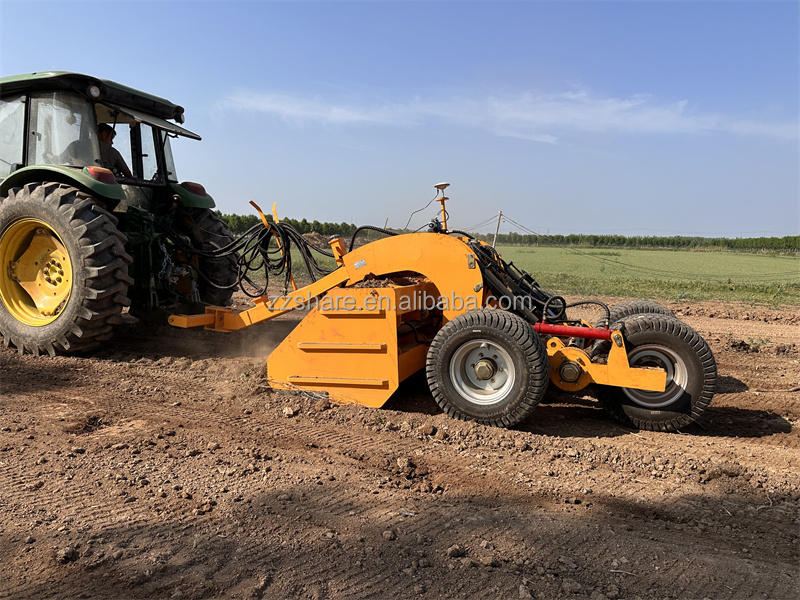

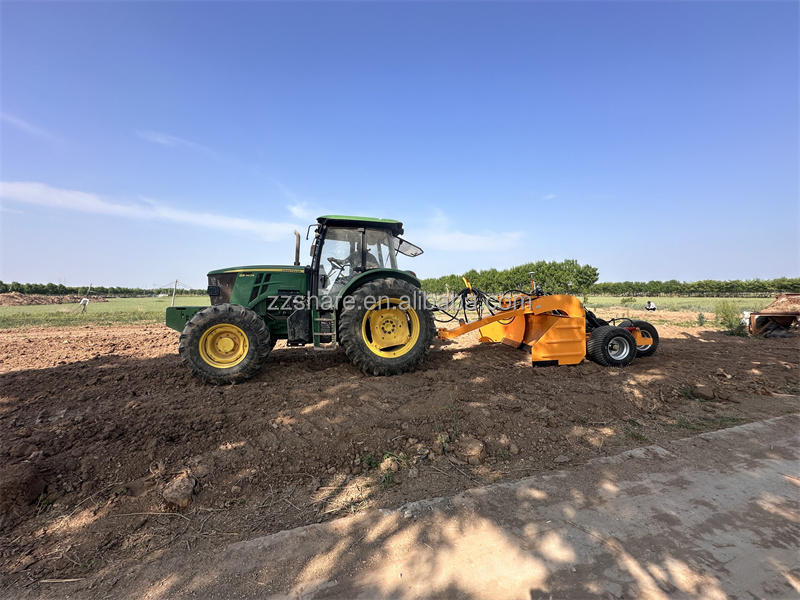

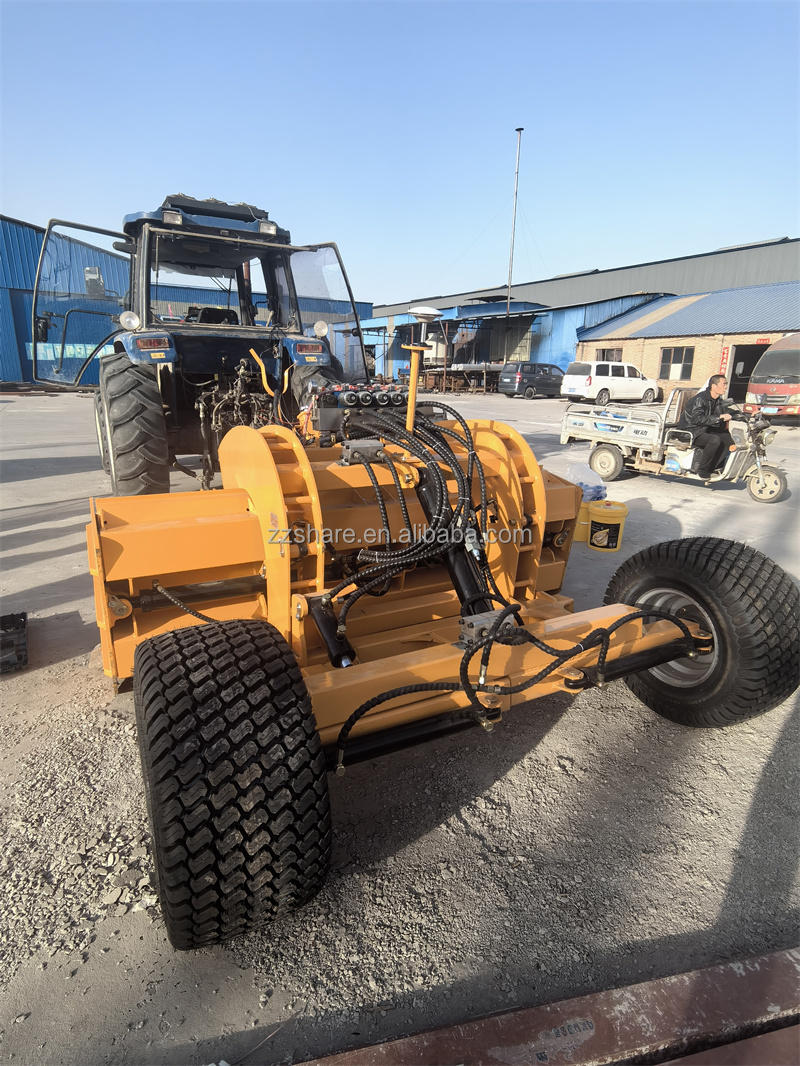

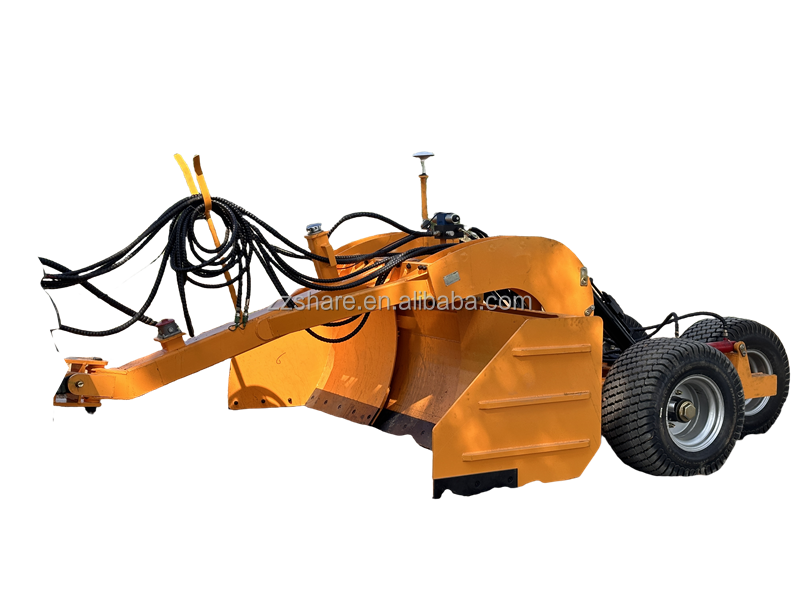

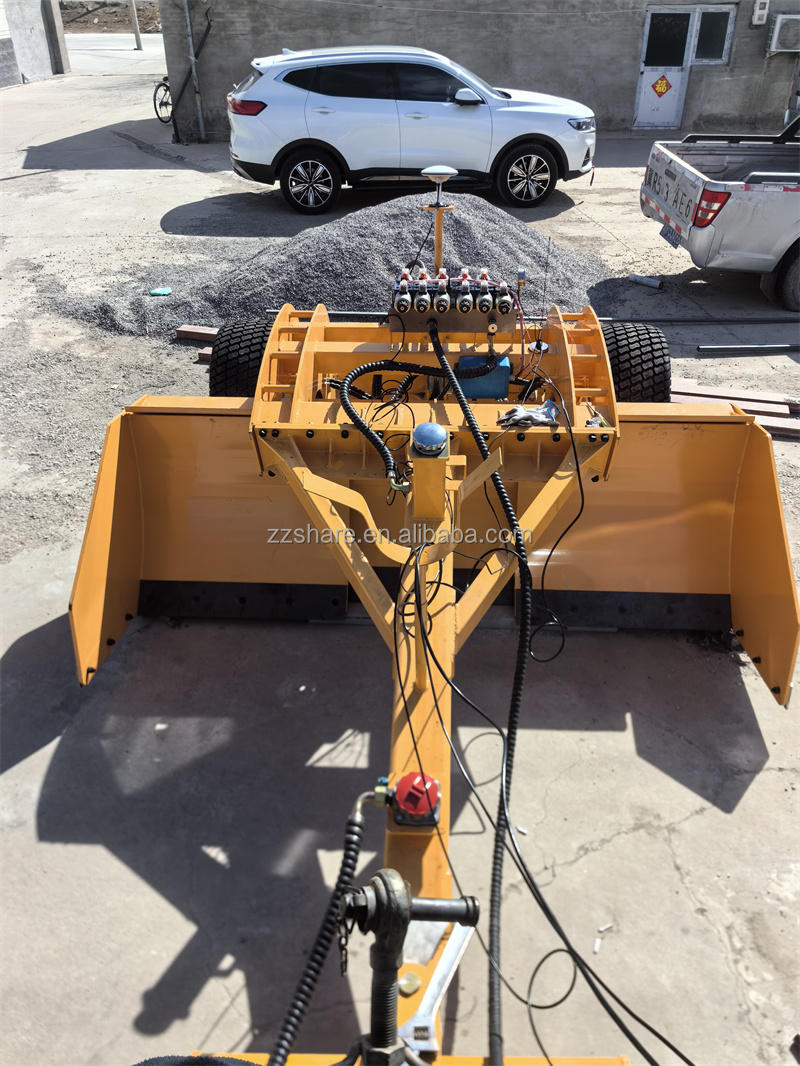

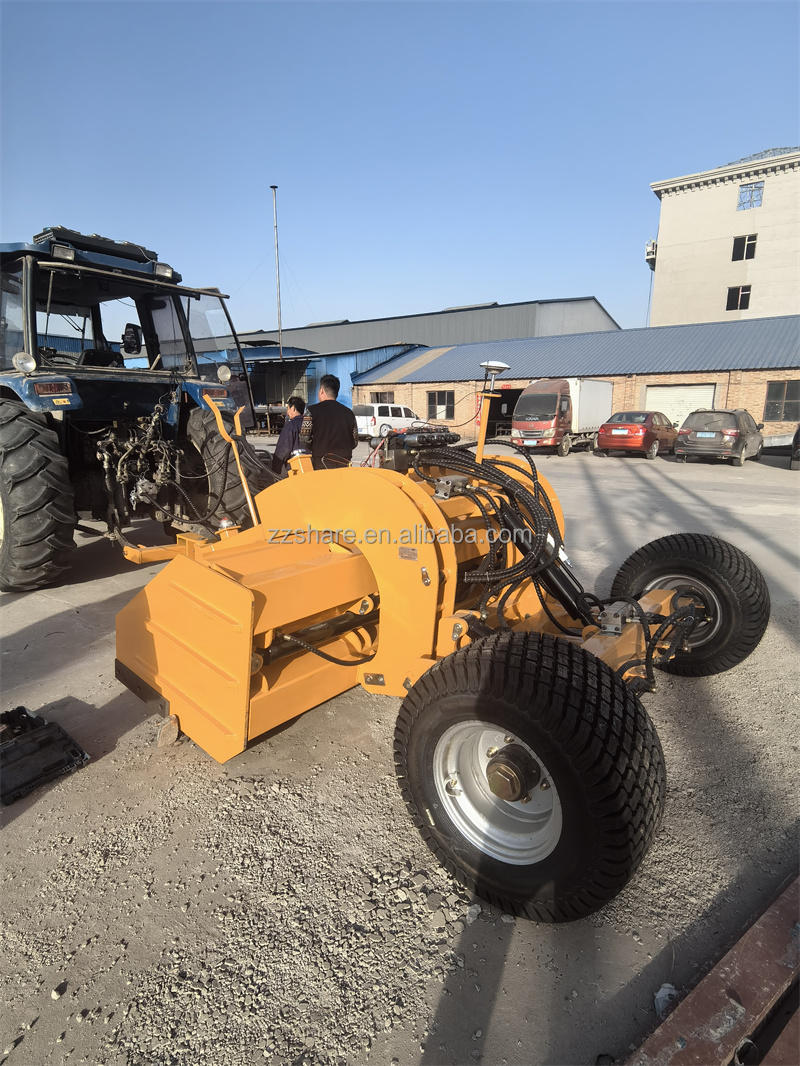

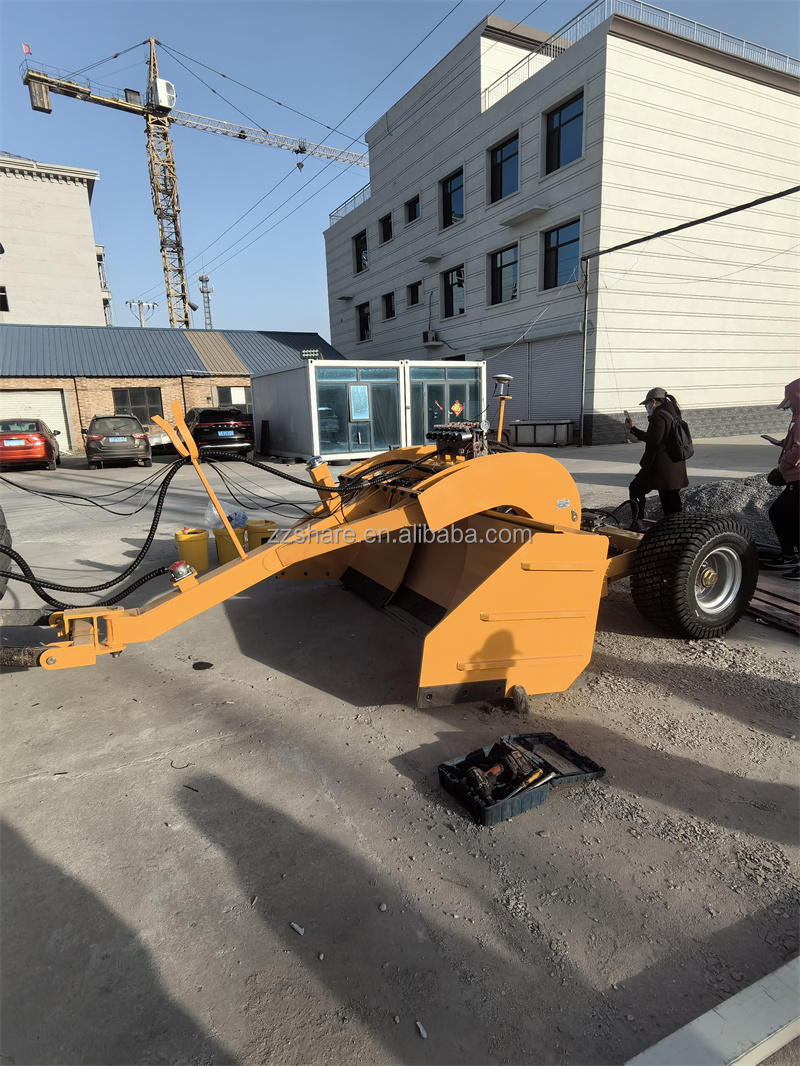

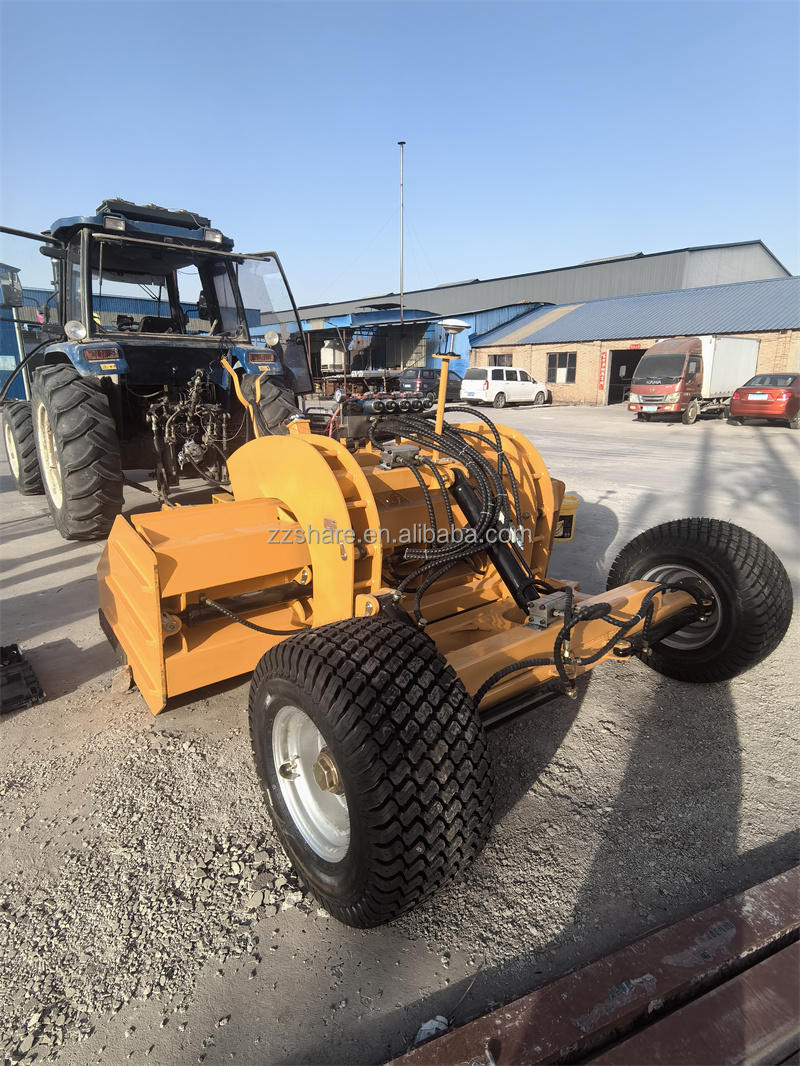

Detailed pictures

Machine model			Large curved beam satellite grader
Requires power	150-200 HP	Tire model	31*15.5-15
Machine weight	2300kg	Hydraulic input	4 sets
working width	2.5-4M adjustable	work efficiency	5-8 acres/hour
Bucket volume	2.5-4 cubic meters	horizontal error	±2cm
Plate thickness	Side panel 14MM + bottom panel 10MM	Cylinder model	Main cylinder 80450 + tilt cylinder 63450
Solenoid valve	12VDC36W for tractor traction, special solenoid valve group for forklift traction	satellite system	Tianchen Beidou (can be installed according to customer requirements)
engine	Multi-circuit synchronous motor	oil filter	RFA-63*20L
Overall dimensions	4500* (2600-4100)* 1200mm
