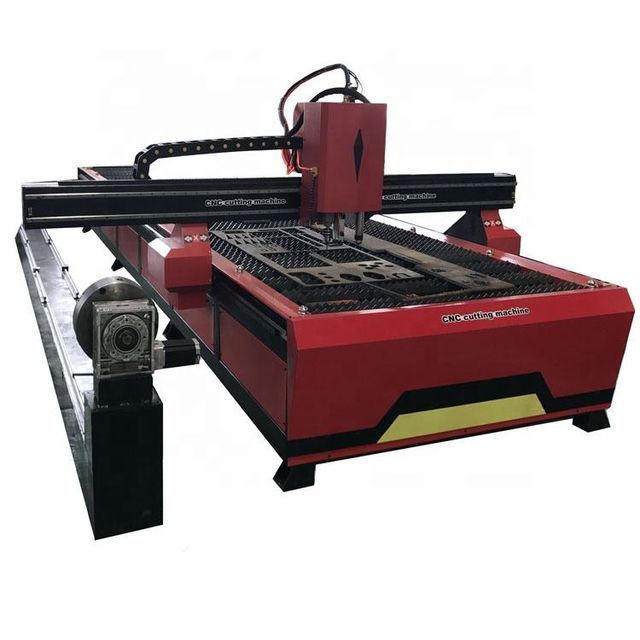

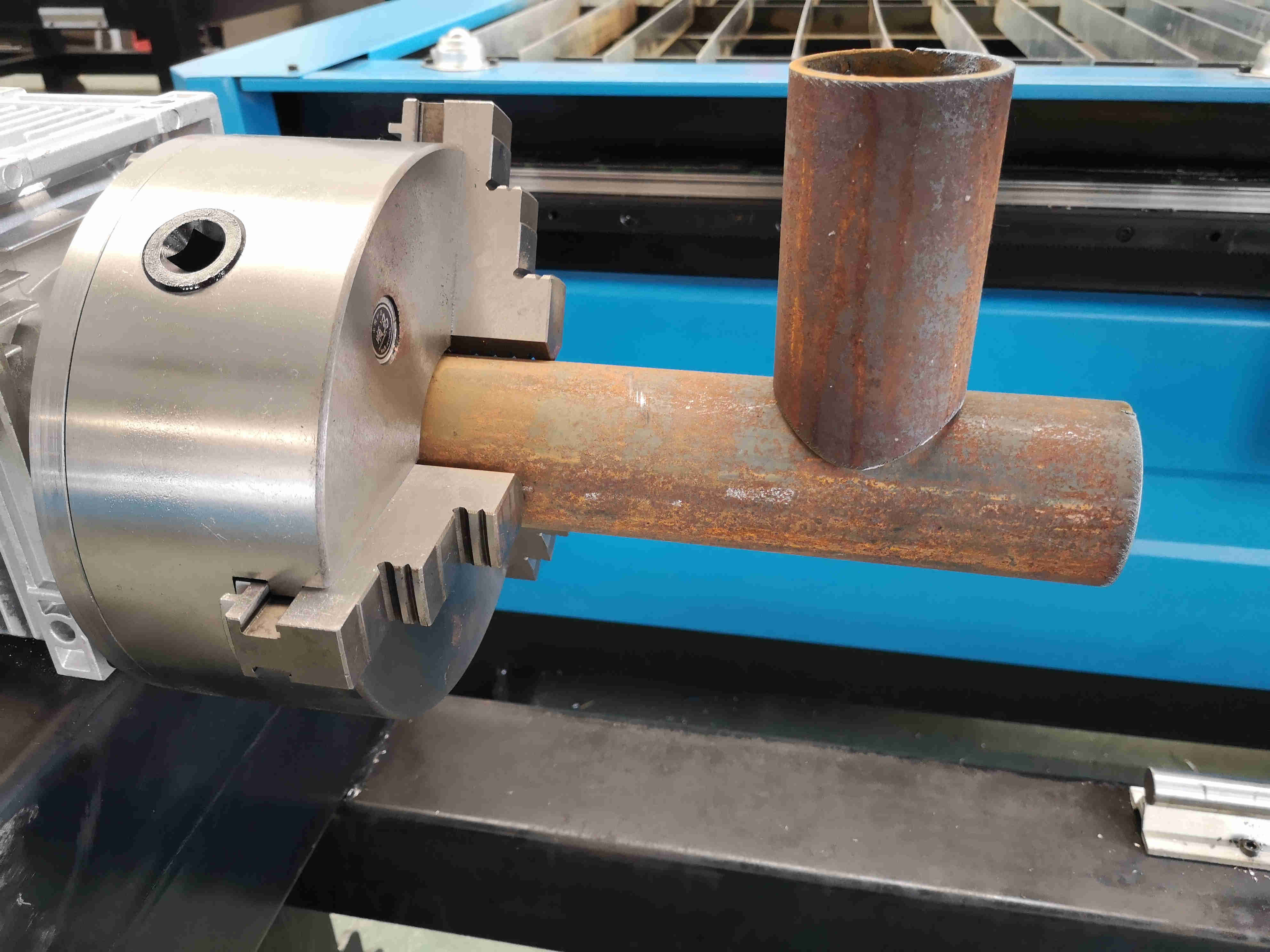

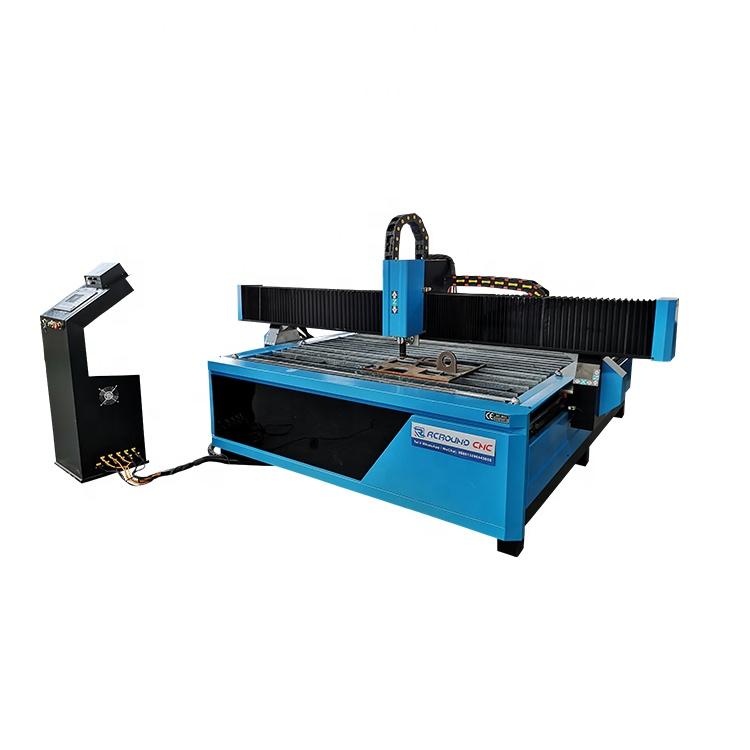

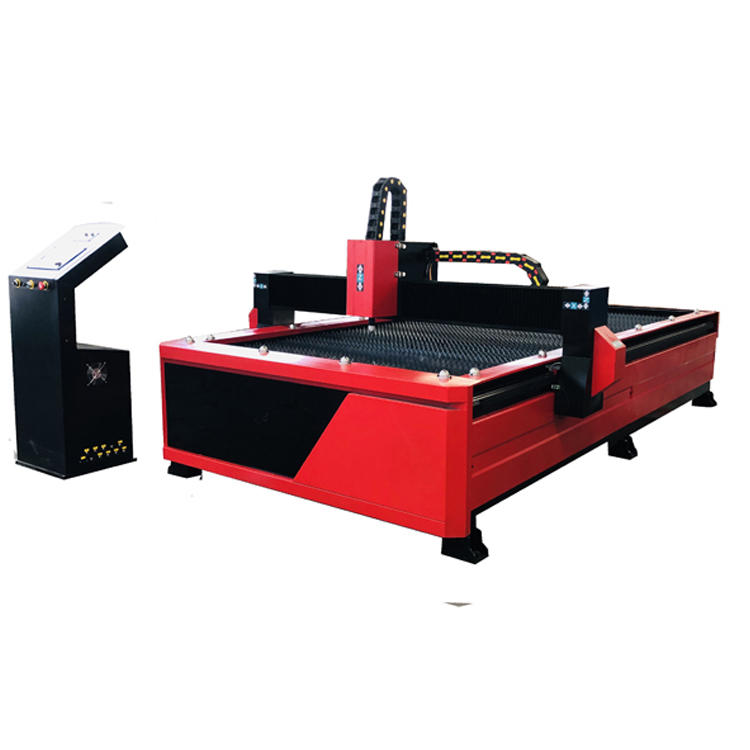

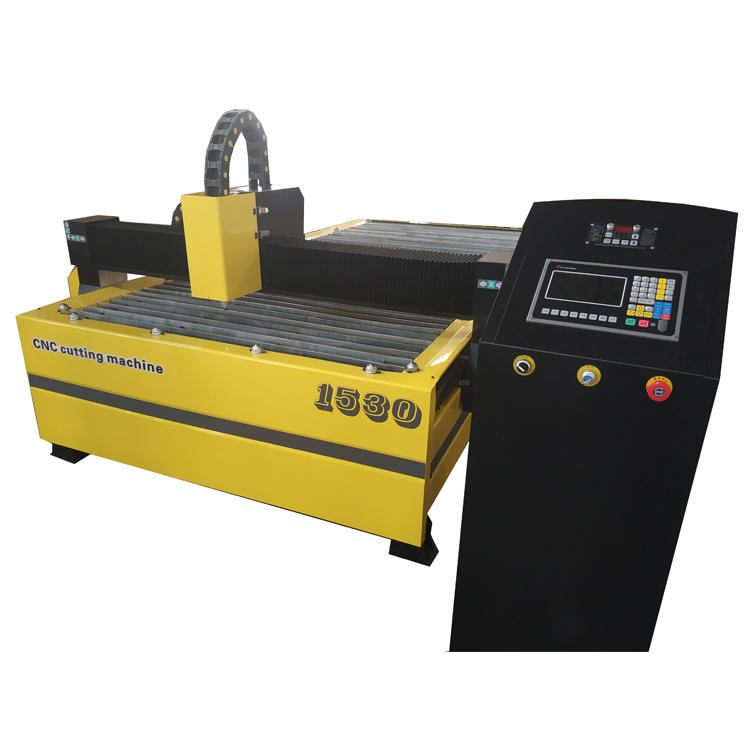

1500*3000 2000*4000mm China metal cutting/cnc plasma table/plasma cutting machine with rotation
-
Supplier: Jinan Rebound Machine Co., Ltd. -
Region: Shandong, China -
Contact: Mr Stephen Zhang -
Price: $3000.00 / 1 - 9 sets
$2900.00 / 10 - 19 sets
$2800.00 / 20 - 29 sets
$2700.00 / >=30 sets -
Min. Order: 1 set
Product details
| port: | Qingdao, Shanghai, Guangzhou, Tianjin | Plasma power: | LGK |
| body: | steel welded structure | Main selling points: | high productivity |
| Voltage: | 380V/220V | Cutting method: | Plasma cutting (flame cutting optional) |
| Package preview: | Warranty: | 2 years | |
| Dimensions (L*W*H): | 3.7*2.25*1.7m | aspect: | 1530 |
| Packaging Details: | wooden bag | software: | Original FastCAM software |
| Weight (kg): | 1200 kg | spread: | rack and pinion |
| Machine table: | blade or serrated | Origin: | China |
| After-sales service provided: | Video technical support, on-site maintenance and repair services, online support, free spare parts, on-site installation, commissioning and training | Supply capacity: | 50 sets per week |
| product name: | Desktop CNC plasma cutting machine | motor: | Stepper or Servo Motor Driver |
| brand: | rebound | Year: | 2019 |
| Health status: | new | Motor type: | stepper or servo motor |
| Cutting thickness: | 0-30mm (plasma cutting) 10-200mm (flame cutting) | Applicable industries: | Clothing store, building material store, construction project |
| rated power: | 10-50KW | Control System: | Starfire or Fangling + THC Controller |
| payment terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram | model: | RB1530 |
Product Description
Model | RB-1530 |
Operating Voltage | AC 220V/380V, 50HZ |
working size | 1500mm*3000mm 1300mm*2500mm |
cutting speed | 12000mm/min |
Cutting thickness | 0-30mm, depending on the plasma power |
plasma power supply | LGK 63-200A Hypertherm 45-200A |
air pressure | 0.4Mpa |
Package Size: | 3.7m*2.3m*1.6m |
weight | 1200KG |
feature
1. The steel structure of the whole machine is processed by precision machine tools, which is firm, reliable and durable.
2. STARFIRE control system, file cutting output automatic correction, cutting current real-time tracking and detection of plasma power.
3. Magnet anti-collision design, simple and effective. When the cutting torch collides with the steel plate, the machine stops working automatically.
4. The machine adopts China Huayuan Power or American Haibao. Easy to learn, easy to operate, fast cutting speed and high cutting quality.
5. This machine also has the function of automatic arc voltage adjustment, which can automatically adjust the cutting distance.
application
It is suitable for industries such as automobiles, motorcycles, pressure vessels, chemical machinery, nuclear industry, general machinery, construction machinery, steel structures, and hip joints.

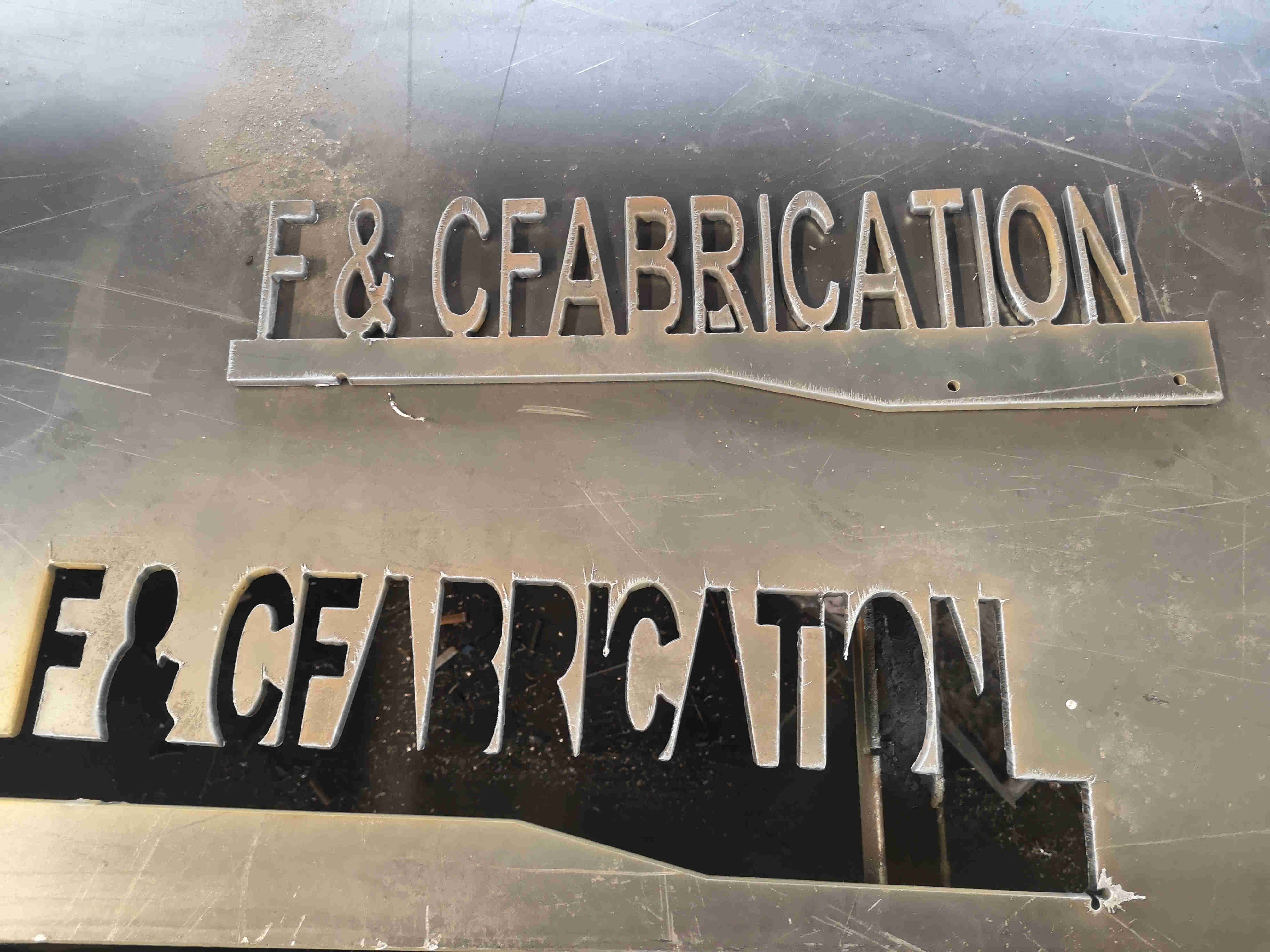

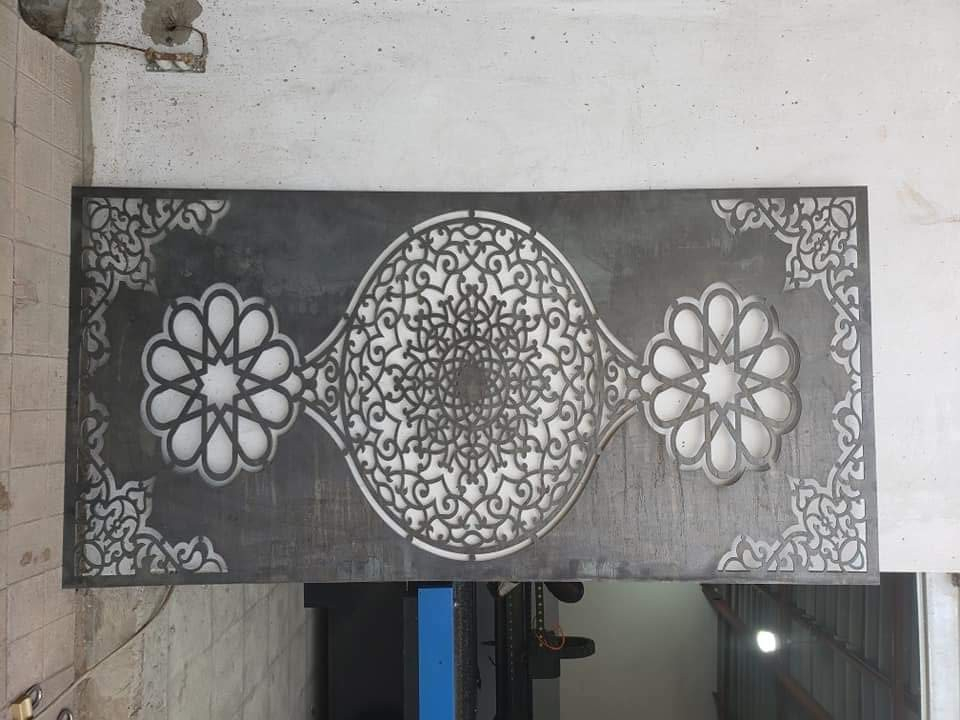

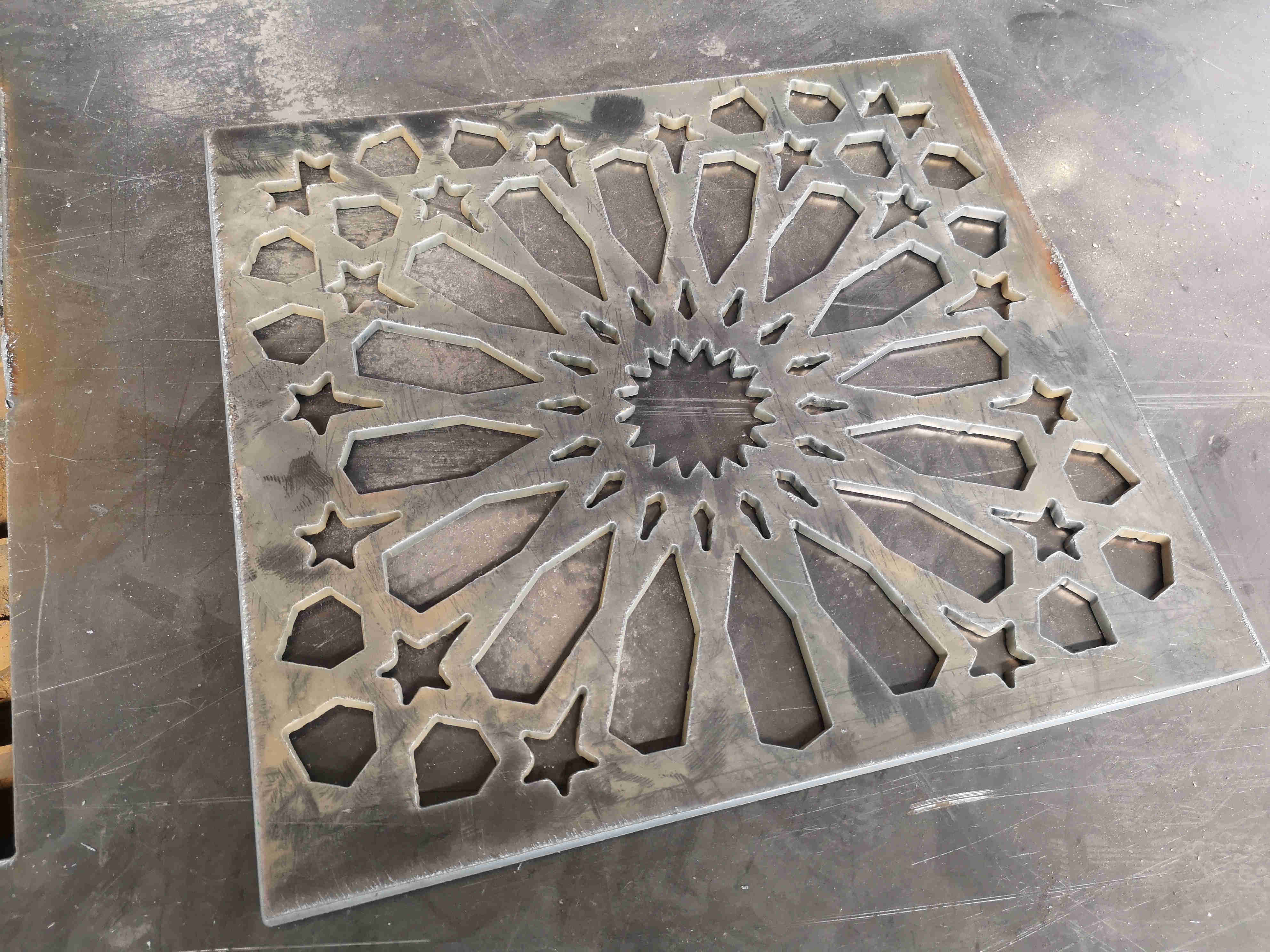

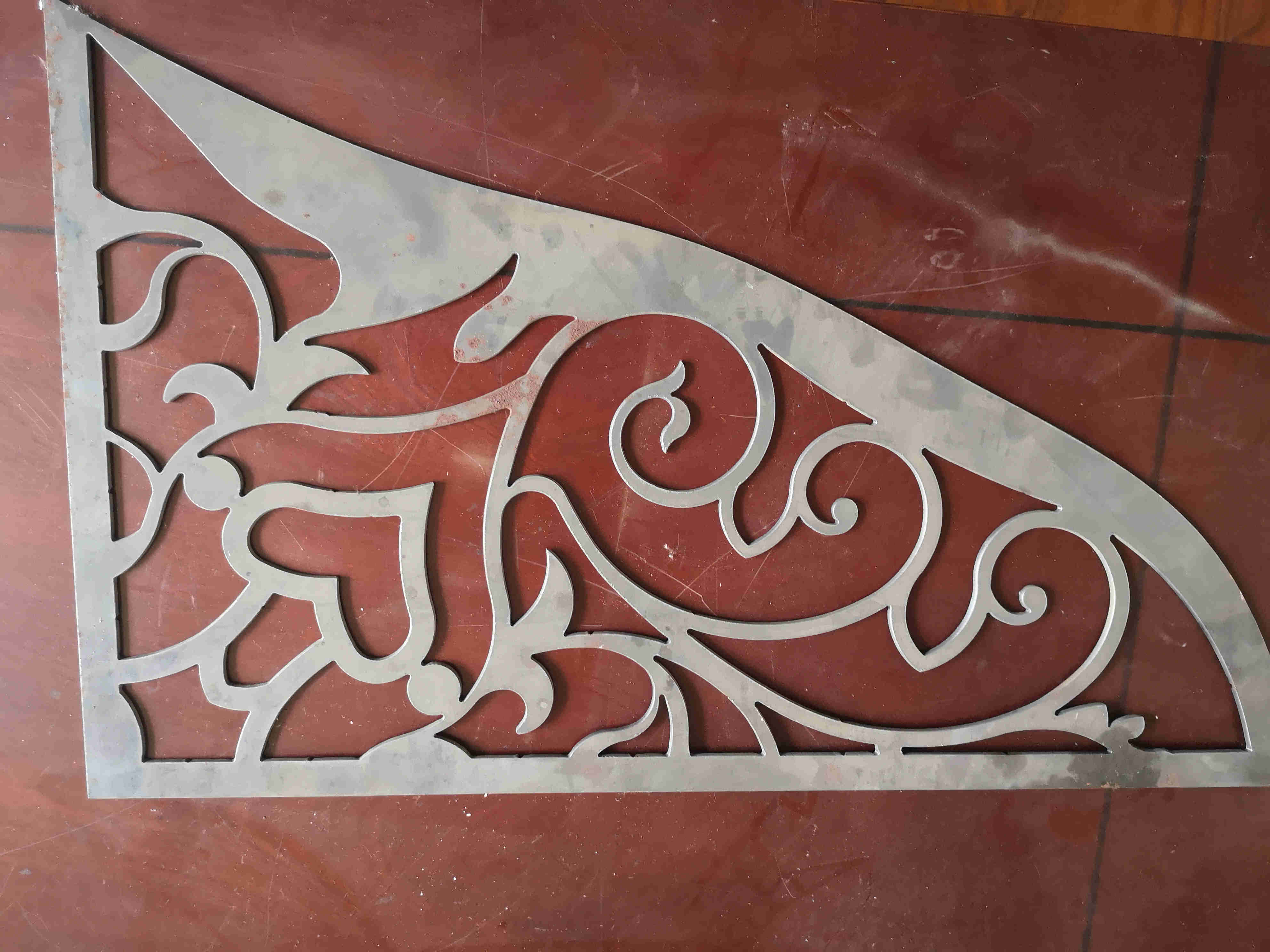

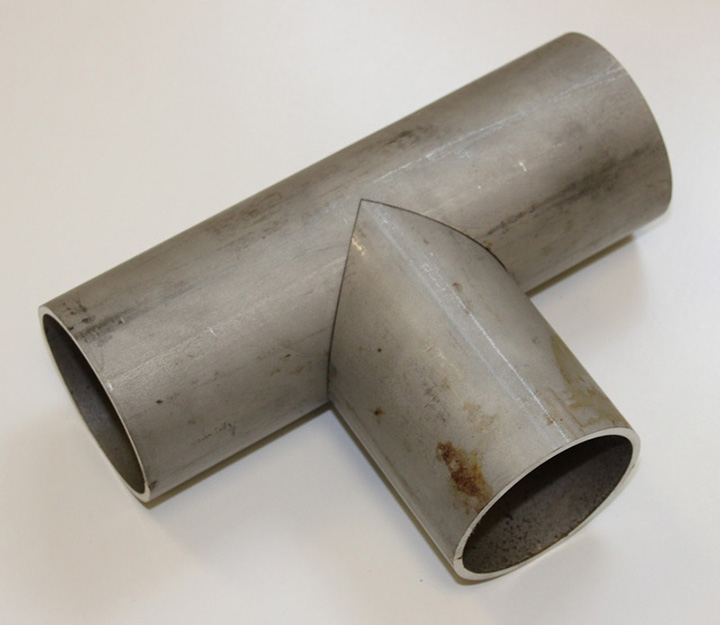

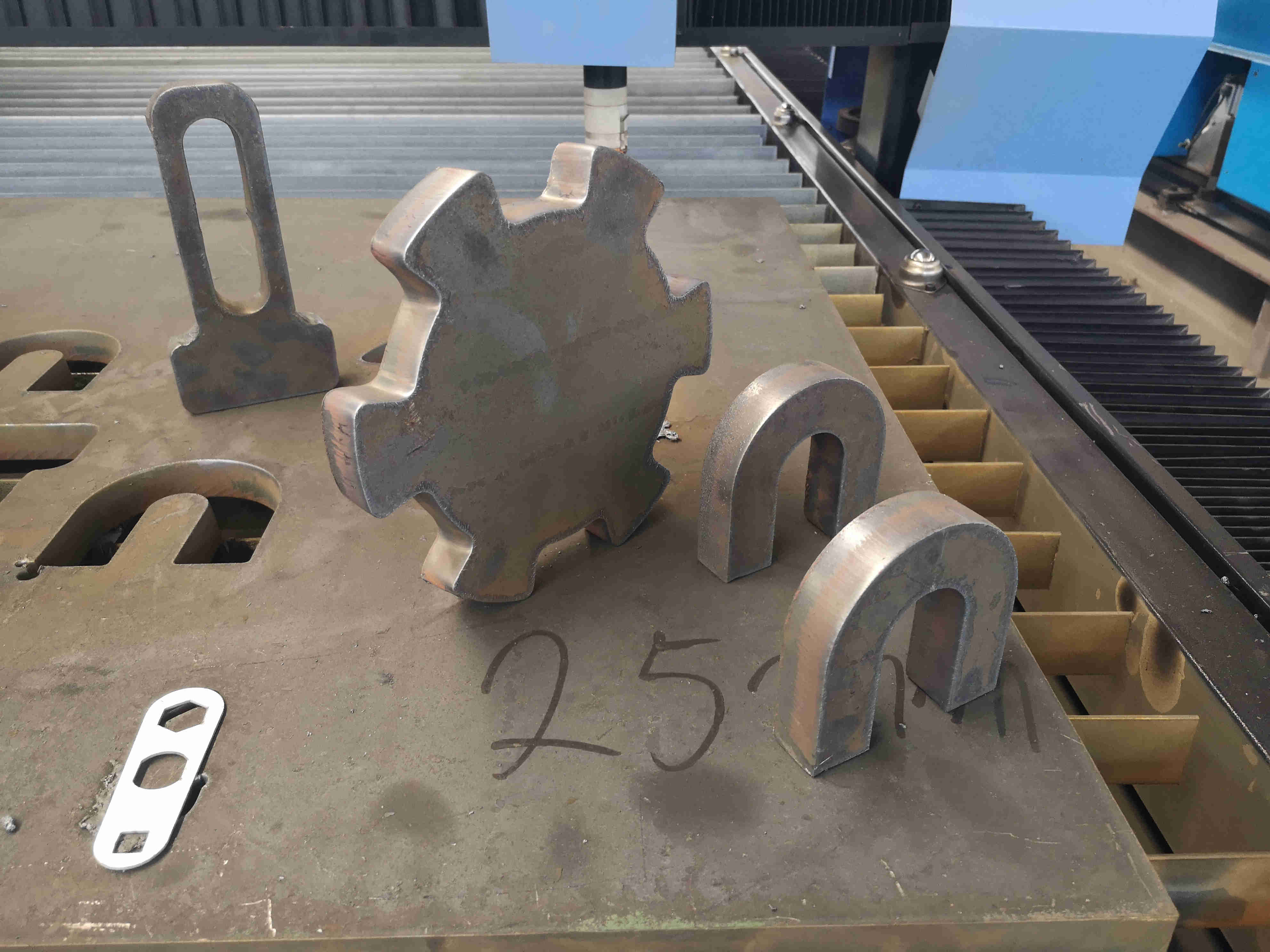

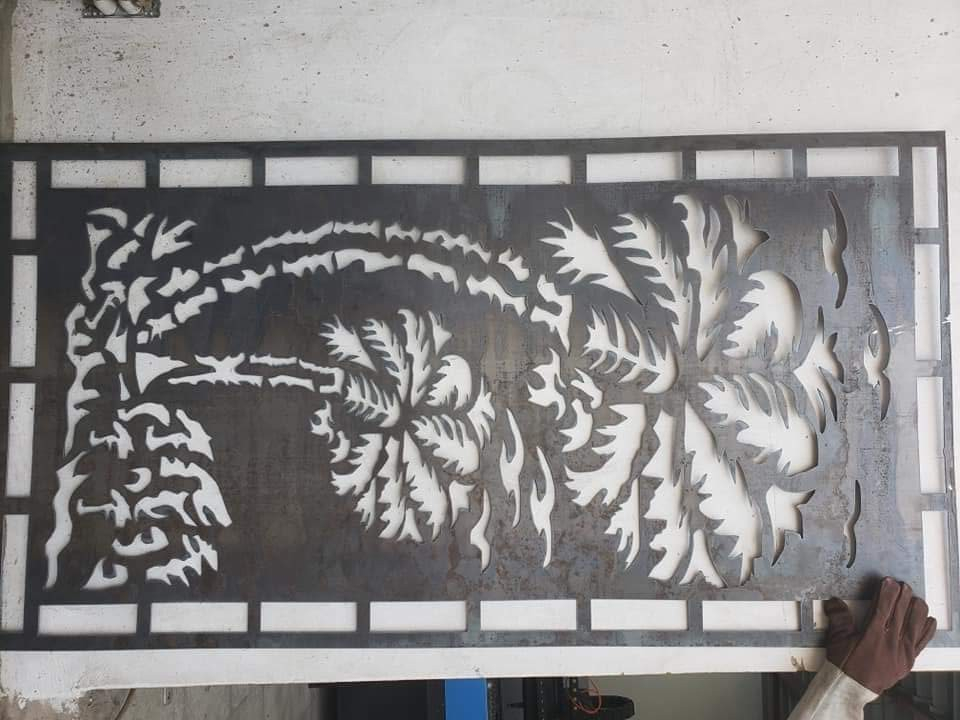

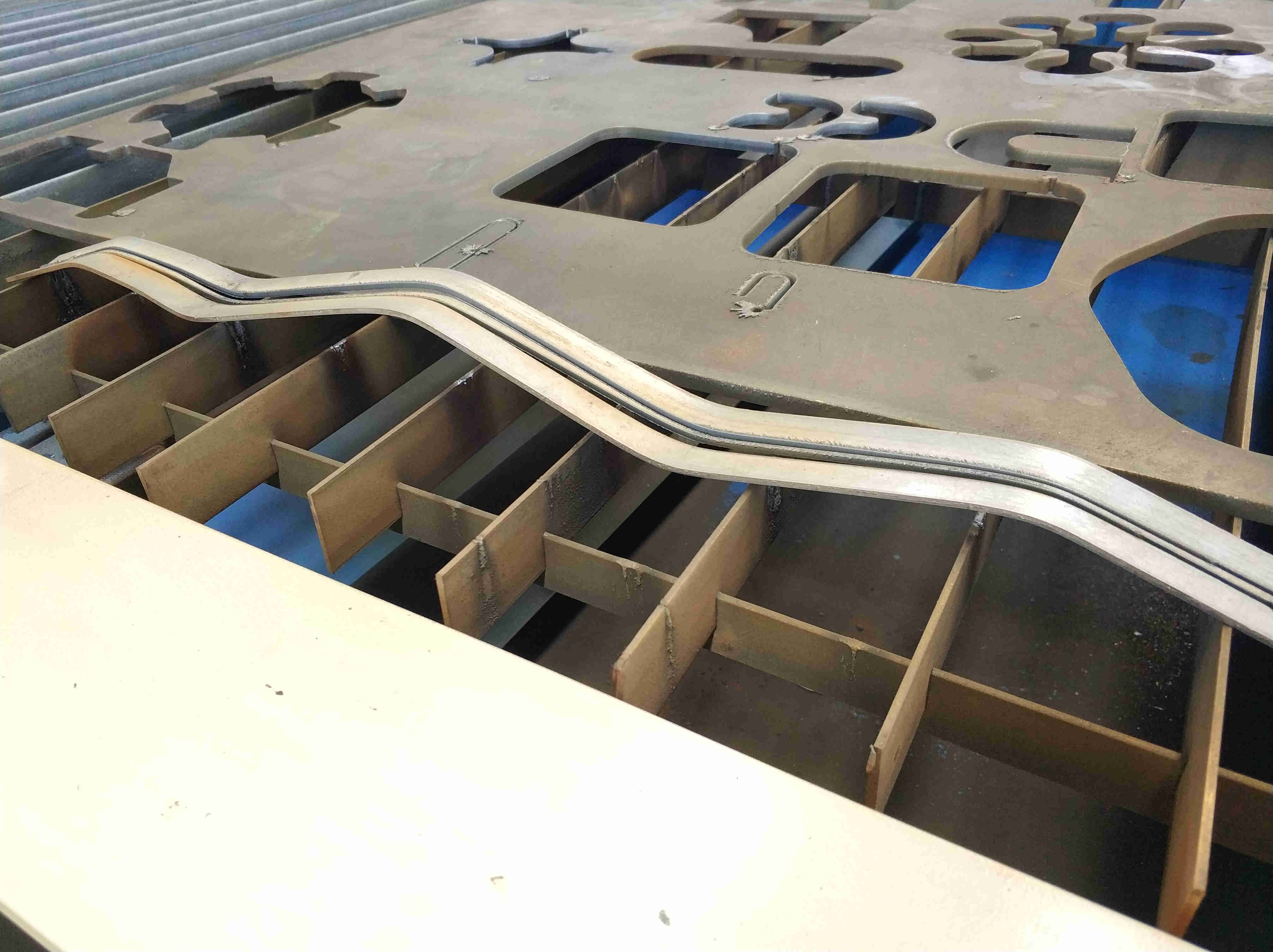

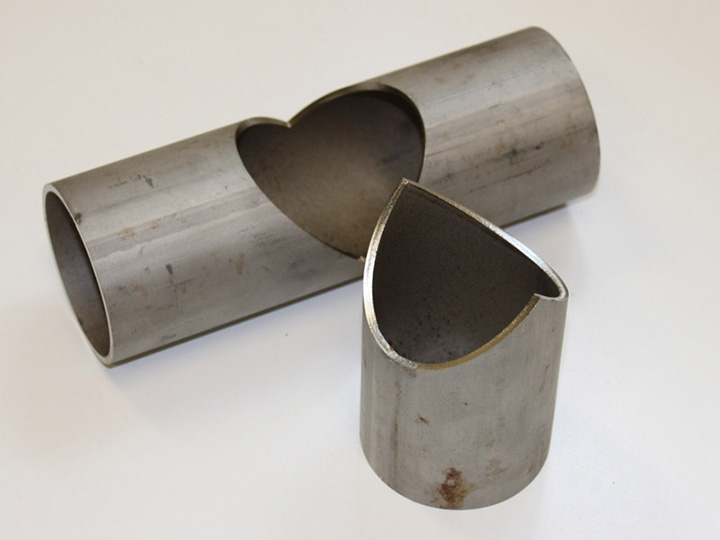

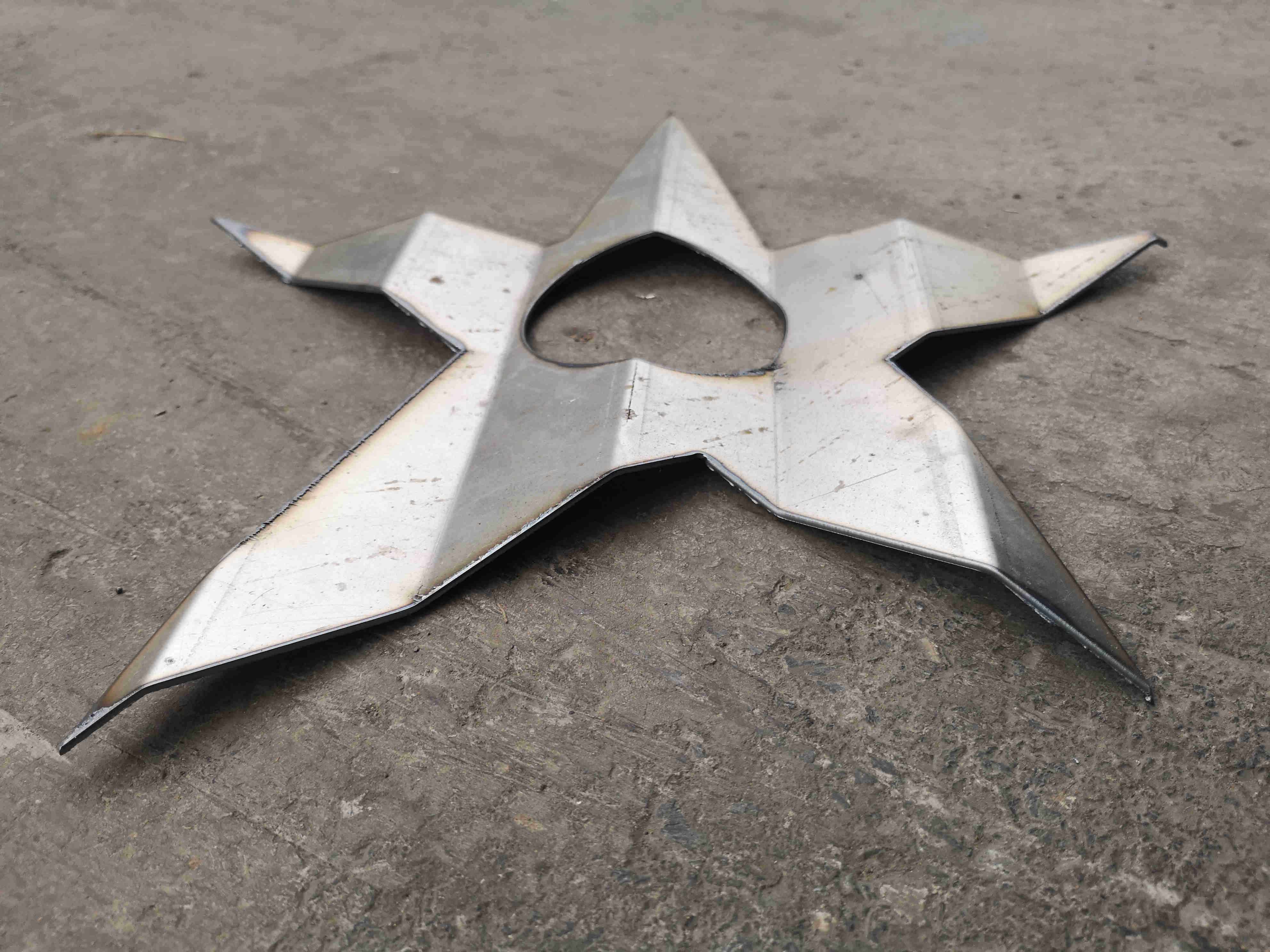

sample
detailed image

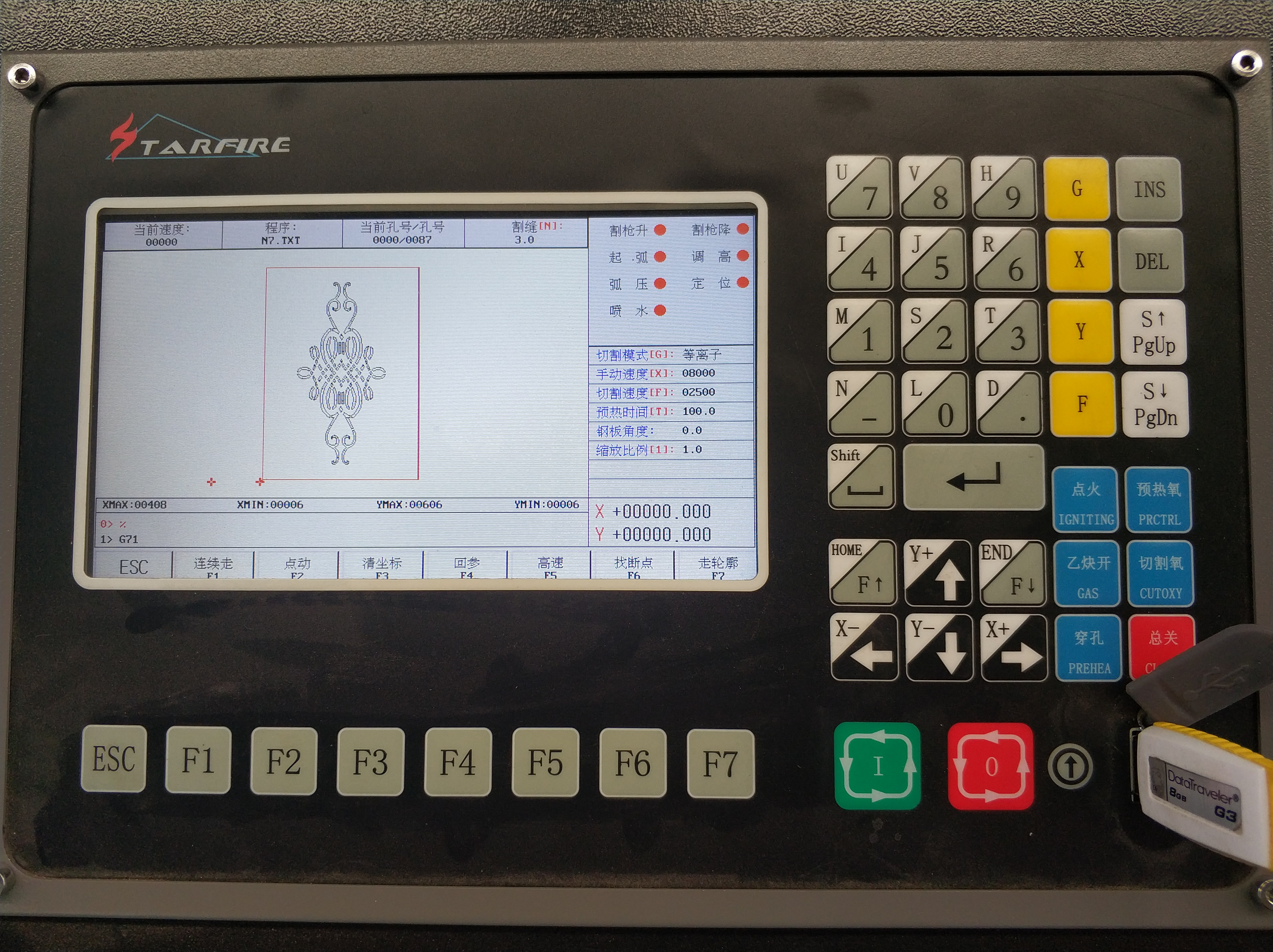

Control system: STARFIRE
Support FASTCAM, ARTCAM, Type3 software
The CNC system is equipped with high configuration, automatic arc start, stable performance, and the success rate of arc start is 99%.
The CNC system is equipped with high configuration, automatic arc start, stable performance, and the success rate of arc start is 99%.

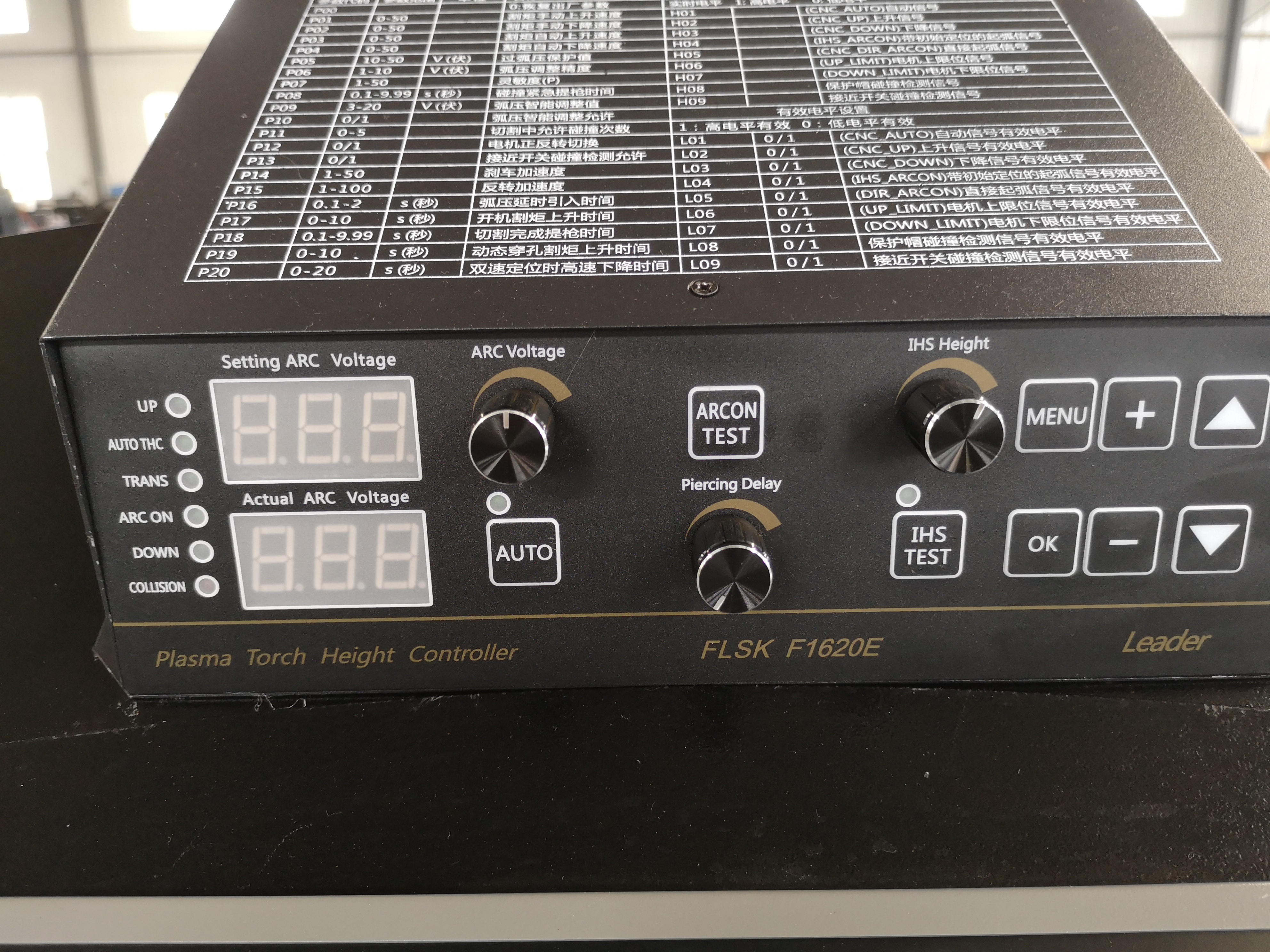

Torch height controller
Automatically adjust the cutting distance of the cutting torch with high precision when cutting bent metal.

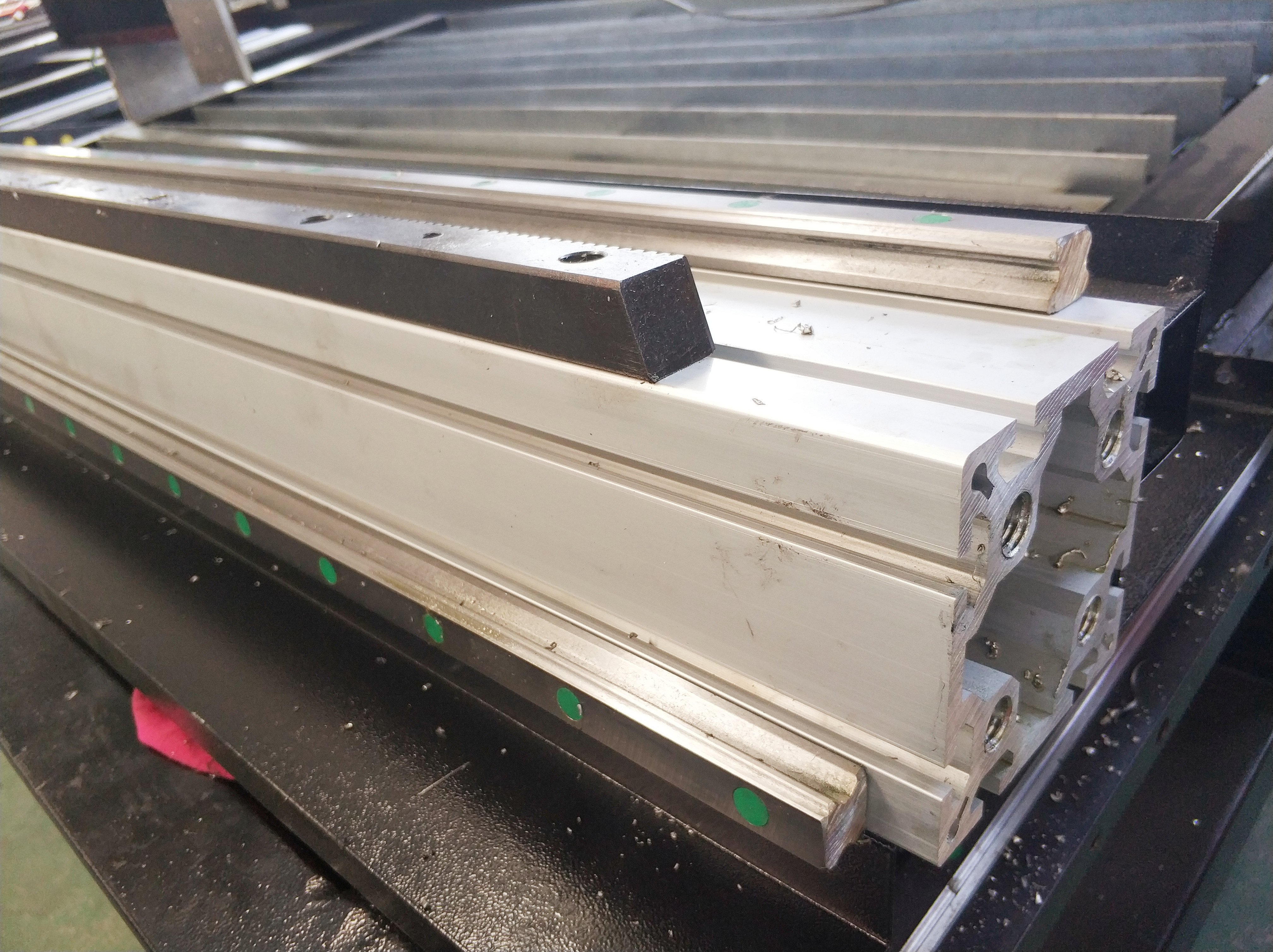

Plasma machine beam.
Professional Industrial Aluminum
Good rigidity, light weight and low inertia. Improve cutting speed and life.
The beam can be disassembled, which is convenient for on-site transfer, packaging and transportation, and ensures that the verticality of the beam remains unchanged.

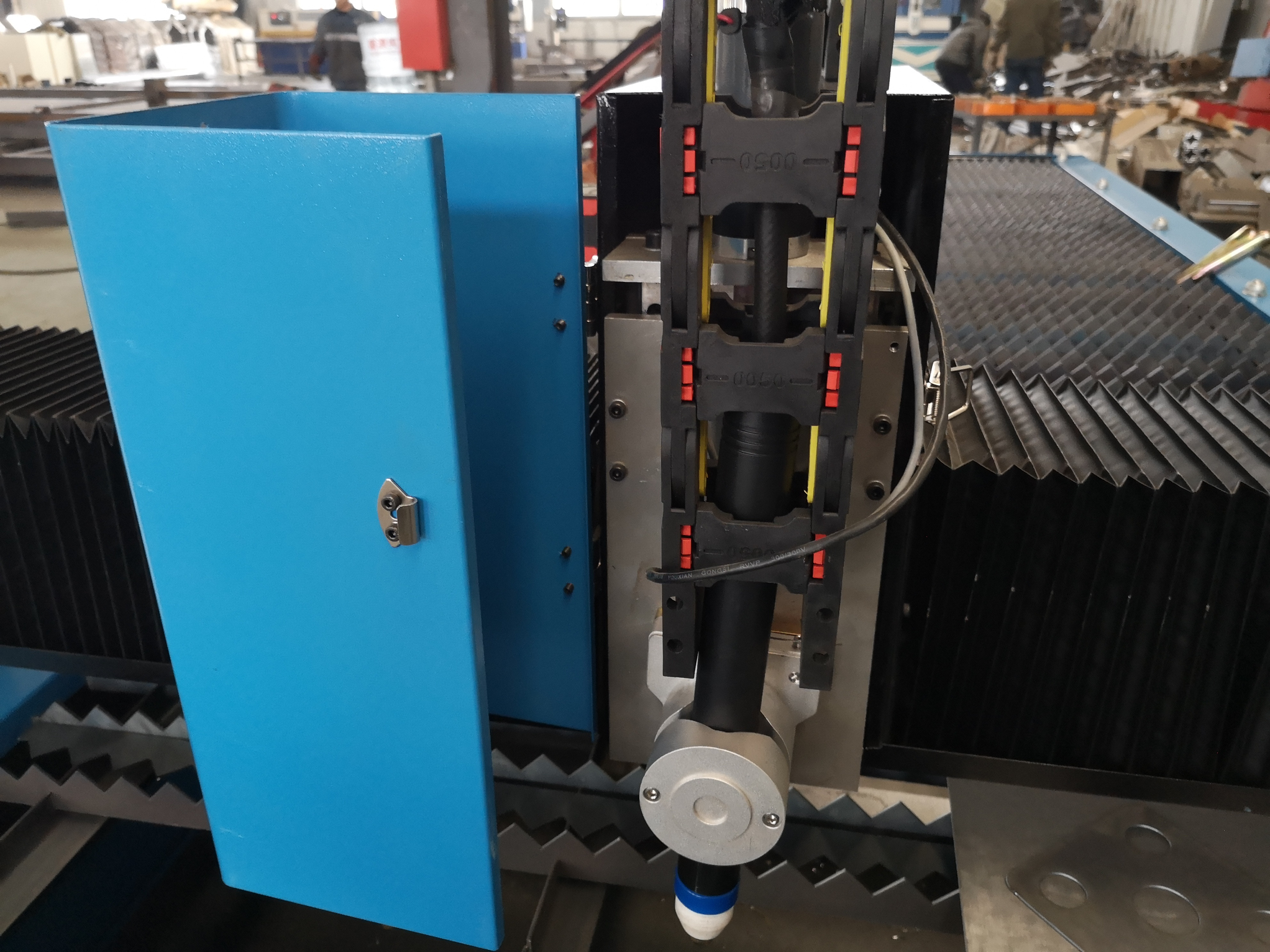

Plasma torch base.
The plasma cutting torch moves up and down through the ball screw and the square rail slider, with fast speed and high precision.
Drive System
Servo or stepper drives and motors
The Y-axis adopts synchronous dual-motor dual-drive, with stable transmission and high running precision

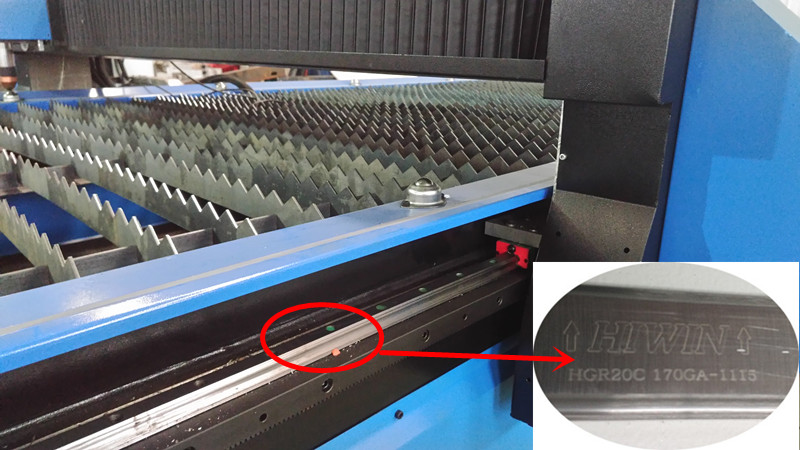

Linear Guides
The three axes adopt Taiwan HIWIN high-precision square track

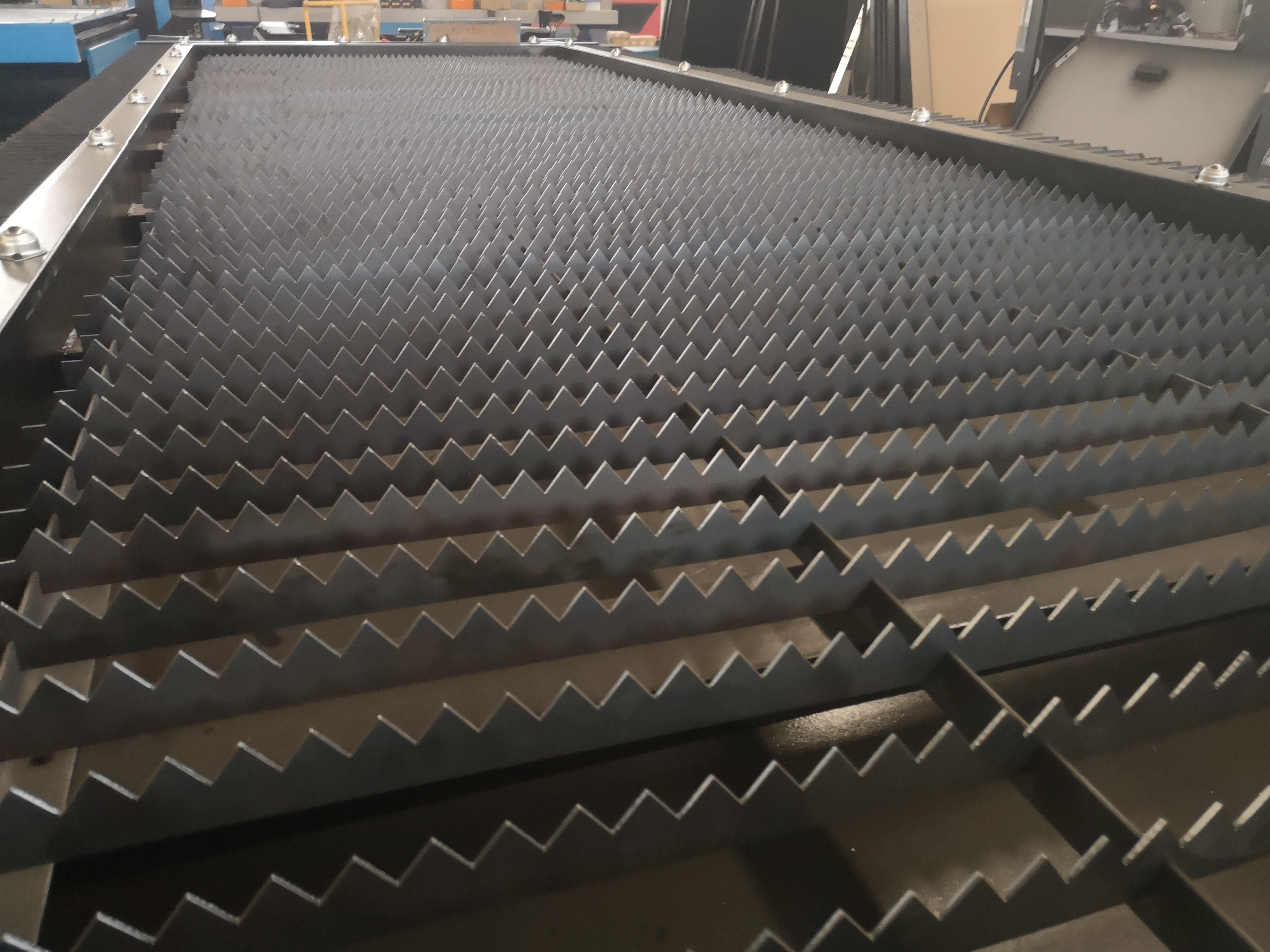

Plasma Machine Workbench
Saw table (optional blade tooth table)
