CNC Pipe Cutting Machines
-
Supplier: Guangdong Chittak Intelligent Equipment Co., Ltd. -
Region: Guangdong, China -
Contact: Ms Amy Zhang -
Price: $3680.00 /set -
Min. Order: 1 set
| Saw blade size: | 250-300MM; | Packaging Detail: | Standard company packaging, safe for transportation by sea. (the machine mechanical parts are nude packing, machine motors & electrical part are well wrapped by plastic and well protected, whole set machine will be put in wooden box packaging.) Usually one set cutting machine will by LCL, shipped with other goods in the container.; |
| Payment Terms: | L/C,T/T; | Dimension(L*W*H): | 1350MM*1140MM*1580MM; |
| Year: | 2020; | Cutting mode: | Saw Blade Cutting; |
| Warranty: | 1 YEAR; | After Warranty Service: | Video technical support,Online support; |
| Port: | Foshan, Guangzhou, Shenzhen, Shanghai, Qingdao Port in China; | Local Service Location: | Malaysia; |
| Brand Name: | CHITTAK; | Supply Ability: | 50.0 Set/Sets per Month; |
| Voltage: | 380V 50HZ; | Spindle drive motor: | 2.4/3.0 KW; |
| Machine model: | CTK-315KT; | Condition: | New; |
| Feeding length: | 15-350MM; | Weight (KG): | 700; |
| Showroom Location: | Malaysia; | Place of Origin: | Guangdong China; |
| Applicable Industries: | Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Construction works ; | Rated Power: | 3KW; |
| Weight: | 420KG; | Automation: | Automatic; |
| Key Selling Points: | High Productivity; | Product name: | Metal Steel Cutting Machine; |
| After-sales Service Provided: | Online support,Field installation, commissioning and training,Field maintenance and repair service,Video technical support; | Certification: | ISO9001:2015; |
| Material / Metal Processed: | Brass / Copper,Stainless Steel,Carbon Steel,Aluminium Alloy,Aluminum; | Dimension: | 1350*1140*1580mm; |
| Blade speed: | 52/104 RPM; | Package Preview: | ; |

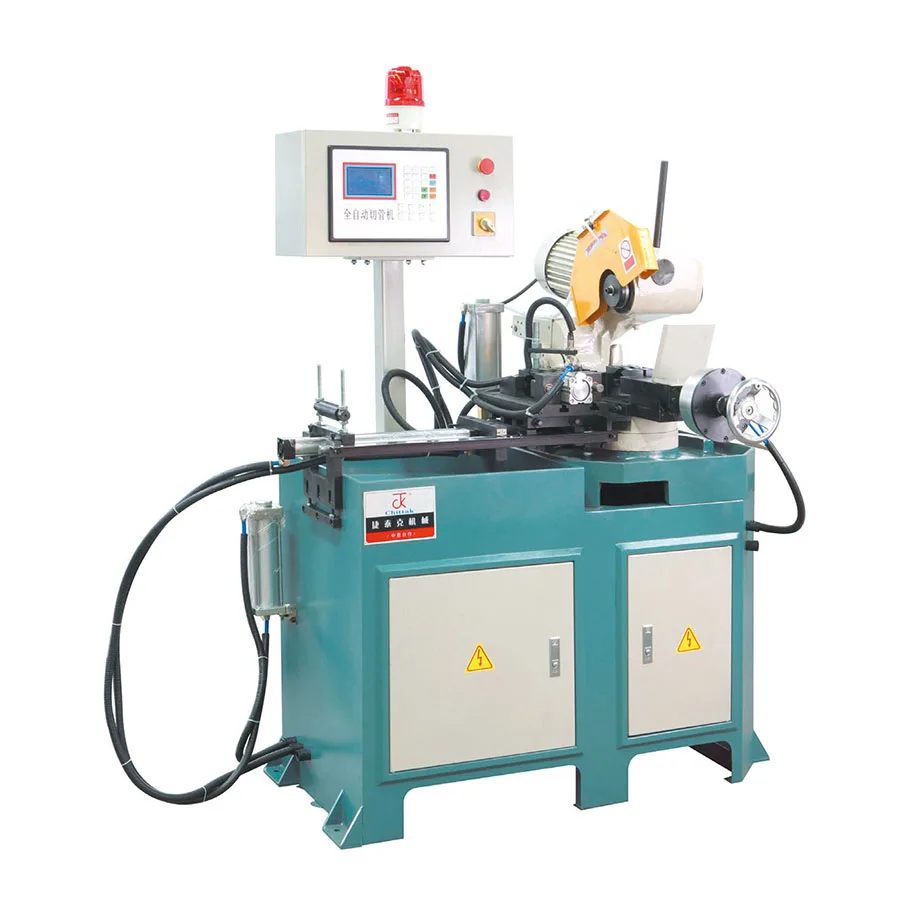

CNC Pipe Cutting Machine--CTK-315KT
Main Features:
- The specially designed clamp features strong clamping, firmness, reliability and safety.
- Automatic circulation of coolant ensures smooth cut surface and longer service life for saw blade.
Standard Components:
1.Basic machine station
2.Air pressure system
Specifications:
|
Model |
CTK-315KT |
|
|
Main Drive Motor |
2.4/3.0KW 380V 50HZ |
|
|
Blade Speed(RPM) |
26/52(stainless steel)Or 52/104(standard) |
|
|
Saw Blade Size |
Diameter (mm) |
HSS250-300 |
|
Aperture (mm) |
32 |
|
|
Pin hole(mm) |
2×11×PCD63 |
|
|
Air Pressure(Kg/cm2) |
5-8 |
|
|
Machine Size(L*W*H)(mm) |
1350*1140*1580mm |
|
|
Machine Net Weight (Kg) |
420 |
|
1) Provide the technical paper materials for installment, maintenance, operation and so on;
2) Provide equipment's key element bill of materials;
3) Provide the technical training for the equipment operation attendants;
4) Provide the installment instruction and the debugging work of the equipment;
5) Provide the perpetual paid service after the quality guarantee period.

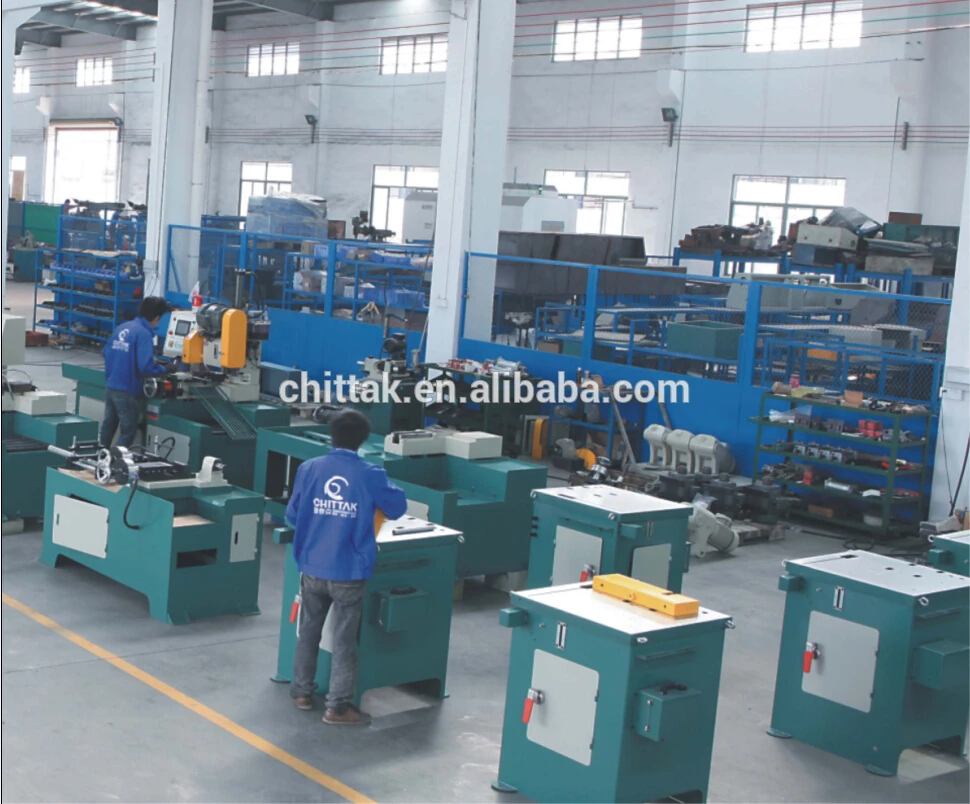

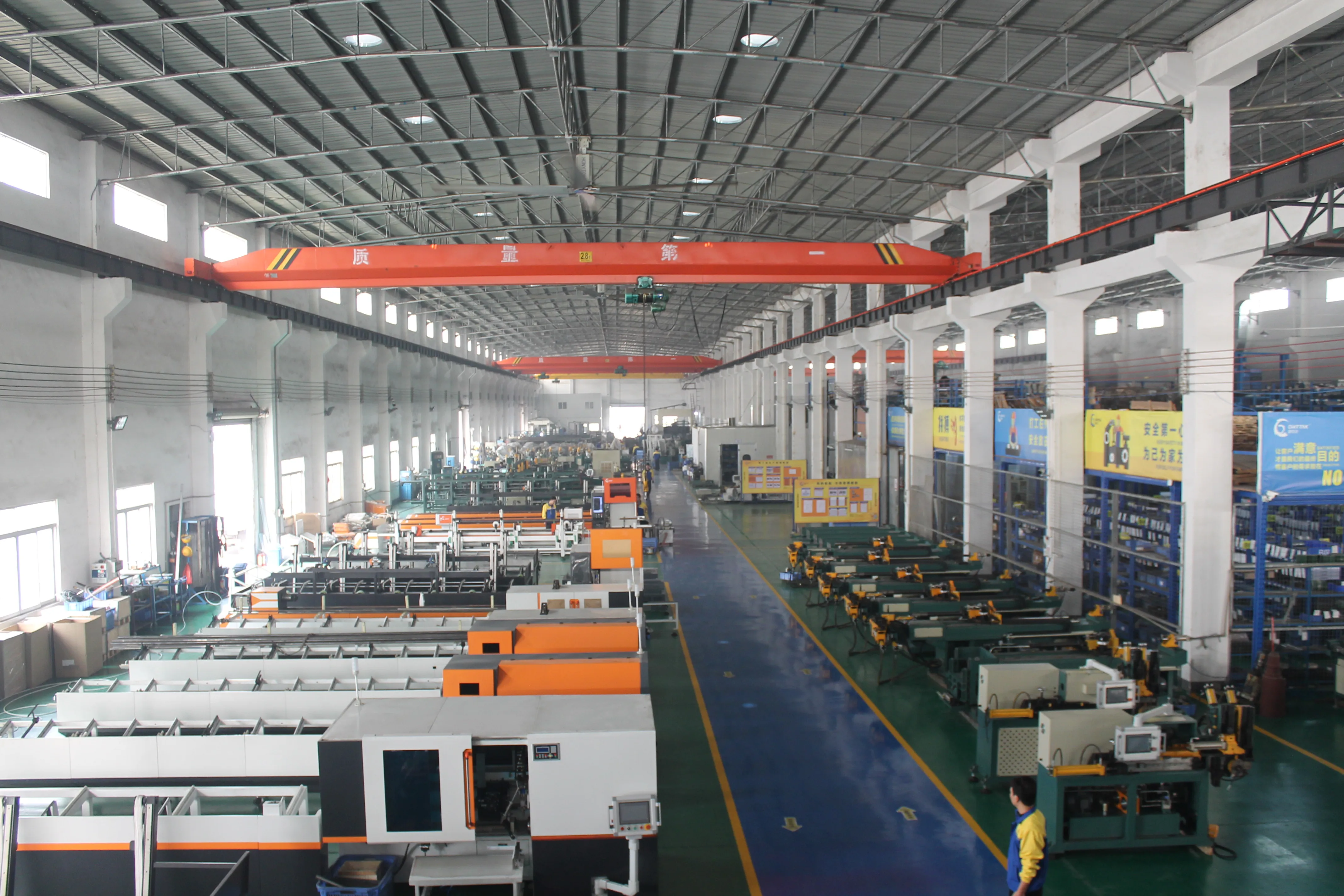

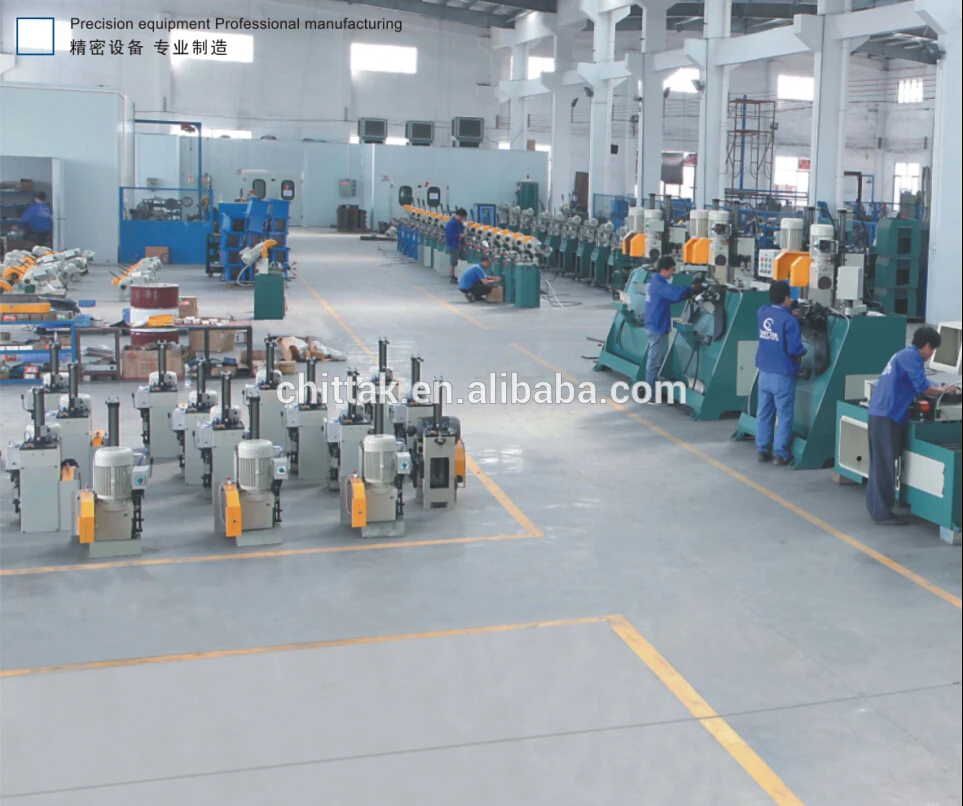

Chittak Machinery Co., Ltd. is located in Foshan city, which is one of the most well-known manufacturing bases in China.
The company's technology team is composed of a group of engineers who have earlier engaged in the pipe cutting machine research and development. Has been accumulating more than 10 years of manufacturing experience, and more than 50 capable technicians and skilled workers, now the company possesses perfect quality control system and modern management tools. We are able to present best quality product for the best prices with ensuring first-class after-sale service to all the customers from home and abroad.
Our main products include: pipe cutting machine, profile cutting machine, aluminium profile cutting machine, chamfering machine, metal saw blade sharpening machine, and circular metal saw blade, etc. Our high quality products and attentive service help to win a large number of loyal customers home and abroad. The equipments are sold to the domestic market, Russian, Ukraine, Japan, Thailand, Vietnam, Indonesia, India, Bangladesh, Turkey, Iran, Brazil, South Africa, Columbia, Argentina, Middle East countries, etc, serving more than 30 countries and regions.
Our mission is to serve the needs of our customers to the best by providing our high quality China-made machinery and best possible service and to exceed their expectations. we will strive to strengthen our capabilities and continue to innovate our machines to fulfill the present and future needs of our worldwide customers.We are dedicated to a long-term partnership with our customers.
Our Exhibitions & Customers:
Question 1: What is the machine?
Answer: it is steel tube metal cutting machine, or semi automatic cut off saw, or high speed metal circular saw cutting machine, or pneumatic drive cutting machine etc
Question 2: What is its function?
Answer: It is a metal solid bar or rod, hollow tube or pipe, profile cutting machine, it is used for cutting steel, stainless, copper, brass bars.
Question 3: What is its cutting methods?
Answer: it uses HSS cold circular saw blade to cut.
Question 4: What fields can it be applied to?
Answer: Suitable for Stainless steel pipe fittings, Furniture industry, Building material industry, Automotive, Aerospace, Fitness equipment and so on.
-
