high output plastic granulator machine recycling PP PE film plastic recycling granulator price

Supplier: Laizhou Keda Chemical Machinery Co., Ltd.
Region: Shandong, China
Contact: Ms Sherry Wang
Price: $8000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Warranty:	1 YEAR;	Certification:	ISO9001;
Type:	Granulating Production Line;	Supply Ability:	999 Set/Sets per Month;
Stage:	double stage;	Barrel material:	45#steel, 38CrMoAl;
Dimension(LWH):	311.5~61.53m;	Screw design:	single screw;
Screw material:	40Cr, 45# steel, 38CrMoAl;	Condition:	New;
Material:	PP/PE;	Brand Name:	keda;
Screw Design:	double stage screw;	Weight:	1500-7500kg;
Applicable Industries:	Manufacturing Plant,Farms,Home Use,Retail,Energy & Mining;	Material Processed:	PE Film, drip tape, PP yarn, film, jumbo bags;
Function:	pellet,granuling;	Place of Origin:	China;
Power:	18.5-160kw;	Package Preview:	;
After-sales Service Provided:	Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Online support,Video technical support,Engineers available to service machinery overseas;	Voltage:	220/380/400/415/440,220/380/400 can be accepted;
Port:	qingdao;	Max. Capacity:	80-800kg/h;
Product Name:	KEDA brand plastic pallets making machine with the factory price;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Packaging Detail:	FCL with Three Plywood package, LCLwith Wrapping Film package or Customized;	Machine Type:	Double Stage Pelletizing;

High output plastic granulator machine recycling PP PE film plastic recycling granulator price

1. Applications -->>recycle plastic granules making machine

Applicable plastic materials:PP,HDPE,LDPE,LLDPE,etc.

Material shapes:Film,bag,wowen, and flakeHigh yield plastic pallets making machine

Material resource:Pe bag,printed LDPE film,film (rolls,loose,bundles),agricultural film waste,

Geotextile, polypropylene (non-woven), woven bag, jumbo bag

Note:Depending on material property,various downstream equipment are available

2. Characteristics -->>recycle plastic granules making machine

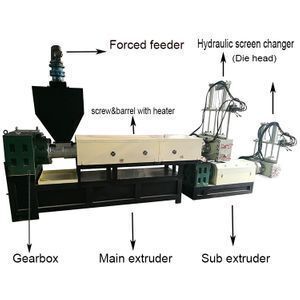

This recycle plastic granules making machine is composed of Automatic conveyor (VVVF), automatic feeding machine, Double stage screw extruder (include the main extruder and the vice extruder), cooling trough, pelletizer(cutting machine), storage silo, etc.

1. Greatly increase output

2. Continuous production

3. Flexible pelletizing style

4.Finished product particle plasticizing better, no pores

high output plastic granulator machine recycling PP PE film plastic recycling granulator price

No.	Machinery	Usage
1	Automatic conveyor	feed the material after crushed and washed or not large flim into the feeding machine.
2	Feeding machine	With the automatic conveyor,feed the material into the extruder.
4	Double stage screw extruder	for plasticizing the materials and exhausting the gas, it is made of 40Cr generally.and the other material(38CrMoAl, 45#, Spraying alloy etc.) customized according to the requirement of the user
5	hydraulic screen changer	filter the impurities, improve the granules quality
6	Pelletizer(cutting machine)	includes mould and pelleting blades, Frequency control of motor speed,alloy cylinder-type hob, imported polyurethane roller, we can provide both vertical type and horizontal type
7	Cooling trough:	use circular water for cooling the granules immediately after pelleting cut
8	Vertical dewatering machine	convey the granules helically from bottom to top, the rotary rotor and the stainless screen help to drain the water, and convey the granules out from the machine
9	Blower system	use the blower to blow the granules to the storage silo through the SS304 pipe
10	Storage silo	for storing the final granules
11	Control system	China famous electrical parts(or according to the requirement of the user)

3.Technical Parameter-->> double stage pelletizing line

Extruder	SJ110	SJ130	SJ140	SJ150	SJ180	SJ220
Screw diameter	105mm	125mm	135mm	145mm	175mm	215mm
Main motor	18.5kw	22kw	30kw	37kw	45kw	90kw
Vice motor	5.5kw	11kw	11kw	15kw	18.5kw	22kw
Capacity	80-100kg/h	100-150 kg/h	150-200kg	200-250kg/h	250-300 kg/h	300-400kg/h
