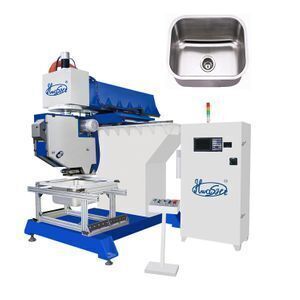

WL-AT-PM1200 HWASHI Automatic Sink Rolling Wheel Grinding Machine

Product details
Abrasive Belt Rotating Speed:1400-2800mm/min (adjustable);Port:Shenzhen port;
Brand Name:HWASHI;Max. Grinding Length:Customized;
Voltage:Three-phase 380V±10% 50Hz;Gas Consumption:1m3/h;
Y Axle Moving Range:≥620mm;Max. Grinding Diameter:Customized;
Warranty:1 YEAR;Grinding Wheel Diameter:50mm;
Type:Surface Grinding Machine;Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Supply Ability:50 Set/Sets per Month;Name:WL-AT-PM1200 HWASHI Automatic Sink Rolling Wheel Grinding Machine;
Power:10K;Weight:1200KG;
Z Axle Moving Range:≥250mm;Abrasive Belt Width:50mm;
Certification:CE CCC ISO;Condition:New;
Packaging Detail:Wooden packaging;After-sales Service Provided:No after-sales service;
X Axle Moving Range:≥1220mm;Place of Origin:Guangdong China;
Dimension(L*W*H):2000mmx1800mmx2100m;Rated Air Pressure:0.8MPa;
A Axle Moving Range:360 angle;CNC or Not:CNC;

More than 100 kinds of welding machine are selling. We could also customize for you.



Whatsapp ,Tel are available to contact us
0086--133--0266--5111

 Wechat number : 2283384277







Related Product:

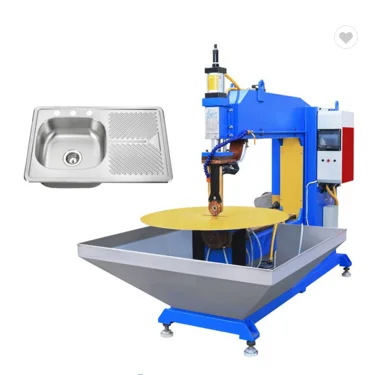

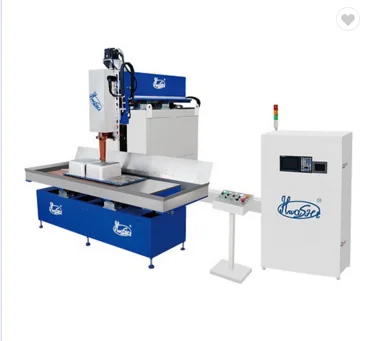

Automatic CNC Kitchen Sink Welding Machine              Manual Kitchen Sink Welding Machine



DESCRIPTION:

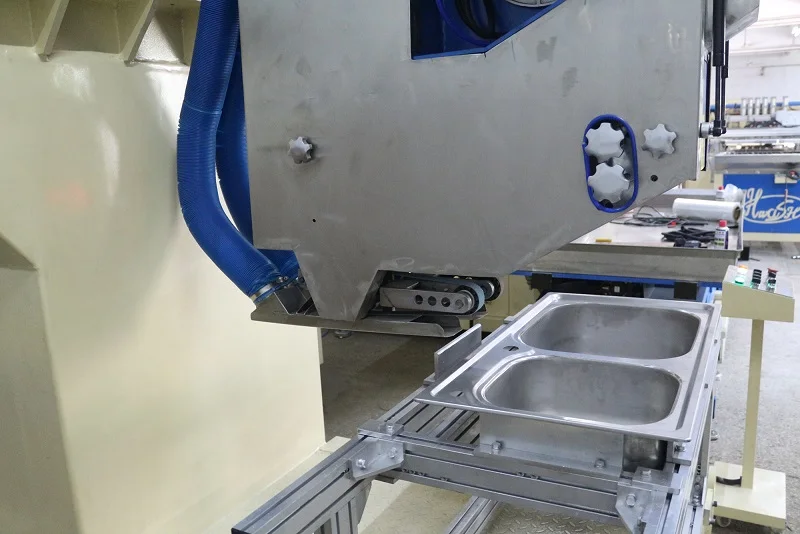

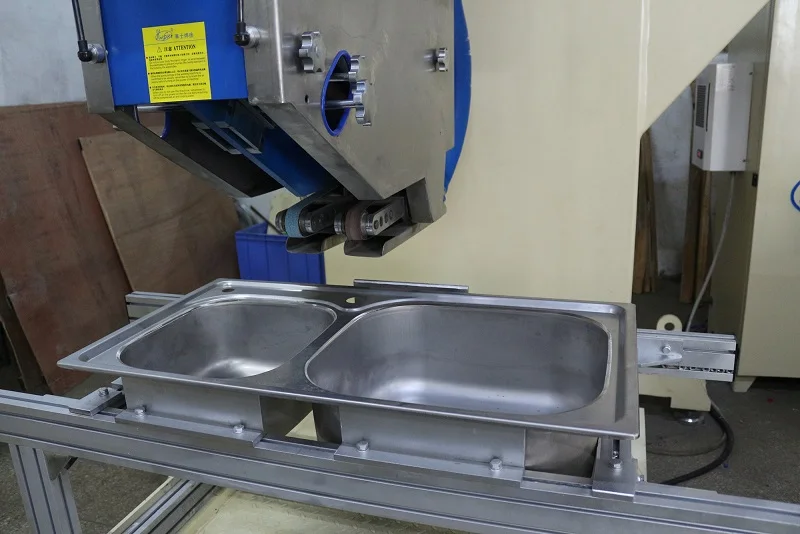

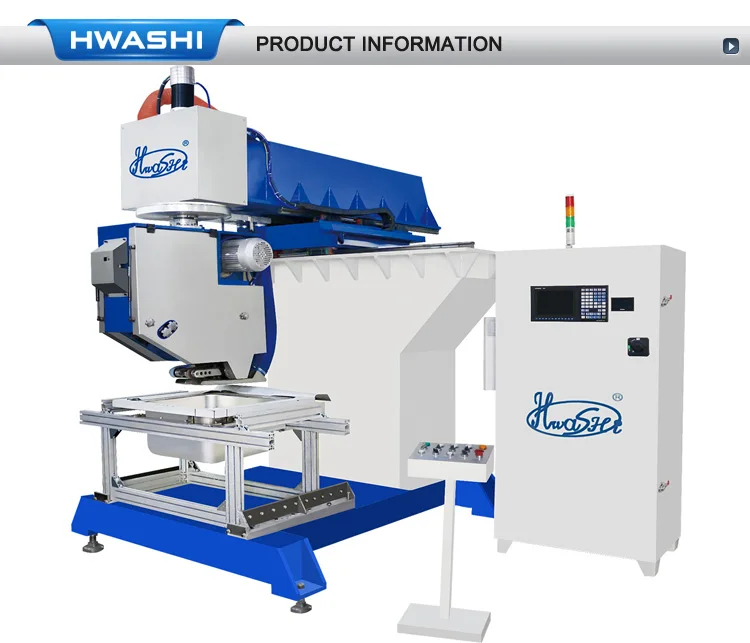

This CNC sink grinding special machine utilizes abrasive belt polishing principle. The abrasive belt is driven by electric motor to conduct polishing on the edge of the welded sink. There are two processes for polishing. Firstly, use the coarse abrasive belt to grind the redundant cutting edge and the projection welding spots. Then use the fine abrasive belt to conduct polishing treatment. After these two processes can meet the requirement of sink grinding and polishing treatment. It is designed to use Mitsubishi professional automatic control system. You only need to input the coordinate data of the product and start the machine, the abrasive belt of the machine will conduct grinding and polishing automatically within the track of preset program. The worker only needs to put and take out the sink.



SPECIFICATION:

Model

WL-AT-PM1200

Input Power

Three-phase 380V±10%  50Hz

Rated Capacity

10KVA

Grinding Wheel Diameter

50mm

Abrasive Belt Width

50mm

Abrasive Belt Rotating Speed

1400-2800mm/min (adjustable)

X Axle Moving Range

≥1220mm

Y Axle Moving Range

≥620mm

Z Axle Moving Range

≥250mm

A Axle Moving Range

360º

Rated Air Pressure

0.8MPa

Gas Consumption

1m3/h



APPLICATION

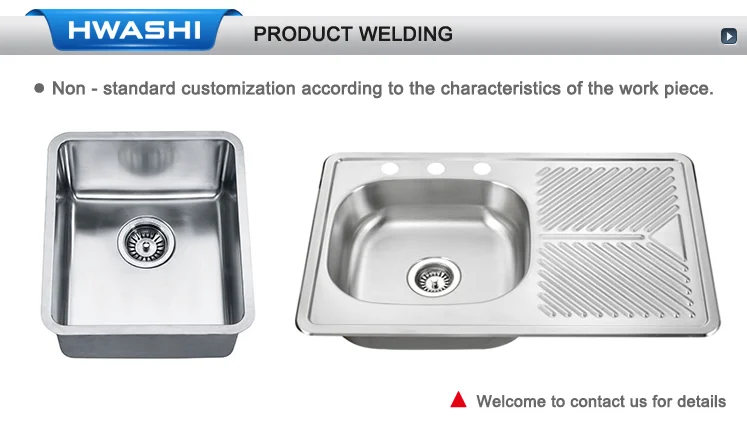

Suitable for grinding and polishing of the sink within the range of 1200mmx600mmx230mm. (be adjusted according to your product)



FEATURE:

  • Fully automatic.
  • Utilizes the principle of seam welder with round welding wheel.
  • Save labor cost: only one worker required put the sink into the platform and then take it away when finishing the grinding process
  • Medium frequency inverter power source which is electricity saving.
  • Enhanced function: memorize 16 sets of welding way . If you need more , we could design for you.
  • Adopt the professional automatic control system from Mitsubishi
  • Use the servo motor to drive axis X (locate mould) and axis Y (welding electrode) to operate under the preset procedure of PLC data.

Q: What's the control system you are using now for this machine?

A: We are using the Japan Mitsubishi control system and servo motor system for this machine to ensure the stability and quality of the machine.



Q: I have many types of different size of sink, how can I produce in this machine?

A: You can save 15 types of different welding programs in the system. For welding different sinks, you only need to change the fixtures and select the corresponding program for welding.



Q: What's the welding efficiency for this machine?

A: It takes about one minute to weld two bowls. And the welding quality is much more stable than manual welding.



Q: How can you do afters-ales service for us?

A: We will send engineer to your factory for machine installation and maintenance training. If any parts broken down during warranty period, we will send the replaced parts to you for free. And we will provide online technical support to solve the problem. If the problems still cannot be solved, we will send engineer again to your factory for repairing.
