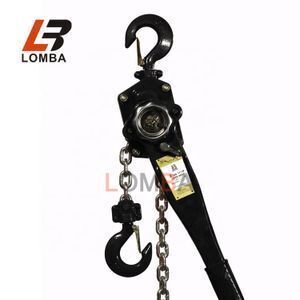

3 Ton Chain Block Hoist 6000LBS 5FT Ratcheting Lever Block Chain Hoist with Puller Pulley

Click here to contact
Product details
Capacity:0.5-6 ton;Brand:OEM;
Model Number:SBH-A;Place of Origin:Hebei China;
Port:Tianjin or Guangzhou;Supply Ability:10000.0 Unit/Units per Month;
Packaging Detail:carton box or wooden box with exported pallet.;Name:Ratchet Lever Block;
Lifting height:1.5M-3M;Chain painting:Galvanzied or Black coating;
Package Preview:;Load chain:G80;
Color:Black, Yellow, Orange, White, Blue;Payment Terms:L/C,T/T,MoneyGram;
Product Description



Cheap Material Handling Equipment 0.5ton to 6ton Ratchet Lever Chain Hoists Lever Block





Model: SBH-A

Technical Features

1. Superior Grade 100 load chain-WAFIOS link, Din standard.

2. Forged and heat treated load hooks with batch trace ability and stretch indicators

3. 360° handle rotation with stroke to ratchet indicators

4. Double pawl brake system

5. Asbestos free brake linings

6. Forged safety latch

7. Sealed roller bearings

8. 100% load tested to 1.5xWLL

9. MBL of 400% of WLL

10. 2000 cycle batch test



Product code

Capacity

(t)

Standard lift

(m)

Test load

(t)

Pulling Efforts

(kg)

Chain fall No.

Load chain Dia.

(mm)

Dimensions(mm)

Net Weight

(kg)

A

B

C

D

E

SBH-A050

0.50

1.5

0.75

10

1

5

148

280

45

96

325

5.9

SBH-A075

0.75

1.5

1.13

14

1

6

148

280

45

96

325

6.6

SBH-A100

1.00

1.5

1.50

16

1

6

148

280

48

96

325

6.6

SBH-A150

1.50

1.5

2.25

22

1

8

172

410

52

110

380

10.8

SBH-A200

2.00

1.5

3.00

26

1

8

172

410

60

110

380

11.1

SBH-A300

3.00

1.5

4.50

32

1

10

195

410

66

145

480

18.2

SBH-A600

6.00

1.5

9.00

34

2

10

195

410

80

145

480

28.1

Individually proof load tested with individual serial number

 Tested according to EN13157-2004





Packaging & Shipping





Company Information



 Lomba Lifting is a manufacturing and trading company founded in 2002 and located in Foshan City, specializing in the design and manufacture of lifting equipment, equipment and various components.



  Our products have been exported to more than 50 countries and regions in Asia, Middle East, Europe, Australia, Africa and South America for more than 10 years.



  Providing high quality and reliable products and fast and efficient services is our operation priciple. All our products are produced under strict quality control and inspected. Most of our production facilities pass ISO 9001:2008 certified and most of our products pass CE, TUV, GS certified.



   Our business priciple is to highest quality products with the most competitive prices for you.With rich experience in professional service, we can provide measurable advice and support to ensure you get right product with lower cost.



  Any advice or suggestion will receive our most discreet and direct attention. We expect a long term business relation with you and you are welcomed to visit us!
