Place of Origin: | Hebei China; | Load chain: | G80; |
Model Number: | VA; | Chain painting: | Galvanzied or Black coating; |
Brand: | OEM; | Lifting height: | 1.5M-3M; |
Port: | Tianjin or Guangzhou; | Packaging Detail: | carton box or wooden box with exported pallet. Customized requires can be met.; |
Supply Ability: | 10000 Unit/Units per Month; | Color: | Black, Yellow, Orange, White, Blue; |
Package Preview: | ; | Name: | Lever Block Chain Hoist; |
Capacity: | 0.8-6.4 ton; | Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; |

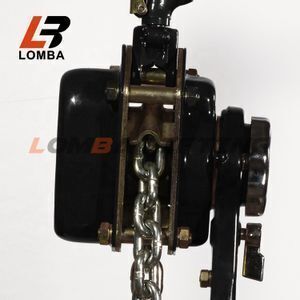

Cheap Material Handling Equipment 0.5ton to 6ton Ratchet Lever Chain Hoists Lever Block
Model: SBH-A
Technical Features
1. Superior Grade 100 load chain-WAFIOS link, Din standard.
2. Forged and heat treated load hooks with batch trace ability and stretch indicators
3. 360° handle rotation with stroke to ratchet indicators
4. Double pawl brake system
5. Asbestos free brake linings
6. Forged safety latch
7. Sealed roller bearings
8. 100% load tested to 1.5xWLL
9. MBL of 400% of WLL
10. 2000 cycle batch test
Product code |
Capacity (t) |
Standard lift (m) |
Test load (t) |
Pulling Efforts (kg) |
Chain fall No. |
Load chain Dia. (mm) |
Dimensions(mm) |
Net Weight (kg) |
||||
A |
B |
C |
D |
E |
||||||||
SBH-A050 |
0.50 |
1.5 |
0.75 |
10 |
1 |
5 |
148 |
280 |
45 |
96 |
325 |
5.9 |
SBH-A075 |
0.75 |
1.5 |
1.13 |
14 |
1 |
6 |
148 |
280 |
45 |
96 |
325 |
6.6 |
SBH-A100 |
1.00 |
1.5 |
1.50 |
16 |
1 |
6 |
148 |
280 |
48 |
96 |
325 |
6.6 |
SBH-A150 |
1.50 |
1.5 |
2.25 |
22 |
1 |
8 |
172 |
410 |
52 |
110 |
380 |
10.8 |
SBH-A200 |
2.00 |
1.5 |
3.00 |
26 |
1 |
8 |
172 |
410 |
60 |
110 |
380 |
11.1 |
SBH-A300 |
3.00 |
1.5 |
4.50 |
32 |
1 |
10 |
195 |
410 |
66 |
145 |
480 |
18.2 |
SBH-A600 |
6.00 |
1.5 |
9.00 |
34 |
2 |
10 |
195 |
410 |
80 |
145 |
480 |
28.1 |
Lomba Lifting is a manufacturing and trading company founded in 2002 and located in Foshan City, specializing in the design and manufacture of lifting equipment, equipment and various components.
Our products have been exported to more than 50 countries and regions in Asia, Middle East, Europe, Australia, Africa and South America for more than 10 years.
Providing high quality and reliable products and fast and efficient services is our operation priciple. All our products are produced under strict quality control and inspected. Most of our production facilities pass ISO 9001:2008 certified and most of our products pass CE, TUV, GS certified.
Our business priciple is to highest quality products with the most competitive prices for you.With rich experience in professional service, we can provide measurable advice and support to ensure you get right product with lower cost.
Any advice or suggestion will receive our most discreet and direct attention. We expect a long term business relation with you and you are welcomed to visit us!
