Extraction machine leaf/root/herb/seed/bark/plant

Supplier: Zhejiang Zhongbo Mechanical Technology Co., Ltd.
Region: Zhejiang, China
Contact: Mr Canmin Zhang
Price: $1000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Supply Ability:	30 Set/Sets per Month Extraction Machine Leaf;	material 2:	carbon steel;
outside surface/inside surface:	matt polish/mirror polsh;	Packaging Detail:	Plastic film and cotton cloth and wooden cases for Extraction Machine Leaf;
Payment Terms:	L/C,T/T,Extraction Machine Leaf;	usage:	Extraction Machine Leaf;
other feeding:	other plants or seeds;	Port:	Ningbo,Shanghai;
feeding 1:	flowers;	After-sales Service Provided:	Engineers available to service machinery overseas;
Production Capacity:	10-1000L/H;	feeding 2:	wooden powder;
material 3:	titanium;	Model Number:	Extraction Machine Leaf;
Brand Name:	ZONBO;	Application:	Powder;
material 1:	stailess steel 314 or 316L;	Type:	Extractor;
Delivery Detail:	Shipped in 30 days after payment;	Place of Origin:	Zhejiang China (Mainland);

Extraction machine leaf/root/herb/seed/bark/plant

Extraction Machine Leaf

Application

It is suitable for traditional Chinese medicine, plant, animal, food and chemical industries, such as pressure and pressure water decoction, warm extraction, heat reflux, forced circulation, percolation, aromatic oil extraction and organic solvent recovery process, especially the dynamic extraction or countercurrent extraction effect is better, short time, high concentration.

It is often used to extract effective ingredients from animals and plants and perfume oil.

Component

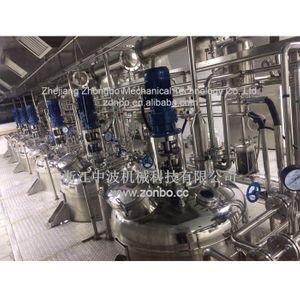

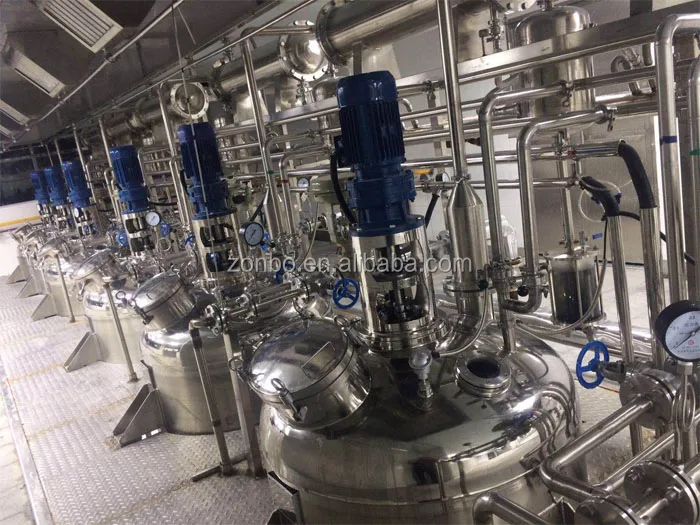

The extraction tank is composed of an extractor, defoaming device, condenser, cooler, oil-water separator, material pump, filter, valve and pipeline.

The main body of the extracting tank comprises of an inner cylinder, a jacket layer, a heat insulating layer, a branch ear, a pneumatic slag discharging gate, and a heat insulating layer of the extracting tank,and the aluminum silicate rock wool is used as the heat insulating material, the inner cylinder body is SUS304/316L. The tank is equipped with CIP cleaning ball, thermometer, explosion-proof sight lamp, quick opening feed gate, etc.

Characters

1. The slag door structure adopts closed cylinder slag door,there are two cylinder pushing turn solid rotation aside, thread structure which make its multi wedge block drive the door lock up slag, slag door and tank flange platen close and seal well, with high safety factor.

2. Material discharget pipe adopts stainless steel pipe, liquid outlet joint is sealed reliably, avoiding the fatigue stress of the metal hose and affecting the frequent breakage and leakage.

3. Complying with (GMP) standard requirements.

4. Extraction Machine is suitable for containing high grease composition of plant leaves, flowers, grass and animal material in conventional oil,essential oil, fragrant oil composition of water distillation extraction process.

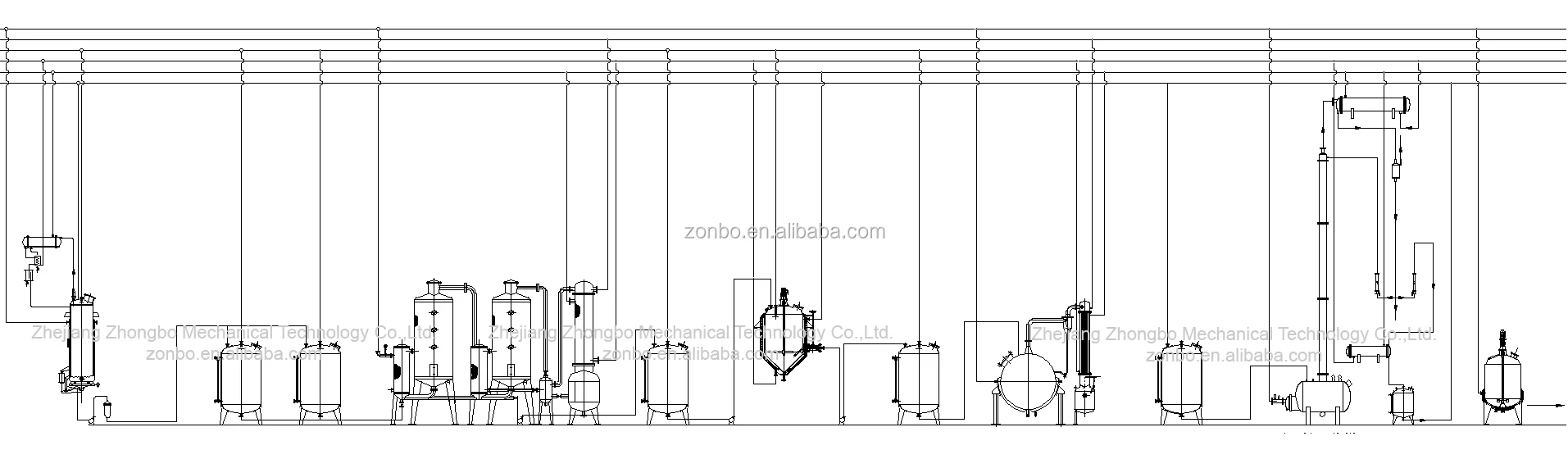

Plant oil and herb extractor concentrator unit

Raw Material:

Flowers	Rose; jasmine; lavender; chamomile; ylang ylang; geranium; neroli; clary sage;achillea millefolium; osmanthus; peony; marigold;l aurel.
Leaves	Tea tree; eucalyptus; mint; patchouli; juniperberry; cypress; pine needles; spearmint; basil.
Roots	Ginseng; ginger; angelica; garlic; vetivert; angelica root; mugwort; borneol camphor.
Grasses	Rosemary; verbena; lemongrass; melissa; nardostachys; tarragon; caraway; dill; valerian; houttuynia; wintergreen; evening primrose.
Wood	Sandalwood; cedar wood; rosewood; agarwood; Birch; holly; camphor; melaleuca; sassafras.
Resins	Frankincense; myrrh; benzoin; fir tree; amyris; Elemi.
Bark	Cinnamon.
Citrus	Bergamot; grapefruit; lemon; orange; lime; tangerine.
Seeds	Cloves; almonds; cardamom; carrot seed; pomegranates; pepper; c apsicum ; fennel.

Final product of Extraction Machine Leaf:

1.Extraction tank

2.Vacuum concentrator

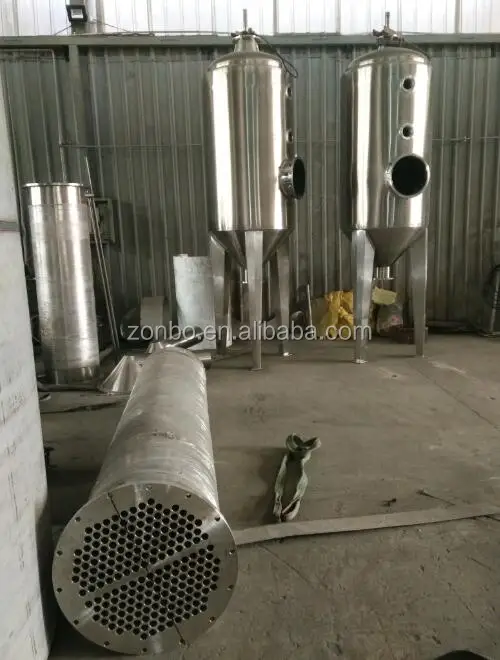

Double effect external circulation evaporator

Application:

It is suitable for traditional Chinese medicine, western medicine, glucose, starch sugar, oral liquid, chemical, food, MSG, dairy and other enrichment materials and industrial organic solvent (such as alcohol) recovery,it is low temperature and vacuum concentration suitable for heat sensitive materials and varieties of a small batch vacuum concentration.

Component:

Each effect heat exchanger, each effect separator, condenser, feed pump, discharge pump, vacuum pump, condensate water pump, electric control cabinet, automatic control system, valve and pipelines, etc..

Characters:

1, The speed of material solution in the equipment is not high, less than 1 meters / sec in general. The heating tube shall be operated in full immersion to prevent fouling and crystallization . The evaporator is suitable for concentrating less scale and less corrosive solutions. Its advantages are simple structure, easy operation and low power consumption.

2, The concentrator adopts two effect evaporation, and the secondary steam is reused, energy consumption is reduced by 50% compared with other concentration, the recycling alcohol concentration can reach 80% with this machine.

3, The concentrator has a special structure, concentrated material have a thick flavor, paste evenly.No foam in the concentrator in a seal state, It is not easy for material to lose and reduce pollution. The material is condensed on the same day. It is not easy to coking and easy to clean.

4, It is equipped with an automatic drainage device, condensed water is automatically drained

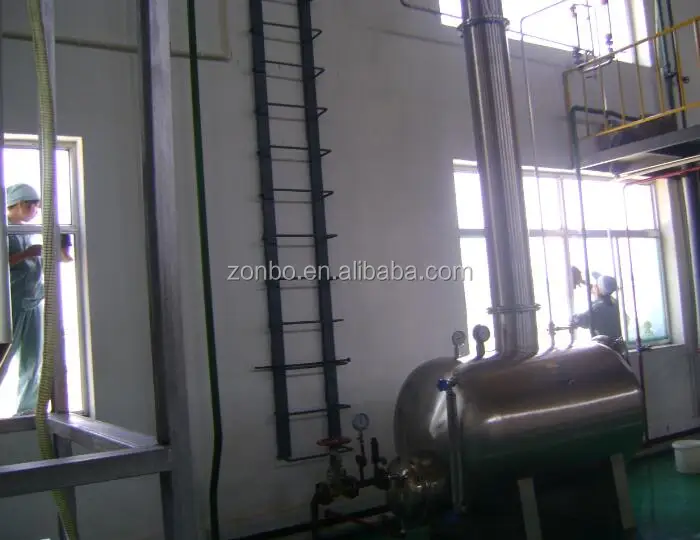

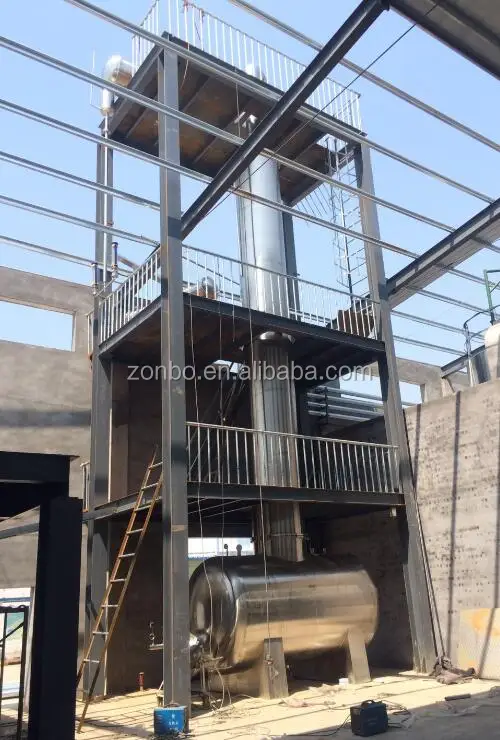

3.Alcohol recovery concentrator
