Lift height of blade: | 1210/1210/1210/1290mm; | Local Service Location: | United States,none; |
Supply Ability: | 1000.0 Unit/Units per Month; | Warranty: | 1 YEAR; |
Machine Weight: | 23.4Ton; | Payment Terms: | L/C,D/A,D/P,T/T; |
Hydraulic Pump Brand: | Imported; | Showroom Location: | none; |
Brand Name: | Shantui; | Blade type: | Straight tilt blade/ U Blade/ Semi-U blade/ Angle; |
Number of carriers (each side): | 2; | Number of track rollers (each side): | 6; |
Place of Origin: | Shandong China; | Condition: | New; |
Packaging Detail: | Nude Pack; | Lifting height of ripper: | 515/ 555 mm; |
Gradeability: | 30°; | Ripping depth of ripper: | 695/ 665 mm; |
Gross Power: | 175/235/1800kW/HP/rpm; | After Warranty Service: | Video technical support,Online support,Spare parts,Field maintenance and repair service; |
Hydraulic Cylinder Brand: | Imported; | Hydraulic Valve Brand: | Imported; |
Port: | Shanghai, Tianjin, Qingdao, Ningbo, etc.; | After-sales Service Provided: | Field maintenance and repair service,Online support; |
Moving Type: | Crawler Bulldozer; | UNIQUE SELLING POINT: | Imported; |
Applicable Industries: | Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Food & Beverage Factory,farms,restaurant,HOME USE,Food Shop,Construction works ; | Engine: | NT855-C280S10/WD12G240E26; |
Max drop below ground of blade: | 540/540/540/535mm; | Dimension(Long * Breadth * High): | 5495x3725x3402 mm; |
Chinese Shantui 220HP SD22 Bulldozer Price
Contact Me:Mia
Mobile / Whatsapp / Wechat: +8613671874462
Oriemac Machinery&Equipment(shanghai)CO.,LTD
Add: Suite 2806, Super Ocean Finance Center,
Web: http://www.oriemac.com

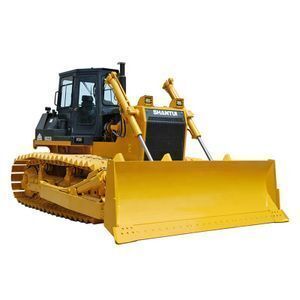

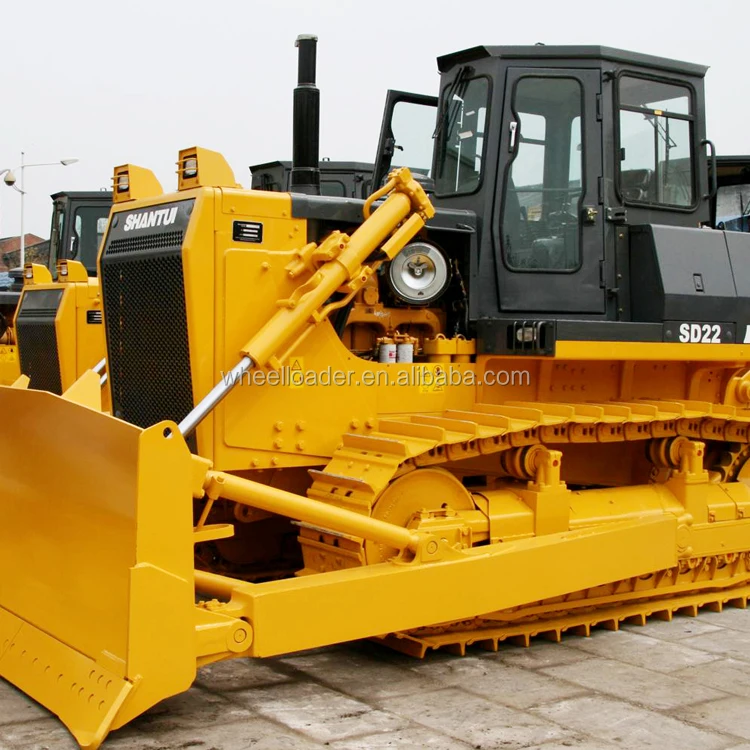

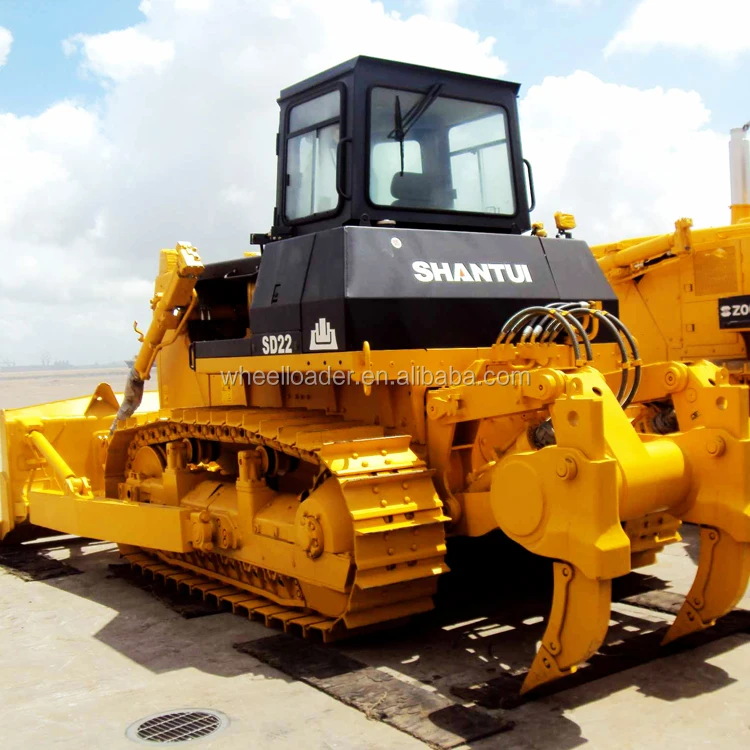

The SD22 bulldozer is the new generation of the TY220. It's equipped with a hexahedron damping cab, which features a beautiful design, wide visibility, and comfortable operation, as well as a highly efficient charged engine, which has excellent power, reliability and a long service life. It is also equipped with an improved hydraulic drive system with hydraulic control technology, front-extending anti-rolling frame and an advanced structure, providing reliable quality and convenient and flexible operation.
The SD22 uses Shantui's patented central lubrication technology, central pressure measurement and automatic track tensioning, as well as a GPS satellite positioning system. With options such as straight tilt, angle, U type and semi-U type blades, single/triple shank rippers and a mechanical winch, the SD22 has various capabilities allowing it to adapt to and work in a wide range of earth moving projects.
ITEM | UNIT | SD22 |
---|---|---|
L×W×H (Ripper not included) | mm | 5495×3725×3402 |
Operating weight (Ripper not included) | t | 23.4 |
Engine | - | NT855-C280S10 |
Net power | kW/rpm | 162/1800 |
Gradeability | ° | 30 |
Blade type | - | Straight tilt blade U-blade Semi-U blade Angle blade |
Blade width | mm | Straight tilt blade 3725×1315 U blade 3800×1343 Semi-U blade 3725×1374 Angle blade 4365×1055 |
Dozing capacity | m3 | Straight tilt blade 6.4 U blade 7.5 Semi-U blade 7.0 Angle blade 4.7 |
Ma× drop below ground of blade | mm | 540/540/540/535 |
Lift height of blade | mm | 1210 |
Ripper type | Single ripper / Three-shank ripper | |
Ripping depth of ripper | mm | Single ripper 695 Three-shank ripper 666 |
Lifting height of ripper | mm | Single ripper515 Three-shank ripper 555 |
Number of carriers (each side) | - | 2 |
Number of track rollers (each side) | - | 6 |
Number of track shoes (each side) | - | 38 |
Width of track shoe | mm | 560 |
Track gauge | mm | 2000 |
Ground length and ground pressure | mm/MPa | 2730-0.077 |
Pitch | mm | 216 |
Forward speed | km/h | 0–3.6 |
0–6.5 | ||
0–11.2 | ||
Reverse speed | km/h | 0–4.3 |
0–7.7 | ||
0–13.2 |
