Blade length: | 3700mm; | Core Components: | PLC,Engine,Bearing,Gearbox,Motor,Pressure vessel,Gear,Pump; |
Operating weight(Standard): | 15500KG; | Package Preview: | ; |
After-sales Service Provided: | Video technical support,Online support,Field maintenance and repair service,Field installation, commissioning and training,Free spare parts; | Warranty: | 1 Year; |
Video outgoing-inspection: | Provided; | Brand Name: | C.A.T.; |
Applicable Industries: | Hotels,Garment Shops,Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company; | Reverse Speed(km/h): | 37; |
Hydraulic Pump Brand: | Top Brand; | Port: | SHANGHAI DALIAN QINGDAO TIANJIN; |
Condition: | New; | After Warranty Service: | Video technical support,Online support,Spare parts,Field maintenance and repair service; |
Local Service Location: | None; | Supply Ability: | 1000 Unit/Units per Month; |
Engine Brand: | SC9DK200.1G3; | Warranty of core components: | 1 Year; |
Hydraulic Cylinder Brand: | Top Brand; | Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; |
Hydraulic Valve Brand: | Top Brand; | Marketing Type: | New Product 2020; |
Place of Origin: | China; | Showroom Location: | None; |
Certification: | ISO CE; | Dimension: | 8504*2481*3354mm; |
Machinery Test Report: | Provided; | Forward Speed(km/h): | 46.8; |
Dimension(L*W*H): | 8900*2625*3420mm; | UNIQUE SELLING POINT: | Long lifetime; |
Rated power: | 147kW/2000rpm; | max grade ability: | 20%; |
Packaging Detail: | Ro-Ro/bulk shipment/suitable container; | Working diameter: | 3965mm; |

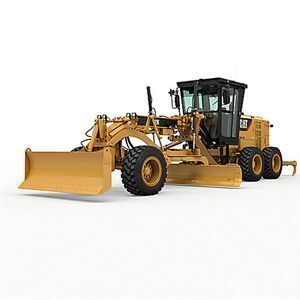

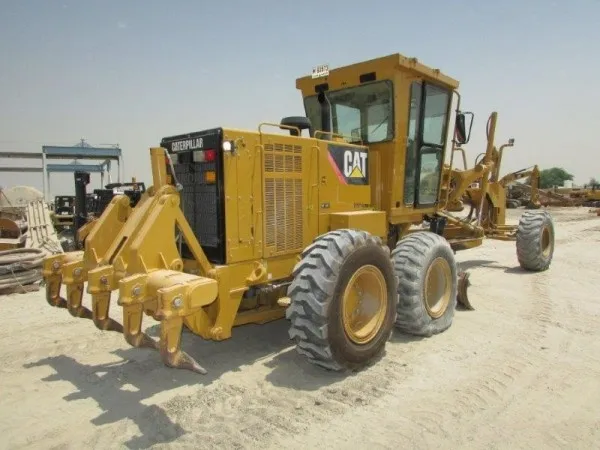

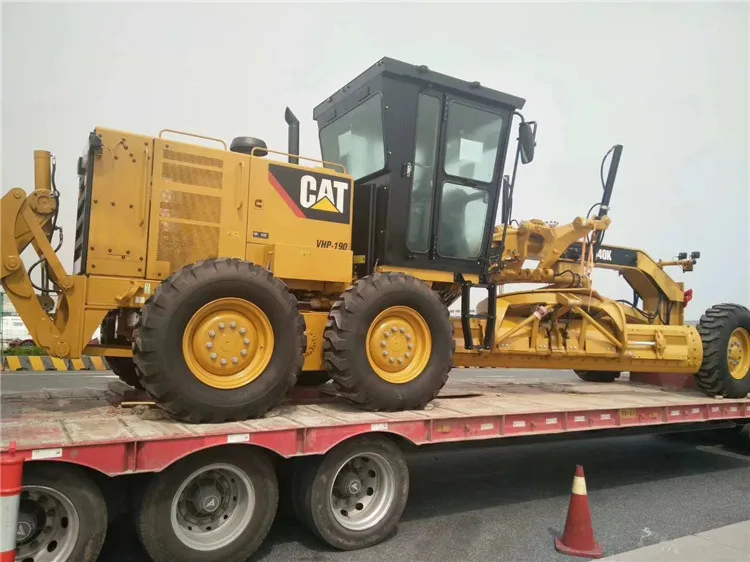

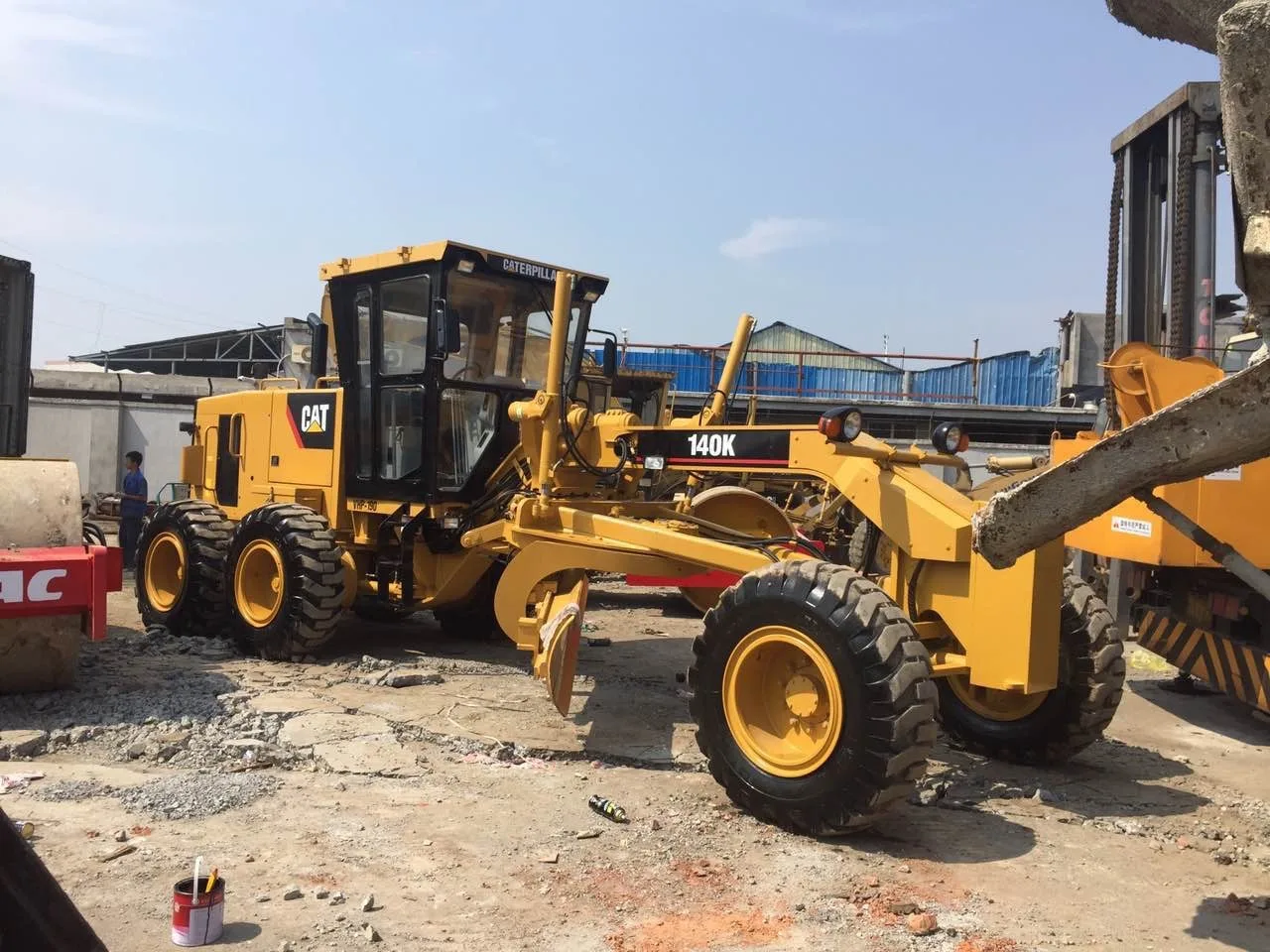

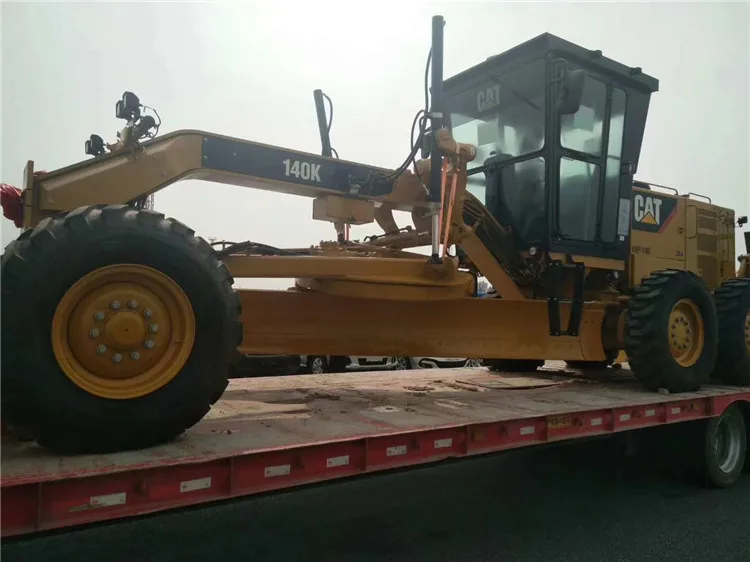

Popular Brand C.A.T. 140K Grader with Scarifier in Stock
1 Hydraulic transmission controlled by electricity
2 Working equipment controlled multi valve, short operating bar, adjustable operating table, instrument
3 No-spin(differential), planetary speed-reduction transmission system
4 Hydraulic brake system
5 Hydraulic steering system
6 Cabin equipped structure can make the biade tilt by 900 tum round by 3600
7 Air-conditioner
Engine model gear |
C7 ACERT™ |
Number of cylinders |
6 |
Speed at rated power |
2000 RPM |
Base power, first gear |
128 kW net |
Variable horsepower (VHP), gears 1 and 2 |
128 kW net; 140 kW gross |
Variable horsepower (VHP), gear 3 |
135 kW net; 147 kW gross |
Variable horsepower (VHP), gears 4 to 8 |
143 kW net; 155 kW gross |
Displacement |
7.2 litres |
Bore |
105 millimetres |
Stroke |
127 millimetres |
Torque rise |
46% |
Torque, maximum, net |
996 N·m |
Derating altitude |
3048 metres |
Fan speed, maximum |
1925 RPM |
High ambient capability |
50° Celsius |
Type |
Direct drive, powershift |
Maximum forward speed |
47.3 kilometres per hour |
Maximum reverse speed |
37.4 kilometres per hour |
Number of forward gears |
8 |
Number of reverse gears |
6 |
Steering standard |
ISO 5010:2007 |
Turning radius |
7.5 metres |
Steering range |
47.5 degrees |
Articulation angle L/R |
20 degrees |
Length between tandem axles |
1523 millimetres |
Length, front axle to moldboard |
2598 millimetres |
Length, front axle to mid tandem |
6068 millimetres |
Length, front tyre to rear of machine |
8504 millimetres |
Length, counterweight to ripper |
10013 millimetres |
Height to top of cab |
3354 millimetres |
Width, tyre centre lines |
2065 millimetres |
Width, outside rear tyres |
2452 millimetres |
Width, outside front tyres |
2481 millimetres |
Ground clearance, centre front axle |
626 millimetres |
Ground clearance, trans. case |
362 millimetres |
