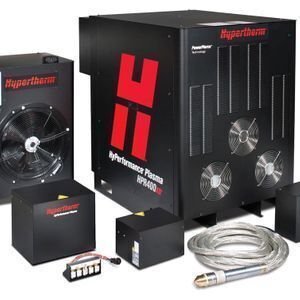

Hypertherm HyPerformance HPR400 XD Plasma Cutting Machine

Supplier: Welding Center LTD
Region: -, China
Contact: Mr. Alexey Sharygin
Price: $48000.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Rated Duty Cycle @40°C:	-;	Shield gas:	N2, O2, Air, Ar;
Port:	FOB Shanghai, CPT Moscow, CPT Krasnoyarsk;	Open Circuit Voltage (OCV):	200-600V;
Supply Ability:	Unit/Units per Week Plasma Cutting Machine;	Plasma gas:	O2, N2, F5, H35*, Air, Ar;
Delivery Detail:	Shipped in 0 days after payment;	Packaging Detail:	Supply Ability: Not limited 180 135195 cm, 1100 kg;
After-sales Service Provided:	Field installation, commissioning and training,Field maintenance and repair service,Online support,Video technical support;	Certification:	Certificate of Compliance;
Color:	Grey;	Name:	Plasma Cutting Machine;
Brand Name:	Hypertherm;	After-sales Service Provided:	Engineers available to service machinery overseas;
Phase:	3-ph;	Maximum piercing (mm):	64;
Weight:	851 KG;	Payment Terms:	T/T;
Voltage:	200-600V;	Warranty:	More than 5 Years;
Place of Origin:	United States;	Condition:	New;
Power source type:	IGBT invertor;	Application:	on the coordinate table, bevel cutting and robotic cutting.;
Rated Power:	80 kW;	Dimension(LWH):	180 135 195 cm;
Rated Input Voltage:	200-600V;	Product name:	HyPerformance HPR400XD;

Product Description

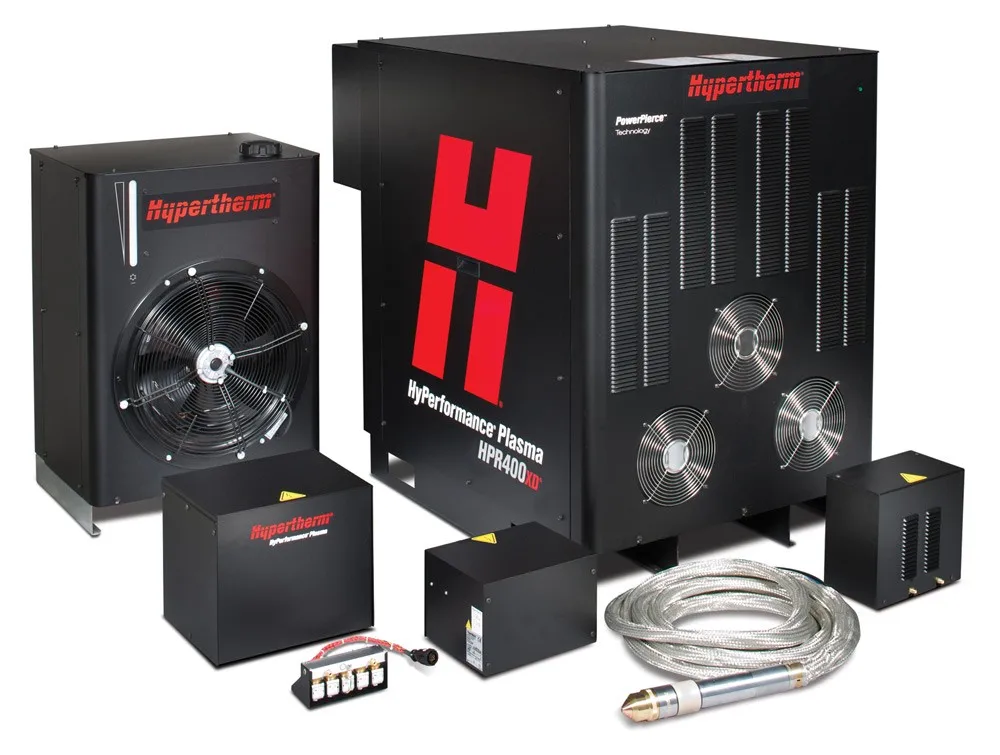

The HyPerformance® HPR400XD plasma cutting system is designed to maximize the productivity of cutting operations on the coordinate table, bevel cutting and robotic cutting. This universal system for current of 400 A allows to obtain the high cutting speeds, short production cycles, quick mode change, high reliability and provides an incomparable quality of HyPerformance. Also this system allows to perform aluminium cutting and provides an excellent quality of stainless steel cutting.

Features

Excellent cutting quality and uniformity
The HyPerformance plasma system delivers superior quality and uniformity in the cutting of small parts, eliminating secondary machining costs.
• HyDefinition® technology allows you to align and focus a plasma arc to improve the cutting accuracy of materials with a thickness up to 80 mm.
• New HDi™ technology delivers HyDefinition cutting quality on thin stainless steel with a thickness from 3 to 6 mm.
• The patented technologies of our systems provide a more consistent cutting quality for a longer period of time than other systems on the market.

Top performance
The HyPerformance plasma system delivers maximum performance through a combination of advantages such as high cutting speeds, short production cycles, fast mode changes and high reliability.

Minimum operating costs
The HyPerformance plasma system reduces operating costs and improves profitability.

• LongLife® technology significantly extends the life of consumables and ensures consistently high quality of the HyDefinition cutting over the longest period of time.

Unmatched reliability

Comprehensive testing and more than forty years of experience guarantee the quality of Hypertherm products that you can always count on.

Model - HyPerformance

Maximum power (A)- 400

Maximum piercing (mm)- 80

Phase 3-ph

Warranty

At the request of the buyer is an additional agreement, according to which after 3 years of warranty from the manufacturer comes into effect extended warranty from the company Welding Center LTD for another 5 years. This guarantee is valid on condition of passing of obligatory maintenance of the equipment according to regulations, and at use of original expendable parts for plasma cutting.

Low-carbon steel

Amperage	Shield cap	Shield	Retaining cap	Nozzle	Swirl ring	Electrode	Electrode Silver Plus	Water cooling tube
30 A	220747	220194	220754	220193	220180	220192	-------------	220340
50 A	220747	220555	220754	220554	220553	220552	-------------	220340
80 A	220747	220189	220756	220188	220179	220187	-------------	220340
130 A	220747	220183	220756	220182	220179	220181	220665	220340
200 A	220637	220761	220757	220354	220353	220352	220666	220340
260 A	220637	220764	220760	220439	220436	220435	220668	220340
400 А	220637	220636	220635	220632	220631	220629	______	220571
80 А, bevel cutting	220637	220742	220635	220806	220179	220802	-------------	220700
130 А, bevel cutting	220637	220742	220740	220646	220179	220649	------------	220700
200 А, bevel cutting	220637	220658	220845	220659	220353	220662	------------	220700
260 А, bevel cutting	220637	220741	220740	220542	220436	220541	-----------	220571
* 260 А, bevel cutting	220637	220897	220896	220898	220436	220899	------------	220571
400 А, bevel cutting	220637	220636	220635	220632	220631	220629	______	220571

*It is recommended to use if there are problems with excessive burn-out of standard consumables or torch ignition misfires.

Stainless steel

Amperage	Shield cap	Shield	Retaining cap	Nozzle	Swirl ring	Electrode	Water cooling tube
45 А	220747	220202	220755	220201	220180	220308	220340
60 A, HDi	220747	220815	220814	220847	220180	220339	220340
80 А	220747	220338	220755	220337	220179	220339	220340
130 А	220747	220198	220755 (H35) 220756 (N2)	220197	220179	220307	220340
200 А	220637	220762	220758	220343	220342	220307	220340
260 А	220637	220763	220758	220406	220405	220307	220340
400 А	220637	220707	220712	220708	220405	220709	220571
130 А, bevel cutting	220637	220738	220739	220656	220179	220606	220571
260 А, bevel cutting	220637	220738	220739	220607	220405	220606	220571
400 А, bevel cutting	220637	220707	220712	220708	220405	220709	220571

Aluminium

Amperage	Shield cap	Shield	Retaining cap	Nozzle	Swirl ring	Electrode	Water cooling tube
45 A	220747	220202	220756	220201	220180	220308	220340
130 A	220747	220198	220755 (Н35) 220756 (air)	220197	220179	220307 (H35) 220181 (air)	220340
200 А	220637	220762	220759	220346	220342	220307	220340
260 А	220637	220763	220758	220406	220405	220307	220340
400 A	220637	220707	220712	220708	220405	220709	220571

Company Infromation

Welding Center LTD

Welding Center, Ltd delivers the Powermax 30 Air, plasma cutting machine Hypertherm with a torch and a compressor to all cities of Russia, including Moscow, St. Petersburg, Chelyabinsk, Perm, Simferopol, Ulyanovsk, Kazan, Kaluga, Novosibirsk, Yekaterinburg, Nizhny Novgorod, Kaliningrad, Samara, Omsk, Ufa, Saratov, Krasnoyarsk, Vladivostok, Rostov-on-Don, Voronezh, Volgograd, Makhachkala , Grozny and others, as well as to Belarus, Kazakhstan, Armenia and Kyrgyzstan. Sale of the equipment is carried out on the basis of 100% payment if it is in stock and 50% prepayment when it is delivered under the order.
