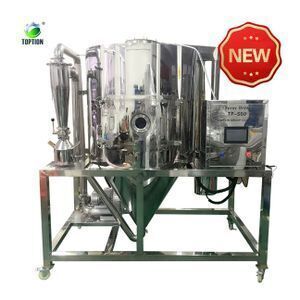

5L Industrial Milk / Milk Powder Spray Dryer Machine TP-S50

Supplier: Xi'an Toption Instrument Co., Ltd.
Region: Shaanxi, China
Contact: Ms Alice Shi
Price: $10680.00 /set
Min. Order: 1 set

Click here to contact

Product details

Marketing Type:	New Product 2020;	Power(W):	6kw;
Atomizer speed:	40000rpm;	Adjustable:	YES;
Certification:	CE ISO;	Type:	Spray Drying Equipment;
Local Service Location:	United States,RUSSIA;	Dimension(LWH):	8809801550mm;
Product name:	Milk Powder Spray Dryer;	Showroom Location:	United States,RUSSIA;
Port:	shanghai / tianjin;	Warranty of core components:	1 YEAR;
Voltage:	220~230V;	Payment Terms:	L/C,T/T,Western Union;
Core Components:	PLC;	Machinery Test Report:	Provided;
Warranty:	1 Year;	Supply Ability:	300000 Set/Sets per Month Milk Powder Spray Dryer;
Spray system:	Centrifugal nozzle;	Applicable Industries:	Manufacturing Plant,Food & Beverage Factory,farms,Retail;
Application:	Medicine Processing,Chemicals Processing,FOOD PROCESSING,Lab Milk Powder Making Machine;	Condition:	New;
Brand Name:	TP-S50;	Package Preview:	;
Weight (KG):	585;	Speed of squirt pump:	5000ml/h;
Temperature range of inlet air:	30°C -300°C;	Max capacity:	5000;
After Warranty Service:	Video technical support;	Temperature range of outlet air:	30°C ~ 140°C;
Model:	TP-S50;	Key Selling Points:	Multifunctional;
Video outgoing-inspection:	Provided;	Place of Origin:	Shanxi China;
Packaging Detail:	1. Standard wooden case for Milk Powder Spray Dryer 2. Base on your needs;

Industrial Milk / Milk Powder Spray Dryer Machine TP-S50

Teachnical Prameter :

Item	Unit	TP-S50 Spray Dryer
Max capacity	ml/h	5000
Temperature range of inlet air	℃	30°C -300°C
Adjustable		Yes
Temperature range of outlet air	℃	30°C ~ 140°C
Precision of temperature	℃	±1
Dryer time	S	1.0 ~ 1.5
Speed of squirt pump	ml/h	5000ml/h
Spray system	/	Centrifugal nozzle
Spray direction	/	Downwards co-current
Heat source	/	Electric
Total power	/	10KW 380V
Dried powder restoring rate	%	≥95
Atomizer speed	rpm	40000
Dimemsion	mm	1300x650x800mm

Remark : Standard is with High Speed Centrifugal Nozzle; Two Liquid nozzle is optional; SS316L Material is optional;

Features:

At a high speed of drying, after the spraying of the material liquid, the surface area of the material will be increased greatly. In the hot-air flow, 95%~98% of water can be evaporated at a moment. The time of completing the drying needs only several seconds.

This is especially suitable for drying the heat sensitive materials. Its final products own the good uniformity, mobility, dissolving capacity. And the final products are high in their purity and good in their quality. The production procedures are simple and the operation and control are easy. The liquid with the moisture contents 40~60% (for special materials, the contents may reach 90%.) can be dried into the powder or particle products once a time. After the drying, there is no need for smashing and sorting, so as to reduce the operation procedures in the production and to enhance the product purity. The product particle diameters, looseness and water contents can be adjusted through changing the operation condition in a certain scope. It is very convenient to carry out the control and management.
