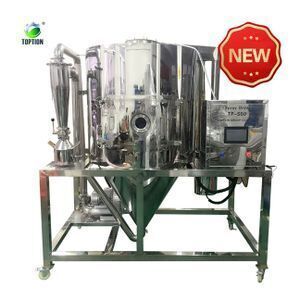

TP-S100 spray dryer food quality Centrifugal Spray Dryer price

Supplier: Xi'an Toption Instrument Co., Ltd.
Region: Shaanxi, China
Contact: Ms Alice Shi
Price: $21360.00 /set
Min. Order: 1 set

Click here to contact

Product details

After-sales Service Provided:	Video technical support;	Type:	Spray Drying Equipment;
Weight:	1000KG;	After Warranty Service:	Video technical support;
heat source:	electric;	Core Components:	PLC;
Model:	TP-S100;	Applicable Industries:	milk powder making machine spray dryer;
Dimension(LWH):	17001100150mm;	Product name:	spray dryer price;
Power(W):	3.8KW;	Power source:	380V/50Hz;
Port:	tianjing /shanghai/shenzhen;	Certification:	ISO9001:2008;
Package Preview:	;	Spray direction:	Downwards co-current;
Packaging Detail:	spray dryer price Packed in strong standard wooden case(according to your requirement);	Machinery Test Report:	Provided;
Warranty:	1 YEAR;	Condition:	New;
Brand Name:	TOPTION;	Place of Origin:	Shaanxi China;
Video outgoing-inspection:	Provided;	Showroom Location:	none;
max moisture evaporation:	10kg/h;	Supply Ability:	3000 Set/Sets per Year spray dryer price;
Warranty of core components:	1 YEAR;	Voltage:	220V/50Hz;
Local Service Location:	none;	Payment Terms:	L/C,T/T;
Spray Type:	Cnetrifuge Nozzle;	Application:	Medicine Processing,Chemicals Processing,Plastics Processing,FOOD PROCESSING;
Highest temp. Of Inlet air:	300;	Weight (KG):	1000;
Total power:	22;	Key Selling Points:	Automatic;
Marketing Type:	New Product 2020;

TP-S100 spray dryer food quality Centrifugal Spray Dryer price

Laboratory table top spray dryer is the latest type of TOPTION which adopts advanced international technology and spare parts.
TOPTION Laboratory Spray Dryer assembles many of new design, for example, small size for free moving, combining air compressor and electrical heater inside the cabinet, glass spray and cyclone separator for inspecting. All the data and functions are controlled by PLC.

Spray dryer can be used in a wide range where the production of a free-flowing powder sample is required. This technique has processed materials in the following areas successfully.
Most solutions and supernsions can be spray dried providing that the resulting product has the characteristics of material.
It is popular in fields of Food, biology, material, pharmacy, university, and R&D institute, etc. especially for processing temperature-sensitive material , for e.g., powder, because material only touch air for a brief moment so that heat couldn't destroy the component of material.

Product Features

1. High efficient jet imported.
2. LCD touch screen displays temperature, airflow, air pressure, pump speed and jet cleaner frequency.
3. Manual controlling is available, be able to adjust technical parameters during the process of experiment.
4. With jet cleaner (stylet), its frequency can be automatically adjusted.
5. Build in oil-free air compressor. The sound is low than 60db, and following the GMP standards.
6. Use PID controller, the accuracy of heating temperature is around±1°C.
7. A filter has been equipped to the inlet unit to prevent the sample from contamination.
8. Narrow size distribution, more than 95% of the dry powders are in the same range of particles.
9. Automatic jet cleaner (stylet) prevents the jet from becoming blocked and variably controlled.
10. Innovative tower wall purging device, improves the material recycling rate.
