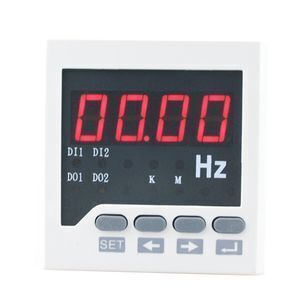

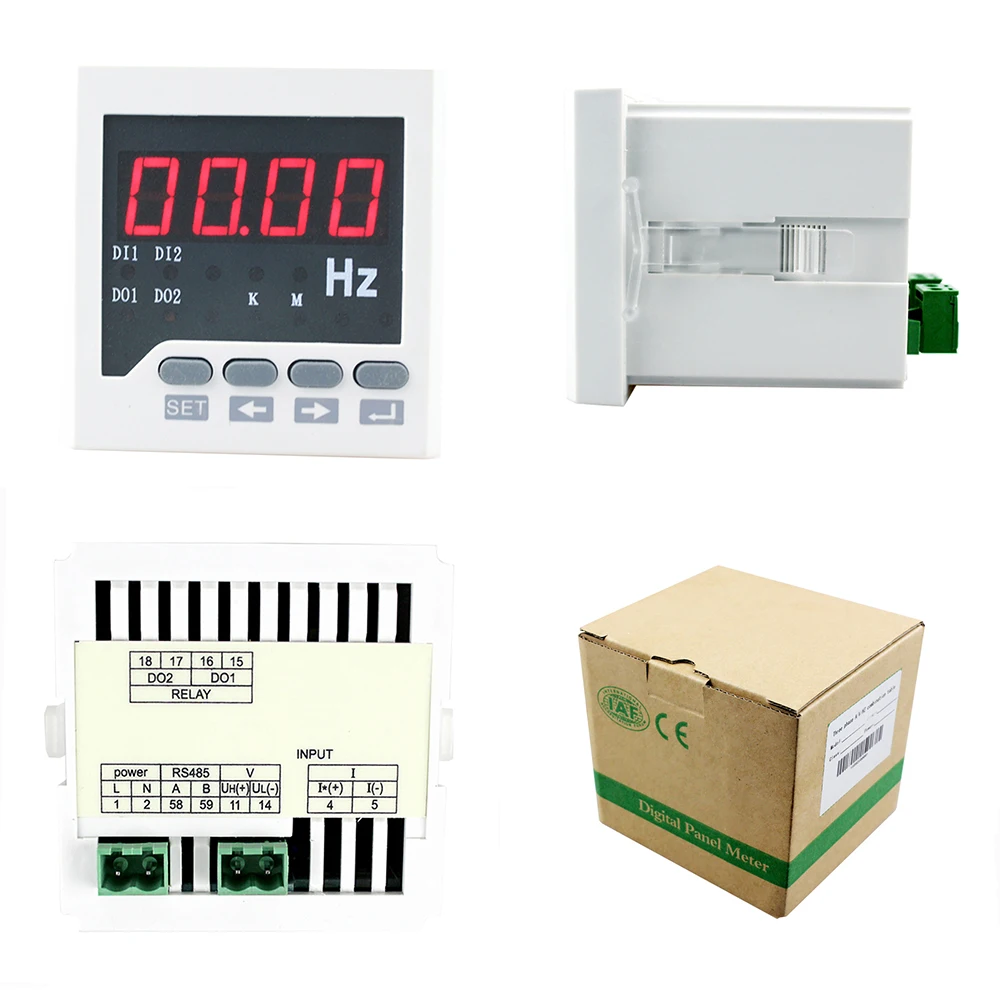

80*80mm Easy operation frequency meter

Supplier: Wenzhou Morning Electronics Co., Ltd.
Region: Zhejiang, China
Contact: Mr Amin Lee
Price: $3.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Accuracy Class:	0.5;	Place of Origin:	Zhejiang China;
Delivery Detail:	Shipped in 7 days after payment;	Color of frequency meter:	white and black;
AC withstand voltage of frequency meter:	AC 2KV;	Display Type:	Digital Only;
Packaging Detail:	Packing of Digital frequency meter:Inner box: 151513cm 0.474kg;	Wiring of frequency meter:	single phase;
Insulation resistance of frequency meter:	> 100MΩ;	Storage environment of frequency meter:	-25℃~+70℃;
Display:	LED;	Overload of frequency meter:	Sustained:1.2times;Instantaneous:2 times/1s;
Supply Ability:	10000 Piece/Pieces per Month;	Relative humidity of frequency meter:	≤93 %,in the place without corrosive gas;
Brand Name:	Morning;	Voltage:	AC / DC 80V~270V ,AC 220V,AC 380V,AC 100V,DC 48V,DC24V;
Port:	Ningbo/Shanghai;	Power consumption of frequency meter:	<1VA(per phase);
Impedance of frequency meter:	>300KΩ;	Measuring Range:	0~9999;
Dimensions:	80*80;	Model Number:	ME-F71;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,PayPal;	Operating Temperature:	-10℃~+55℃;

80*80mm Easy operation frequency meter

Technical Index
Accuracy Measurement
Frequency	±0.02Hz
Input Measurement

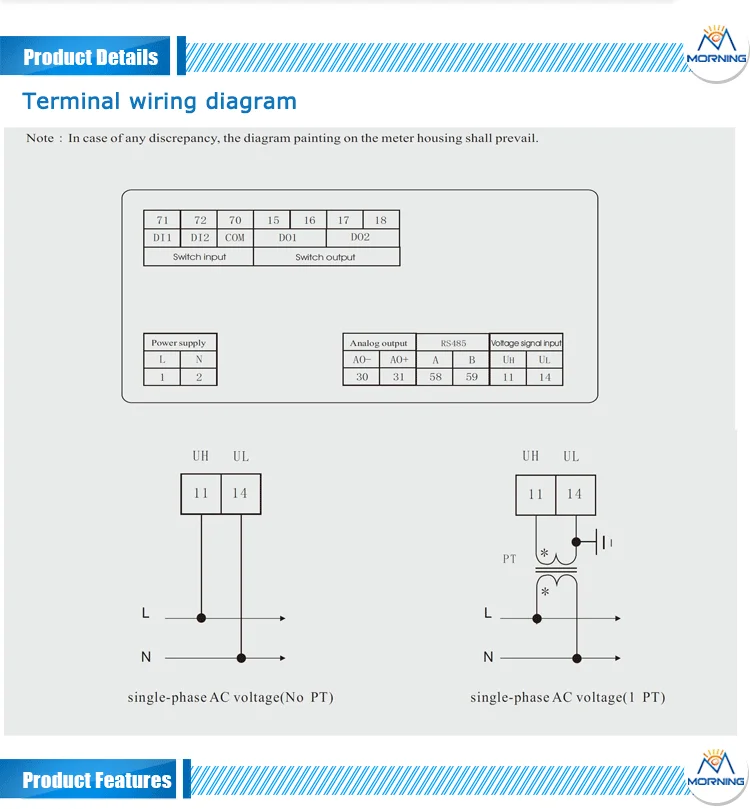

Wiring	single phase
Rated value	AC57.7V,AC100V,AC220V,AC380V
Overload	Sustained:1.2times;Instantaneous:2 times/1s
Power consumption	<1VA(per phase)
Impedance	>300KΩ
Frequency	45~65Hz
Power supply
Working range	AC/DC80V~270V,AC220V,AC380V,AC100V,DC48V,DC24V
Power consumption	<4VA

Functional Module
Communication interface	1 loop RS-485 Communication, MODBUS-RTU protocol
Communication interface	Baud rate: 2400 ~ 19200bps, Default: 2400bps
Switching value input	2loops switching value input, dry joint
Switching value output	2loops relay output, capability: AC 250V/5A,DC 30V/5A
Transmission output	1 loop analog output: 0/4~20 mA or 0~5/10 V
Environment
Operational environment	-10℃~+55℃
Storage environment	-25℃~+70℃
Relative humidity	≤93 %,in the place without corrosive gas
Height above sea level	≤2500m
Safety
Insulation resistance	> 100MΩ
AC withstand voltage	AC 2KV
Electro Magnetic Compatibility
Electro-Static discharge	class 4
Electrical Fast Transient pulse train
Electrical surge
Outline Dimension
External Dimension( mm )	120×120;80×80;96×48;96×96;72×72;48×48;120x60;160x80
Cutout Dimension( mm )	111×111;76×76;92×45;92×92;68×68;45×45;114x56;152x76

Specification Matching
Model Function	Extended Function(Optional)				Display		Cutout Dimension ( mm )	External Dimension( mm )
Model Function	Switch input	Switch output	Transmission output	Communication interface	LED	LCD	Cutout Dimension ( mm )	External Dimension( mm )
ME-F11	2	2	1	1	√	-	152X76	160x80
ME-F21	2	2	1	1			111X111	120×120
ME-F31	2	2	1	1			92X92	96×96
ME-F41	2	2	1	1			114X56	120x60
ME-F51	2	2	1	1			92X45	96×48
ME-F61	2	2	1	1			68X68	72×72
ME-F71	2	2	1	1			76X76	80×80
ME-F81	2	2	1	1			45X45	48×48
Note: The number of optional extended functions would be the maximum number we can extend in normal conditions. If you have any special request, please contact with our technical department.

Digital panel meter
Munifunction meter:

D 3D 3HD 3FHD 3LD DD
Combination meter:

UIF 3UIF DUI

    Temperature and humidity controller:
    WSK301 WSK302 WSK303
    Voltage meter:

DV AV 3AV
Current meter:

DA AA 3AA
Frequency meter:

F
Power meter:

P 3P Q 3Q H 3H
Power transducer:

AI,DI,AV,DV,P,F,PF,3I,3V,3P,3Q,Z
Economical digital meter:

AV DV DA AA F

Shunt:
Current Transformer:

1. Features

A .Provide LED display and local data query.

B .Measure single-phase AC frequency with high-precision.

C .Support RS-485 communications and Modbus-RTU protocol.

D .Support switch input, switch output and analog output. Power supply: AC / DC 80V~270V ,AC 220V,AC 380V,AC 100V,DC 48V,DC24V

F .There are various choices of dimensions to meet the requirements of different electrical circuit enclosure.

2. Our advantages of Power transducers

Customized--We are the manufacturer! sample &OEM&ODM are available!
Safety--We have own test chart, all of our products have been rigorously tested in the factory.
Certification--We have CE, FCC, ROHS and quality management system certification.
High Quality--Our company uses the most advanced equipment to make the best quality products.
