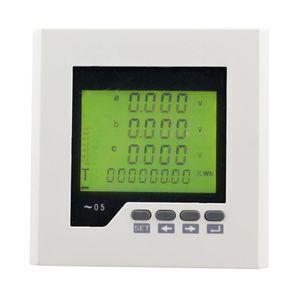

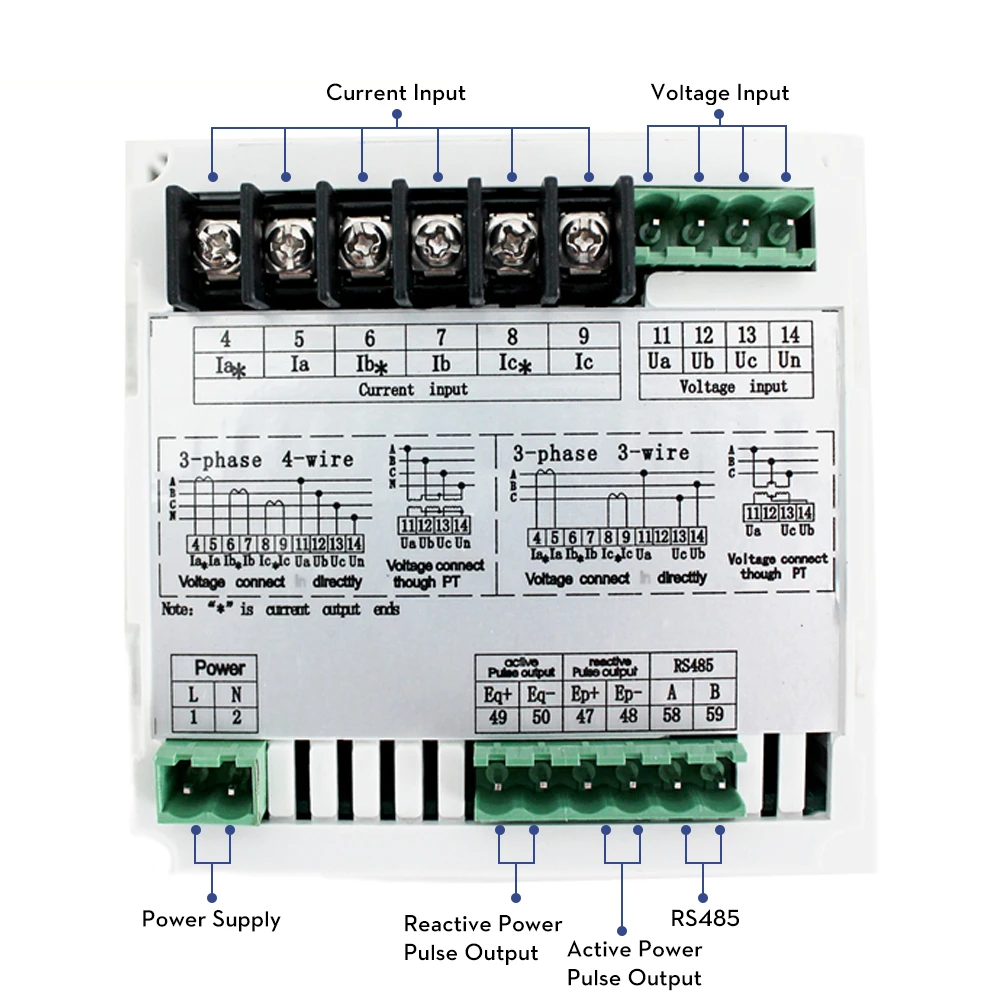

Display of multimeter: | LCD; | Working range of multifunction meter: | three-phase; |
Output Voltage: | 0-9999; | Display Type: | Digital Only; |
Frequency of multifunction meter: | 45~65Hz; | Accuracy Class: | 0.5; |
Packaging Detail: | Selling Units: Single item Single package size: 17X14X17 CM Single gross weight: 0.88 KG; | Color of multimeter: | White/Black; |
Phase: | Three Phase; | Operating Temperature: | -10℃~+55℃; |
Impedance of multifunction: | Voltage: >300KΩ , Current: <20mΩ; | Wiring of multifunction meter: | AC/DC 80V~270V; |
Delivery Detail: | Shipped in 7 days after payment; | Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,PayPal; |
Rated current of multifunction meter: | AC 1A,AC 5A; | Measuring Energy Range: | 0-9999; |
Supply Ability: | 10000 Piece/Pieces per Month; | Place of Origin: | Zhejiang China; |
Rated voltage of multifunction meter: | AC 57.7V,AC 100V,AC 220V,AC 380V; | Dimensions: | 120*120; |
Brand Name: | MORNING; | Relative humidity of multifunction meter: | ≤93 %,in the place without corrosive gas; |
Model Number: | 3D2Y; | Port: | Ningbo/Shanghai; |
Storage environment of meter: | -25℃~ +70℃; |
Technical Index | |||||||||||||||
Accuracy Measurement | |||||||||||||||
current | class 0.5 | ||||||||||||||
Voltage | class 0.5 | ||||||||||||||
active power | class 0.5 | ||||||||||||||
reactive power | class 0.5 | ||||||||||||||
power factor | class 0.5 | ||||||||||||||
frequency | ±0. 02Hz | ||||||||||||||
active energy | class 0.5/class 0.2 | ||||||||||||||
reactive energy | class 1.0/class 2.0 | ||||||||||||||
Input Measurement | |||||||||||||||
Wiring | single-phase,3-phase 3-wire,3-phase 4-wire | ||||||||||||||
Rated current | AC 1A,AC 5A | ||||||||||||||
Rated voltage | AC 57.7V,AC 100V,AC 220V,AC 380V | ||||||||||||||
Overload
| Voltage:Sustained:1.2times;Instantaneous:2times/1s | ||||||||||||||
Current:Sustained: 1.2 times; Instantaneous: 10 times/ 5s | |||||||||||||||
power consumption | Voltage: <1VA (per phase),Current: <0.4VA (per phase) | ||||||||||||||
impedance | Voltage: >300KΩ , Current: <20mΩ | ||||||||||||||
frequency | 45~65Hz | ||||||||||||||
Power supply | |||||||||||||||
Working range | AC/DC 80V~270V,AC220V,AC380V,AC100V | ||||||||||||||
Power consumption | <4VA |
Functional Module | |
Communication interface | 1 loop RS-485 Communication, MODBUS-RTU protocol |
Baud rate: 2400 ~ 19200bps, Default: 2400bps | |
Switching value input | 4 loops switching value input, dry joint |
Switching value output | 3 loops relay output, capability: AC 250V/5A,DC 30V/5A |
Transmission output | 1 loop analog output: 0/4~20 mA or 0~5/10 V |
Energy pulse output | 2 loops energy pulse output,constant:8000 |
Environment | |
Operational environment | -10°C~+55°C |
Storage environment | -25°C~+70°C |
Relative humidity | ≤93 %,in the place without corrosive gas |
Height above sea level | ≤2500m |
Safety | |
Insulation resistance | > 100MΩ |
AC withstand voltage | AC 2KV |
Electro Magnetic Compatibility | |
Electro-Static discharge | class 4 |
Electrical Fast Transient pulse train | |
Electrical surge | |
Outline Dimension | |

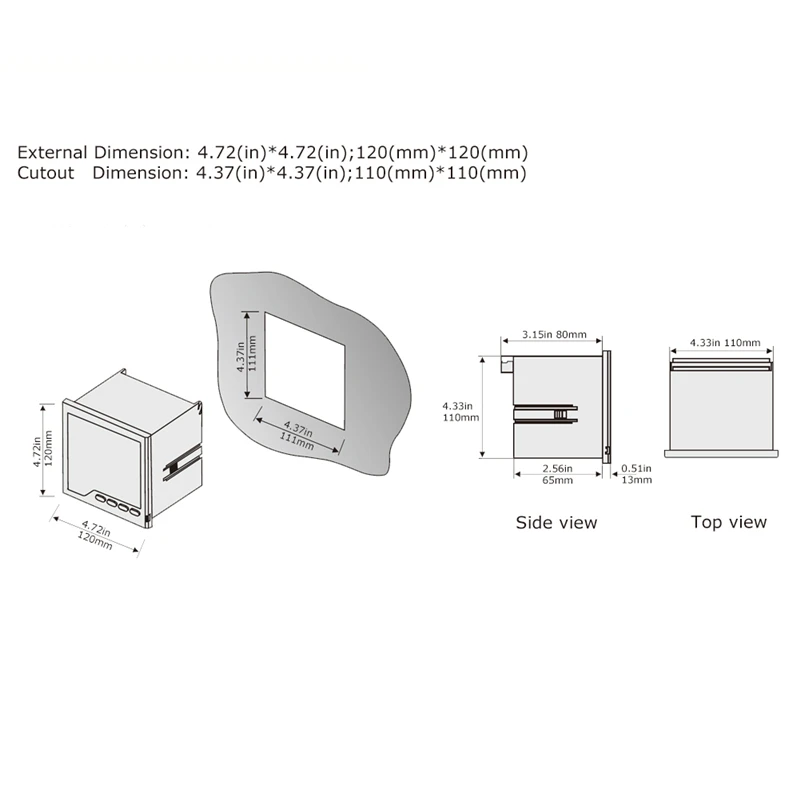

External Dimension( mm ) | 120×120;80×80;96×48;96×96;72×72;48×48;120x60;160x80 |
Cutout Dimension( mm ) | 111×111;76×76;92×45;92×92;68×68;45×45;114x56;152x76 |
Specification Matching | |||||||||
Model Function | Measurement | Extended Function(Optional) | Display | Cutout Dimension (mm) | External Dimension (mm) | ||||
single-phase electricpara meters | Switch input | Switch output | Transmission output | Communication interface | LED | LCD | |||
ME-D1 | 2 | 2 | 1 | 1 | √ | - | 152X76 | 160x80 | |
ME-D1Y | 3 | - | √ | ||||||
ME-D2 | 3 | √ | - | 111X111 | 120×120 | ||||
ME-D2Y | 3 | - | √ | ||||||
ME-D3 | 3 | √ | - | 92X92 | 96×96 | ||||
ME-D3Y | 1 | - | √ | ||||||
ME-D4 | 1 | √ | - | 114X56 | 120x60 | ||||
ME-D4Y | 1 | - | √ | ||||||
ME-D5 | 1 | √ | - | 92X45 | 96×48 | ||||
ME-D5Y | 1 | - | √ | ||||||
ME-D6 | 1 | √ | - | 68X68 | 72×72 | ||||
ME-D6Y | 1 | - | √ | ||||||
ME-D7 | 1 | √ | - | 76×76 | 80×80 | ||||
ME-D7Y | 1 | - | √ | ||||||
ME-D8 | 1 | √ | - | 45×45 | 48×48 |
Model Function | Measurement | Extended Function(Optional) | Display | Cutout Dimension (mm) | External Dimension (mm) | |||||||
3-phase electric parameters | Multi rate | Harmonic | Fire monitoring | Switch input | Switch output | Transmission output | Communication interface | LED | LCD | |||
ME-3D2 | √ | - | - | - | 4 | 4 | 4 | 2 | √ | - | 111X111 | 120x120 |
ME-3D2Y | √ | - | - | - | 4 | 4 | 4 | 2 | - | √ | ||
ME-3FD2Y | √ | √ | - | - | 4 | 4 | 4 | 2 | - | √ | ||
ME-3HD2Y | √ | - | √ | - | 4 | 4 | 4 | 2 | - | √ | ||
ME-3LD2 | √ | - | - | √ | 4 | - | - | 2 | √ | - | ||
ME-3LD2Y | √ | - | - | √ | 4 | - | - | 2 | - | √ | ||
ME-3FHD2Y | √ | √ | √ | - | 4 | 4 | 4 | 2 | - | √ | ||
ME-3D3 | √ | - | - | - | 4 | 4 | 4 | 2 | √ | - | 92X92 | 96×96 |
ME-3D3Y | √ | - | - | - | 4 | 4 | 4 | 2 | - | √ | ||
ME-3FD3Y | √ | √ | - | - | 4 | 4 | 4 | 2 | - | √ | ||
ME-3HD3Y | √ | - | √ | - | 4 | 4 | 4 | 2 | - | √ | ||
ME-3LD3 | √ | - | - | √ | 4 | - | - | 2 | √ | - | ||
ME-3LD3Y | √ | - | - | √ | 4 | - | - | 2 | - | √ | ||
ME-3FHD3Y | √ | √ | √ | - | 4 | 4 | 4 | 2 | - | √ | ||
ME-3D7 | √ | - | - | - | - | - | - | 1 | √ | - | 76×76 | 80×80 |
ME-3D7Y | √ | - | - | - | - | - | - | 1 | - | √ | ||
ME-3D6 | √ | - | - | - | - | - | - | 1 | √ | - | 68X68 | 72×72 |
ME-3D6Y | √ | - | - | - | - | - | - | 1 | - | √ | ||
ME-3D8 | √ | - | - | - | - | - | - | 1 | √ | - | 45×45 | 48×48 |
Note: The number of optional extended functions would be the maximum number we can extendin norma conditions.If you have any special request, please contact with our technical department. |
