ATS 11KW Dual Power Supply Transfer Controller Solar And Wind Power Switch Regulator DC 12V 24V 48V AC 110V 220V Automatic

Product details
Model Number:ATS-11KW;Input Voltage:AC100-120V/AC220-240V;
Rated power:5500W/11000W;Supply Ability:100000 Piece/Pieces per Month;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,Paypal;Battery Low Cut-down Voltage:Default 11/22/44V ,adjustable;
off grid solar system voltage:12/24/48v;Output Voltage:AC100-120V/AC220-240V;
Port:Ningbo/Shanghai;Packaging Detail:Packing of Intelligent Dual Transfer Controller Inner box: 26.5*23*12.5cm,1.7kg;
Application:Off-grid solar or wind system;Place of Origin:Zhejiang China;
product size:190mm*169.5mm*72.5mm;Battery Recovery Voltage:Default 13.5/27/54V ,adjustable;
OEM/ODM:Yes;Output Frequency:50/60HZ;
Output Current:50A;Brand Name:Morning Group;
Transfer Time:≤10ms/16ms;Maximum Current:50A;
LCD Display:Battery Voltage;Working Status of Public Power, Inverter and Battery;Output Power:5500W/11000W;











Product introduction

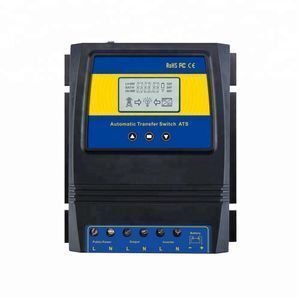

This dual power transfer controller is used between an off-grid system and the public power.the controller is separately connected with public power, interter, battery and load, as the picture shows, in the top of the controller, there is an on/off switch, pls turn on the controller after ensure all the cables are well connected.

The controller can work with both solar system and wind system.
There are 5 indicators at the upside of the controller
(1) public power indicator
(2) inverter indicator
(3) (4) (5) 3 battery state indicators
The battery indicators shows the power state in battery as 75%,50% and 25%.



System working specification:


Process 1:when the battery is fully charged by solar panel,or battery power over 75%,inverter indicator (2) and battery state indicator (3) is shinning green. In this process ,power is provided by the off-grid system.


Process 2:when the power in battery is consumed to 50%,the inverter indicator (2) and battery state indicator (4) is shinning green.In this process,power is provided by the off-grid system.


Process 3: when the power in battery is consumed to 25%,public power indicator(1)is shinning green, and battery state indicator(5) is shinning red.At this time the battery voltageis lower than 10.5V or 21V, the controller will automatically change the power supplier to public in 10ms.In this process, power is provided by the state grid.


Process 4 :when the battery is charged by solar panel again, power is stocked in the battery until 50%,battey state indicator(4) and public power(1) is shinning green.In this process, power is still provided by the state grid, cause the battery voltage does not reach the over discharge return voltage point


Process 5:when the power in battery is over 75%,inverter indicator(2) and battery state indicator(3) is shining green.At this time the voltage return to 13.5V or 27V,the controller will automatically change the power supplier to battery in 10ms.In this process, power is provided by the off-grid system.



   Solar System & Wind System

   Dual Power Transfer Controller:
   12V/24V/48V    110V/220V
   Wind Generator:
   S700   S800   S1000   M300   C400

   EW200  EW300  EW400  EW600  EW1000
   Solar Panel:
   Mono    Poly

   Solar Controller:
   PWM   MPPT   SMART-MPPT

   Power Inverter:
   Pure sine wave    Modified sine wave

   W-series
   Solar connector:

    Cable-MC4   Panel-MC4   T-branch-MC4

   Cable-MC3  Panel-MC3  T-branch-MC3
   Solar Cable:

   2.5mm2    4mm2    6mm

   Solar Tool:
