Lab Scale Continuous Stenter machine Drying machine

Product details
After-sales Service Provided:Video technical support,Online support;Warranty:1 YEAR;
Place of Origin:China;Weight:Approx. 500kg,Approx. 500kg;
Package Preview:;Port:Any China Seaport;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;Main motor for chain drive:1HP;
Certification:ISO;Applicable Industries:Garment Shops,farms,Energy & Mining;
Power(W):1800;Dimension(L*W*H):2410*940*1390mm;
Temperature range:20~250℃;Temperature accuracy:±1℃;
Condition:New;Working width:max. 40cm, adjustable;
Fan motor:1/6HP*3 groups;Power supply:AC380V, 50Hz, 18kw;
Dwelling time:20s~60min adjustable;Brand Name:Anytester;
Dimensions:2410*940*1390mm;Packaging Detail:Export Standard Wooden Case;
warranty:1 year;Supply Ability:200.0 Unit/Units per Year;
Automatic Grade:Automatic;Voltage:AC380V, 50Hz,;
Product Description

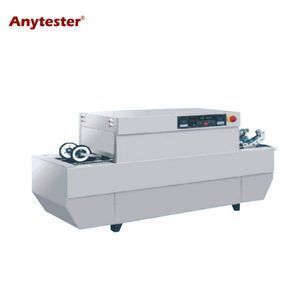

AT289C Lab Scale Continuous Stenter is applicable for laboratory simulation of dyeing and finishing process of drying workshop. It can carry out the resin hot melt dyeing baking fixation test, and confirm the formula and technological condition of dyes, auxiliaries and other composition formula. It can also test hand feeling of fabric, dye discoloration and color fastness in order to obtain smooth and correct samples.
Specification
Model
AT289C
Temperature range
20~250℃
Temperature accuracy
±1℃
Fan motor
1/6HP*3 groups
Main motor for chain drive
1HP
Working width
max. 40cm, adjustable
Dwelling time
20s~60min adjustable
Power supply
AC380V, 50Hz, 18kw
Dimensions
2410*940*1390mm
Weight
Approx. 500kg
Futures
★ It adopts high quality stainless steel with mirror surface which is corrosion-resistant;

★ Using two groups of temperature controller with digital display P.I.D regulator;

★ The fabric width is adjustable;

★ Feeding method:

A, Using pin chain: feeding → dwelling time which is controlled by regulator → cloth drop

B, Using pin frame: feeding → dwelling time which is controlled by regulator → stop automatically

★ Equips with a automatic cloth dropping device and vessel for placing the dropped cloth (If use the automatic cloth dropping device, the pin frame can not be used).

★ High efficiency, low cost.

Packing & Delivery
Packaging
Size
2410*940*1390mm
Weight
Approx. 500kg



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Payment




Payment Item


T/T
EXW



30% T/T in advance, paid the balance before shipment

FOB

CFR(C&F)



30% T/T in advance,paid the balance against copy of B/L

CIF
30% T/T in advance, paid the balance before shipment
FOB
CFR(C&F)
30% T/T in advance,paid the balance against copy of B/L
CIF
L/C
L/C amount above 50,000 usd, we can accept L/C at sight
West Union
Amount lower than 50,000usd
Delivery Time
7~10 days after receiving payment for one container
