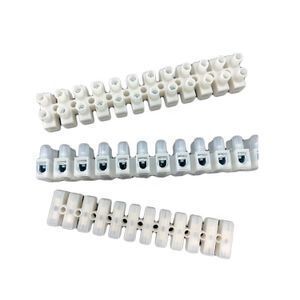

400V 16A connector Terminal barrier Strip Blocks

Supplier: Wuxi Lotus Import And Export Co., Ltd.
Region: Jiangsu, China
Contact: Mr Sun Michael
Price: $90.00 /carton
Min. Order: 1 carton

Click here to contact

Product details

Material:	PA, PE, PP;	Number of Contacts:	1-12;
Type:	terminal,Terminal block;	Strip Length:	PA8 5.0mm/PA10 6.5mm;
Certificate:	UL, CE, CQC, VED;	Brand:	oem;
Payment Terms:	L/C,D/P,T/T;	Packaging Detail:	carton;
Port:	Shanghai;	Wire Pole:	1-12 poles;
Shell:	Nylon 66 plastic, UL94V-2, 94V-0;	Model Number:	PA10F;
Supply Ability:	100000 Carton/Cartons per Year;	Temperature:	110℃, 150℃, 850℃;
Color:	White, Green, Blue, Gray, Red, Yellow, Black;	Base:	Flat base, 4.1mm higher base;
Brand Name:	oem;	Place of Origin:	China;
Conductor Size:	4-22AWG;

400V 16A connector Terminal barrier Strip Blocks

Product Description

·Base: Flat base,4.1mm higher base

·Shell: Nylon 66 plastic,UL94V-2,94V-0

·Temperature: 110°C,150°C,850°C

·Materal: PA, PE, PP

·Color:

·Wire Base: Copper or Zinc alloy

·Wire Protector: stainless steel

·Spiral: Carbon steel material with galvanizing

·Strip Length: PA8 5.0mm PA10 6.5mm

·Wire Pole: 1-12 poles (cuttable)

·Applications: Widely used in all kinds of electrical products and home wiring equipment, durable and reusable with good insulation properties.

Terminal Block (Flat Base Type)

Without shrapnel

With
shrapnel

Amp

Wire Range

Screw

Dimensions(mm)

Packing

Cross-Sec.

(Cu, AWG)

104

104F

17.5

1.5-2.5mm²

22-12AWG

M3.6×6

93.5

17.7

12.7

2.9

2.9±0.1

50Pcs/Bag
500Pcs/Ctn

PA8F

PA8FDS

17.5

1.5-2.5mm²

22-12AWG

M2.6×5.2

96.2

16.3

12.7

2.9

2.8±0.1

50Pcs/Bag
500Pcs/Ctn

PA10F

PA10FDS

2.5-4mm²

22-10AWG
14-12AWG

M3.0×6

116.5

20.2

15.8

3.6

3.4±0.1

50Pcs/Bag
500Pcs/Ctn

More products

Lighting Connector Closed End Connector Cable Tie Wire Connector

Certifications

400V 16A connector Terminal barrier Strip Blocks

Application

400V 16A connector Terminal barrier Strip Blocks

Warehouse

FAQ

Q1: Are you a factory or trading company
Al: We are a factory, we can guarantee our price is fist-hand, very cheap and carpetitive.

Q2: How does your factory do regarding quality control?
A2: AN the products will be 100% checked before the shipment.

Q3: When can I get the price?
A3.Usually we quote within 24 hours after we get your inquiry.

Q4: How could I get a sample?
A4: If you can not buy our product in your local area, we will ship a sample to you.You will be charged a sample price plus all related shipping costs.Express delivery charge depends on the quantity of the samples.

Q5: What is the price of shipping?
A5: Depending upon the port of deiivey, prices varies.
