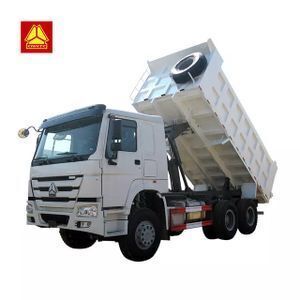

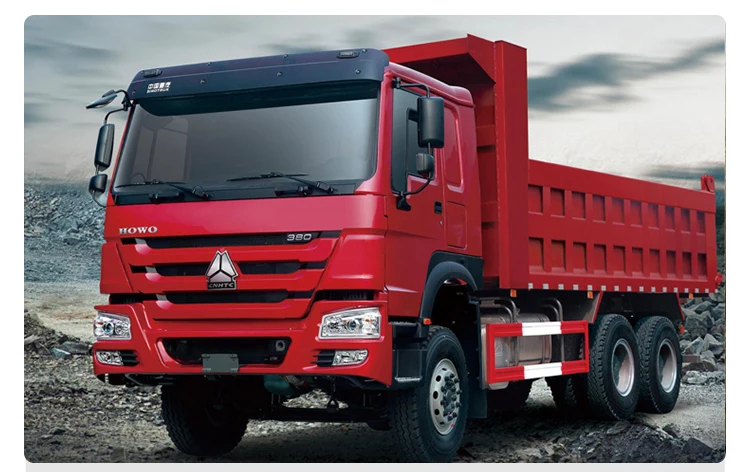

Sinotruk 6x4 Dump Truck With The Overturning Body Platform Chinese Truck

Supplier: Jinan Heavy Truck Import & Export Co., Ltd.
Region: Shandong, China
Contact: Mr David Zhang
Price: $35500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Place of Origin:	China;	Fuel Type:	Diesel;
Approach angle:	19°;	Drive Wheel:	6x4;
Condition:	New;	Front wheel track:	2022/2041mm;
Brand Name:	HOWO;	Packaging Detail:	nude packing or wax;
Wheel base:	3225+1500mm;	Rear wheel track:	1830mm;
Product name:	Sinotruk 6x4 Dump Truck With The Overturning Body Platform;	Engine oil filling quantity:	23L;
Payment Terms:	L/C,T/T;	Capacity (Load):	21 - 30t;
Gross Vehicle Weight:	12090;	Departure angle:	24°;
Port:	Main port of China;	Engine Capacity:	> 8L;
Dimensions (L x W x H) (mm):	8000x2500x3450;	Rear overhang:	1859mm;
Cooling system filling quantity:	40L;	Front overhang:	1500mm;
Transmission Type:	manual;	Supply Ability:	900.0 Set/Sets per Month;
Horsepower:	251 - 350hp;	Emission Standard:	Euro 2;

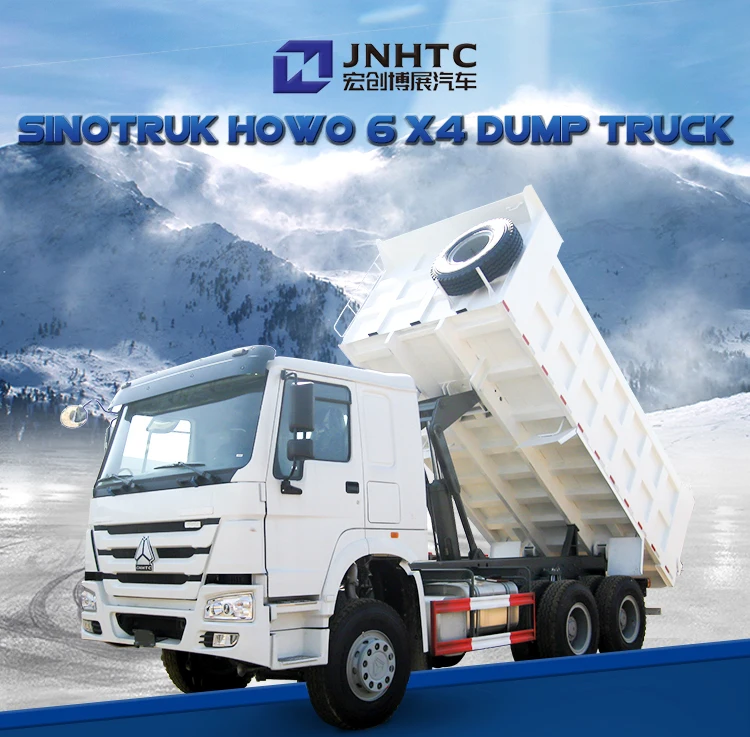

Sinotruk 6x4 Dump Truck With The Overturning Body Platform

Product Overviews

Model	ZZ3257N3447A1 GCW40000kgs Driving Type 6×4
Engine	Engine model	WD615.69, Euro II emission standard, 4 stroke injection diesel engine, 6 cylinder in-line with water cooling, turbo-charging & inter cooling, mechanical high pressure oil pump system
	Maximum output	336PS (247kW) at 2200 rpm
	Maximum torque	1350Nm at 1100-1600rpm
	Bore	126mm Stroke: 130mm
	Displacement	9.726L
	Compression ratio	17.5:1
	Specific fuel consumption	≤198g/kWh
	Engine oil filling quantity	23L
	Air compressors	WABCO Twin cylinders air compressors;
	Cooling system filling quantity (long-term filling)	40L
Clutch	SINOTRUK’s 430C diaphragm spring clutch, hydraulically operating with air assistance
Transmission	Transmission, model HW19710, 10 forward and 2 reverse Ratio:14.28; 10.62; 7.87; 5.88; 4.38; 3.27; 2.43; 1.80; 1.34; 1.00; 13.91/3.18(R)
Propeller Shaft	Double universal joint propeller shaft with gear-shaped coupling flange
Front Axle	New HF9 series, with drum brake system Steering with double T-cross section beam
Rear Axle	HC16 pressed axle housing, single reduction and differential locks between axles; with drum brake system. Ratio: 5.73
Chassis	Frame:	High-strength U-profile frame, all cold riveted cross members and reinforced subframe
	Front suspension:	semi-elliptic leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer
	Rear suspension:	semi-elliptic leaf springs and bogie springs
	Spare wheel carrier:	with one spare wheel
Steering	ZF8098, hydraulic steering with power assistance Ratio: 22.2-26.2:1
Braking System	Front and rear drum brake, four-circuit protection valve
	Service brake	dual circuit compressed air brake
	Parking Brake	spring energy, compressed air operating on rear wheels
	Auxiliary brake	engine exhaust brake
Wheel & Types	Rims	8.5-20,10 hole-steel
Wheel & Types	Types	12.00R20, 12.00R22.5, 315/80R22.5, 12.00-20

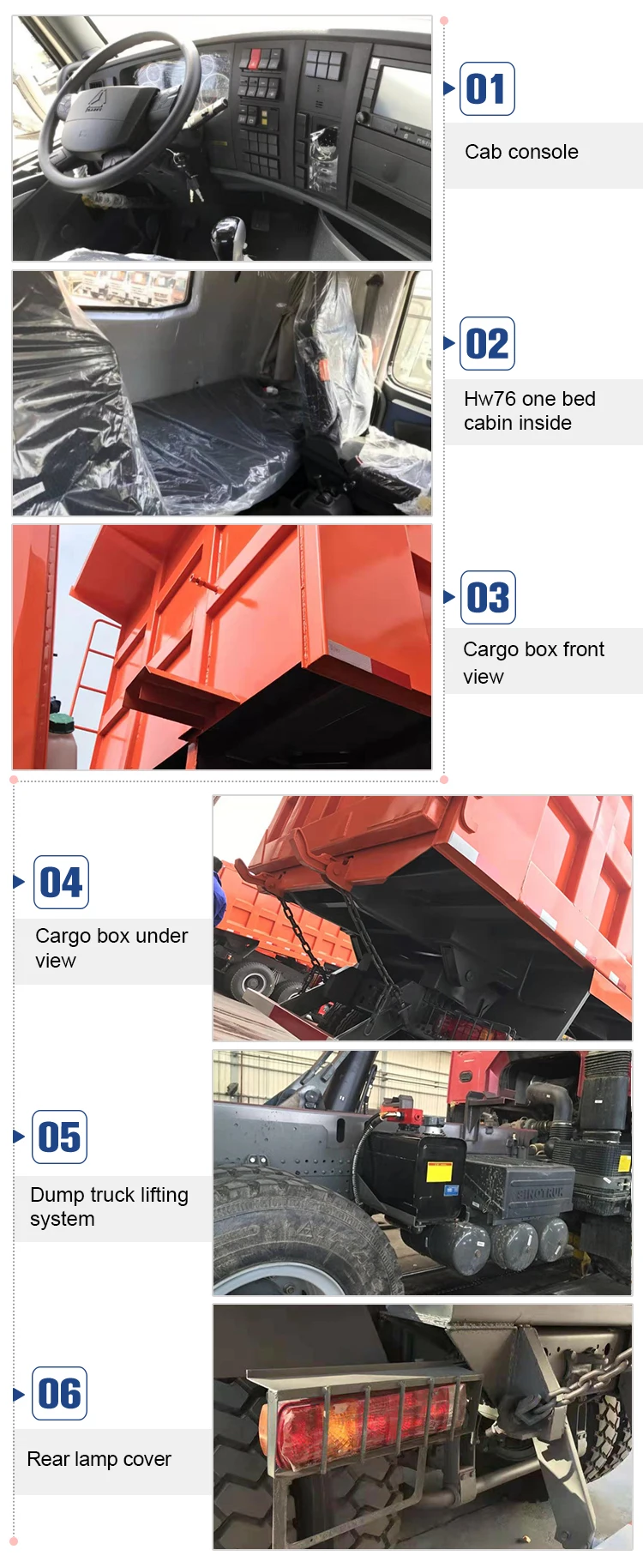

Product Details

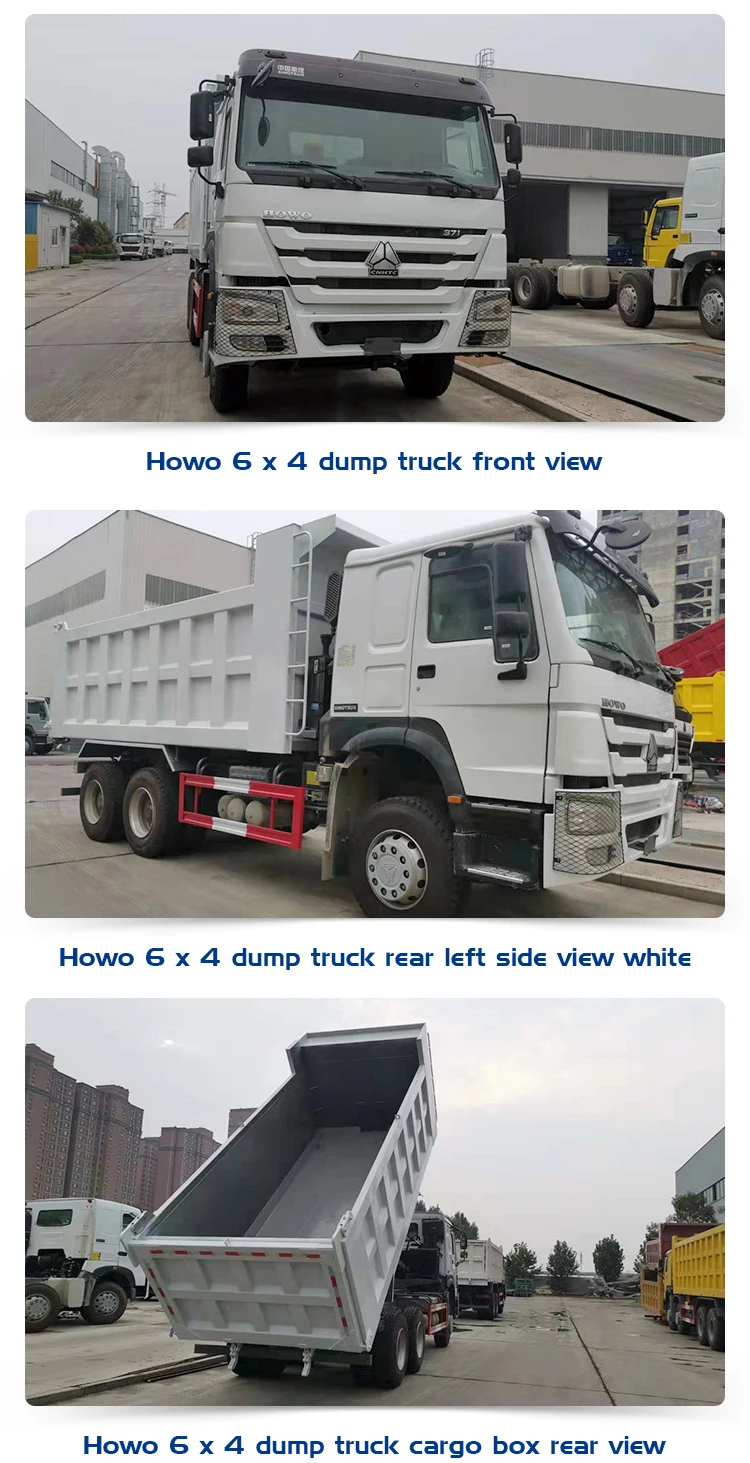

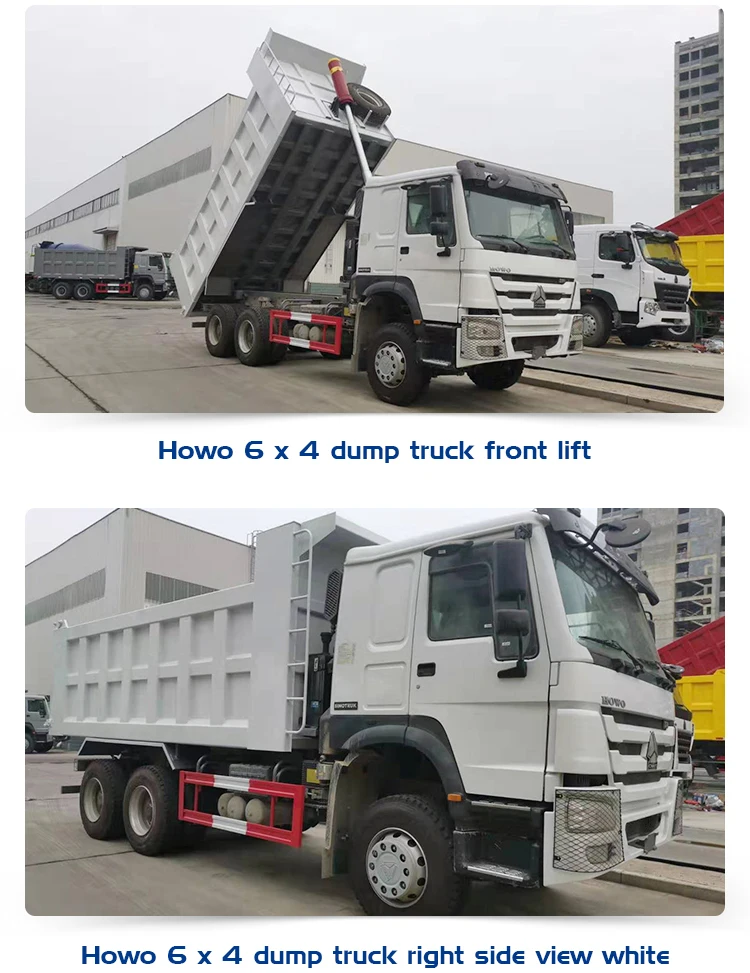

Product Display

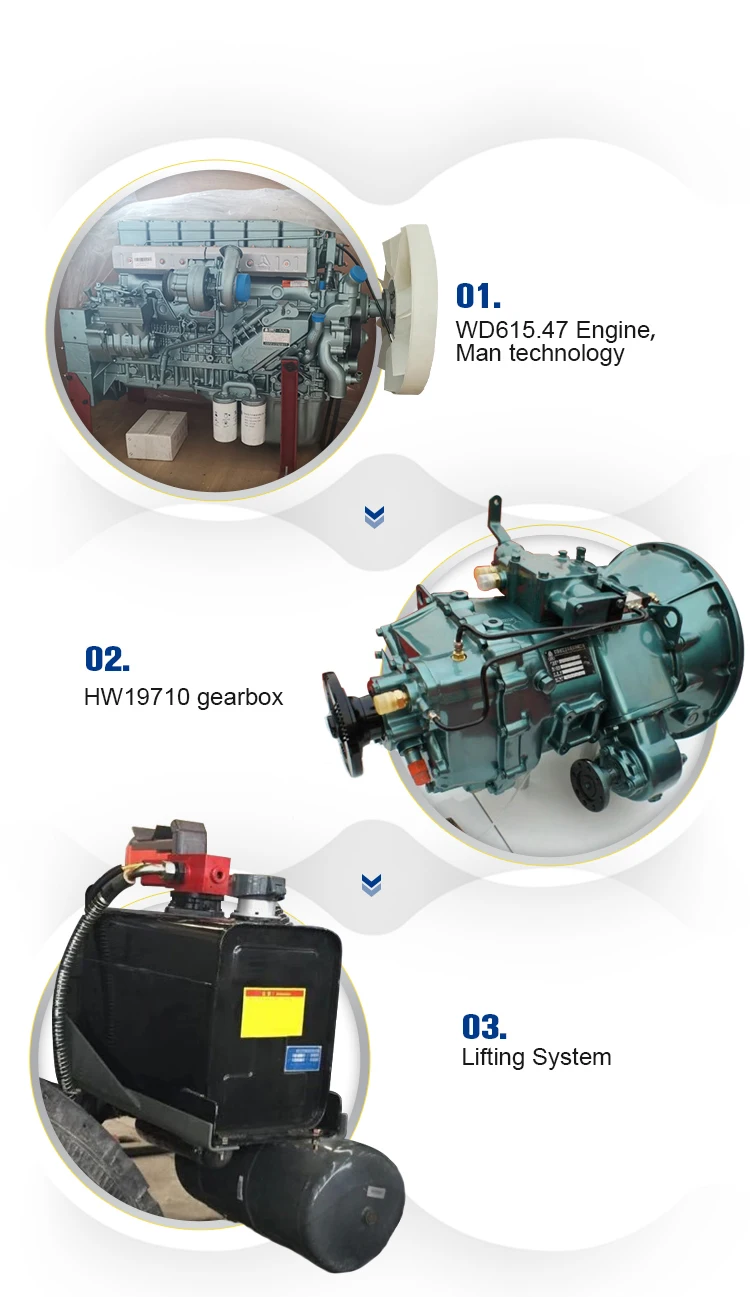

Product Acessories

Application

HOWO 6X4 10 wheels dump truck middle tipping is mainly used for transporting the stuff in bulk which can be scattered (such as sand, soil, minerals, etc.), mainly in mining, construction sites and so on. The 10 wheels 6X4 dump truck with 25-30 tons capacity can meet your needs. All kinds of cargo body structure can be designed and produced according to your request, make it have light curb weight , high rigidity , high loading capacity.

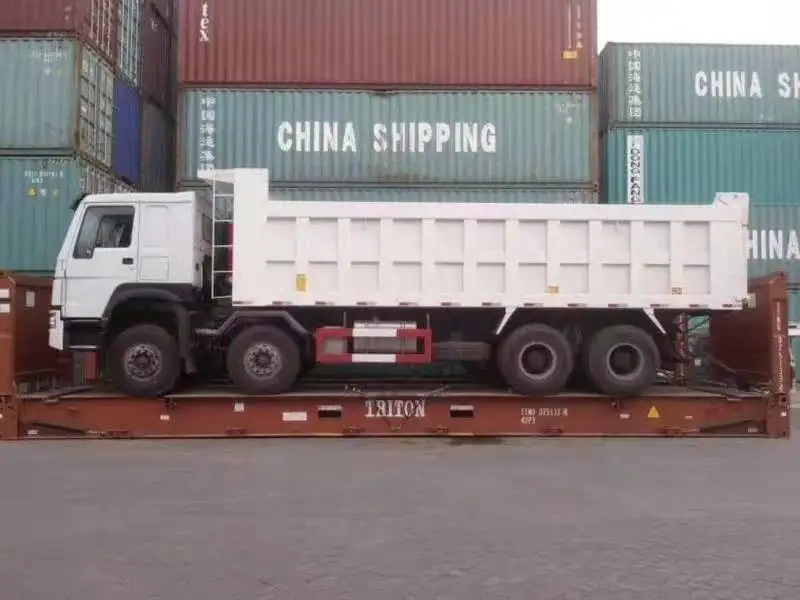

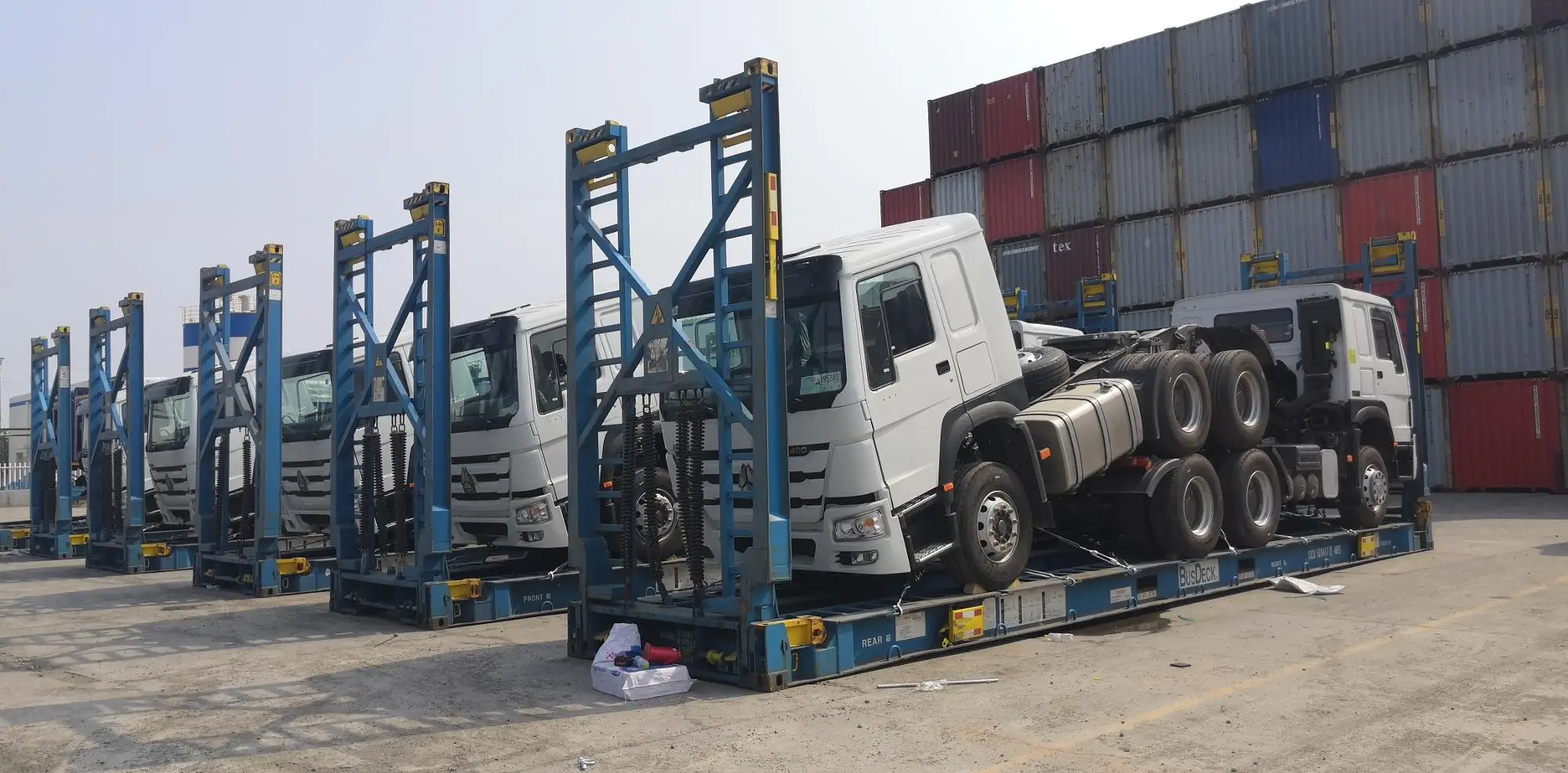

Delivery:

Our Advantages

Warranty

Company Information

Jinan Heavy Truck Import & Export Co., Ltd. is a professional heavy duty truck manufacturer in China. We focus on the export and service of all kinds of heavy duty trucks, machinery and original spare parts.

As a member of SINOTRUK, our main products are SINOTRUK HOWO, HOWO A7,T7H, STEYR, STEYR KING, GOLDEN PRINCE (SWZ10), HOKA, HOHAN and HOVA brand series trucks, including Head tractor trucks (Prime movers), Dump trucks (Tippers), Concrete mixer trucks, Bulk cement trucks, Cargo trucks, Water/Oil tank trucks, Sprinkling trucks, Garbage trucks, Log carrier trucks, All-wheel drive trucks, Fire-fighting trucks, Refrigerator trucks, Crane Trucks, Concrete Pump Trucks, Semi-trailers, tank trailers and so on.

With good communication and services, our company has exported our products to Nigeria, Angola, Ghana, Libya, Cameroon, Guinea, Congo, Mali, Tanzania, Ethiopia, Algeria, Sudan, Egypt and other African countries; Peru, Chile, Venezuela, Colombia, Brazil and Argentina in South America; Ukraine, Russia, Tajikistan, Kazakhstan, Thailand, Philippines,Malaysia, Indonesia, Pakistan, Brunei and Bangladesh in Asia and other countries and regions.

Our company is located in Jinan City, the capital of Shandong Province. Jinan is an old base of China's industry and an old industrial base, which means that there are many industrial manufacturers in Jinan, forming a chain of production, without transportation costs. Adhering to the principle of "honest and trustworthy", we promise to try our best to provide the most efficient services for worldwide customers.
