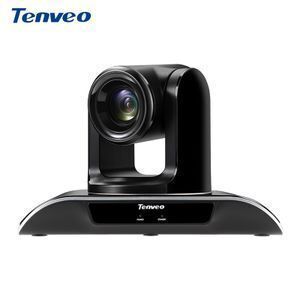

TEVO-VHD10N 10x zoom hd video confererce camera for video communication

Product details
Tilt movement range:0°~120°((max speed 60°/S);Selling Units:Single item;
Screen Size:< 2";Product Name:CONFERERCE CAMERA;
Lens:F=5.0mm(wide)-50.0(tele);Image Sensor:1/3 inch Exmor CMOS;
High Definition Support:1080p (Full-HD);Brand Name:Tenveo;
Package Preview:;SN ratio:≥50dB;
Dimension(LXWXH):260*175*180 mm /296*225*218mm (before after packing;Packaging Detail:DC 12Vpower adaptor, IR remote control, manual, RS232 cable, Brackets & screws Color box with PE Foam ,strong carton international standard packing. Dimension(LXWXH): 260*175*180 mm /296*255*2318mm (before after packing) Weight:1.7kg/3.5kg(before/after packing);
Optical Zoom:10x - 20x;Single gross weight:3.5 KG;
Place of Origin:Guangdong China;Single package size:29.6X25.5X21.8 cm;
Model Number:TEVO-VHD10N;Media Type:HDD / Flash Memory;
Pan movement range:340°(max speed 80°/S);Effective pixel:2.38 mega pixel (16:9);
Wide dynamic:D-WDR;Color:Black;

TEVO-VHD10N 10x zoom hd video confererce camera for video communication

Product Description


Model No.

TEVO-VHD10N

Image Sensor

1/3 inch Exmor CMOS

Effective pixel

2.38 mega pixel(16:9)

Horizontal Resolution

1080P30/25fps,  720P60/50

Focal length

F=5.0mm(wide)-50.0(tele)

Signal standard

NTSC/PAL

Zoom

10x zoom

Horizontal view angle

Near-end 51.3°~Far-end 4.64°

Gain control

Auto/manual

Focus

Auto/manual

SN ratio

≥50dB

Shutter speed

1/1 sec to 1/10000s (22 steps)

Preset position

Remote-controller support 9 presets

PELCO Control Protocol supports 256 presets

Pan/Tilt movement range

Pan: 340°(max speed 80°/S), Tilt: 120°(max speed 60°/S)

Control terminal

RS-232, RS485

Control Protocol

VISCA, PELCO-D, PELCO-P (RS-232, RS485)

Video output

3G-SDI, DVI  (convertible to HDMI)

Noise Reduction

2D/3D

Work Temperature

-10°~50°

Work Humidity

-20°~60°

Baud rate

2400/4800/9600/19200bps

Decoder

Built-in

Address Se

1~256

Installation

Support desktop, Tripod, Wall mount and Ceiling mount

Power supply

DC12V/2A

Power

12W

Weight

1.7kg/3.5kg

Size

260*175*180 mm /296*255*218mm (before / after packing)

Accessories

DC 12V Power adaptor, IR remote control, Ceiling brackets & screws, Manual, RS-232Ccable












1. the features of the full hd ptz camera



HD-SDI,DVI

HD1080P

2.38 mega pixel

10X optical zoom

Pan: 0-340° Tilt :+/-60°

RS-232,RS485,RS-422, IR remote control





2.Main details of the  hd video camera professional







3.Main application of the  hd video camera:





Related Products



»»» CLICK HERE TO SEE MORE STOCK

Packaging & Shipping

 1.For sample, in stock,same day shipping,For big orders of sd 18 xxx videos camera, we ship within 3 business days after receiving the payment.

2.We can ship via your shipping account (DHL/FEDEX/UPS/TNT/EMS or others) as your instruction.Or ship with our account we have big discount with following express company:

Company Information

Certifications

1.All of our audio conference speakerphone and HD video conference cameraare compliant with CE, FCC and Rosh standards:



Why choose us?

1. The MOQ is 1 unit.
2. We accept OEM, ODM orders.

3.We ship the sample order out as soon as we receive the payment.
4. 3 years warranty time. Low Repair Rate is our best reward during the past days.
5. After Sale System which makes to solve the problem quickly once met problems.
6. 14 years professional video conference supplier with superior quality & competitive prices.
7. Our QS department checks the video conference camera and speakerphone one by one strictly before sending out.



FAQ



Q:What kind of camera should I use?
A:Most laptops and monitors come with built-in cameras—these work great for Tenveo software.For meeting room spaces, we have video conferencing cameras and Omnidirectional microphones that are specifically designed for small huddle rooms, conference and boardrooms,and large auditorium spaces.You can check our service guide for more information on different meeting room systems.

Q:Is it easy to operation?
A:Yes, it is easy to install, plug and play.

Q:Can I bring more than one person into a call at the same time?
A:Yes. We currently offer group calling for up to 500 different participants,which could be 500 people dialing in from their laptops ,pad or mobile phones,500 different video conferencing systems full of people or some mix of individuals and video conferencing systems.

Q:What is the resolution of your cameras?
A:We have 1920x1080p/60fps progressively output, and 1080p/30fps also 720p/30fps.

Q:What is the Video Connector?
A:There are USB 2.0, USB3.0,HDMI,HD-SDI,DVI,YPBPR and CVBS Video output.

Q:How many time zoom?
A:Support fixed focus, 3X 10X, 20X, 30X optical zoom.

Q:How to control this Camera?
A:There are RS232, RS485 PTZ Control, and also support VISCA, PELCO-P, PELCO-D to control through your Codec or PC through RS232, and support IR remote control.

Q:Which kind of software compatible with this Camera?
A:It’s compatible with PolyCom, Blue Jeans, Cisco, Vsee, GoToMeeting, Radvision, SeeVogh,WebEx, easy meeting, Vidtel and working with Microsoft Lync Software,and ZOOM.US, SKYPE, VIDYO Etc.
