Certificate: | FCC/CE/RoSH; | Wideangle: | 120°; |
Type: | Wired; | Brand Name: | Tenveo/OEM; |
Packaging Detail: | 1. DC 12Vpower adaptor, IR remote control, manual, RS232,RS485 cable, HDMI/SDI cable, Brackets & screws; color box with PE Foam ,strong carton international standard packing. 2. 160mmx 168mm x 185mm/295mm x 225mm x205mm (before/after packing). 1.42kg/2.9kg(Net weight/Gross weight). 3. 1920 x 1080 Full HD Video Camera; | Single package size: | 29.5X22.5X20.5 cm; |
Model Number: | TEVO-HD9620; | Optical Zoom: | 10x - 20x; |
Feature: | 1920 x 1080 Full HD Video Camera; | High Definition Support: | 1080p (Full-HD); |
Lens: | F=4.7mm(wide Angle End)~94.0 Mm(far End); | Effective MegaPixel: | About 3.2MP; |
Media Type: | MiniDV; | Package Preview: | ; |
Single gross weight: | 2.9 KG; | Screen Size: | Without Screen,< 2"; |
Pixels: | 2.1 mage effectively pixel; | Place of Origin: | Guangdong China; |
Zoom: | 20x zoom; | Video Resolution: | (1920*1080); |
Imaging Sensor: | CMOS; | Suit for: | Video Conferencing / Live Streaming / Remote Court; |
Video Output: | HD-SDI/HD-MI; | Selling Units: | Single item; |
Material: | Acrylic; |

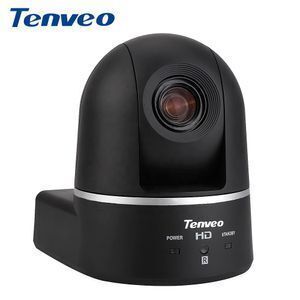

Model No. | TEVO-HD9620 |
Image Sensor | 1/2.8″Progressive HD COLOR CMOS |
Effective pixel | 2.1 mega pixel (16:9) |
Min. illumination | 0.5Lux |
Exposure | Auto/manual |
E-shutter | NTSC:1/30~1/10,000s PAL:1/25~1/10,000s |
Gain control | Auto/manual |
White Balance | Auto/manual/indoor/outdoor |
Backlight compensation | On / off |
Mirroring | Support (horizontal mirror + vertical mirror) |
Image effect | color/black and white |
SN ratio | ≥50dB |
Video output | 1080p/30,1080p/25,720p/60,720p/50 |
Signal standard | NTSC,PAL |
Lens | 20 x optical zoom,f=4.7mm(wide angle end)~94.0 mm(far end) |
Video output | HDMI,HD-SDI |
Control terminal | RS-232C,RS-422/485 |
Control Protocol | SONY VISCA,PELCO P/D |
Preset position | 255 preset position |
Pan movement range | H:55.5°(W)~3.0°(T) V:43°(W)~2.2°(T) |
Pan movement speed | 355°(80°/S) |
Tilt movement speed | -30- 90°(60°/S) |
Power supply | DC12V(10.8~13.0V DC) |
Power consumption | MAX=30W(DC 12V) |
Work Temperature | 0~40℃ |
Work Humidity | -10-60℃ |
Accessories | DC 12Vpower adaptor, IR remote control, manual, RS232,RS485 cable, HDMI cable, Brackets & screws |
Color | Black |
Dimension(LXWXH) | 160mmx 168mm x 185mm/295mm x 225mm x205mm (before/after packing) |
Weight | 1.42kg/2.9kg(Net weight/Gross weight) |
1.Main features of this 1920 x 1080 Full HD Video Camera:
HDMI/SDI output | HD1080P | 2.1 mega pixel |
20X optical zoom | Pan: 0-355° Tilt:+/-60° | RS-232,RS-422,RS-485,IR remote control |

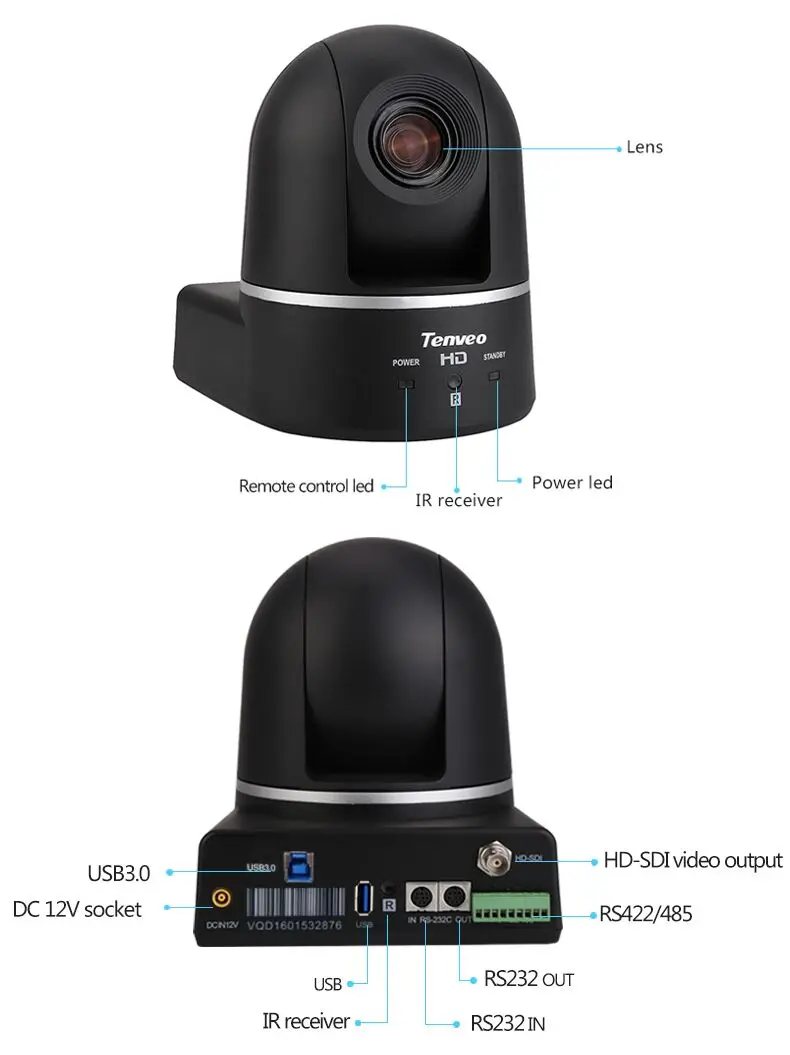

2.Details of this 1920 x 1080 Full HD Video Camera:
3.Application of this 1920 x 1080 Full HD Video Camera:
1.All of our audio conference speakerphone and HD video conference cameraare compliant with CE, FCC and Rosh standards:
1. The MOQ is 1 unit.
2. We accept OEM, ODM orders.
3.We ship the sample order out as soon as we receive the payment.
4. 3 years warranty time. Low Repair Rate is our best reward during the past days.
5. After Sale System which makes to solve the problem quickly once met problems.
6. 14 years professional video conference supplier with superior quality & competitive prices.
7. Our QS department checks the video conference camera and speakerphone one by one strictly before sending out.
Q:What kind of camera should I use?
A:Most laptops and monitors come with built-in cameras—these work great for Tenveo software.For meeting room spaces, we have video conferencing cameras and Omnidirectional microphones that are specifically designed for small huddle rooms, conference and boardrooms,and large auditorium spaces.You can check our service guide for more information on different meeting room systems.
Q:Is it easy to operation?
A:Yes, it is easy to install, plug and play.
Q:Can I bring more than one person into a call at the same time?
A:Yes. We currently offer group calling for up to 500 different participants,which could be 500 people dialing in from their laptops ,pad or mobile phones,500 different video conferencing systems full of people or some mix of individuals and video conferencing systems.
Q:What is the resolution of your cameras?
A:We have 1920x1080p/60fps progressively output, and 1080p/30fps also 720p/30fps.
Q:What is the Video Connector?
A:There are USB 2.0, USB3.0,HDMI,HD-SDI,DVI,YPBPR and CVBS Video output.
Q:How many time zoom?
A:Support fixed focus, 3X 10X, 20X, 30X optical zoom.
Q:How to control this Camera?
A:There are RS232, RS485 PTZ Control, and also support VISCA, PELCO-P, PELCO-D to control through your Codec or PC through RS232, and support IR remote control.
Q:Which kind of software compatible with this Camera?
A:It’s compatible with PolyCom, Blue Jeans, Cisco, Vsee, GoToMeeting, Radvision, SeeVogh,WebEx, easy meeting, Vidtel and working with Microsoft Lync Software,and ZOOM.US, SKYPE, VIDYO Etc.
