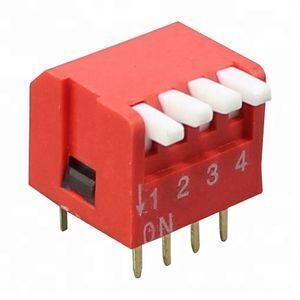

2.54mm Piano Type DP Series Dip Switch

Supplier: Yueqing Daier Electron Co., Ltd.
Region: Zhejiang, China
Contact: Mr Henry He
Price: $0.06 / >=100 pieces
Min. Order: 100 pieces

Click here to contact

Product details

Place of Origin:	Zhejiang China;	Model Number:	DP;
Max. Current:	100MA;	Item:	DIP SWITCH;
Contact plating:	Gold plating over nickel;	Packaging Detail:	In IC tube packaging: 28pcs/pipe, 1344pcs/48 pipe/box, 8 boxes to a carton, carton specifications: 52.52948CM.for dp dip switch 7 position piano type dip switch;
Package:	IC Tube/Tape and reel;	Brand Name:	DAIER;
Pitch:	2.54mm;	Button color:	WHITE;
Payment Terms:	D/A,D/P,T/T,Western Union,MoneyGram,PAYPAL;	Max. Voltage:	50VDC;
Circuit:	SPDT;	Supply Ability:	100000 Piece/Pieces per Week;
Port:	NINGBO/SHANGHAI;	Stroke:	2.00mm;
Position:	1-12 Nos;	Terminals:	Gold Plated;
Color:	RED, BLUE;

Product Description

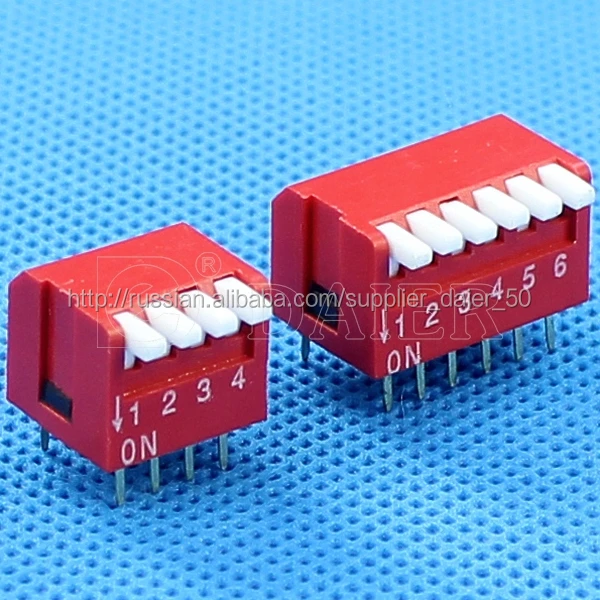

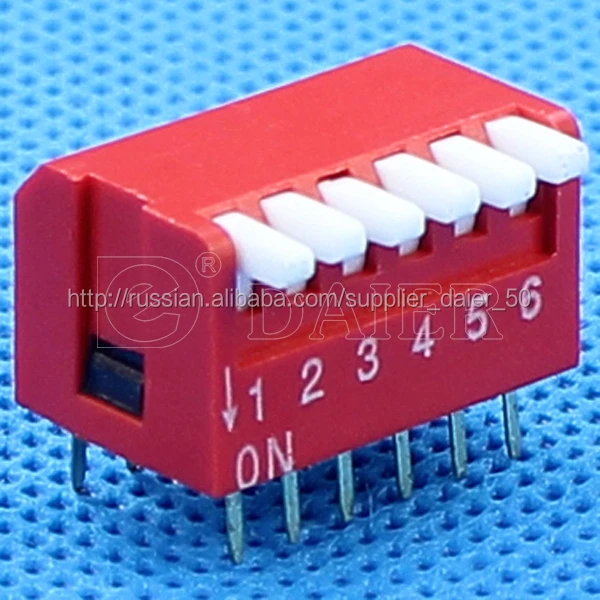

2.54mm Piano Type DP series Dip Switch

DIP/SMD switch

Pitch: 2.54/1.27mm

1-12 positions

Color: RED/ BLACK/ BLUE

Type: DS (silde type)/ DA (right angle type)/ DP (piano type)/ DI (IC type)/ DM (SMD type), etc.

Package: IC Tube/Tape and reel

Electrical
2.54mm Piano Type Dip Switch 8 Way 8 Pin Dip Switch Datasheet And 12 Position Dip Switch Piano Sw Type

Electrical Life: 2000 operation cycles per switch
Non-switching Rating: 100mA 50VDC
Switching Rating: 25mA 24VDC
Contact Resistance: 50mΩ Max at initial: 100mΩ Max after life test
Insulation Resistance: 100mΩ 50VDC
Dieletric Strength: 500VAC/ 1 minute
Capacitance: 5pF max

Features

No.1	Good DIP switch!
No.2	Dip Switch by RoHS compliant!
No.3	The MOQ of all kinds of DIP switch is flexible!
No.4	High quality, competitive price, great service!
No.5	The best dip switch at the best price!

Our Services

PRODUCT SHOW

Company Information

PRODUCING DEPARTMENTS

CERTIFICATIONS

Packaging & Shipping

PAYMENT AND SHIPMENT
- Application
They are widely used by many of the top boutique guitar effects pedal manufacturers in the world and also used in amateur radio (RC) applications and DIY hobby applications.
- Others
Please kindly inform us which items you are interested, and the best price will be provided you upon receipt of your
            new inquiry ASAP.
           Any questions about more items, please feel free to contact us.
            We are sincerely looking forward to establish cooperative relationship with you.
    Free sample is available !
  If you need any parts, please kindly send us your drawings or sample for quotation.

Paypal,T/T,Westernunion,MoneyGram ,or other method.

Ship worldwide by sea, air, DHL, UPS,TNT, FEDEX and so on.

---We often ship item in 5 business days.
