Micro Switch in Push Button Switches JW2-11

Supplier: Yueqing Daier Electron Co., Ltd.
Region: Zhejiang, China
Contact: Mr Henry He
Price: $0.20 / >=100 pieces
Min. Order: 100 pieces

Click here to contact

Product details

Max. Voltage:	220VAC;	rating:	3A 220VAc;
1500VAC,1Minute:	Long life,high reliability ,;	Dielectric strength:	1500VAC,1Minute;
Packaging Detail:	100pcs/bag;	Protection Level:	IP40;
Function:	1NO1NC;	Operating Temperature:	-25℃~+80℃;
Model Number:	JW2-11;	Max. Current:	3A;
Payment Terms:	D/A,D/P,T/T,Western Union,MoneyGram,paypal;	Place of Origin:	Zhejiang China;

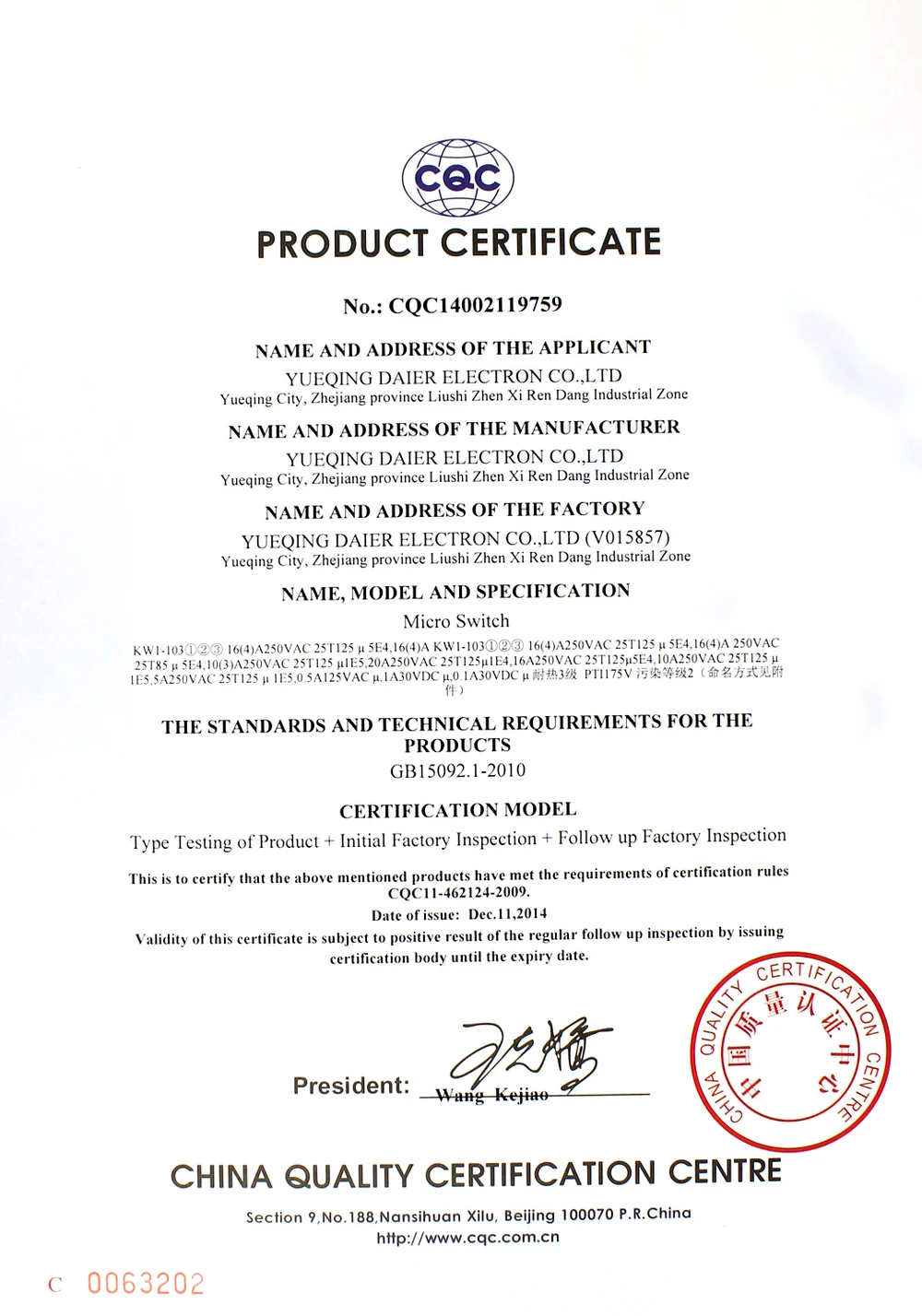

Color:	lucency and white;	Approvals:	CE,UL,CQC;
Port:	Ningbo;	Supply Ability:	1000000 Piece/Pieces per Month;
Insulation Resistance:	500VDC 100 M Ω min;	lever:	no lever;
Contact Resistance:	30 M Ω max;	Brand Name:	DAIER;

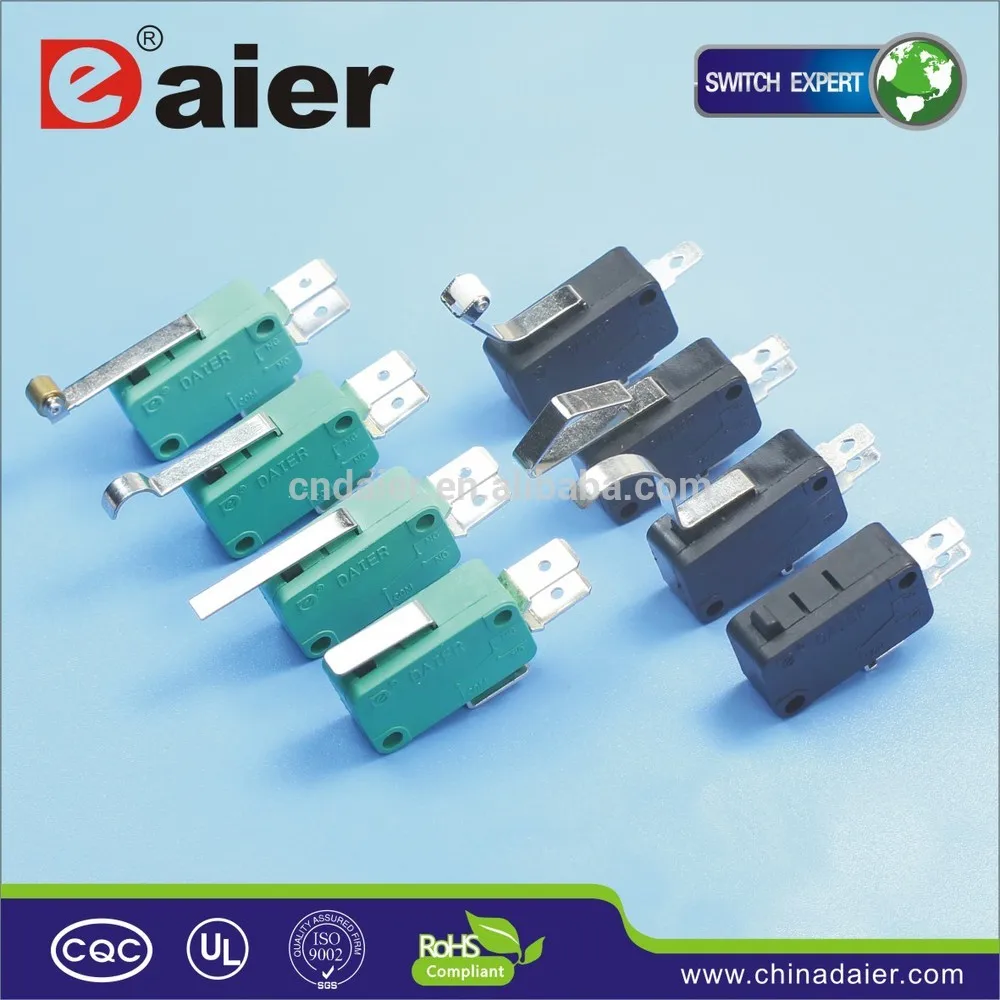

Daier JW2-11 snap action micro switch

Product Description

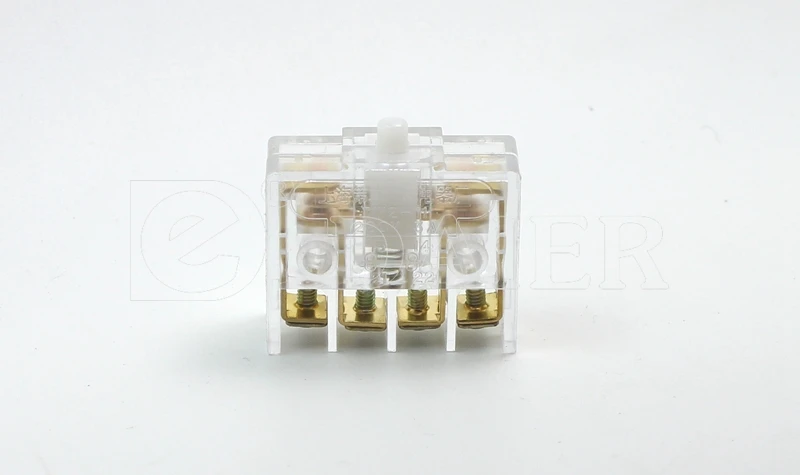

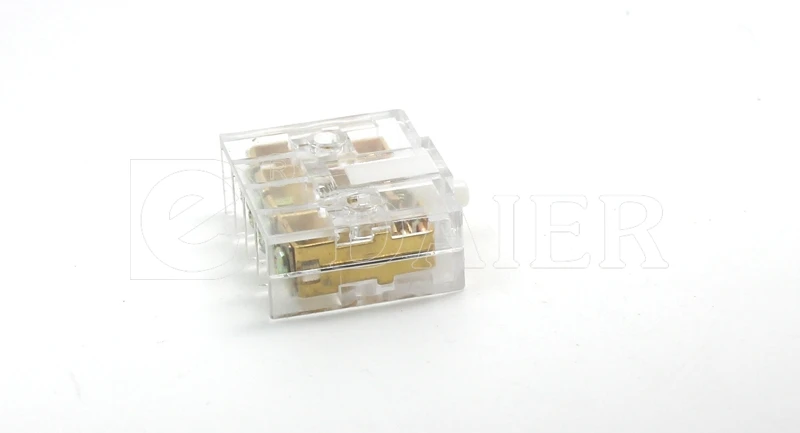

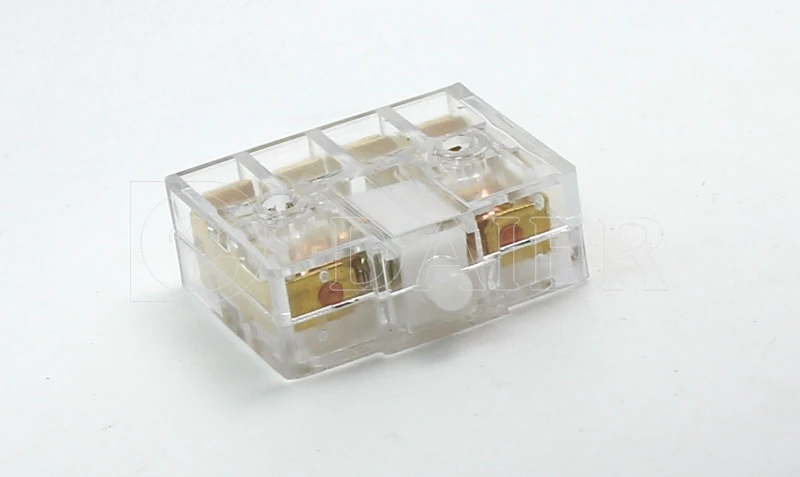

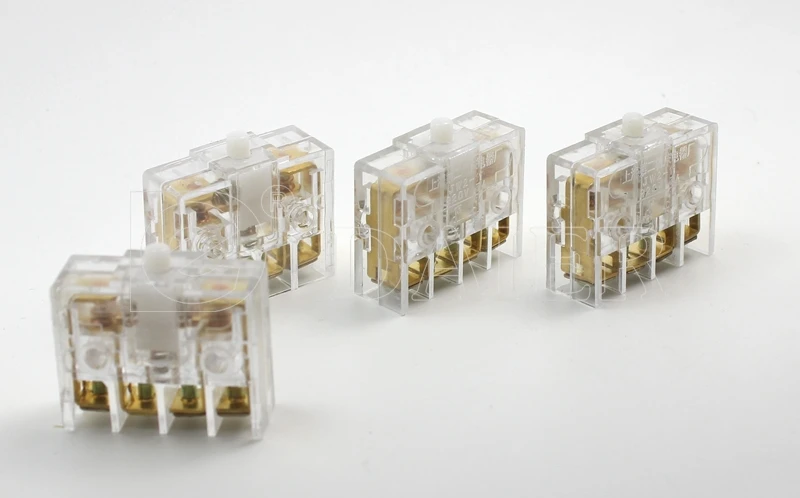

JW2-11 snap action micro switch

Product Show

Technical Datasheet

Features:
5 current ratings
Choice of actuator styles
3 terminal types (optional screw terminals available consult factory)
3 contact arrangements
Long-life coil spring mechanism
High-temperature 150°C and 200°C
available on select models (consult factory)
Specifications:
Electrical:
EllectricalRating:	15A,125/250VAC;3/4HP,125VAC 1-1/2HP,250VAC
Temperature Rating:	105°C Std. (150°C and 200°C optional)
Flammability Rating:	UL94HB
Materials:
Case:	General Purpose Phenolic
Actuating Button:	Thermoplastic Nylon
Common Terminals:	Brass
NO and NC Terminals:	Brass
Moving Blade:	Brass
Spring:	Stainless Steel
Auxiliary Actuators:	Cold-Rolled Steel (Nickel-Plated)
Roller:	Sintered Stainless Steel
Contacts:	Silver-Cadmium Oxide

Application

They are widely used in household appliances, electric force, telecommunications, machine tool, vessel, textile, printing, Mining machine, Mustic Instrument, etc. snap action micro switch snap action micro switch snap action micro switch
