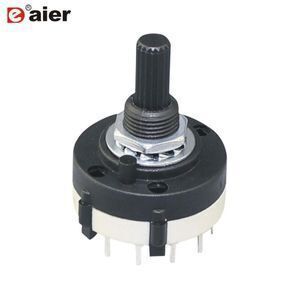

2 ~ 12 Position Rotary Switch With PCB Terminals

Supplier: Yueqing Daier Electron Co., Ltd.
Region: Zhejiang, China
Contact: Mr Henry He
Price: $0.40 / >=250 pieces
Min. Order: 250 pieces

Click here to contact

Product details

Model Number:	RTS-01;	Port:	NINGBO;
Terminals:	pcb terminals;	Handle Length:	15/20/25/30/38/50MM;
Brand Name:	DAIER;	Pole:	1,2,3,4 poles;
Payment Terms:	D/A,D/P,T/T,Western Union,MoneyGram,Paypal;	Rated Current:	0.3/0.15A;
Rated Voltage:	125/250VAC;	Material:	Plastic;
Max. Current:	0.3A;	Supply Ability:	100000 Piece/Pieces per Month;
Mechanical Life:	10000 Cycles;	Panel Mount:	M10 X 0.75;
Place of Origin:	Zhejiang China;	Position:	3,4,6,12 positions;
Max. Voltage:	250VAC;	Packaging Detail:	50pcs/box.;
Product name:	rotary selector switch;	Brand Name:	Daier;

2 ~ 12 position Rotary Switch
1 ~ 4 pole Rotary Switch,
PCB terminals,
Normally is with 18 teeth 6.0mm 20mm shaft

Rotary Switches Specifications

1)Contact Resistance ≤20mΩ

2)Insulation Resistance ≥100MΩ ,at 500 VDC

3)Dielectric Strength 1000VAC/ 1minute

4)Electrical Life ≥10000 times (SEMKO)

≥6000 times (UL)

5)Temperature Range -25^oC~85^oC

Application

They are widely used in household appliances, electric force, telecommunications, machine tool, vessel, textile, printing, Mining machine, Mustic Instrument, etc.

Others

Please kindly inform us which items you are interested, and the best price will be provided you upon receipt of your

new inquiry ASAP.

Any questions about more items, please feel free to contact us.

We are sincerely looking forward to establish cooperative relationship with you.

Free sample is available !

If you need any parts, please kindly send us your drawings or sample for quotation.

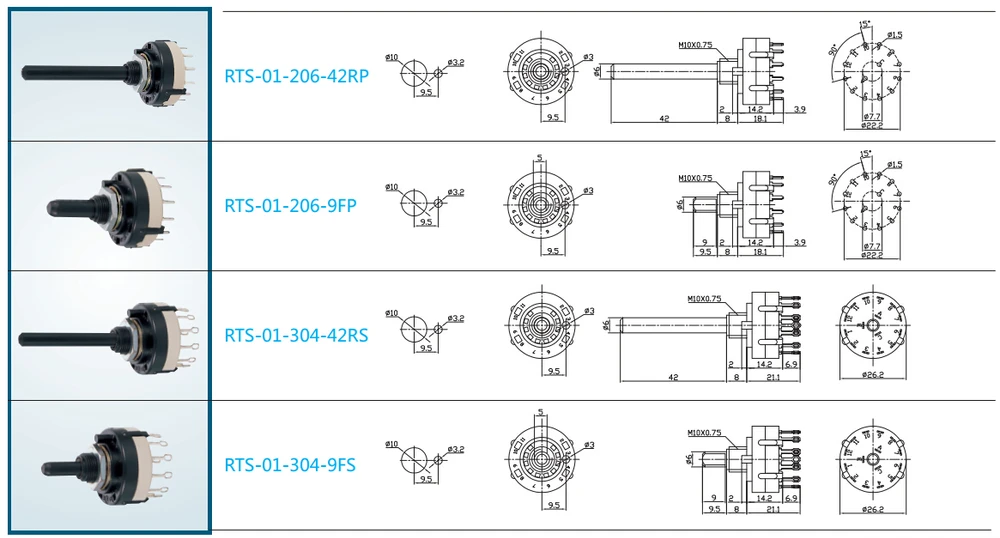

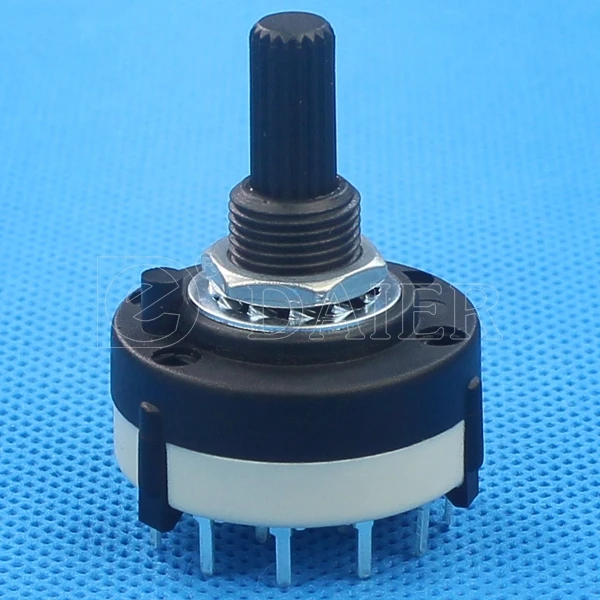

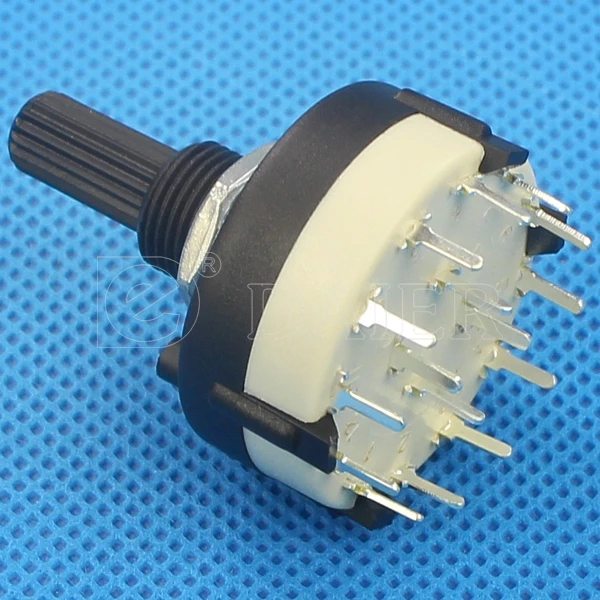

PRODUCT SHOW

CERTIFICATIONS

PRODUCING DEPARTMENTS

PAYMENT AND SHIPMENT

Paypal,T/T,Westernunion,MoneyGram ,or other method.

Ship worldwide by sea, air, DHL, UPS,TNT, FEDEX and so on.

---We often ship item in 5 business days.

ABOUT US

Daier Electronics Co.,ltd is a professional manufacturer of electromechanical switches in Yueqing,China. Our factory covers an area of over 5,000 square meters, having a total staff of over 200 members. We are engaged in producing 9 categories and about 4,000 models of BNC connectors, push button switches, rocker switches, micro switches, touch switches, lift switches, refrigerator door switches, miniature toggle switches, indicators, alligators, fuse holders, signal lamps and etc. With a principle of being creative, advancedand honest, we are always improving our products and services to better satisfy you customers.
