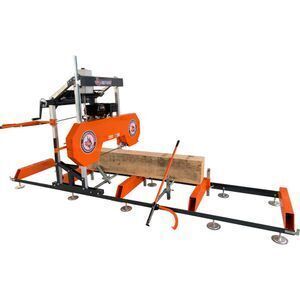

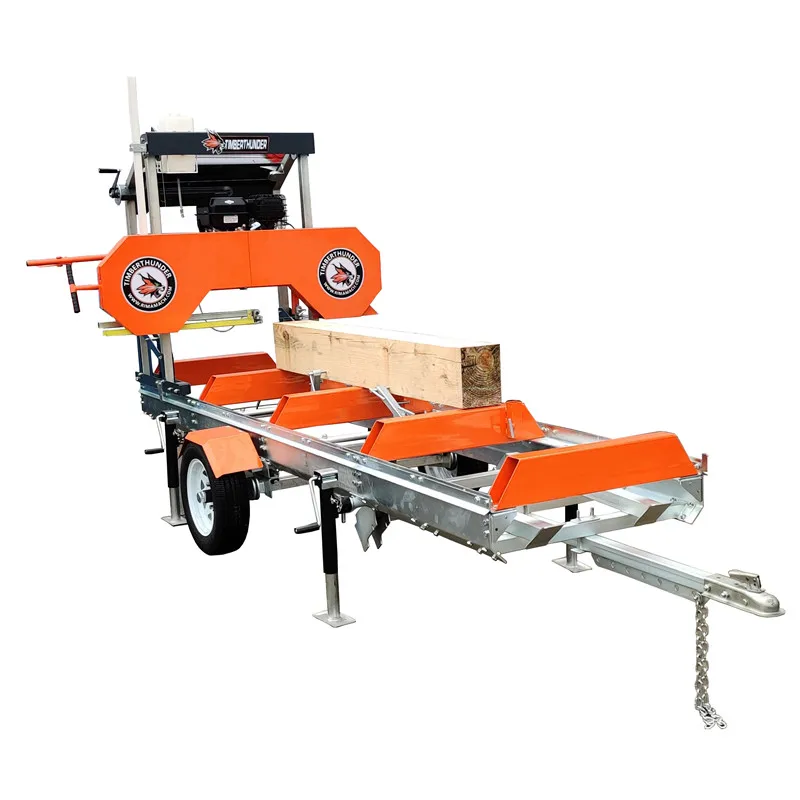

Diesel Portable Sawmill Horizontal Bandsaw Mill Trailer

Product details
Warranty of core components:1 YEAR;Power:Gasoline 15HP (LIFAN, Manual start);
Applicable Industries:farms,Construction works ,Forestry;Usage:wood cutting;
Power (kW):5.5kw/7.5kw;Warranty:1 YEAR;
Packaging Detail:packing by wooden and iron;Blade size:3670*34*0.9mm (144"*1-1/4"*0.035");
Frame:4pcs;After Warranty Service:Online support,Spare parts;
Single gross weight:35.0 KG;Weight:31kg2/344;
Key Selling Points:Competitive price;Application:furniture factory;
Selling Units:Single item;Model:RS31G;
Brand Name:Rima;Certification:CE;
Dimension(L*W*H):4064*1778*1800mm;Condition:New;
Cutting capacity:790*165*3279mm (31"*6.5"*129");Use:wood cutting;
After-sales Service Provided:Free spare parts;Video outgoing-inspection:Provided;
Style:HORIZONTAL;Type:Band saw;
Package Preview:;Local Service Location:canada,United States;
Place of Origin:Shandong China;Single package size:45X25X20 cm;
Displacement:420cc;Machinery Test Report:not available;
Core Components:MOTOR;Weight (KG):355 KG;
Voltage:220;Showroom Location:United States;
Band Saw Type:Log Band Saw;Max.Working Width(mm):790;
Marketing Type:Hot Product 2019;
Product Description
Smooth Sawhead Feed
Guide the sawhead through the cut with finger-tip pressure – allows you to judge the best speed for smooth cuts through knots and denser core wood.
Blade Lube System

Keeps blade pitch-free in  softwoods. Delivers water directly to the blade at the point of entry into the cut.  Large custom-molded water bottle with wide-mouth filling port for easy refilling.

Model

RS26G

RS31G

RS26E

RS31E

Power

Gasoline 9HP

(LIFAN, Manual start)

Gasoline 15HP

(LIFAN, Manual start)

Electric Motor

5.5KW

Electric Motor

7.5KW

Displacement

301cc

420cc

400V 50HZ 3phase

Cutting capacity

660*178*2794mm

(26”*7”*110”)

790*178*2794mm

(31”*7”*110”)

660*178*2794mm

(26”*7”*110”)

790*178*2794mm

(31”*7”*110”)

Frame

4pcs

4pcs

4pcs

4pcs

Blade size

3690*34*0.9mm

(145”*1-1/4”*0.035”)

3960*34*0.9mm

(156”*1-1/4”*0.035”)

3690*34*0.9 mm (145”*1.25”*0.035”)

3960*34*0.9mm

(156”*1-1/4”*0.035”)

Standard track size

4000x900mm

(157”x35.4”)

4000x1030mm

(157”x40.5”)

4000x900mm

(157”x35.4”)

4000x1030mm

(157”x40.5”)

Packing

2080x570x830mm

2150 x570x830mm

2080x610x810mm

2150 x610x810mm

Safe cutting Speed

13-15s/m

13-15s/m

Blade speed

17m/min

17m/min

Distance teeth

22mm (0.86”)

22mm (0.86”)

Blade Wheel Dia.

480 mm (18.8”)

480 mm (18.8”)

Dimension

4064*1778*1800mm (160”*70”*71”)

4064*1778*1800mm (160”*70”*71”)

Weight

315/355kg

352/380kg

40”HC

63pcs

63pcs



Optional:  14HP KOHLER (13.5HP B&S) manual start

Spare parts: 1) Track: 2m

2) 128/144” Blade(STARRETT BRAND)

3) Blade cover

4) Electrical start





Usage

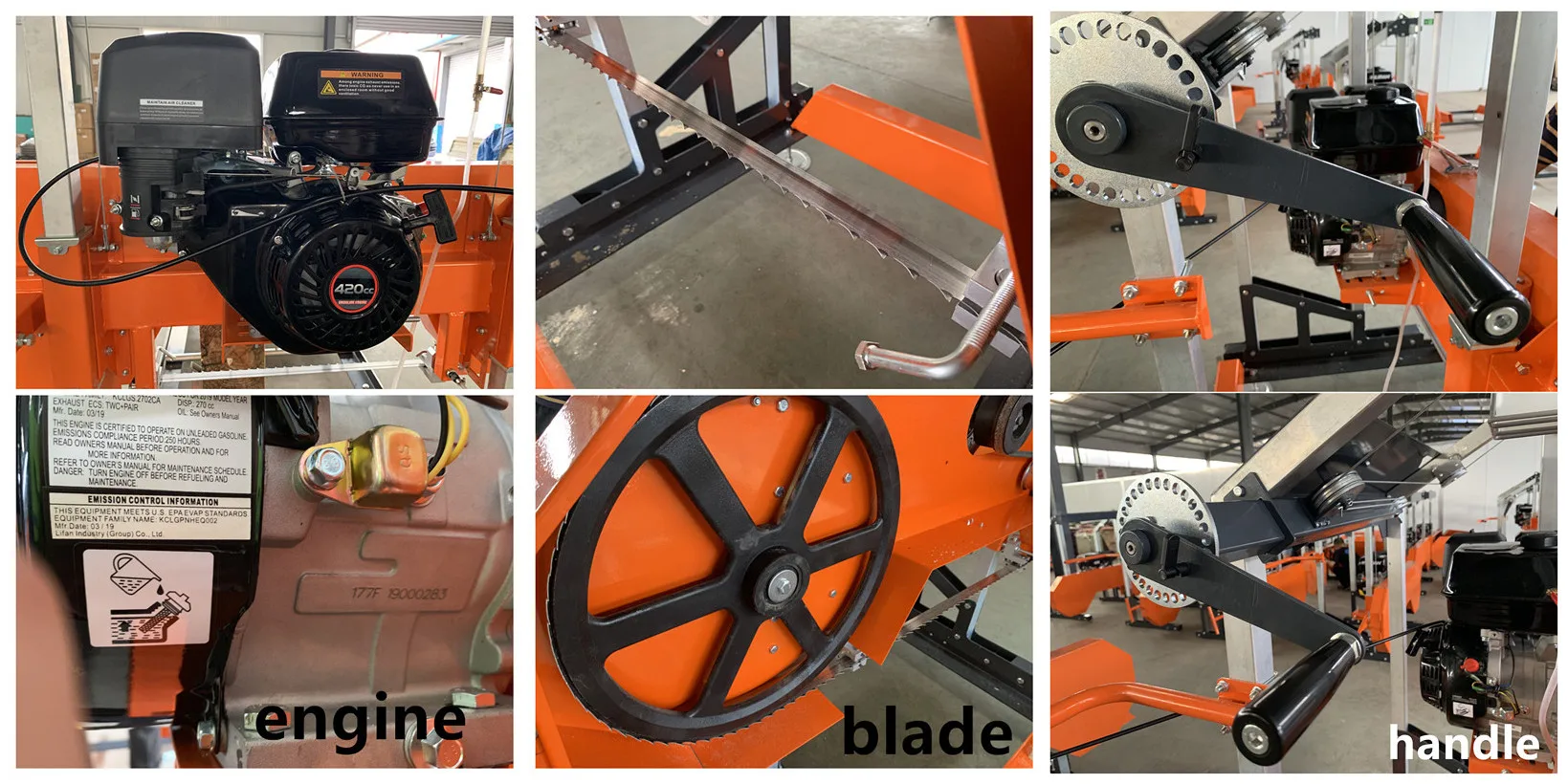

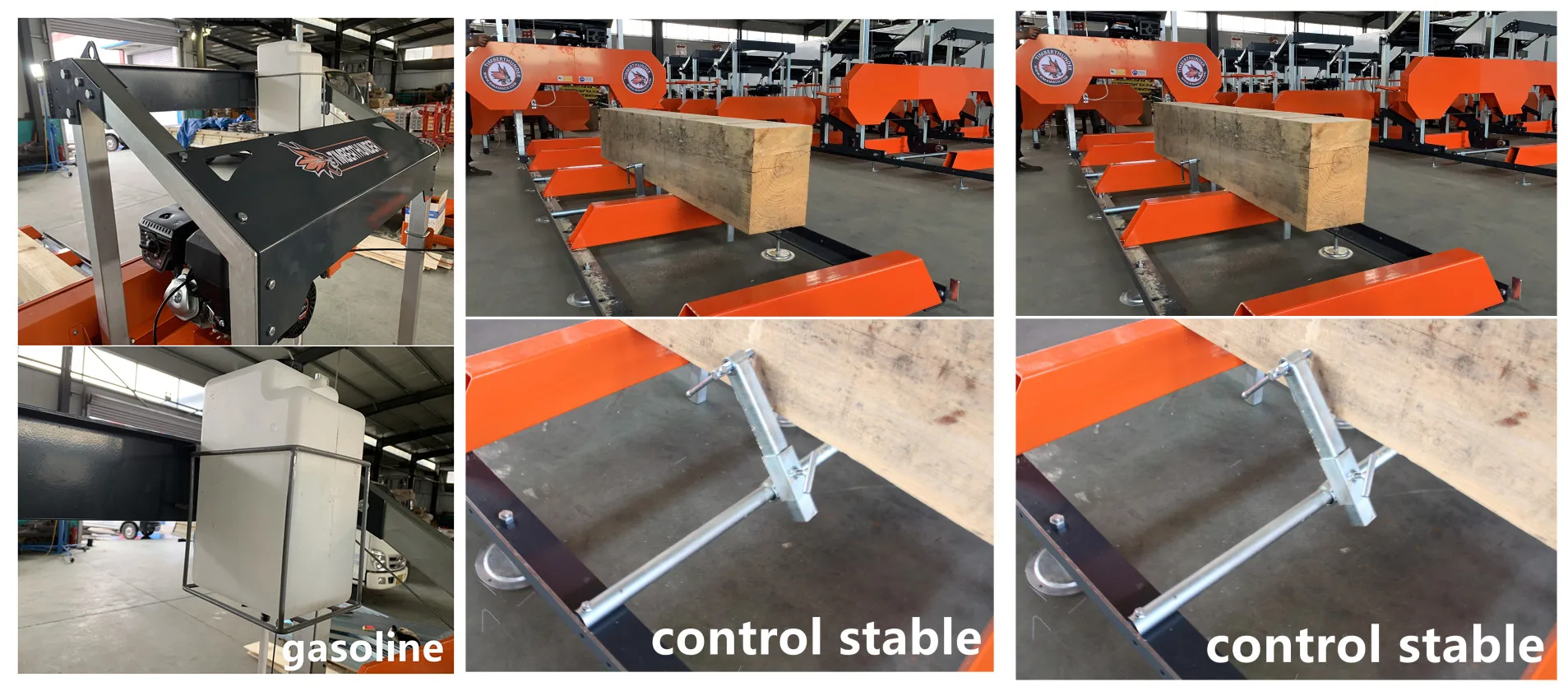

Detailed Images

Features:

1.hand forward and backward,hand lifting.
2.Power is gasoline engine and electric motor.
3.Sawing hard wood customer recommends blades.





Packaging & Shipping



Company Information



RIMA is established in 2009,located in Xibeiyu Industry Zone,Laizhou,Shandong,China.

With its strong technique power,complete set of manufacture equipments and experimental devices,advanced CAD R&D means, the company has complete production capaicty from cutting,profiling,welding,maching,paiting to packing.

RIMA  has aleady manufactured a full range of high quality implements for the small to medium-sized tractor owners across the world,Such as Front End loader, Backhoe, Mower, rotary tiller, Wood Chipper, Log Splitter, Post Hole Diggers. more than 50 serials and more than 150 models of various implements.
