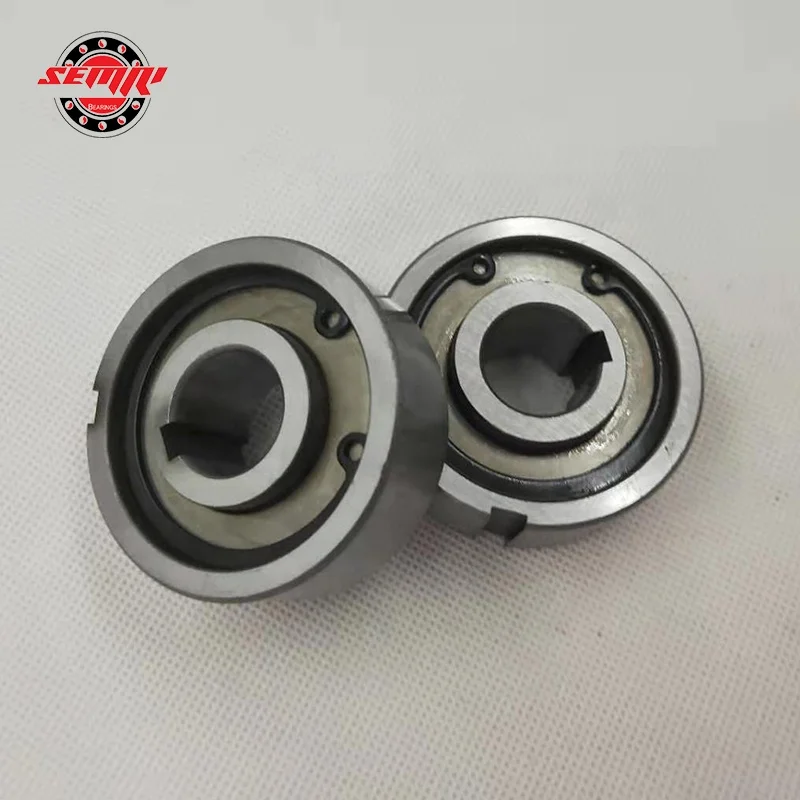

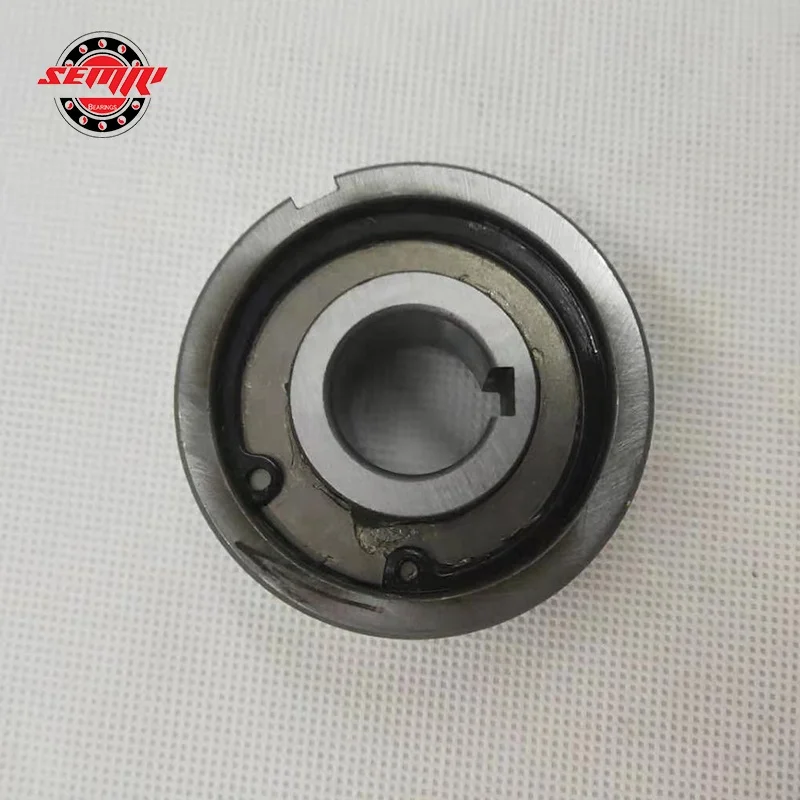

SEMRI Freewheel Backstop One Way Clutch Bearing CKA3-60X24-20

Supplier: Tianjin Semri Bearing Technology Co., Ltd.
Region: Tianjin, China
Contact: Ms Silent Zhang
Price: $13.20 /piece
Min. Order: 1 piece

Click here to contact

Product details

Place of Origin:	Shandong China;	Model Number:	CKA3-60X24-20,CKA3-60X24-20;
Dimension:	20X60X24mm;	Clearance:	C0,C2,C3, or as requested;
Bearing Material:	Gcr15 Chrome Steel;	Precision:	P0, P6, P5, or as requested;
Weight:	0.32kg;	Sample:	Offer;
Structure:	Cylindrical;	Port:	Qingdao;
Type:	roller;	Product Name:	SEMRI Freewheel Backstop One Way Clutch Bearing CKA3-60X24-20;
Applicable Industries:	Hotels,Garment Shops,Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,farms,restaurant,HOME USE,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company,Indurstry;	Brand Name:	SEMRI;
Supply Ability:	900000 Piece/Pieces per Month;	Vibration:	ZV1, ZV2, ZV3, or as requested;
Packaging Detail:	1. Industrial packaging: Plastic tube (10pcs in one tube)+ carton + plywood pallets; plastic bag + kraft paper + carton + plywood pallets; 2.Commercial packing: 1pc/plastic bag+ single color box+ carton + plywood pallets; 3.According to customer's requirements;	Precision Rating:	P0;
Seals Type:	Open;	Service:	OEM/ODM;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal, Quick Pay, etc.;	Number of Row:	single row;
Package Preview:	;

SEMRI Freewheel Backstop One Way Clutch Bearing CKA3-60X24-20

Product Description

Model: CKA3-60*24*20

Inner size:20mm

Outer size:60mm

Width: 24mm

Material: Chrome steel

Seal type: 2RS, Rubber seal

Weight: 0.33KG

Application:one way clutch bearing

Clutch bearing Description

Cam Clutches/Sprag clutches are precision devices which lock the inner and outer races through the wedging action of cams to transmit torque in one direction of rotation, and overrun in the opposite direction. These units are often referred to as freewheels, sprags, overrunning, backstop or one-way clutches, depending upon their application.

The freewheel is a basic part of mechanic drive. They can be widely used in packing machinery machine tool, crane and transport machinery, agriculture machinery, medical apparatus, light industry machinery, printing & dyeing machinery, food machinery, metallurgical and mining machinery, power equipment, machine drive parts of test stands, etc.

CK series cam overrunning clutches are 20 types and 1000 specifications. Type CKA, CKB(B200),CKZ(MG series clutch) are one way cam freewheel and type CKF is centrifugal lift off cam type freewheel with the inner race rotating . Type CG is roller type one way clutch. Type CKS is a Bi-directional clutch.

Related Models of CKA One way clutch bearing

Item	Model	Dimension						(N.m)
		Outer Ring			Inner Ring				(r/min)
		D(h7)			d(H7)
		D(h7)	b×t	B	d(H7)	b1×t1	C
1	CKA42×24×15	42	3×1.8	23	15	3×1.4	24	35	2500
2	CKA47×24×17	47	3×1.8	23	17	3×1.4	24	35	2500
3	CKA50×24×10	50	3×1.8	22	10	3×1.4	24	35	2500
4	CKA1	50	3×1.8	22	12	3×1.4	24	35	2500
5	CKA52×24×16	52	5×1.9	22	16	5×1.9	24	35	2500
6	CKA52×24×20	52	3×1.8	23	20	3×1.4	24	35	2500
7	CKA2	55	4×2.5	22	18	4×1.8	24	50	2250
8	CKA60×22×19	60	6×3.5	22	19	6×2.8	22	65	2250
9	CKA3	60	6×3.5	22	20	6×2.8	24	65	2000
10	CKA62×24×25	62	4×2.5	23	25	4×1.8	24	100	2000
11	CKA63×26×23	63	6×3.5	24	23	6×2.8	26	100	2000
12	CKA63×26×24	63	6×3.5	24	24	6×2.8	26	100	1800
13	CKA4	63	6×3.5	24	25	6×2.8	26	100	1800
14	CKA63×32×24	63	6×3.5	30	24	6×2.8	32	140	1800
15	CKA5	63	6×3.5	30	25	6×2.8	32	140	1800
16	CKA65×26×24	65	6×3.5	24	24	6×2.8	26	140	1800
17	CKA65×32×24	65	6×3.5	30	24	6×2.8	32	140	1800
18,	CKA65×32×25	65	6×3.5	30	25	6×2.8	32	140	1800
19	CKA70×24×20	70	6×3.5	22	20	6×2.8	24	150	1500
20	CKA70×32×12	70	8×4.0	30	12	3×1.4	32	150	1500
21	CKA70×32×25	70	8×4.0	30	25	8×3.3	32	150	1500
22	CKA6	70	8×4.0	30	28	8×3.3	32	150	1500
23	CKA72×27×25	72	6×3.5	20	25	8×3.3	27	180	1500
24	CKA72×24×30	72	5×3.0	23	30	5×2.3	24	180	1500
25	CKA75×40×25	75	8×4.0	30	25	8×3.3	40	180	1500
26	CKA78×51×25	78	8×4.0	30	25	8×3.3	51	180	1500
27	CKA80×26×20	80	8×4.0	26	20	6×2.8	26	200	1500
28	CKA80×26×30	80	8×4.0	26	30	8×3.3	26	200	1500
29	CKA80×30×30	80	8×4.0	30	30	8×3.3	30	200	1500
30	CKA80×30×35	80	8×4.0	28	35	6×2.8	30	200	1500
31	CKA80×31×35	80	12×4.0	31	35	10×2.5	31	200	1500
32	CKA80×32×22	80	8×4.0	30	22	6×2.8	32	200	1500
33	CKA80×32×25	80	8×4.0	32	25	8×3.3	32	200	1500
34	CKA7	80	8×4.0	30	30	8×3.3	32	200	1500
35	CKA80×70×22	80	10×4.6	32	22	6×2.8	70	200	1500
36	CKA85×28×30	85	5×3.0	20	30	8×3.3	28	200	1500
37	CKA85×28.5×25	85	5×3.0	20	25	8×3.3	28.5	200	1500
38	CKA85×30×35	85	8×3.0	30	35	8×3.0	30	200	1500
39	CKA85×32×35	85	8×4.0	30	35	8×3.3	32	200	1500
40	CKA85×43×35	85	8×4.0	24	35	8×3.3	43	200	1500
41	CKA90×33×40	90	8×4.0	33	40	8×3.3	33	250	1250
42	CKA90×37×25	90	8×4.0	37	25	8×3.3	37	250	1250
43	CKA91.5×25×43	91.5	7×2.0	25	43	10×4.0	25	250	1250
44	CKA98×42.4×25	98	8×4.0	42.4	25	8×3.3	42.4	250	1150
45	CKA100×30×45	100	8×4.0	28	45	6×2.8	30	350	1150
46	CKA100×34×22	100	10×5.0	32	22	8×3.3	34	350	1150
47	CKA100×34×28	100	10×5.0	32	28	8×4.3	34	350	1150
48	CKA100×34×29	100	10×5.0	32	29	8×3.3	34	350	1250
49	CKA8	100	10×5.0	32	35	10×3.3	34	350	1250
50	CKA100×34×38	100	10×5.0	32	38	10×3.3	34	350	1250
51	CKA100×34×40	100	10×5.0	32	40	10×3.3	34	350	1250
52	CKA100×48×42	100	10×5.0	32	42	12×2.8	48	350	1250
53	CKA100×64×40	100	10×5.0	32	40	12×3.3	64	350	1250
54	CKA100×64×42	100	10×5.0	32	42	12×3.3	64	350	1250
55	CKA100×67×38	100	8×4.0	25	38	10×3.6	67	350	1250
56	CKA100×67×40	100	8×4.0	25	40	10×3.6	67	350	1250
57	CKA105×34×35	105	10×5.0	32	35	10×3.3	34	400	1000
58	CKA105×35×30	105	10×5.0	20	30	8×3.3	35	400	1000
59	CKA105×35×30	105	10×5.0	20	30	8×3.3	35	400	1000
61	CKA110×32×25	110	6-φ9	32	25	8×3.3	32	400	1000
62	CKA110×34×30	110	10×5.0	32	30	8×3.3	34	400	1000
63	CKA110×34×35	110	10×5.0	32	35	10×3.3	34	400	1000
64	CKA110×34×35F2	110	6×3.6	32	35	10×3.3	34	400	1000
65	CKA110×34×38	110	10×5.0	32	38	10×3.3	34	400	1000
