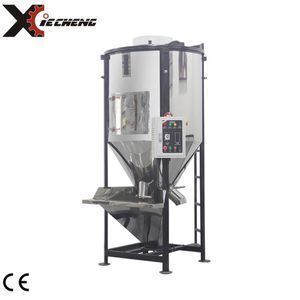

Industrial stainless steel high capacity plastic granular mixing horizontal paddle mixer

Supplier: Jiangmen Xiecheng Machinery Co.,Ltd.
Region: Guangdong, China
Contact: Ms Amy Chau
Price: $2500.00 /set
Min. Order: 1 set

Click here to contact

Product details

function:	mixing;	Electric motor:	YUANLI Brand;
Condition:	New;	hopper material:	stainless steel;
Production Capacity:	500kg/h;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Certification:	CE;	Supply Ability:	500 Set/Sets per Month;
Application:	plastic granular mixing;	Place of Origin:	Guangdong China (Mainland);
Brand Name:	XIECHENG;	After-sales Service Provided:	Overseas third-party support available;
Automatic Grade:	Automatic;	After-sales Service Provided:	Online support,Video technical support;
mixing material:	plastic granular;	Port:	JIANGMEN/SHENZHEN/GUANGZHOU;
Power(W):	2.2kw;	Weight:	450kg;
rotating speed:	300r/min;	Dimension(LWH):	145011002200mm;
type:	stainless steel high capacity Industrial stirrer;	Warranty:	1 year;
Packaging Detail:	standard wooden carton or according to customer requirement;	Voltage:	380V/50Hz/3Phase as usual;

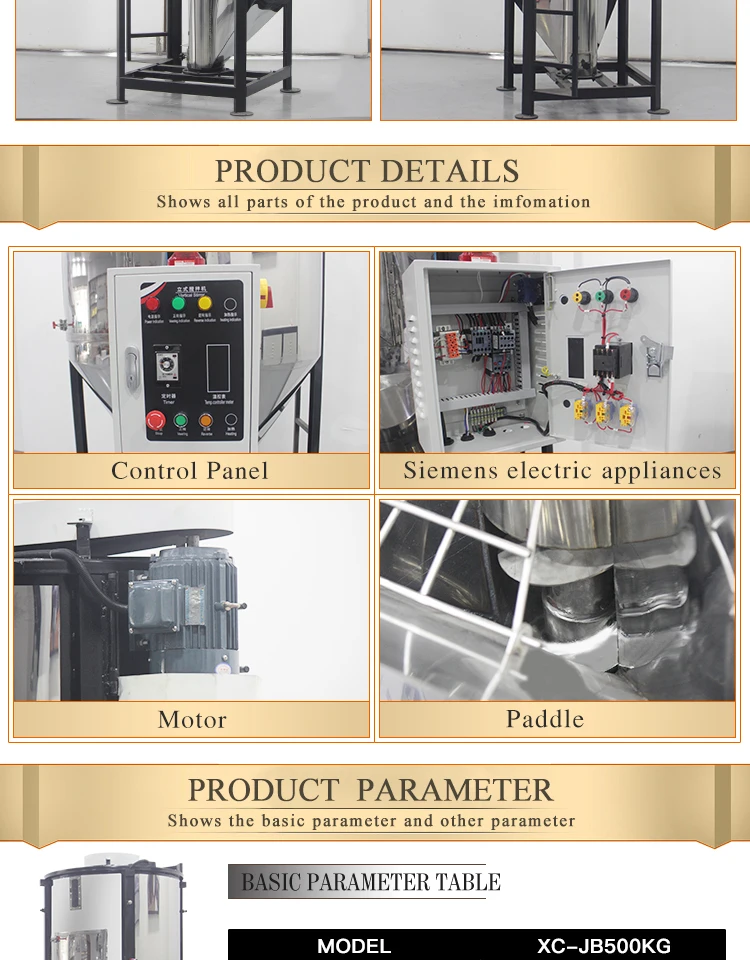

Industrial stainless steel high capacity plastic granular mixing horizontal paddle mixer

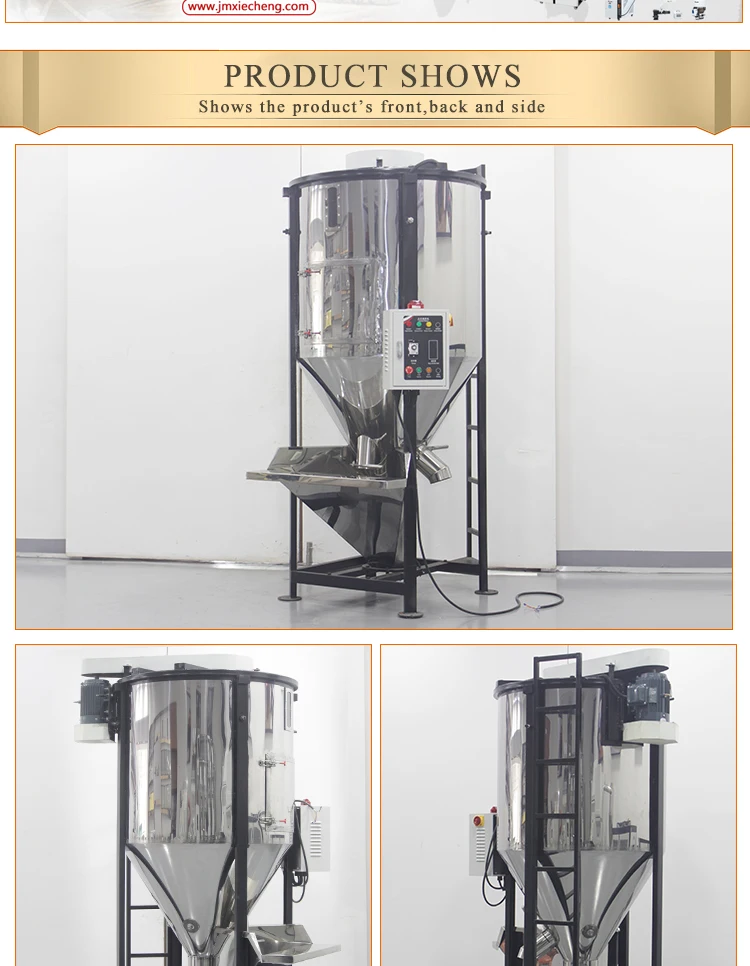

XC-JBL Series industrial stirrer

Helical circular mixture, fast and evenly stirring

Suitable for all kinds of plastic raw materials and color powder or granules

Fully stainless steel contacting parts, rust free and easy to clean

Installed with power control device to ensure safety

Customizable for drying type model

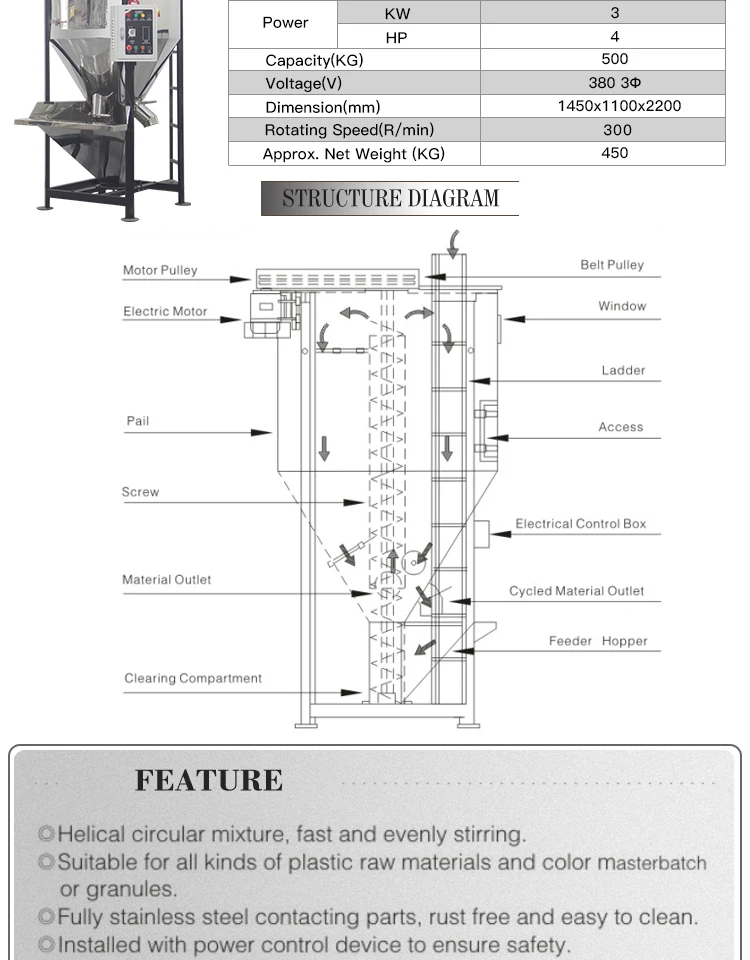

Vertical stirrer are able to perform even mixture for large volume of materials in short mixing time by utilizing the paddles rotation to gather the material from the bottom of dump center to the top, shed the material flow back to the bottom and complete the mixing function in short period of time

...

Specifications

Model	Power(Hp)	Capacity(kg)	Voltage(V)	Dimension(cm)	Rotating speed(r/min)	Approx.Net weight(kg)
XC-JB500L	3	500	380/3φ	145110220	300	450
XC-JB1000L	4	1000	380/3φ	158138310	300	630
XC-JB2000L	5	2000	380/3φ	189168347	300	1050
XC-JB3000L	7.5	3000	380/3φ	158100140	300	1250
