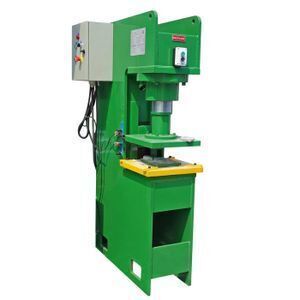

Natural stone hydraulic stamping machine splitting special shape

Supplier: Xiamen Bestlink Factory Co., Ltd.
Region: Fujian, China
Contact: Mr Richard Chen
Price: $3600.00 /set
Min. Order: 1 set

Click here to contact

Product details

Port:	Xiamen;	Supply Ability:	100 Set/Sets per Month;

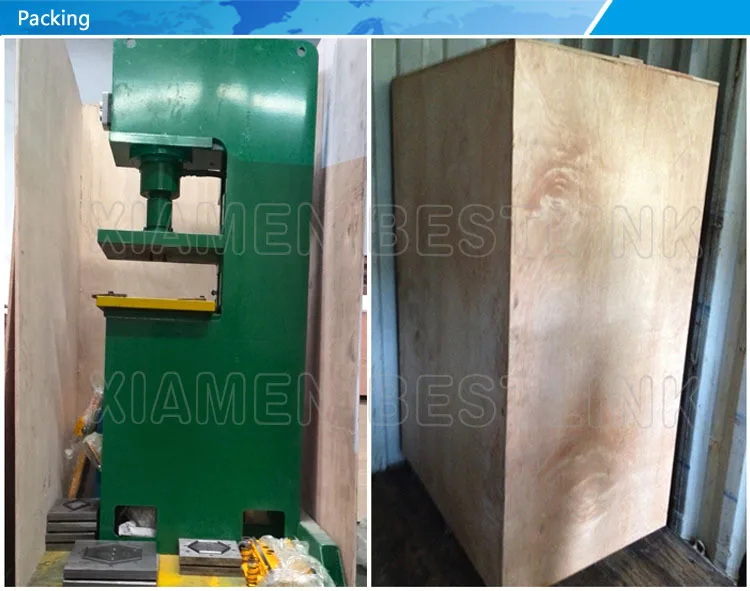

Packaging Detail:	Polywood packing;	After Warranty Service:	Video technical support,Online support;
Mould/Dies:	more than 40 shapes;	Place of Origin:	Fujian China;

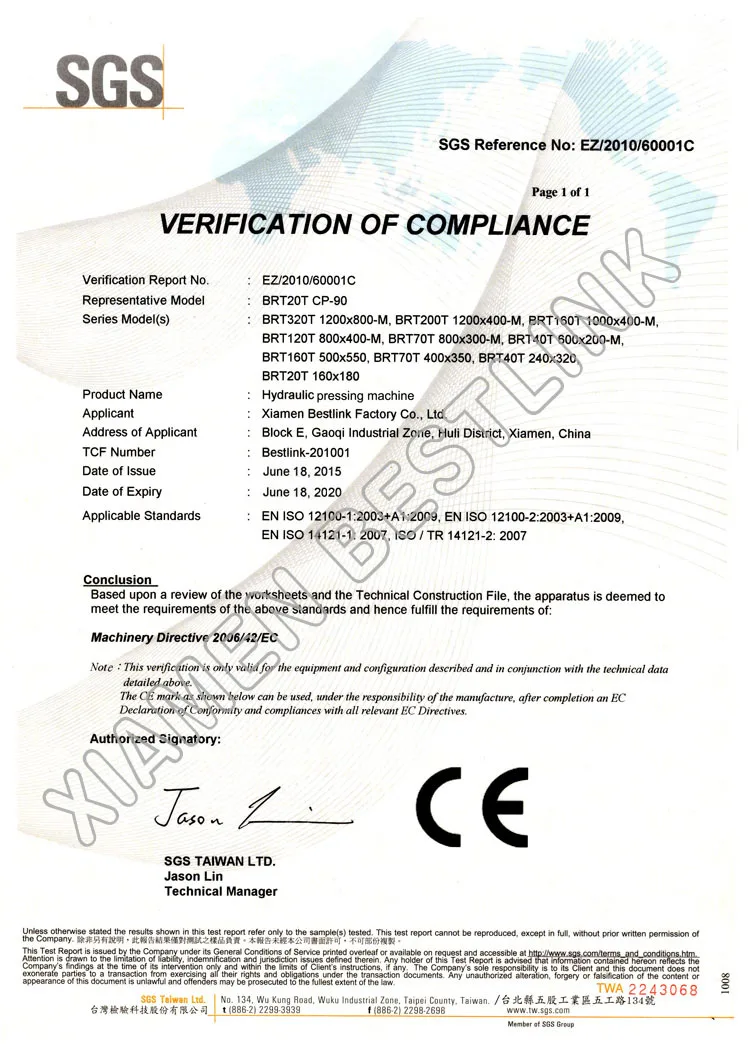

Applicable Industries:	Retail,Construction works ,Energy & Mining;	Certification:	CE,ISO;
Key Selling Points:	Easy to operate;	Weight:	600kg;
Condition:	New;	Payment Terms:	L/C,T/T,Western Union,MoneyGram;
Local Service Location:	none;	Brand Name:	BESTLINK;
Production Capacity:	120㎡/8 hours;	Type:	Stone cutting machine;
Voltage:	220V,380V;	After-sales Service Provided:	Online support,Video technical support;
ODM and OEM:	yes;	Warranty:	1 YEAR;
Showroom Location:	none;	Dimension(LWH):	180012001000mm;
Application:	for marble,granite and sandstone,etc.;	Use:	granite;
Power:	4kw/7.5kw;

Natural stone hydraulic stamping machine splitting special shape

1.This hydraulic stone stamping machine is very popular in the world,such as USA,India,United Kingdom,etc...

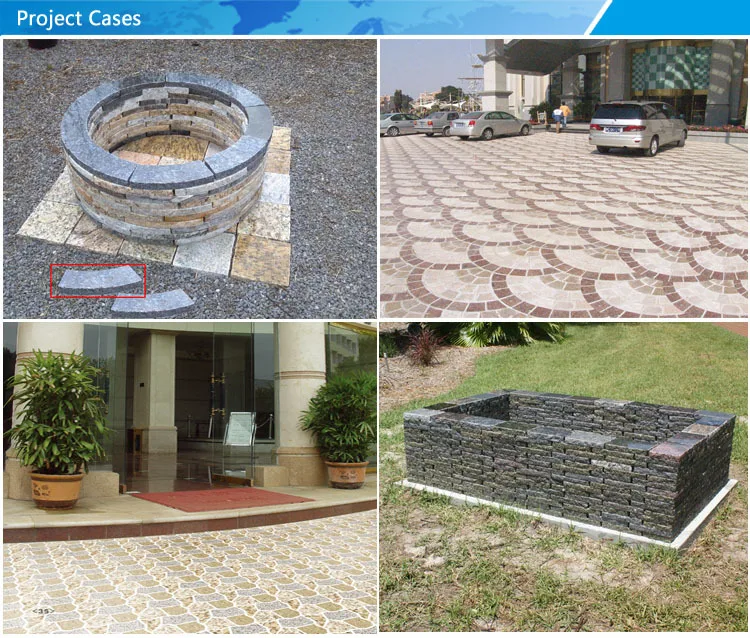

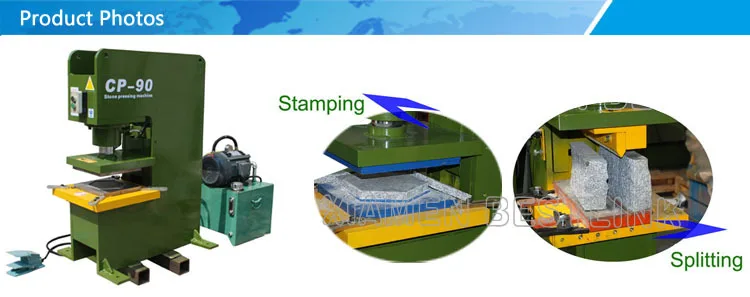

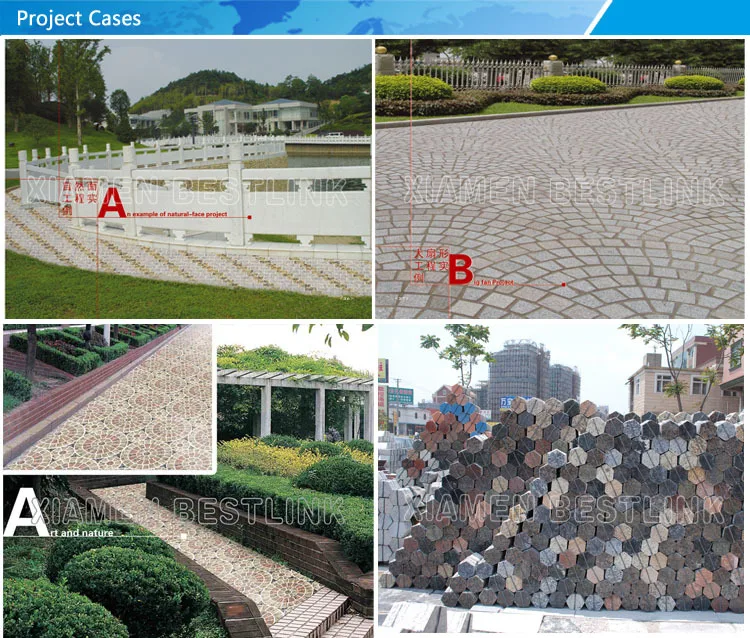

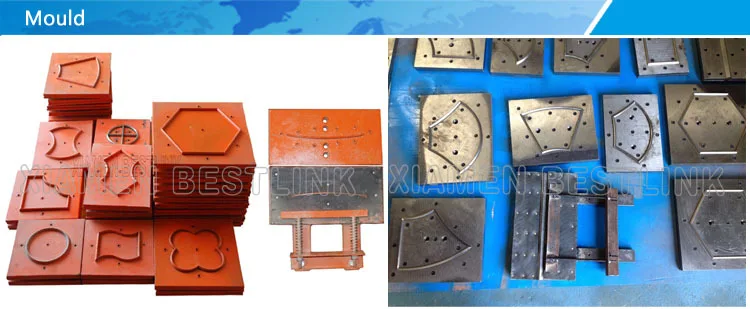

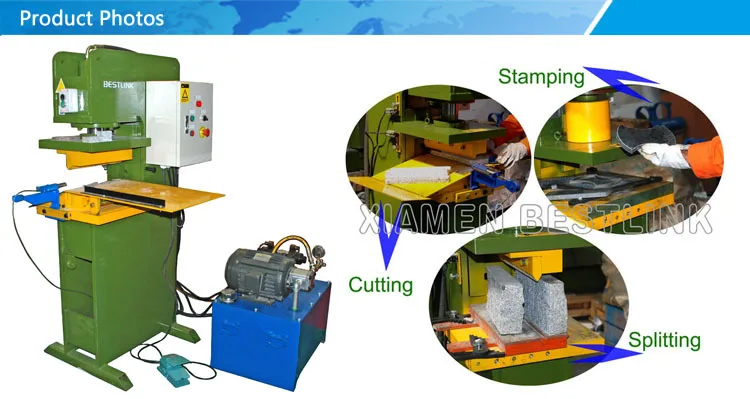

The hydraulic stamping machine is specially designed for changing the leftovers of slabs or tiles into amazing paving stones. It could stamp more than 40 different shapes by different dies with hydraulic system inside. And we could make special designs according to your requirements. This machine has very compact structure. It is easily operated and maintained. It has the output around 100-120m² per day. The standard splitting power is 20 ton, maximum processing stone size is 30cm×30cm×5cm(L*W*H). We can adjust the hydraulic system with 40tons splitting force, then it can process the slabs up to 8cm in thickness. There are 2 types: CP90 (A) and CP90 (B). CP90 (A) has two functions---- stamping and cutting, while CP90 (B) has one more special device to split the slabs into natural face strip in rapid succession.

Technical specifications

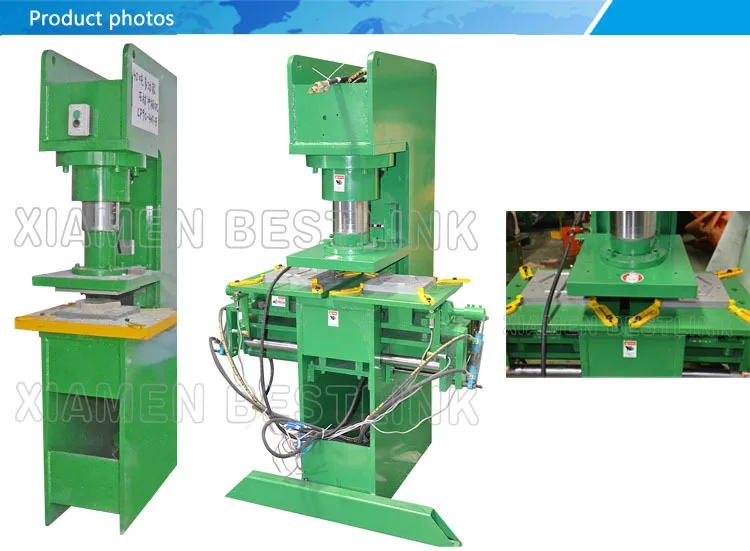

Model	CP90-20T-A	CP90-40T-A	CP90-20T-B	CP90-40T-B	CP90(40T automatic)
Hydraulic pressure	20Mpa	20Mpa	20Mpa	20Mpa	20Mpa
Splitting power	20T	40T	20T	40T	40T
Electric motor power	4kw	7.5kw	4kw	7.5kw	7.5kw
Max.slab stamping size	30cm×30cm×5cm	30cm×30cm×8cm	30cm×30cm×5cm	30cm×30cm×8cm	30cm×30cm×8cm
Max splitting length	30cm	35cm	30cm	35cm
Max splitting height	1-5cm	5-8cm	1-5cm	5-8cm	1-5cm
Machine size	7086113cm	80100150cm	80100150cm	80100150cm	80100150cm
Weight	420kg	550kg	500kg	580kg	650kg
Fuctions	stamping,splitting	stamping,splitting	stamping,cutting,splitting	stamping,splitting,cutting	stamping
