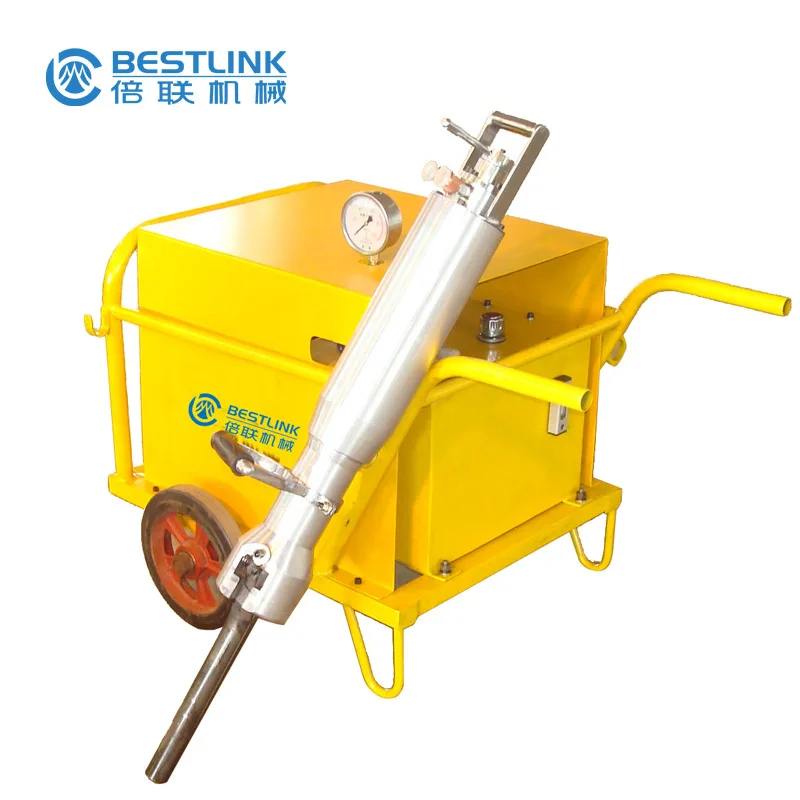

Darda hydraulic rock splitter cylinder C12(N) with diesel engine

Supplier: Xiamen Bestlink Factory Co., Ltd.
Region: Fujian, China
Contact: Mr Richard Chen
Price: $3650.00 / >=2 sets
Min. Order: 2 sets

Click here to contact

Product details

Brand Name:	BESTLINK;	Machinery Test Report:	Provided;
Color:	white;	Warranty:	More than 5 Years;
Package size per batch:	XX cm;	Showroom Location:	none;
Condition:	New;	Selling Units:	Multiple of 1;
Gross weight per batch:	350.0 KG;	Video outgoing-inspection:	Provided;
Core Components:	engine;	Type:	Rock Splitter;
engine:	pneumatic,electric,diesel,gasoline;	Applicable Industries:	Construction works ;
After-sales Service Provided:	Online support;	Warranty of core components:	1 YEAR;
Place of Origin:	Fujian China;	Local Service Location:	none;
Marketing Type:	Hot Product 2019;	Usage:	for quarrying and civil construction;

Darda hydraulic rock splitter cylinder C12(N) with diesel engine

Driven Mortor: Electric / Diesel / Gasoline / Pneumatic.

we already successfully copied the same cylinder from German Darda, and the model no. is C12 (N), it have the exact same shape,same parts and same performance as the original one.

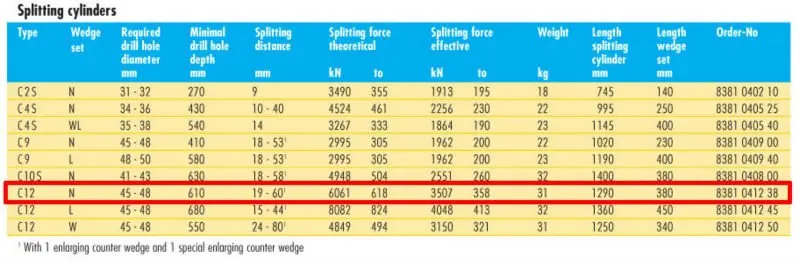

Inner diameter of the cylinders:

Darda cylinder: 105mm

Technical data of Diesel engine

Power model	overall size(mm)	Weight(kg)	Oil pumping station reserves(L)	Engine Power	Working pressure(MPa)	flux(L/m)	Towable of splitter quantity(pc)
Diesel engine	11501180940	260	40	5.15KW	55-60	2-13	1-10

Technical data of Gasoline engine

Power model	overall size(mm)	Weight(kg)	Oil pumping station reserves(L)	Engine power	Working pressure(MPa)	Flux(L/m)	Towable of splitter quantity(pc)
Gasoline model	12001170800	100	40	7.5HP	55-60	2-13	1-10

Technical data of electric engine

Power model	overall size(mm)	Weight	Oil pumping station reserves (L)	Engine power	Working pressure(MPa)	Flux	Towable of splitter quantity(pc)
Power model		(kg)	Oil pumping station reserves (L)	Engine power	Working pressure(MPa)	(L/M)	Towable of splitter quantity(pc)
Electric motor		23	5	0.75KW(220V/380V)	55-60	0.7	1
	384280620	75	30	3KW(380V)	55-60	2	1-3
				7.5KW(380V)	55-60	13	1-10

Technical data of pneumatic model

Power model	overall size(mm)	Weight	Oil pumping station reserves (L)	rotating speed(r.p.m)	Rated power(kw)	Oil flux(L/m)	Working pressure(MPa)	Towable of splitter quantity(pc)
Air motor	384280620	70kg	30	2000	4.10	2-13	55-60	1-10
